Professional Current Transformer Test Kit CT PT Analyzer For Electrical Power
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-202 |
| Minimum Order Quantity | 1 |
| Price | 1800usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Place Of Origin | Hubei, China | Power | Electronic |
|---|---|---|---|
| Model Number | NRFA-H | Excitation Output Voltage | 0 ~ 2500V |
| Transformation Ratio Output Current | 0~1000A | PT Ratio Measurement Range | 1 ~ 500KV |
| Resistance Measurement Range | 0.1 ~ 300Ω | Operating Environment | Temperature: -10℃ ~ +40℃, Humidity: < 90RH% |
| Customized Support | OEM, ODM | Warranty | 1 Year |
| Load Range | 5 ~ 500VA | Excitation Output Current | 0 ~ 20 A |
| Error | ≤ 0.5% (0.2%*Reading+0.3%*Range) | ||
| Highlight | Electrical Power ct pt analyzer,Electrical Power ct pt analyzer,2500V transformer test kit |
||
Product Description

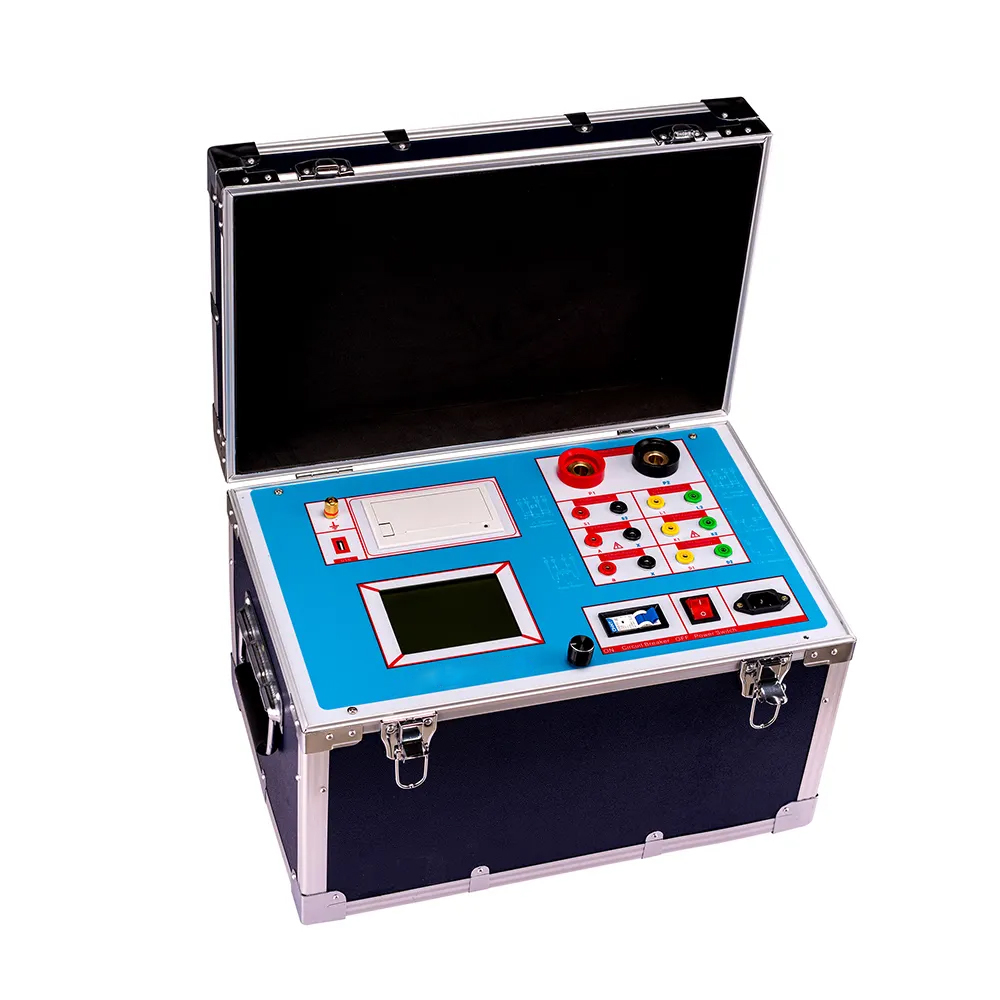

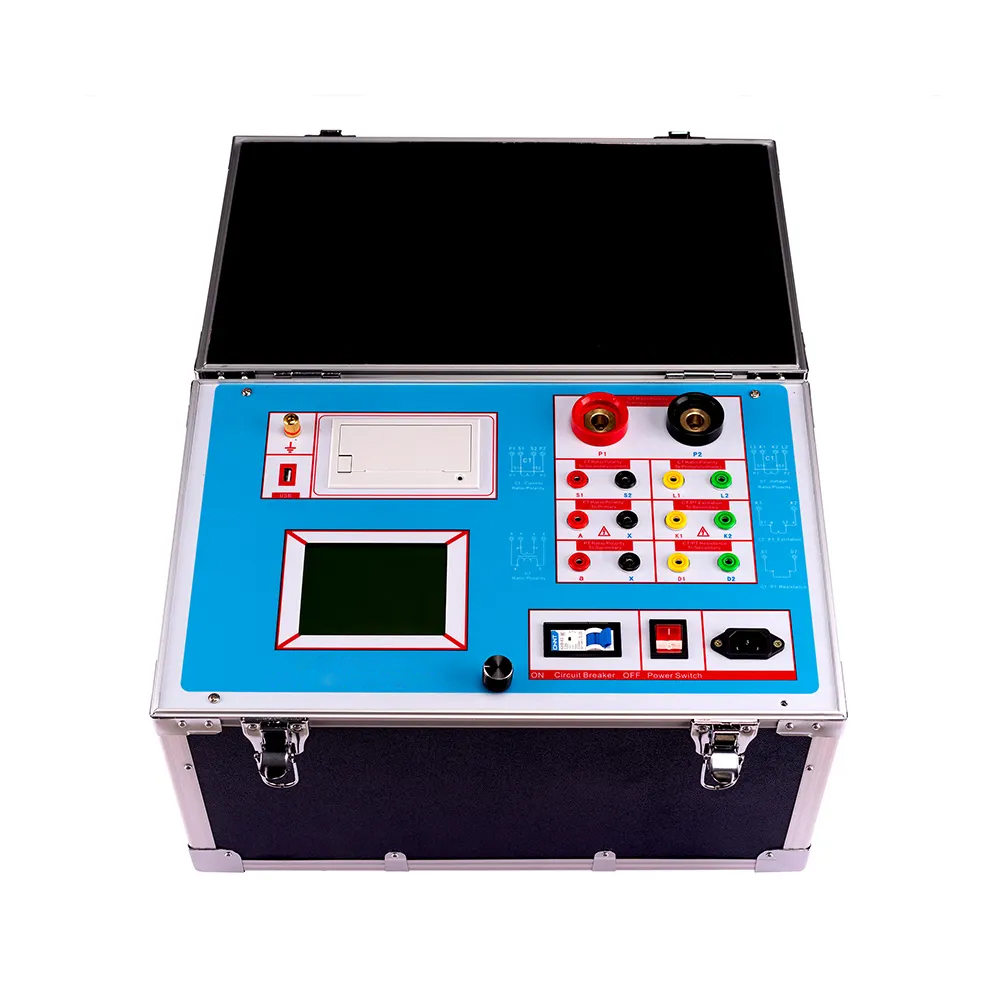

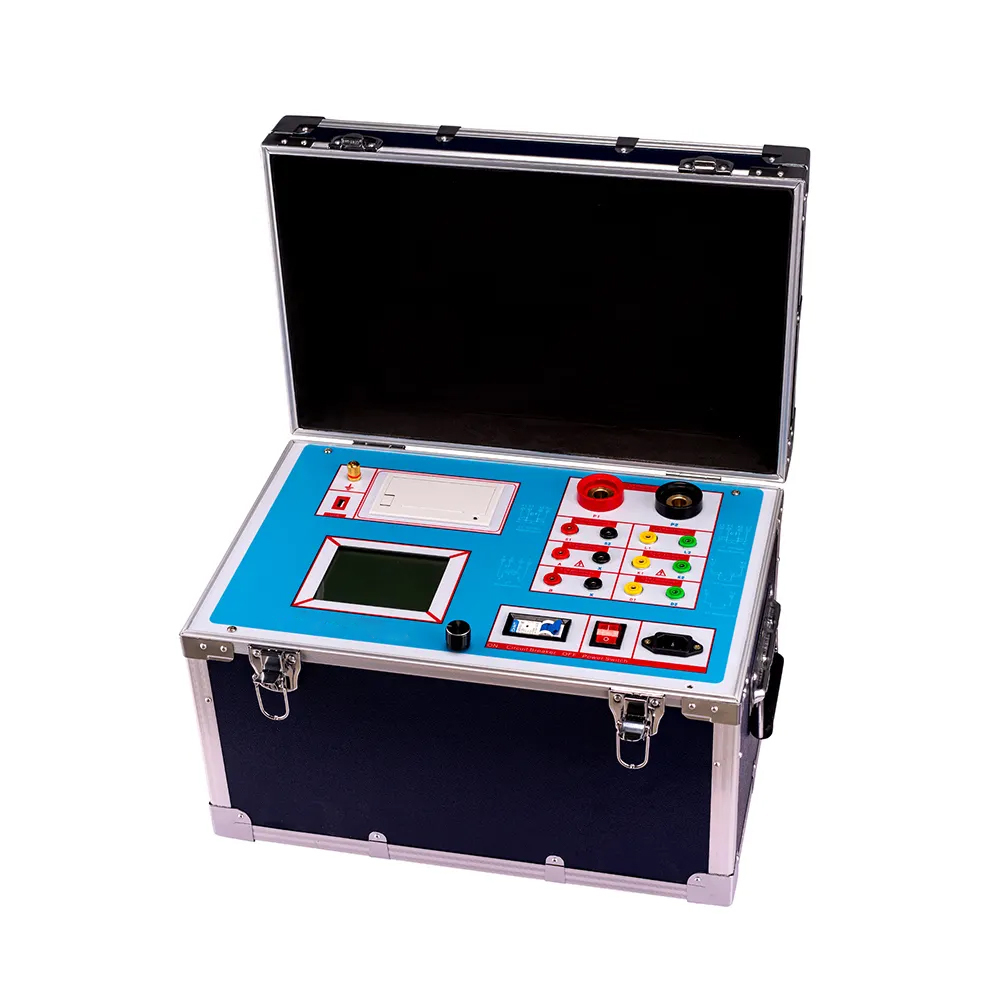

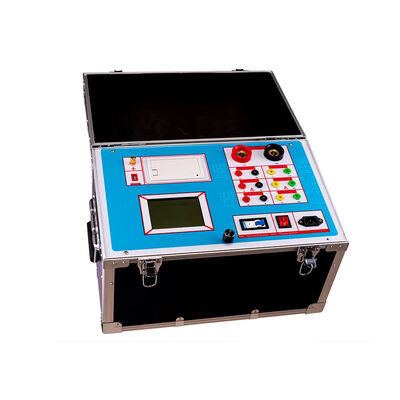

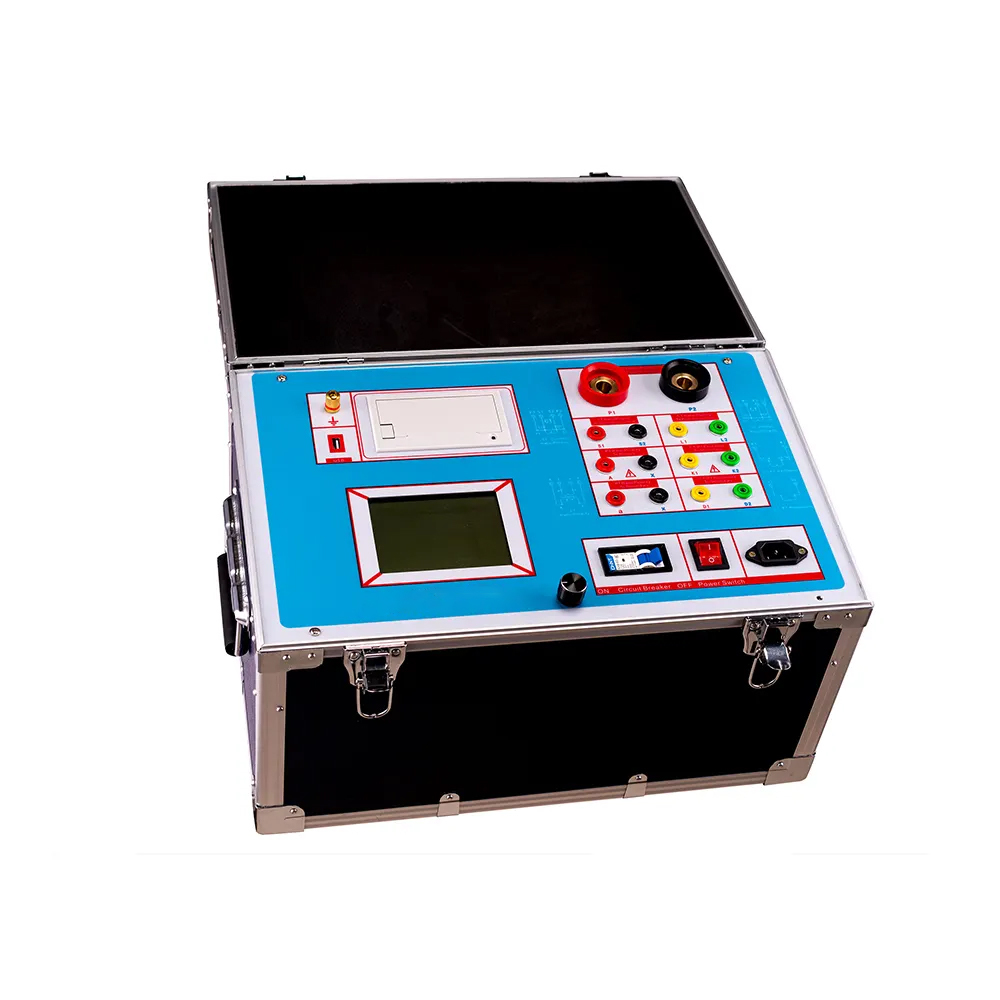

Professional Current Transformer Test Kit CT PT Analyzer
High performance electrical current transformer and voltage transformer analyzer designed for comprehensive testing in electrical power systems.
Measurement Functions
Current Transformer (CT) Testing
- Excitation Curve (Magnetization Curve)
- Transformation Ratio Test
- Polarity
- 5% and 10% Error Curve
- Current Test
- Error Test (Phase error and ratio error)
- AC Withstand Test of Power Frequency
- Automatic Calculation of Excitation Knee Point Value
- Secondary Load Test
- Resistance Test
- Degauss
Voltage Transformer (PT) Testing
- Excitation Curve (Magnetization Curve)
- Transformation Ratio Test
- Polarity
- AC Withstand Test of Power Frequency
- Error Test (Phase error and ratio error)
- Calculation of Knee Point Value
- Secondary Load Test
- Resistance Test
- Degauss
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | AC220V±20V, 50Hz~60Hz |
| Equipment Power Supply Output Waveform | Sine Wave |
| Output Voltage of Excitation Characteristic | 0 ~ 2500Vrms |
| Excitation Current Set | 0 ~ 20 A |
| Output Current of Transformation Ratio Test | 0 ~ 1000A |
| CT Ratio Measurement Range | 5 ~ 25000A/5A (5000A/1A) |
| PT Ratio Measurement Range | 1 ~ 500KV |
| Load Range | 5 ~ 1000VA |
| Resistance Measurement Range | 0.1 ~ 300Ω |
| Error | ≤ 0.5% (0.3%*Reading+0.2%*Range) |
| Operating Environment | Temperature: -10°C ~ +40°C, Humidity: ≤ 90%, Altitude: ≤ 1000m |
Customization Options
Voltage: AC 100V / 110V / 115V / 120V / 200V / 220V / 230V / 240V can be customized
Input frequency: 50Hz/60Hz can be customized
Note: Users can select the corresponding power voltage based on their local voltage and frequency requirements.
Input frequency: 50Hz/60Hz can be customized
Note: Users can select the corresponding power voltage based on their local voltage and frequency requirements.
