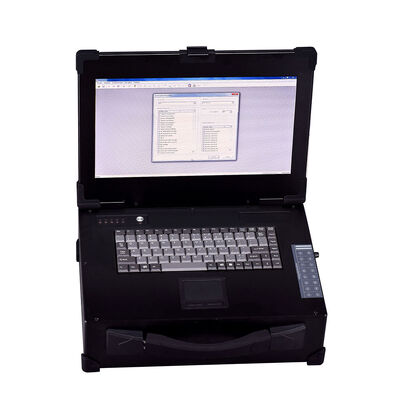

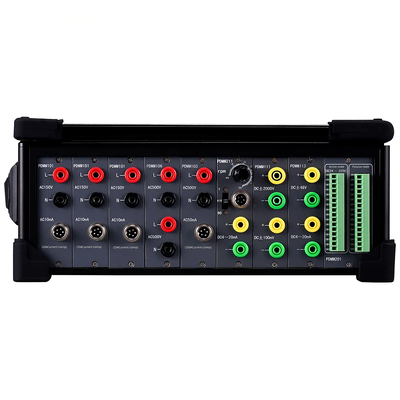

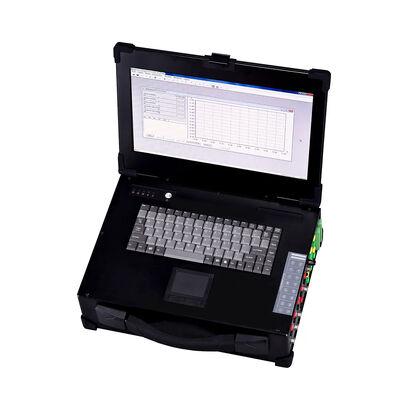

High-Speed Acquisition Portable Wave Recorder, IP55 Electrical Waveform Data Logger for Surge Arrester Testing
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYRD |
| Minimum Order Quantity | 1 |
| Price | 10000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Voltage | Other |
|---|---|---|---|
| Accuracy Class | High Accuracy | Protection Class | IP55 |
| Customized Support | OEM, ODM, OBM, Software Reengineering | Machine Box | Portable Industrial Control Case |
| Operating System | Embedded WES7 | Place Of Origin | Hubei, China |
| Keyboard, Mouse | 88-key Keyboard, Touchpad | Interface | 1 LAN Port, 2 USB |
| Packing | Wooden Carton | Size | 407*307*150(mm) |
| Warranty | 2 Years | ||
| Highlight | High-Speed Acquisition Portable Wave Recorder,IP55 Protection Electrical Waveform Data Logger,Embedded WES7 Surge Arrester Tester |
||
Product Description
Portable Wave Recorder Electrical Waveform High-Speed Acquisition Data Logger
A comprehensive portable data acquisition system designed for electrical waveform monitoring, fault recording, and power quality analysis in industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Box | Portable industrial control case |
| Operation System | Embedded WES7 |
| Display | 15.6" LCD display, resolution: 1366*768 |
| Storage | 120GB SSD |
| Interface | 1 LAN port, 2 USB ports |
| Keyboard, Mouse | 88-key keyboard, touchpad |
| Power Supply | AC85-260V 50Hz±0.5Hz, DC110-370V |
| Machine Box Size (L*W*H) | 407*307*150 (mm) |
| Weight | 10kg |
Key Functions & Characteristics
- Fault Recorder: Monitors connected equipment parameters and performs data recording with fault data analysis during fault conditions
- Real-time Monitoring: Provides real-time monitoring and display of analog and switch quantities
- Calculation Capabilities: Computes active power, reactive power, frequency, positive sequence, negative sequence, zero sequence, vector sum (difference), phase angle, and displays generated calculations in real-time
- Generator Testing: Performs comprehensive generator characteristic tests including no-load tests, short-circuit tests, main excitation no-load and load tests, excitation tests, zero-start boost tests, de-excitation tests, 10% step tests, and concurrent testing
- Versatile Applications: Suitable for online monitoring of critical equipment in power systems, portable fault analysis for industrial equipment, and as a data source providing real-time data to other systems
