High Accuracy Six Phase Secondary Injection Test Equipment Portable Relay Tester
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-1200 |
| Minimum Order Quantity | 1 |
| Price | 3500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Voltage | 220V Electrical Equipment |
|---|---|---|---|
| Warranty | 2 Years | Power | 180W |
| Place Of Origin | Hubei, China | Accuracy Class | High Accuracy |
| Protection Class | IP55 | Customized Support | OEM, ODM, OBM, Software Reengineering |
| Accuracy | ±0.5% | Operating Value Of Phase Current | 10A |
| Time Range | 1ms~9999s | Power Factor | 300VA/phase |
| Highlight | High Accuracy Relay Tester,Six Phase Output Secondary Injection Test Equipment,Portable Design Surge Arrester Tester |
||
Product Description
High Accuracy Six Phase Secondary Injection Test Equipment Portable Relay Tester
This portable relay tester provides high-accuracy six-phase secondary injection testing capabilities for comprehensive electrical protection system verification.
Key Features
- Flexible voltage and current output configuration: Up to 6-phase voltage and 6-phase current output with multiple combination options including 4-phase voltage/3-phase current, 6-phase voltage, 6-phase current, and 12-phase output modes
- Compatible with traditional testing methods and specialized applications including three-phase transformer differential testing and plant power quick cutting self-injection tests
- High-fidelity linear power amplifier technology ensures clean output without high or medium frequency interference, maintaining smooth waveform quality from large to small currents
- Direct computer operation via external laptop or desktop connection for convenient, fast, and stable performance
- High-performance DSP-controlled output with fast operation speed, strong real-time digital signal processing, wide transmission bandwidth, and high-resolution D/A conversion
- Compact, lightweight design with full functionality for easy portability and immediate startup capability
Technical Specifications
| Current Channels | Standard 6 phase |
| Voltage Channels | Standard 6 phase |
| AC Current Output Range | 30A/phase or 180A (six parallel) |
| DC Current Output Range | 10A DC/phase |
| AC Voltage Output Range | 120V AC/phase |
| DC Voltage Output Range | 160V DC/phase |

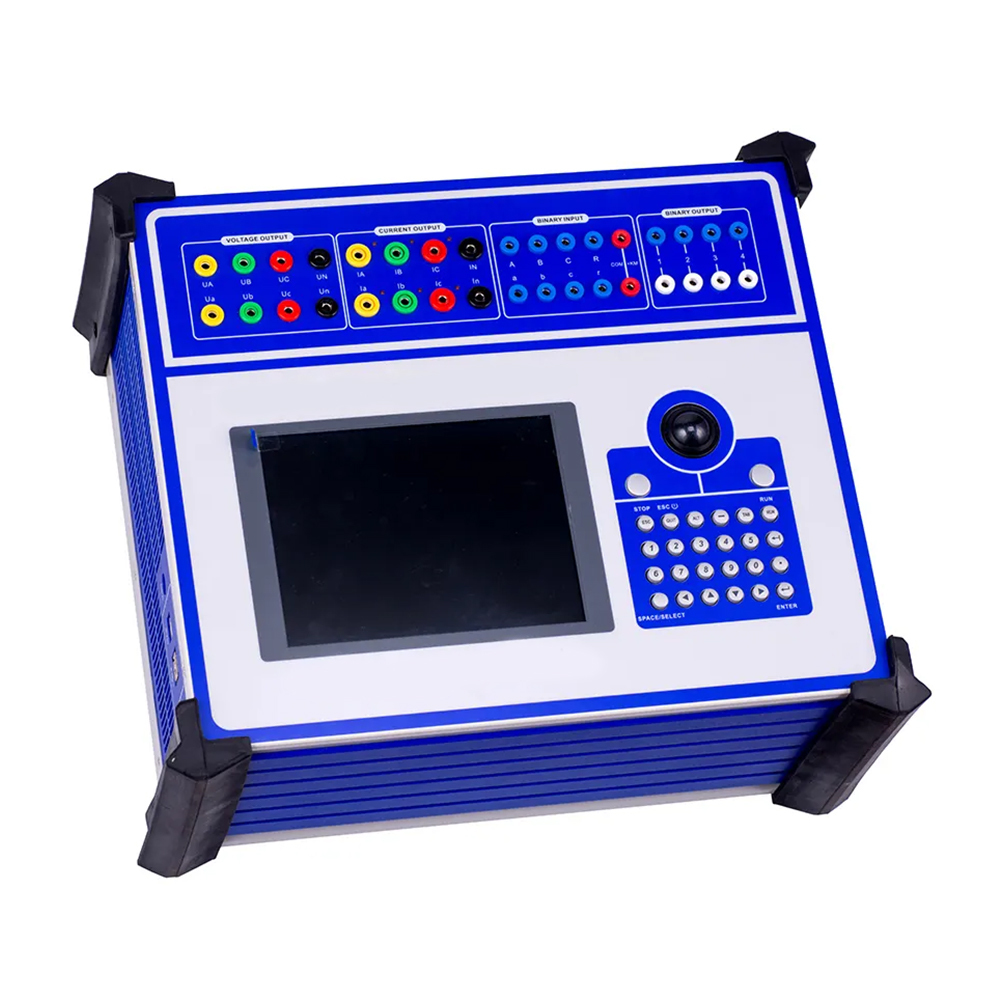

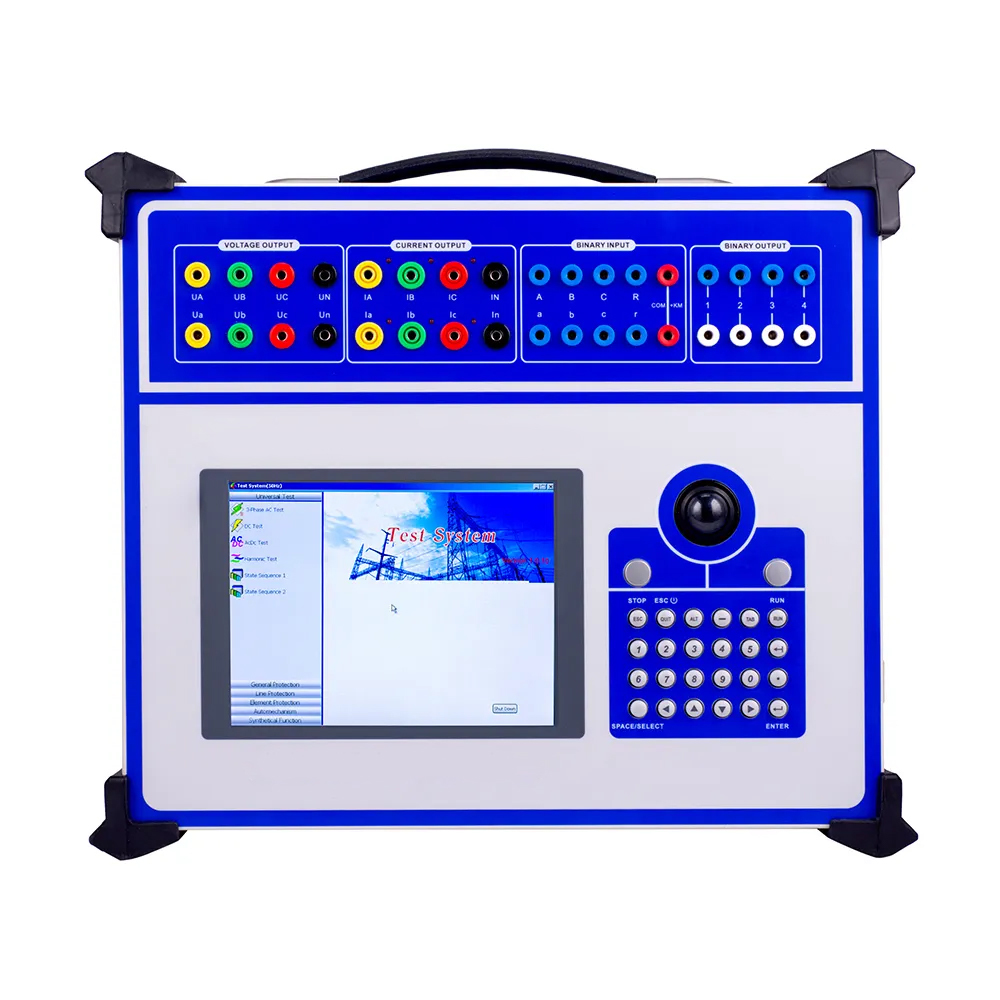

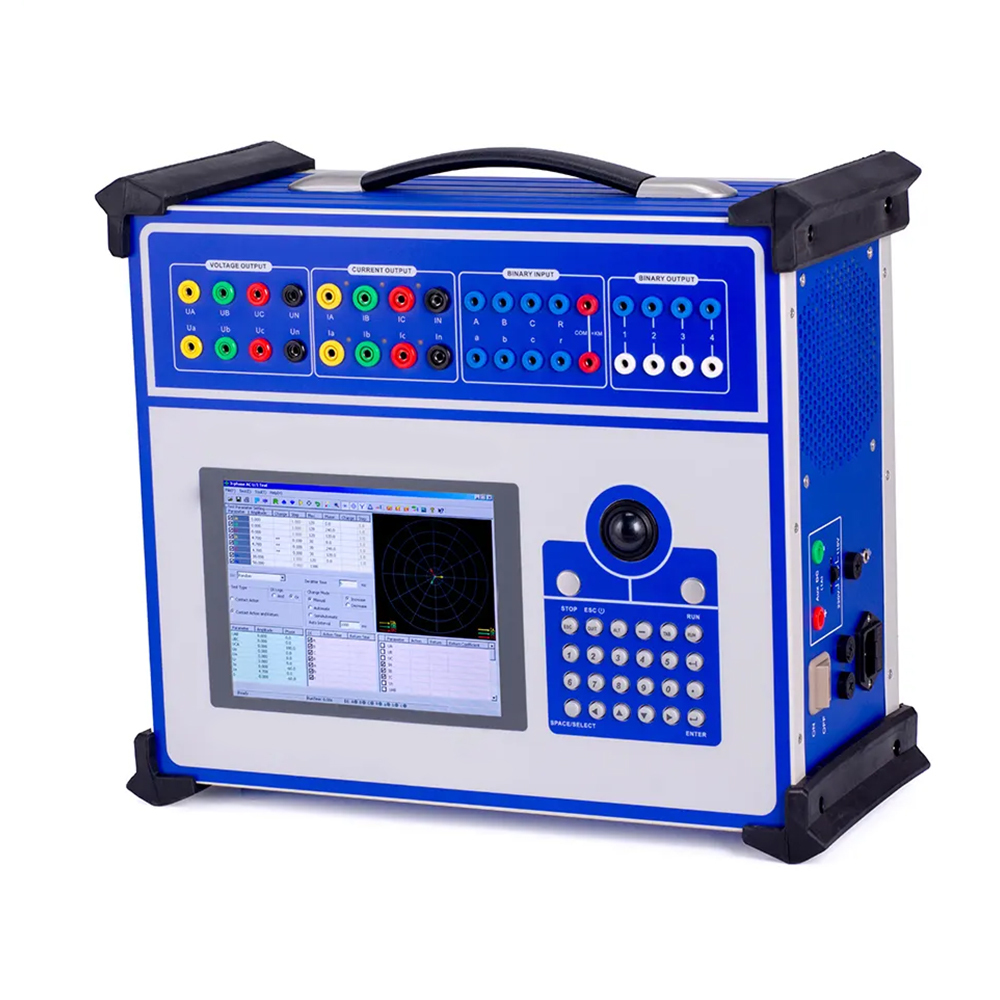

Product Images
