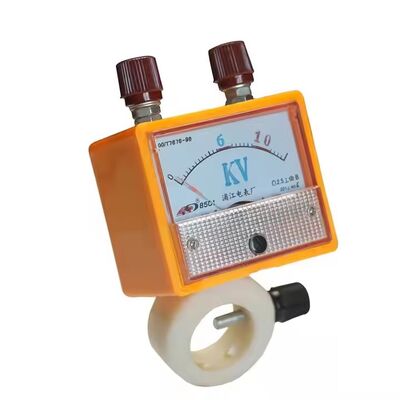

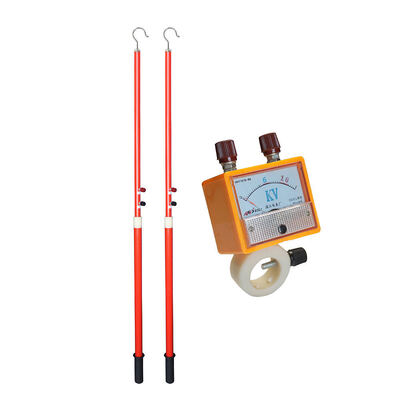

Portable 10kV Line Phasing Tester With Insulated Sticks For Live Power Line Test
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-2000B |
| Minimum Order Quantity | 1 |
| Price | 180usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Protection Class | IP65 |
|---|---|---|---|
| Power | 10 | Application | Electrics |
| Function | Phase Checking | Voltage | Other |
| Customized Support | OEM | Accuracy | 0.05 |
| Place Of Origin | Hubei, China | Warranty | 2 Years |
| Support | OEM,wholesales,dropshipping | Feature | High Efficiency |
| Package | Safety Box | ||
| Highlight | IP65 Protection High Voltage Phasing Sticks Tester,0.05 Accuracy HV Phase Detector,Auto Power Switch HV Detector |
||
Product Description
High Voltage Phasing Sticks Tester HV Phase Detector HV Detector
Professional high voltage phasing sticks tester designed for accurate phase detection in high voltage electrical systems.
Key Features
- Clear audio and visual indicators for phase identification
- Low voltage testing capability (220V or 380V) for equipment verification
- Automatic power management with energy-saving operation
Material Characteristics
| Property | Unit | Value |
|---|---|---|
| Heat resistance (longitudinal) | ℃ | ≥ 200 |
| Shock resistance (longitudinal) | mpa/cm | ≥ 147 |
| Bending resistance (longitudinal) | mpa | ≥ 343 |
| Surface resistivity (after water immersion) | Ω | ≥ 10*10¹¹ |
| Volume resistivity (normal) | Ω/cm | ≥ 10*10³¹ |
Impact Withstand Voltage Test
| Rated Voltage (kV) | Impact Withstand Voltage (kV) | Polar Distance |
|---|---|---|
| 10 | 100 | 0.4 |
Insulation Tube Specifications
| Rated Voltage (kV) | Attenuation Components | Active Length (M) | Handheld Length (M) | Whole Length (M) |
|---|---|---|---|---|
| 6-10 | 0.55-0.7M, 36-50MΩ | 0.8 | 0.8 | 1.6 |
Phase Identification Signals
| Condition | Language/Display | Audio | Light |
|---|---|---|---|
| Different Phase | Voltage indication | Audio prompt | Bright |
| Same Phase | No indication | No audio | Not bright |
Standard Accessories
| Item | Name | Quantity |
|---|---|---|
| 1 | Tester | One |
| 2 | Test line | One |
| 3 | Insulating rod | One |
| 4 | Specification | One |
| 5 | Inspection Report | One |
| 6 | Certification | One |
