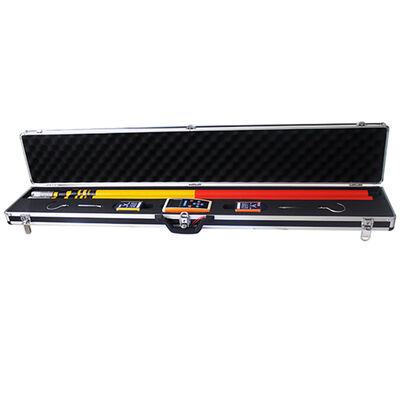

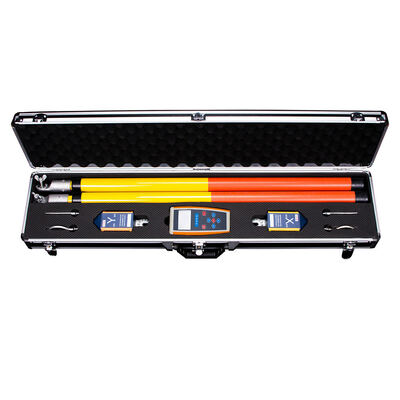

Wireless 10V-500kV High Voltage Phase Detector with 150m Range LCD
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-8000A |
| Minimum Order Quantity | 1 |
| Price | 650usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Warranty | 2 Years | Customized Support | OEM, ODM |
|---|---|---|---|
| Application | Electrics | Support | OEM,wholesales,dropshipping |
| Power Supply | 220V 50Hz | Type | Portable |
| Measurement Voltage | 10V-500kV (customized) | Function | Test |
| Highlight | 10V-500kV Measurement Voltage HV Phase Sequence Tester,150m Wireless Transmission High Voltage Phase Detector,LCD Display Wireless Phase Tester |
||
Product Description
Wireless HV Phase Sequence Tester High Voltage Phase Detector
Professional high-voltage phase detection instrument with wireless transmission capability for accurate phase sequence measurement in industrial applications.
Key Features
- Measurement voltage range: 10-500kV (customizable)
- High accuracy: self-calibration error ≤ ±3°
- Fast sampling speed: 10 times per second
- Data management: Easy browsing and viewing of historical data
- Adjustable backlight timing: 0-999 seconds
- Automatic shutdown settings: 0-999 minutes or never
- Phase detection: ≤20° in-phase, >20° out-phase
- Field calibration function for accuracy assurance
- Wireless transmission distance: ≤150m for handset and detectors
- Multi-mode design for enhanced safety and convenience
- User-friendly interface with simple operation
- FCC antenna design for strong signal penetration
- Double shielding with strong anti-interference capability
- Clear charts and data display for easy reading
- Qualitative measurement with sound and light signals
- Quantitative measurement with real-time phase angle display
- Phase sequence check: clockwise 120°/counterclockwise 240°
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Voltage | 10V-500kV (customized) |
| Power Supply | Handset: 2*#5 AA Alkaline batteries (1.5V) X, Y detector: 3*#7 AA Alkaline batteries (1.5V) |
| Wireless Transmission Distance | 150 meters stadia distance |
| In-phase Detection | Phase angle shift ≤20° (threshold 0-90, user configurable) |
| Out-phase Detection | Phase angle shift >20° (threshold 0-90, user configurable) |
| Display Accuracy | Quantitative measurements ≤5° |
| Phase Angle Resolution | 1° |
| Phase Sequence Measurement | 120° clockwise / 240° counterclockwise |
| Display | LCD |
| Operating Temperature | -35℃ to +50℃ |
| Storage Temperature | -40℃ to +55℃ |
| Relative Humidity | ≤95% RH |
| Handset Weight | 0.31 kg |
| X Detector Weight | 0.16 kg |
| Y Detector Weight | 0.16 kg |
Product Images
