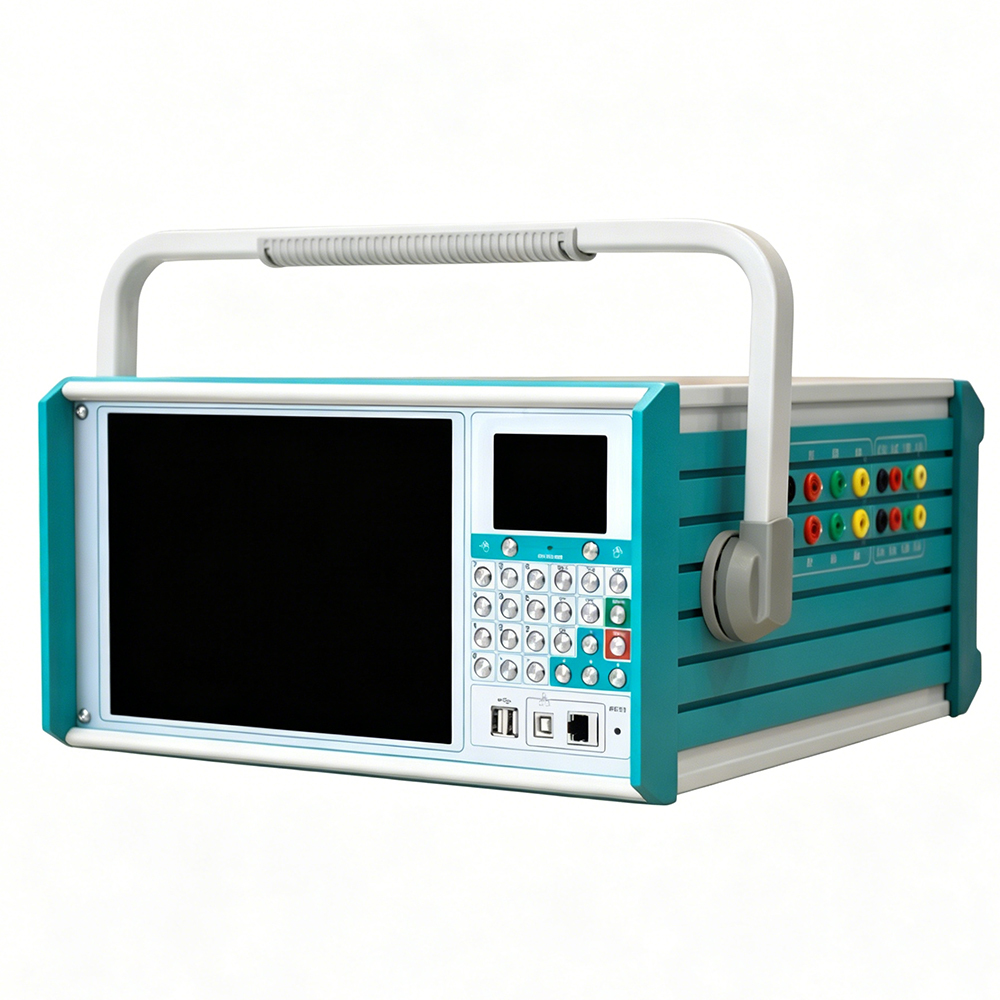

Six Phase Relay Protection Tester with 320VA Power and 2 Years Warranty
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-T1200A |
| Minimum Order Quantity | 1 |
| Price | 4500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Warranty | 2 Years | Customized Support | OEM |
|---|---|---|---|
| Single Phase Current Output (RMS) | 0 -- 30A / Phase, Accuracy: 0.2% ± 5mA | Working Value Of Phase Current | 9.9A |
| Three Phase Parallel Output (RMS) | 0-180A/six Parallel Outputs With The Same Phase | Maximum Output Power Per Phase | 320VA |
| Frequency Range | 0 -- 1000Hz, Accuracy 0.001Hz | Output Power Three Phase | 1800VA |
| Single Phase Voltage Output (RMS | 0 -- 120V / Phase, Accuracy: 0.2% ± 5mv | Single Phasevoltage Output Amplitude | 0--± 160V, Accuracy: 0.5% ± 5mv |
| Phase Voltage Line Voltage Output Power | 90VA/180VA | ||
| Highlight | 320VA Maximum Output Power Per Phase Relay Protection Tester,2 Years Warranty Six Phase Resistance Meter,Six Phase Parallel Output Microcomputer Relay Test System |
||
Product Description
Potable Injection Relay Protection Tester
This advanced six-phase resistance meter features maximum output power per phase and comes with a comprehensive 2-year warranty. Designed for precision testing and protection of relay systems in industrial applications.
Key Features
- Intuitive operation interface with high-performance embedded industrial control computer
- Software self-calibration function for enhanced accuracy and stability
- High-fidelity linear power amplifier ensuring precision across current ranges
- Direct USB interface communication with PC - no adapter cables required
- DSP FPGA main control board with 16-bit DAC output
- Generates 2000 high-density sine waves per week for superior waveform quality
Technical Specifications
| Current Source | AC/DC voltage source, AC/DC current source |
| Parallel Output | Three-phase parallel output (effective value): 0-90A |
| Maximum Output Power Per Phase | 400 VA |
| Frequency Range | 0~1000Hz, accuracy 0.01Hz |
| Switch Input Terminal | 8 pairs |
| Harmonic Number | Harmonic number capability |
| Phase Range | 0~360°, accuracy 0.1° |
| DC Current Output | 0 ~ ±10A/phase, accuracy: 0.2% ± 5mA |
| Dimensions | 320mm × 250mm × 165mm |
| Time Range | 1ms - 9999s |
| Measurement Accuracy | 1ms |
| Weight | 12.5kg |
Product Images
System in operation with clamp transformers
Measurement setup and configuration

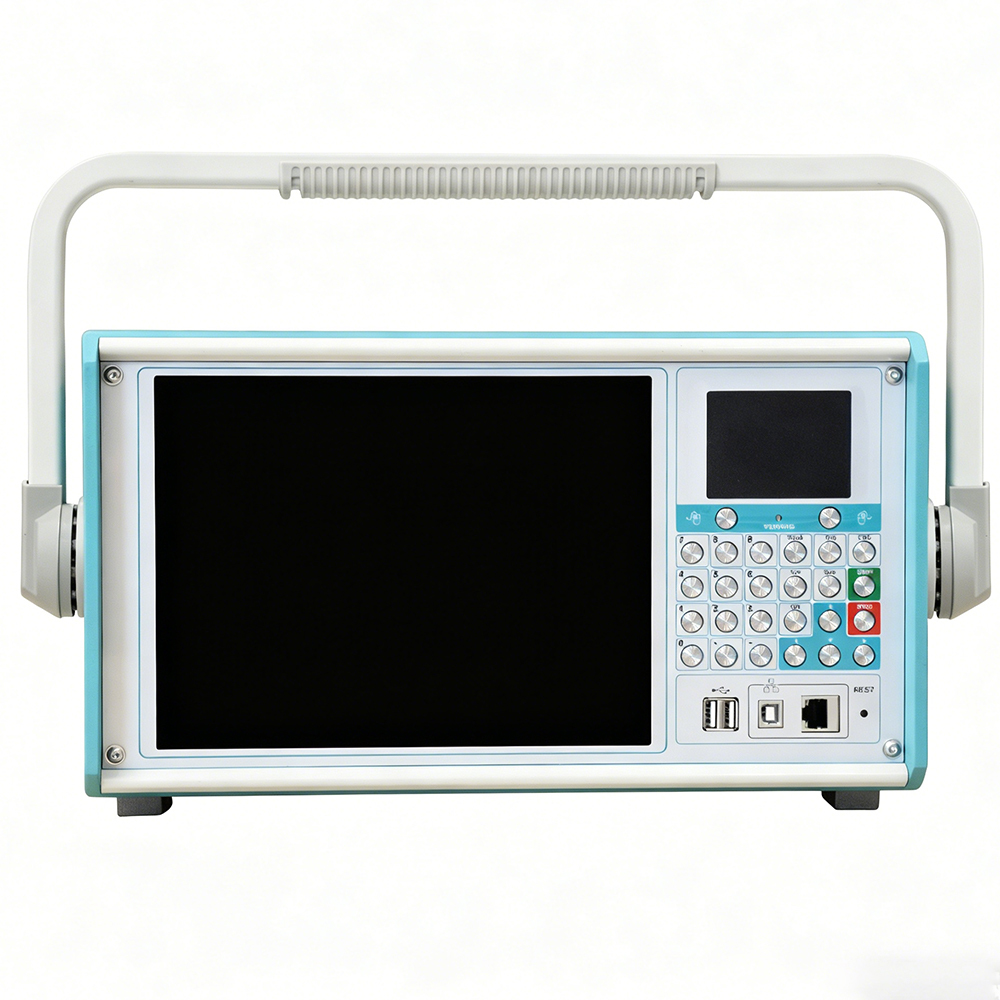

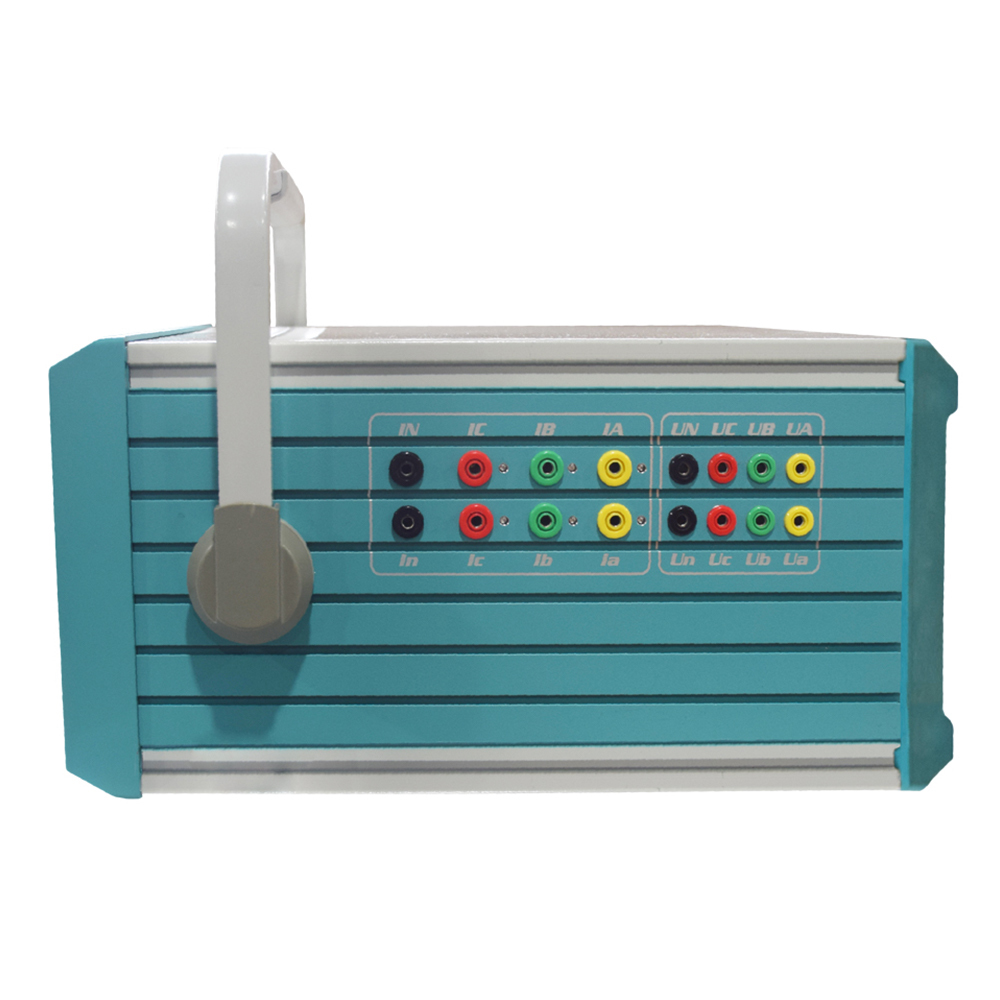

Controls and connection ports detail
