Portable High-Precision Battery Internal Resistance Tester with Lithium Battery
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-630 |
| Minimum Order Quantity | 1 |
| Price | 1000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Other | Maximum Measuring Voltage | Other |
|---|---|---|---|
| Support Battery | Other | Flashlight | Other |
| Warranty | 2 Years | Place Of Origin | Hebei, China |
| Power Source | 12V, Chargeable Li-battery | Weight | 1.1Kg |
| Consumption | 8 Hours Standby Mode | Keywords | Battery Inner Resistance Tester |
| Highlight | portable surge arrester tester,portable lightning arrester leakage current tester |
||
Product Description

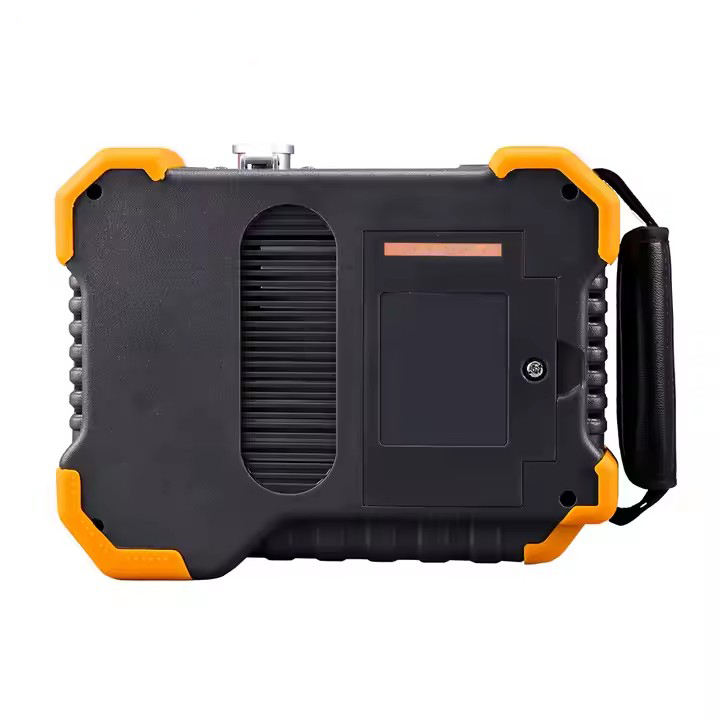

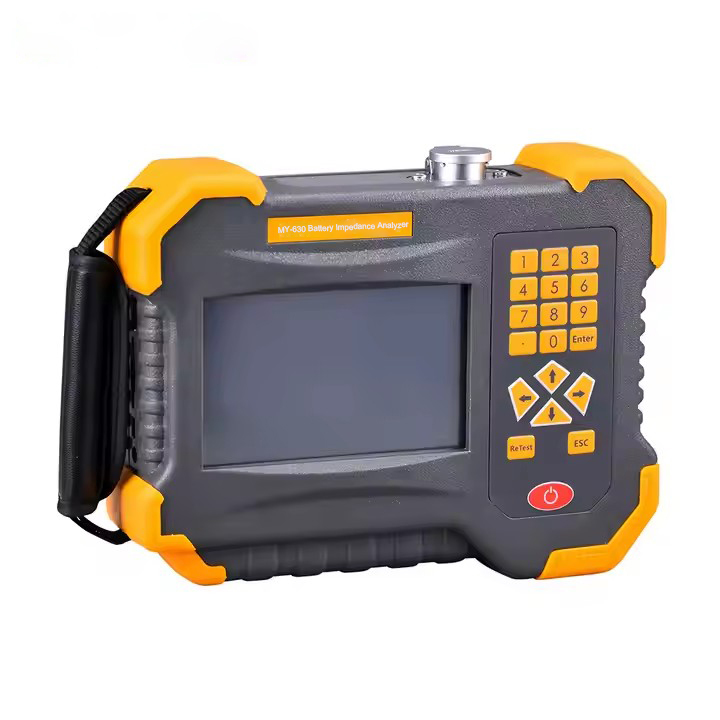

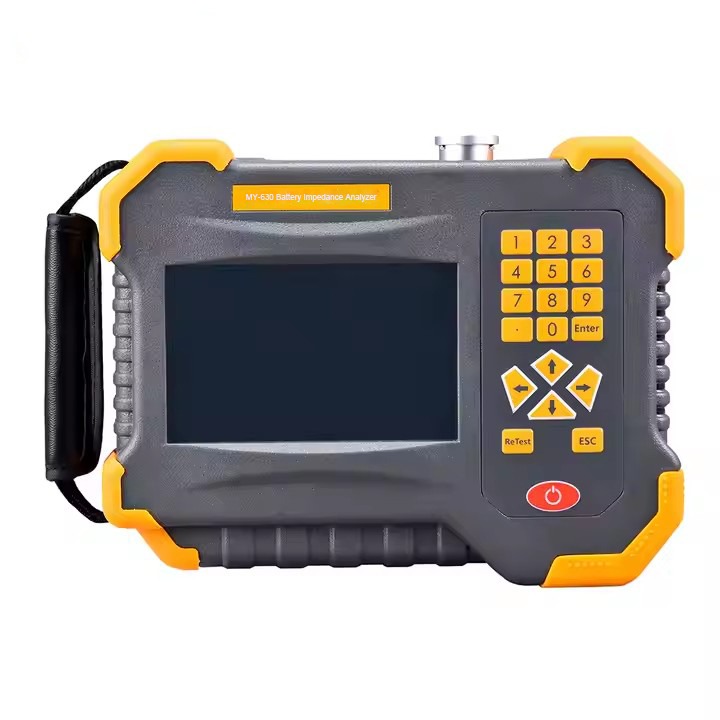

High Precision Portable Battery Internal Resistance Testers
Professional testing instruments designed for accurate internal resistance measurement of various battery types with advanced data management capabilities.
Main Functions and Features
- Dual data save modes: Internal storage and external storage
- On-test and retest functionality for repeated measurements
- Storage capacity for 999 test groups (maximum 500 cells per group) with anytime data access
- Built-in histogram analysis for voltage, conductivity, and capacity with battery status assessment (excellent, good, or bad)
- Optional oscilloscope function displaying maximum, minimum, and average voltage with graphical voltage ripple visualization
- Comprehensive data management software for analysis, reporting, and printing
- Safety features including over voltage protection and self-recovering over current protection
- Large capacity lithium battery power supply
- Automatic test mode operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | Conductivity: 20-19990S | Voltage: 0.000V-25V |
| Minimum Resolution | Conductivity: 1S | Voltage: 1mV |
| Measurement Accuracy | Conductivity: ±0.5% rdg ±6 dgt | Voltage: ±0.2% rdg ±6 dgt |
| Power Supply | 12V rechargeable lithium battery |
| Battery Life | 8 hours standby operation |
| Storage Capacity | 64Mbit Flash + 8GB SD card |
| Display | 5" color touch screen |
| Dimensions | 220 * 170 * 52mm |
| Weight | 1.1kg |
