Automatic Petroleum Wax Drop Melting Point Tester 1000W 360kV IP55 High Accuracy
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY DL |
| Minimum Order Quantity | 1 |
| Price | 14000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Warranty | 2 Years | Power | 1000W |
|---|---|---|---|
| Customized Support | OEM, ODM, OBM, Software Reengineering | Place Of Origin | Hubei, China |
| Rated Voltage | 360kV | Rated Frequency | 50Hz |
| Rated Capacity | 360KVA | Adjustable Inductance Range | 140~300H/single Section |
| Adjustable Gap Range | 0~300mm | Structure | Dry Type |
| Packing | Wooden Carton | Type | Machine |
| Accuracy Class | High Accuracy | Protection Class | IP55 |
| Voltage | 220 V | Application | Auto Testing |
| Accuracy | ±0.1% ~ ±0.5% FS | Heating Mode | Electric Heating Pipe Heating |
| Control Mode | Touch Screen | Working Power Supply | AC220V± 10% 50 HZ |
| Complete Machine Power | 1,000 W | Instrument Size | 580 * 360 * 560mm |
| Net Weight | 28 KG | ||
| Highlight | Automatic melting point tester,1000W melting point tester,IP55 melting point testing machine |
||
Product Description

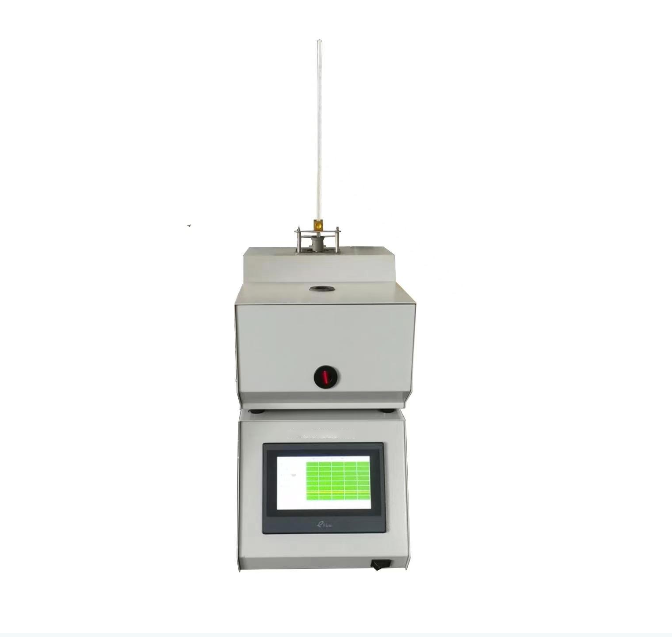

Automatic Petroleum Wax Drop Melting Point Tester
Product Overview
This instrument is designed for detecting the drop melting point of petroleum wax and stone grease. Controlled by computer with real-time curve display, it provides accurate and reliable testing results for industrial applications.
Testing Principle
The cooling temperature sensor is vertically immersed into the sample, allowing the specimen to adhere to the temperature sensor. The sensor is then placed into the test tube and heated according to the required heating rate. The specimen melts until the sensor drops, with the temperature at this point indicating the low melting point of the sample.
Technical Specifications
| Applicable Standards | GB/T8026, ISO6244, D127 |
|---|---|
| Temperature Control Mode | Imported digital display PID temperature controller |
| Heating-Cooling Temperature Range | 16℃ ~ 150℃ |
| Temperature Measurement Accuracy | 0.1℃ |
| Refrigeration Mode | Semiconductor refrigeration |
| Heating Mode | Electric heating pipe heating |
| Working Power Supply | AC220V±10% 50 HZ |
| Control Mode | Touch screen |
| Results Display | LCD screen display |
| Complete Machine Power | 1,000 W |
| Instrument Size | 580 * 360 * 560mm |
| Net Weight | 28 KG |
