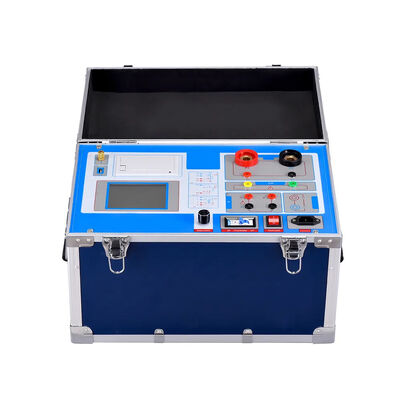

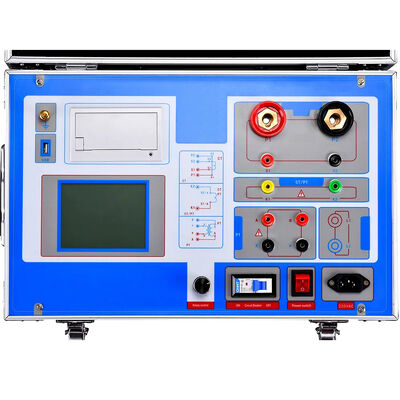

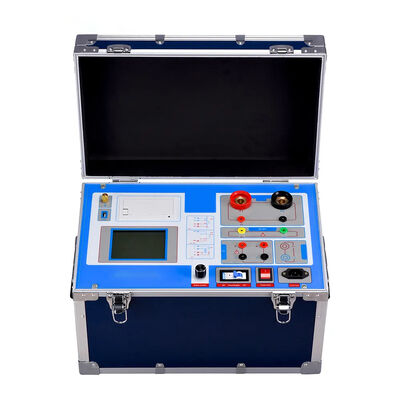

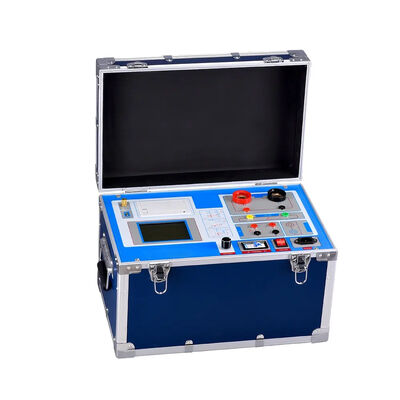

High Accuracy CT PT Analyzer For Protective Current Transformer And Voltage Transformer
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY -103 |
| Minimum Order Quantity | 1 |
| Price | 6600usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Voltage | 220V Electrical Equipment |
|---|---|---|---|
| Accuracy | ±0.5% | Customized Support | OEM, ODM, OBM |
| Warranty | 2 Year | Color | Blue |
| Primary Current | 0-1000A | Primary Voltage | 0-2500V |
| MOQ | 1 Set | Protection Class | IP65 |
| Place Of Origin | Hubei, China | Power | 20VA |
| Accuracy Class | Standard Accuracy | Power Supply | 220V 50Hz |
| Ratio | ≤0.5% | Secondary Current | 0-5A |
| Highlight | High Accuracy ct pt meter,2500V ct pt meter,IP65 electrical ct pt |
||
Product Description
High Accuracy CT PT Analyzer for Protective Current Transformer and Voltage Transformer
Product Overview
MY-103 is a full automatic PT, CT characteristics tester. The instrument can complete tests including: CT Volt-ampere characteristics test, PT Volt-ampere characteristics test, CT Polarity test, PT Polarity test, CT variable ratio Polarity test, PT variable ratio Polarity test, Automatic computing CT arbitrary point error curve, CT/PT variable ratio.
Key Features
- Full Function: Comprehensive CT and PT testing capabilities
- Output Keeping: Boost function for measurement, detection, and secondary AC withstand voltage test
- True Effective Value Sampling: All voltage and current signals are true effective values
- Single Power Supply: Easy operation with AC220V input only
- U Disk Save: Test data transmission to PC via USB
- Date and Clock: Built-in system time for test record tracking
- No Contact Test: High safety with fully computerized operation
- Large Output Capacity: AC voltage output up to 2000V, current output up to 25A short time
- Large 8-inch Color Touch Screen: High-resolution 1024*768 LCD with Chinese graphical interface
- Touch Screen Operation: Advanced touch technology for simple, convenient operation
- Ultra Large Capacity Data Storage: 50 groups of test data storage with U disk backup
CT Test Functions
- Volt ampere characteristic curve
- Automatic calculation of curve inflection point
- 5% and 10% error curve
- Ratio and polarity
- Differential and angular difference measurement
- Secondary side circuit load testing
- Secondary winding AC withstand voltage
- Secondary DC resistance test
- Flow test
PT Test Functions
- Volt ampere characteristic curve
- Automatic calculation of curve inflection point
- 5% and 10% error curve
- Ratio and polarity
- Difference, angular difference measurement
- Secondary side circuit load testing
- Secondary winding AC withstand voltage
- Secondary DC resistance test
Technical Parameters
| Parameter | Range/Value | Resolution |
|---|---|---|
| Power input voltage | AC 220 V | - |
| CT volt ampere characteristic test | 0~2500 V, 0~20A | 1mV, 1mA |
| CT variable ratio error, angle error test | 0~1000A (primary), 0~5A (secondary) | 1mA |
| CT secondary loop load | 0~5A, 0~10Ω | 1mA, 0.001Ω |
| PT Volt-ampere characteristic test | 0~200V, 0~10A | 1mV, 1mA |
| PT variable ratio, ratio angle error test | 0~2500V (primary), 100V/57.7V/100/3V (secondary) | 1mV |
| Accuracy class - Volt ampere characteristic test | < 0.5% | - |
| Accuracy class - 5% and 10% error curve | < 1% | - |
| Working environment temperature | -10℃ - +50℃ | - |
