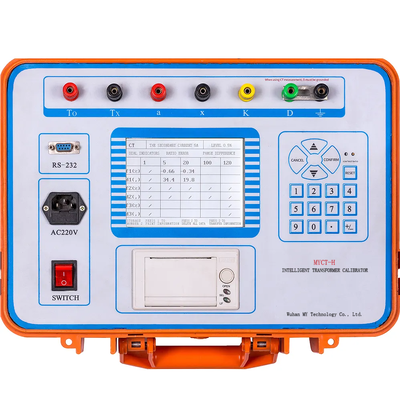

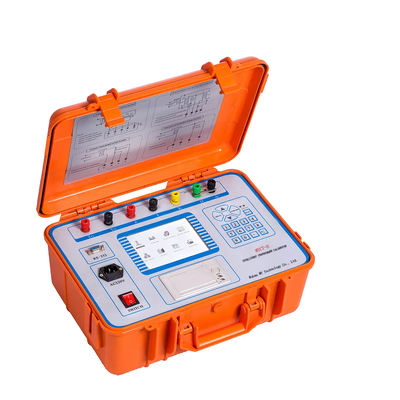

High Precision Multifunction Hand Held Analog Voltage Current Debugging Source Calibrator
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYCT-H |
| Minimum Order Quantity | 1 |
| Price | 1300usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Place Of Origin | Hubei, China | Model Number | HGQB-C |
|---|---|---|---|
| Frequency | 50/60Hz | Weight | 5kg |
| Customized Support | OBM | Warranty | 2 Year |
| Shape Dimension(mm) | 410(L)*330(W)*180(H) | Power | Electronic |
| Accuracy Class | 1.0/2.0 | ||
| Highlight | High Precision source calibrator,Multifunction source calibrator,Electronic ct and pt transformer |
||
Product Description
High Precision Multifunction Process High Accuracy Hand-held Analog Voltage Current Debugging Source Calibrator
The HGQB-C Transformer Calibrator is designed for precise measurement of angle difference, admittance, and impedance of CT and PT transformers. This instrument features a built-in micro printer, comprehensive software functionality, and computer connectivity for seamless data transmission and analysis.
Technical Specifications
| Working Condition | Temperature: 5℃-40℃ Relative humidity: <80%(25℃) Altitude: <2500m Power Frequency: 50Hz±0.5Hz Power Voltage: 220V±5V |
|---|---|
| Measuring Range | In-phase component(%): 0.0001~200.0 (Resolution: 0.0001) Orthogonal Component (min): 0.001~700.0 (Resolution: 0.001) Impedance(Ω): 0.0001~20.0 (Resolution: 0.0001) Admittance(ms): 0.0001~20.0 (Resolution: 0.0001) |
| Basic Error | In-phase Component: ΔX=±(X×2%+Y×2%)±Dx (with Class 1 to spare) Orthogonal Component (with Class 1 to spare) "X","Y" - Displayed Values "Dx, Dy" - Quantified Error (Dx=2, Dy=5) Percentage: Class 2 (with Class 1 to spare) |
| Working Range | Current: (1%-149%)In (In=5A), (5%-149%)In (In=1A) Voltage: (5%-149%)Un (Un=100V,150V,100V/), (5%-200%)Un (Un=100V/3) |
| Work Load | Current: TO to TX<0.12Ω cosΦ=1.0 Voltage: a to x<0.25VA (100V) |
