Portable Industrial Current Transformer Field Tester 220V Premium Testing Equipment
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-203 |
| Minimum Order Quantity | 1 |
| Price | 15000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Protection Class | IP55 |
|---|---|---|---|
| Customized Support | OEM, ODM, OBM, Software Reengineering | Warranty | 1 Years |
| Power Consumption Of The Whole Machine | 30W (static) And 150W (working) | PT Error Accuracy | 0.05 Level |
| Environmental Temperature | 0-40℃ | Place Of Origin | Hubei, China |
| Environmental Humidity | <85% At 25℃ | ||
| Highlight | Portable premium testing equipment,220V premium testing equipment,220V Field Tester |
||
Product Description
Portable Industrial Current Transformer Field Tester
Durable 220V premium testing equipment with comprehensive 1-year warranty for reliable field testing applications.
Current Transformer (CT) Specifications
| Parameter | Specification |
|---|---|
| CT Ratio Range | 5A/5A~25000A/5A (5A/1A~5000A/1A) turn ratio error ± 0.2% |
| Error Measurement Range | 5A/5A~5000A/5A (5A/1A~5000A/1A) |
| Accuracy Range | 1.0, 0.5, 0.5S, 0.2, and 0.2S |
| CT Error Accuracy | 0.02 level |
Potential Transformer (PT) Specifications
| Parameter | Specification |
|---|---|
| PT Ratio Range | Full range measurement (electromagnetic type) ± 0.2% |
| Error Measurement Range | Primary voltage: 3-220kV/(non-standard primary voltage acceptable) Secondary voltage: 3kV/100V, 3kV//100V/; 6kV/100V, 6kV//100V/; 6.3kV/100V, 6.3kV//100v/; 10kV/100V, 10kV//100V/; 10.5kV/100V, 10.5kV//100V/; 13.8kV/100V, 13.8kV//100V/; 15kV/100V, 15kV//100v/; 15.75kV/100V, 15.75kV//100V/; 18kV/100V, 18kV//100V/; 20kV/100v, 20kV//100v/; 35kV/100V, 35kV//100V/; 66kV//100v/; 110kV//100V/; 220kV//100V/ |
| Power Factor | 0.0-1.0 |
| PT Error Accuracy | 0.05 level |
Additional Technical Specifications
DC Resistance: 0.0-0.1 Ω ± 3% / 0.1-50Ω ±1%
Environmental Temperature: 0-40℃
Power Consumption: 30W (static) and 150W (working)
Environmental Humidity: <85% at 25℃
Weight: 6.0Kg
Dimensions: 472mm × 355mm × 168mm
Environmental Temperature: 0-40℃
Power Consumption: 30W (static) and 150W (working)
Environmental Humidity: <85% at 25℃
Weight: 6.0Kg
Dimensions: 472mm × 355mm × 168mm

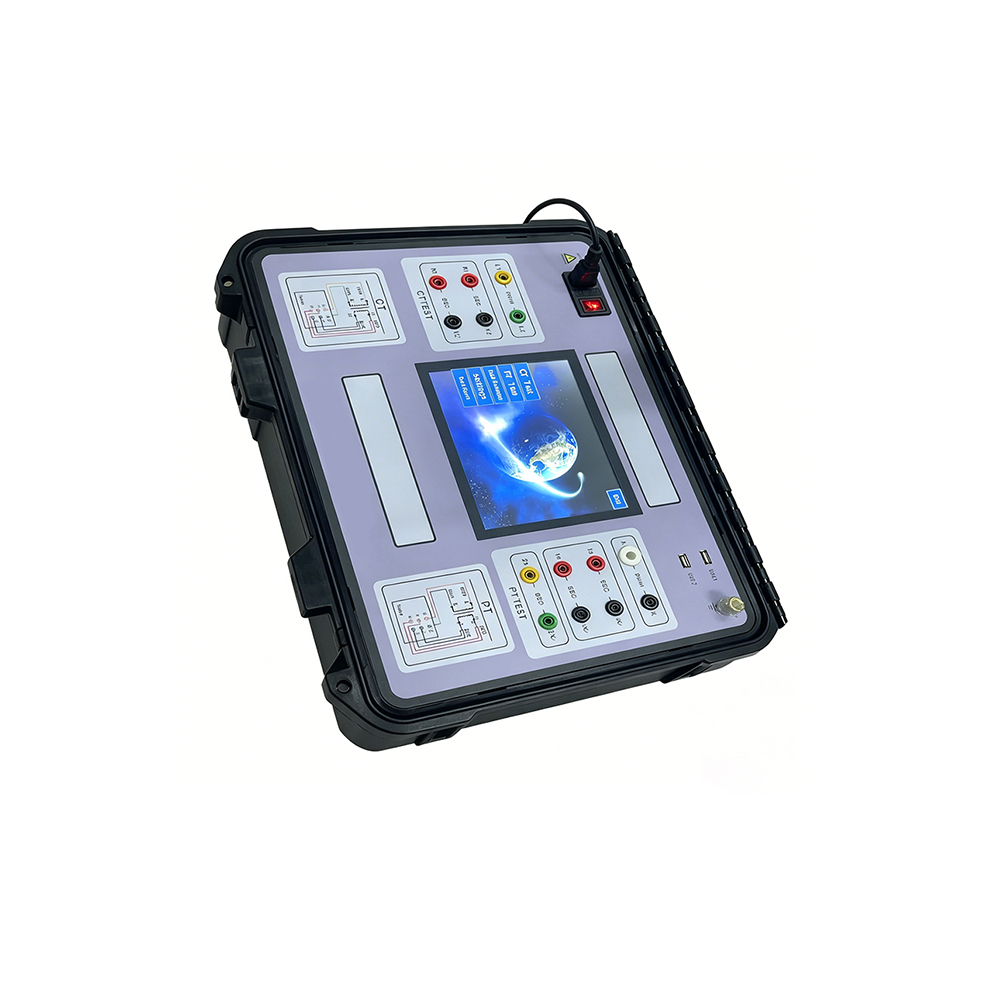

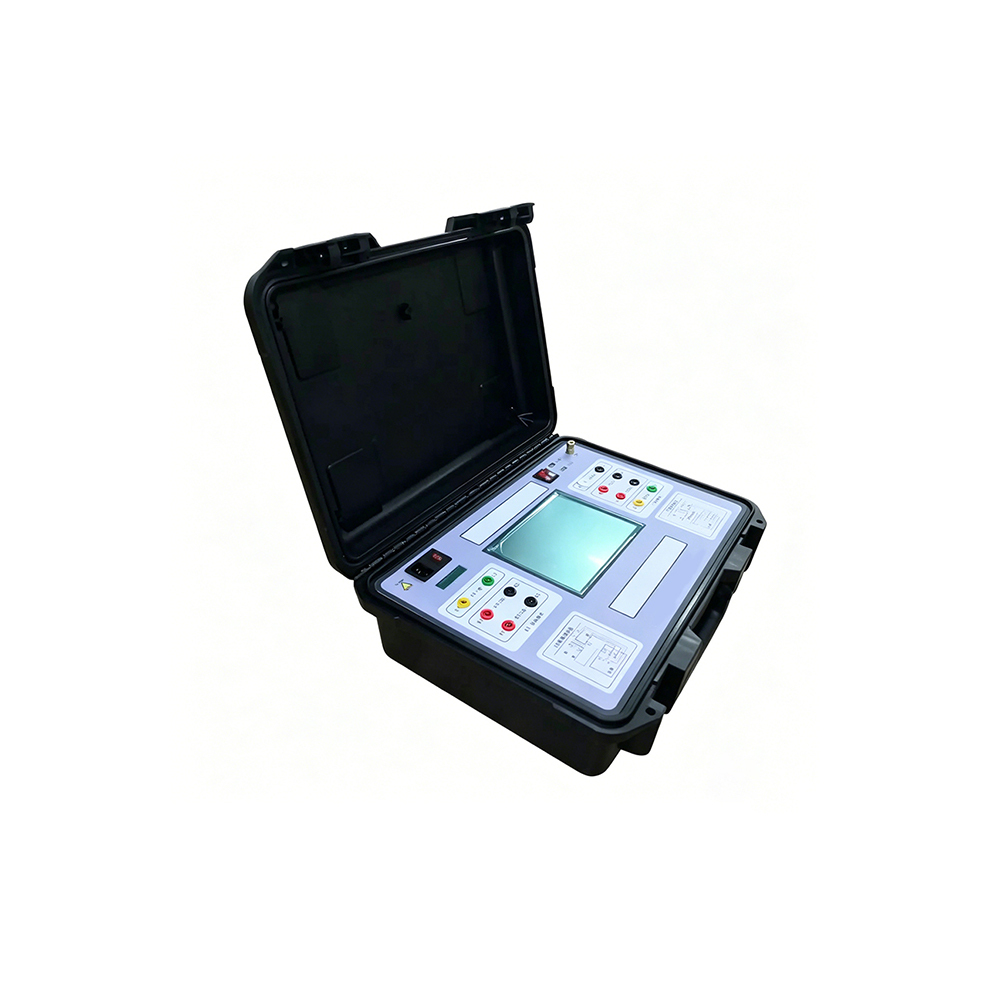

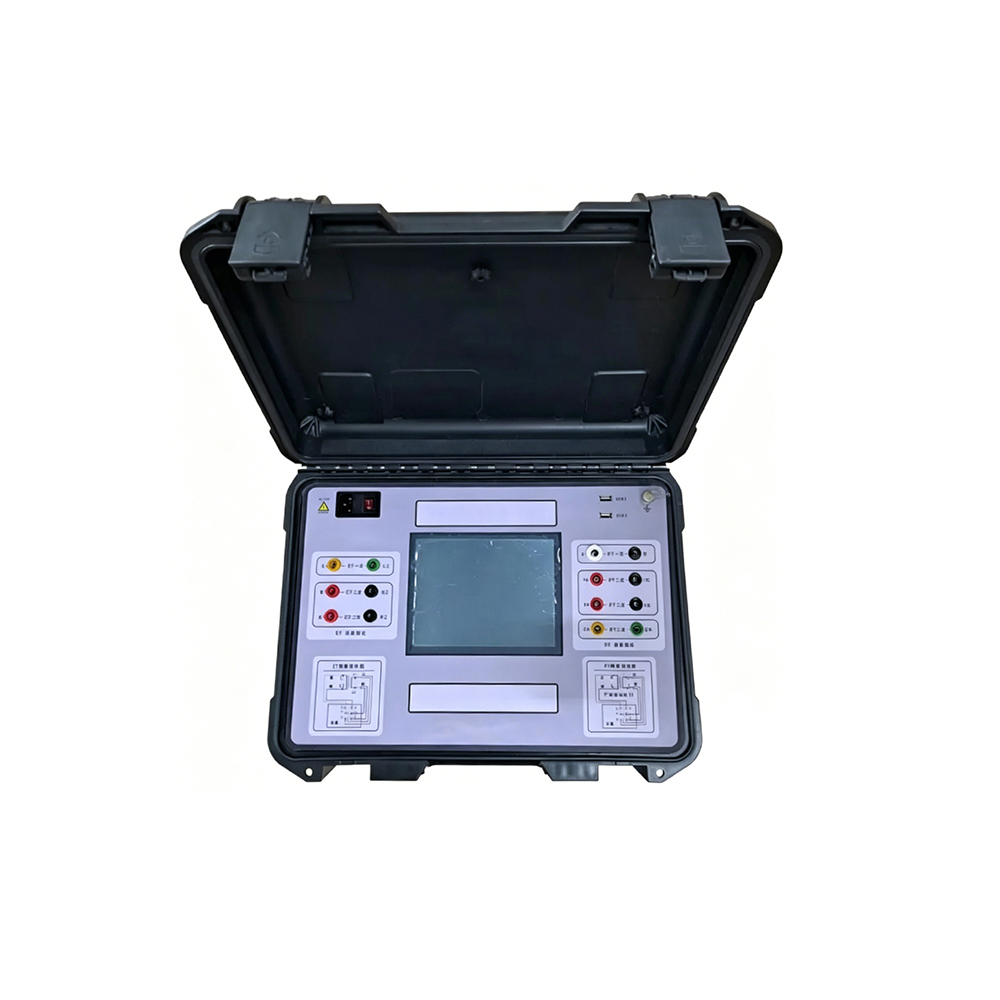

Product Images
