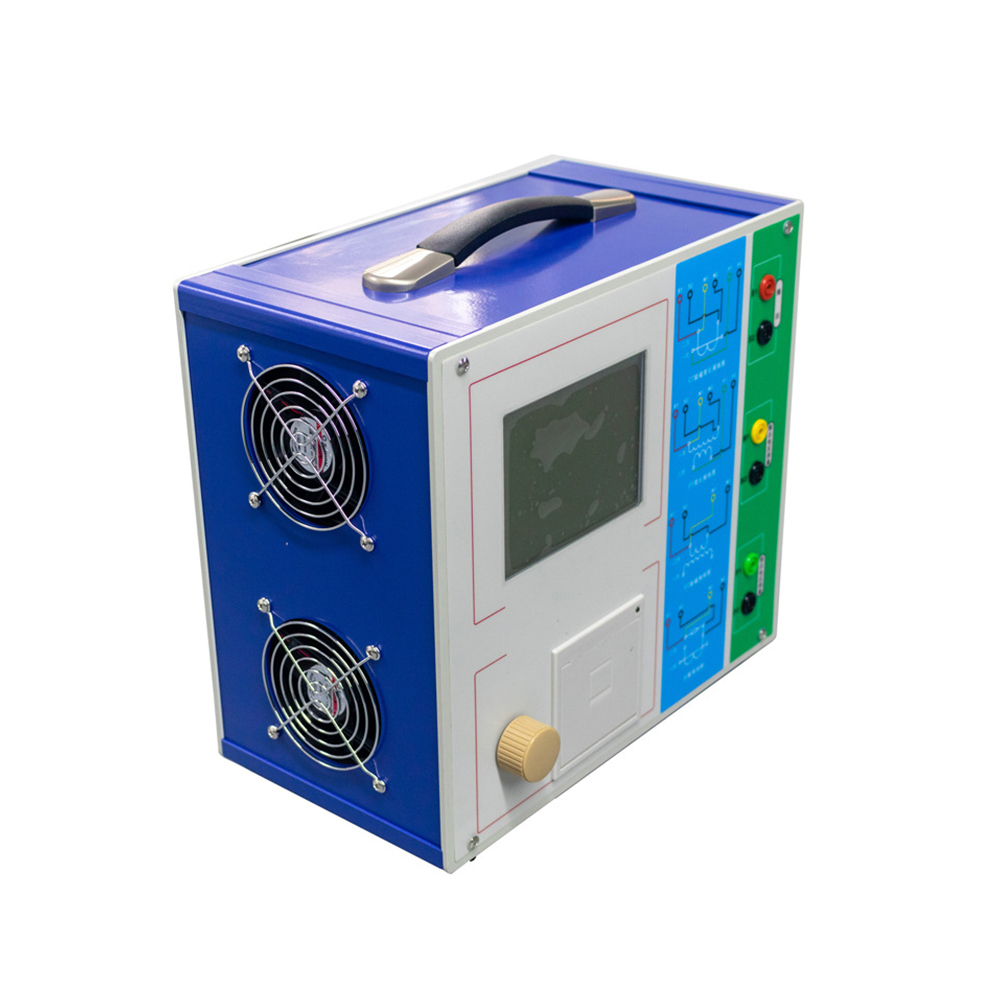

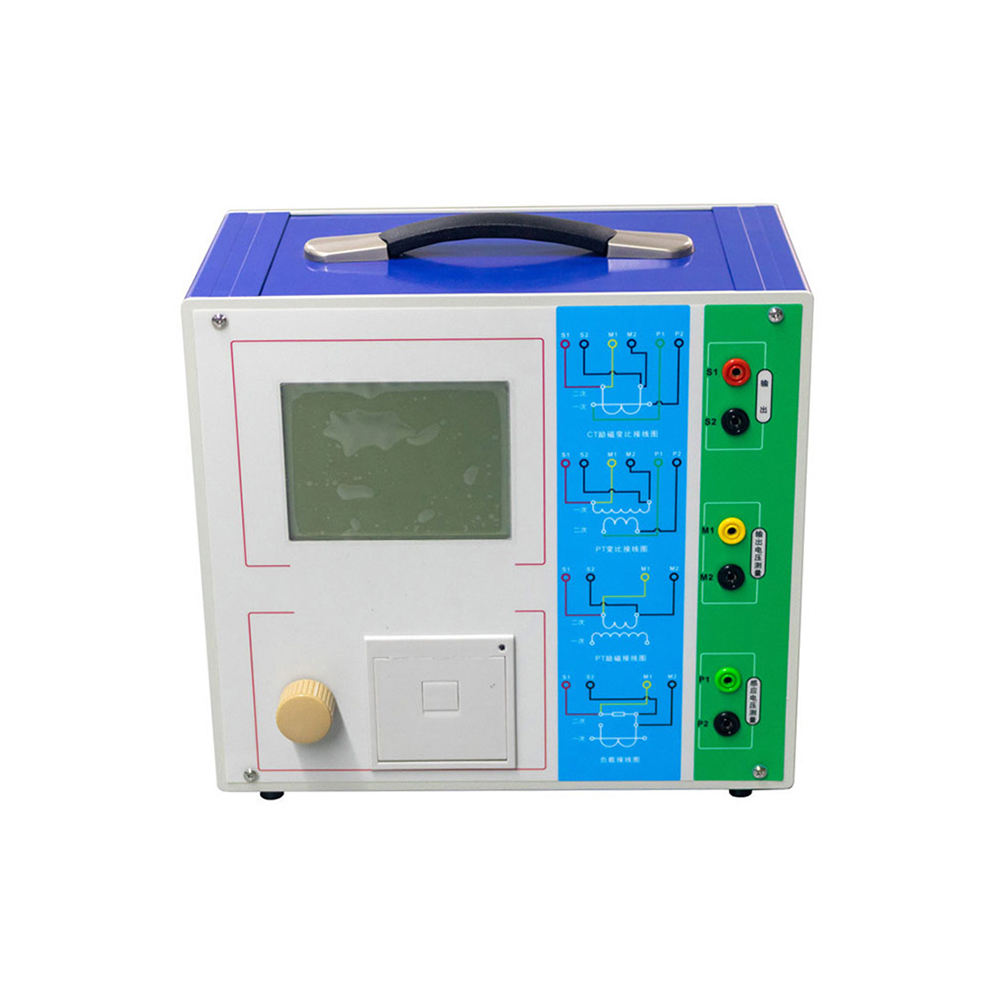

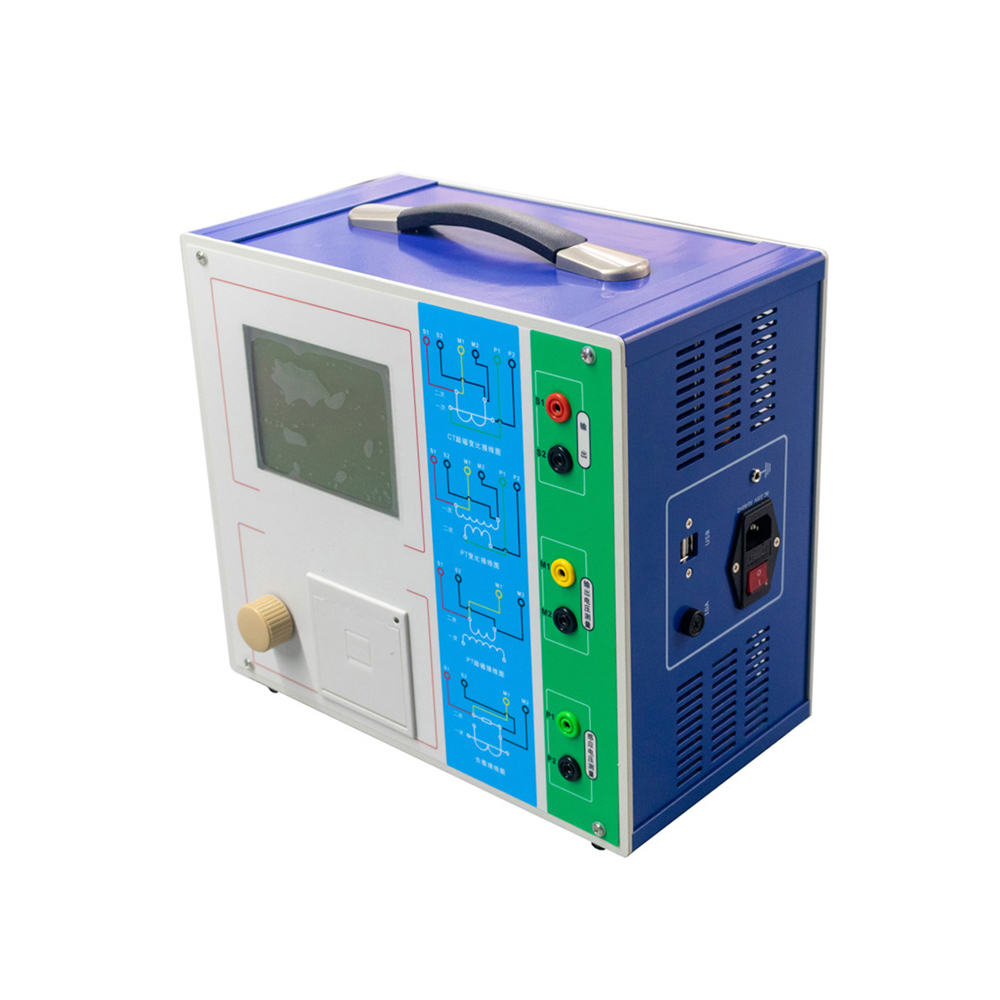

Transformer Comprehensive Tester Instrument Transformer Testing Ct Pt Analyzer
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYHQ-B |
| Minimum Order Quantity | 1 |
| Price | 3000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Place Of Origin | Hebei, China | Warranty | 2 Year |
|---|---|---|---|
| Maximum Output Power Per Phase | 320VA | Frequency Range | 0 -- 1000Hz, Accuracy 0.001Hz |
| Customized Support | OEM | Single Phase Current Output (RMS) | 0 -- 30A / Phase, Accuracy: 0.2% ± 5mA |
| Working Value Of Phase Current | 9.9A | Single Phasevoltage Output Amplitude | 0--± 160V, Accuracy: 0.5% ± 5mv |
| Single Package Size | 45X60X80 Cm | ||
| Highlight | 320V ct pt analyzer,OEM ct pt analyzer,30A ct pt tester |
||
Product Description
Transformer Comprehensive Testing Instrument
Advanced CT/PT analyzer for comprehensive transformer testing with precision measurement capabilities.
Technical Specifications
AC Current Source
| Single phase current output (RMS) | 0 - 30A/phase, accuracy: 0.2% ± 5mA |
| Six phase parallel output (RMS) | 0-180A/six parallel outputs with the same phase |
| Allowable working value of phase current for long time | 9.9A |
| Maximum output power | Per phase 320VA |
| Maximum output power of six phase parallel current | 1800VA |
| Maximum output allowable working time of six-phase parallel current | 5s |
General Parameters
| Frequency range | 0 - 1000Hz, accuracy: 0.001Hz |
| Harmonic number | 2-20th |
| Phase | 0-360°, accuracy: 0.1° |
DC Current Source
| DC current output | 0-±10A/phase, accuracy: 0.5% ± 5mA |
AC Voltage Source
| Single phase voltage output (RMS) | 0 - 120V/phase, accuracy: 0.5% ± 5mV |
| Line voltage output (RMS) | 0-240V |
| Phase voltage/line voltage output power | 75VA/100VA |
| Frequency range | 0 - 1000Hz, accuracy: 0.001Hz |
DC Voltage Source
| Single phase voltage output amplitude | 0-±160V, accuracy: 0.5% ± 5mV |
| Output amplitude of line voltage | 0-±320V |
| Phase voltage/line voltage output power | 90VA/180VA |
Switching Value Terminal
| Switch input terminal | 8 pairs |
| Idle contact | 1-20mA, 24V, internal active output of the device |
| Potential reversal | Passive contact: low resistance short circuit signal Active contact: 0-250V DC |
| Switch output terminal | 4 pairs, empty contacts Interruption capacity: DC: 0-30V/5A, AC: 0-250V/5A |
Additional Specifications
| Time frame | 1ms - 9999s, measuring accuracy: 1ms |
| Volume and weight of single machine | Volume: 418*363*208mm³, approximately 17.8kg |
| Power Supply | AC220V±10%, 50/60Hz, 10A |
AC Current Working Time Specifications
| <10A working current | Working hours ≤ 60 minutes |
| 20A > Working current ≥ 10A | Working hours ≤ 70 seconds |
| 30A > Working current ≥ 20A | Working hours ≤ 15 seconds |
| Working current: 30A | Working hours ≤ 5 seconds |
