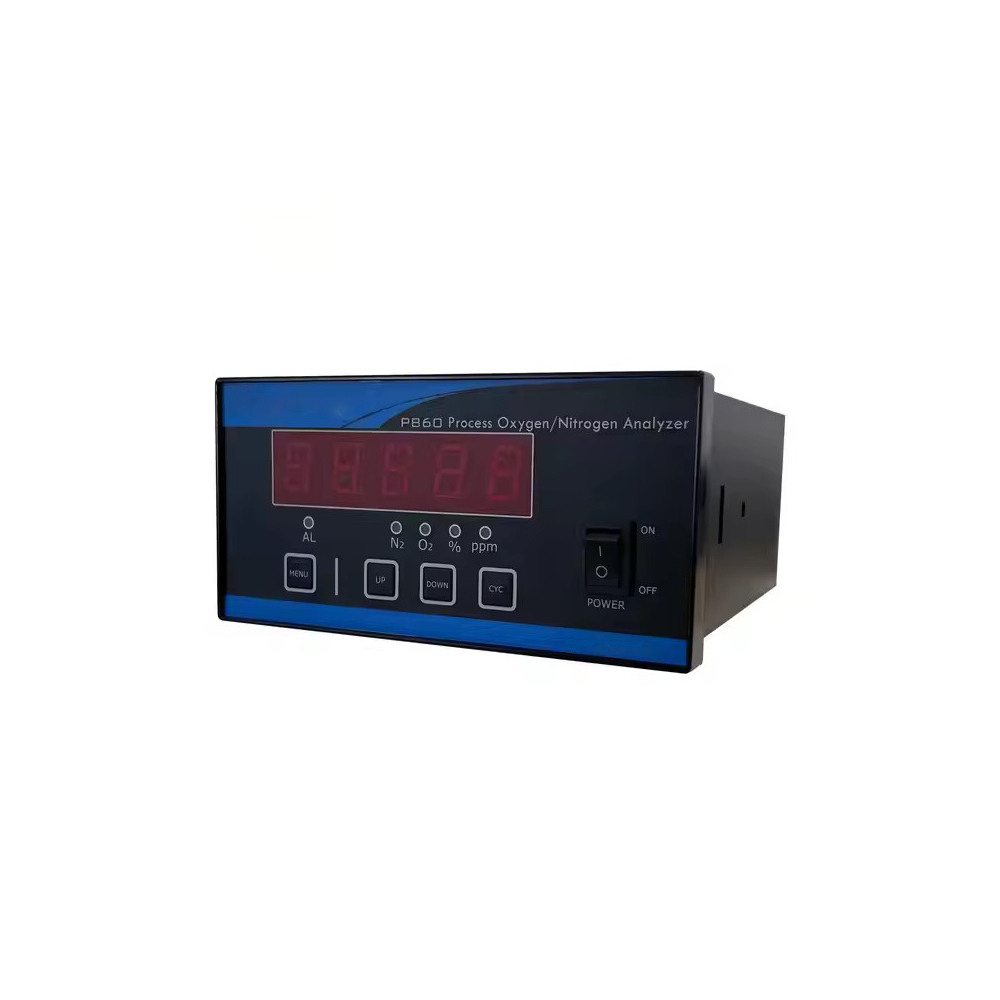

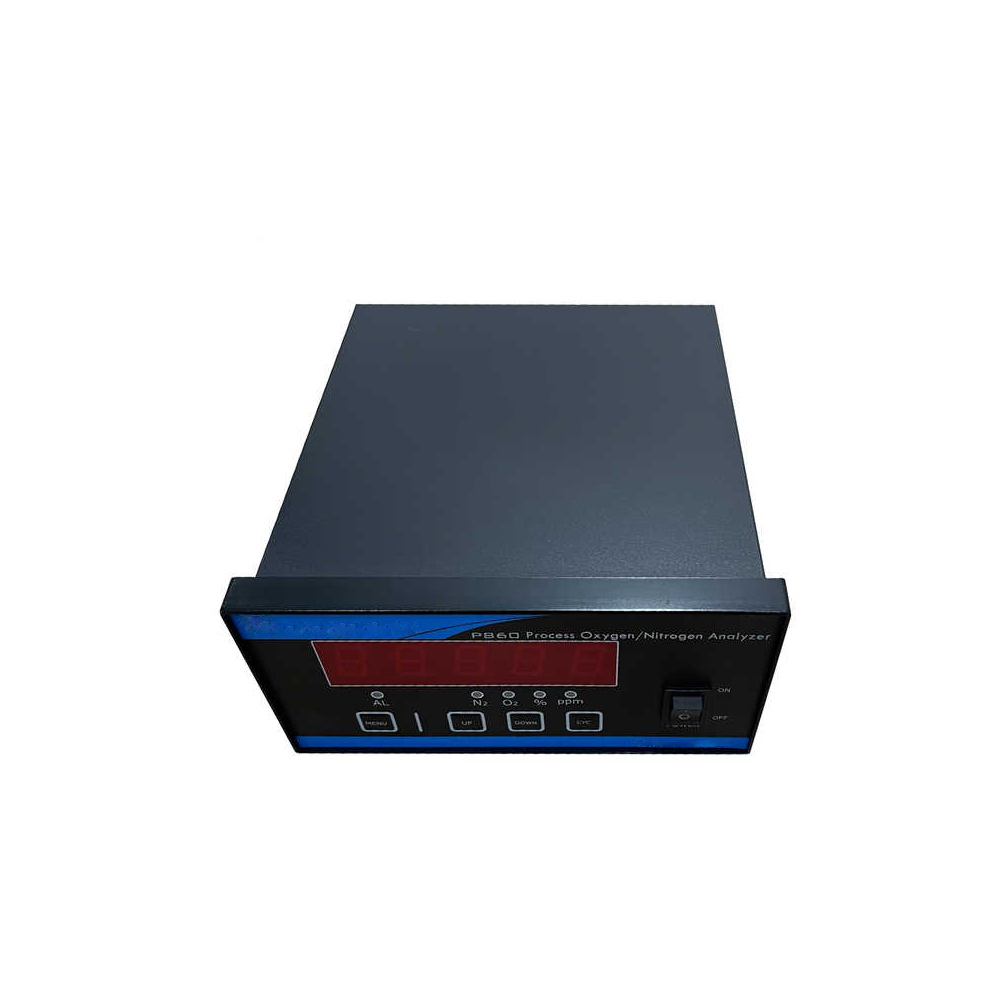

P860 Oxygen Nitrogen Analyzer For Industry High Precision On Line Nitrogen Analyzer
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-P860 |
| Minimum Order Quantity | 1 |
| Price | 250usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Gas Analyzer | Power | Pneumatic |
|---|---|---|---|
| Model Number | P860 | Customized Support | OBM |
| Media | Gas | Quantity | 1 Pcs |
| Ambient Humidity | <80%Rh | ||
| Highlight | P860 oxygen nitrogen analyzer,Pneumatic oxygen nitrogen analyzer,oxygen nitrogen tester Pneumatic |
||
Product Description
P860 Oxygen and Nitrogen Analyzer
High-precision online oxygen and nitrogen analyzer for industrial applications, providing reliable gas analysis with advanced technical specifications.
Technical Specifications
| Measurement Range | Basic type: -60~+20°C | Standard type: -80~+20°C | Extended type: -100~+20°C |
| Accuracy | ±3°C (-80~-60°C) | ±2°C (-60~+20°C) |
| Repeatability | ±0.5°C |
| Zero Drift | ±1%FS/7d |
| Range Drift | ±1%FS/7d |
| Response Time | At +20°C and 1 bar pressure: -60~-20°C Td 5s[10s] | -20~-60°C Td 45s[10min] |
| Power Supply | 85~264VA, 50/60Hz |
| Environment Temperature | 0~45°C |
| Environment Humidity | <90%RH |
| Sample Temperature | 0~50°C |
| Sample Gas Pressure | Atmospheric conditions +10% (Gas outlet should be atmospheric conditions) |
| External Control Signal | 1 set, control signal: 9~28VDC (optional) |
| Analog Output | Standard configuration: 4-20mA, 0-20mA and 0-10V (settable by menu) |
| Communication | RS485 (standard) / RS232 (optional) |
| Alarm Output | 2 sets |
| Relay Contact Point Capacity | 24VDC, 0.2A |
| Inlet and Outlet | 1/4 inch NPT internal thread, standard 6.5 hose joint |
| Instrument Size | W×H×D = 144mm × 144mm × 251mm |
| Installation Hole Size | L×W = 136mm × 136mm |
