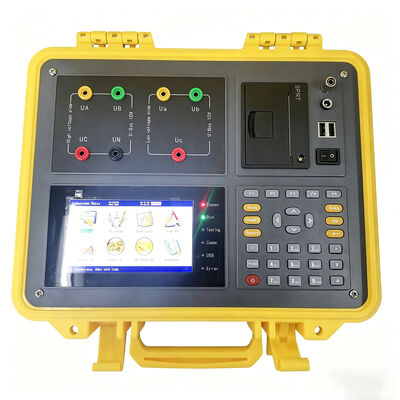

Three-Phase Transformer TTR Meter, High Accuracy Multi-Function for Power Quality Test

  • Three-Phase Transformer TTR Meter, High Accuracy Multi-Function for Power Quality Test
  • Three-Phase Transformer TTR Meter, High Accuracy Multi-Function for Power Quality Test
Place of Origin China Mainland
Brand Name MINGYANG
Model Number MYBCS
Minimum Order Quantity 1
Price 1500usd
Packaging Details carton
Delivery Time 1 week
Payment Terms L/C,D/A,D/P,T/T,Western Union
Supply Ability 1000pcs/month
Product Details
Type Impact Testing Machine Voltage Other
Protection Class IP55 Accuracy Class High Accuracy
Place Of Origin Hubei, China Warranty 2 Years
Angular Resolution 0.01° Temperature -20℃~40℃
Power Supply 220V±22V ,50Hz±1Hz Humidity ≤85%, No Condensation
Packing Wooden Carton Resolution 0.001
Highlight

High Accuracy Transformer TTR Meter

,

Multi-function Power Quality Analyzer

,

Portable Design Three Phase Transformer Tester
Leave a Message
Product Description
Multi-function Transformer TTR Meter Three Phase Transformer
Professional testing instrument for Z-type transformer PT and CT ratio and polarity testing
Key Features
  1. Single power input with internal digital combination standard sine wave test source output
  2. Phase angle measurement function for high and low voltage side phase relationships
  3. Non-integral point transformer turn ratio and angle measurement capability
  4. Single-phase measurement and three-phase winding automatic testing
  5. Automatic three-phase turn ratio, phase angle, error, tapping position, and connecting group identification
  6. Digital and hexagon vector diagram display for clear transformer connecting group visualization
  7. Blind test function - no need to select connecting method or group
  8. Automatic connection method shifting for Y/△ and △/Y transformers without external short-circuit
  9. Tapping test function for quick TTR and TTR error measurement at each tap position
  10. Turns ratio measurement and voltage TTR measurement capabilities
  11. 5.6 inch LCD display for clear data and figure visualization
  12. Compact, lightweight design for easy portability
  13. Built-in high capacity rechargeable lithium battery - over 500 tests per charge
Technical Specifications
Ratio Measurement Range 0.9-10000
Measurement Speed Three-phase test completed within 40 seconds
HV Side Voltage Measurement Accuracy 0.05%
LV Side Voltage Measurement Accuracy 0.1%
Phase Angle Measurement Accuracy 0.1°
TTR Measurement Accuracy 0.1% (0.9-200)
0.2% (200-2000)
0.3% (2000-10000)
Dimensions 320mm × 240mm × 130mm
Weight 3 kg
Product Images
Three-Phase Transformer TTR Meter, High Accuracy Multi-Function for Power Quality Test 0
Three-Phase Transformer TTR Meter, High Accuracy Multi-Function for Power Quality Test 1

Three-Phase Transformer TTR Meter, High Accuracy Multi-Function for Power Quality Test 2

Three-Phase Transformer TTR Meter, High Accuracy Multi-Function for Power Quality Test 3
Three-Phase Transformer TTR Meter, High Accuracy Multi-Function for Power Quality Test 4
Three-Phase Transformer TTR Meter, High Accuracy Multi-Function for Power Quality Test 5
