Three Phase Handheld Digital Phase Meter For Voltage Current Power Frequency Measurement
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-G3000 |
| Minimum Order Quantity | 1 |
| Price | 500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Warranty | 2 Years | Customized Support | OEM, ODM, OBM |
|---|---|---|---|
| Application | Electrics | Type | Portable |
| Shipping | Within 7 Days | Display | Digital Display |
| Power Supply | 220V 50Hz | Support | OEM,wholesales,dropshipping |
| Place Of Origin | Hubei, China | Protection Class | IP55 |
| Highlight | Three Phase digital phase meter,Handheld digital phase meter,220V 3 phase digital meter |
||
Product Description
High Precision Three-Phase Clamp Phase Voltammeter
Handheld digital phase meter for comprehensive voltage, current, power, and frequency measurement in three-phase electrical systems.
Product Overview
This three-phase electrical tester is designed for measuring electrical parameters, protecting circuit CT, and verifying three-phase electrical wiring correctness. It performs high-precision measurement of voltage and current imbalance detection, analyzing CT wiring correctness and checking power line wiring electricity balance with built-in power calculation functions.
Key Features
- Simultaneously measure 1-3 circuit AC voltage
- Simultaneously measure 1-4 circuit AC current (including zero-phase current)
- Test phase between voltage/current, phase of voltage and current
- Test grid frequency from 45-65 Hz
- Measure active, reactive, and apparent power
- Test power factor with high accuracy
- CT wiring correctness analysis and meter wiring error identification
- Detect and determine 192 kinds of wrong wiring in three-phase three-wire power meters
- Three-phase voltage and current imbalance detection
- Display hexagon vector diagrams for visual analysis
- Function as a leakage current meter
- Low-power design with up to 12 hours continuous use
- Auto-range capability with touch screen interface
- Data export via USB for convenient processing
Technical Specifications
| Parameter | Measurement Range | Unit | Error | Resolution |
|---|---|---|---|---|
| Voltage | 1~500 | V | 0.5% * range | 0.01V |
| Current | 0.001~10 | A | 0.5% * range | 0.0001A |
| Active Power | 0.001~5000 | W | 0.5% * reading (PF=1) | 0.1W |
| Reactive Power | 0.001~5000 | VAR | 0.5% * reading (PF=0) | 0.1VAR |
| Apparent Power | 0.001~5000 | VA | 0.5% * reading | 0.1VA |
| Frequency | 45~65 | Hz | 0.1% * reading | 0.01Hz |
| Phase | 0~360 | ° | ±2° | 0.1° |

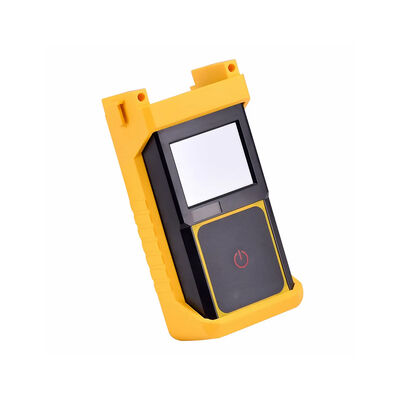

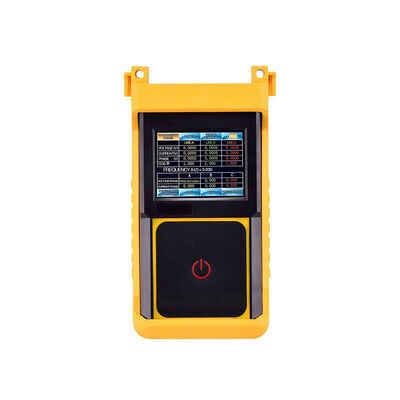

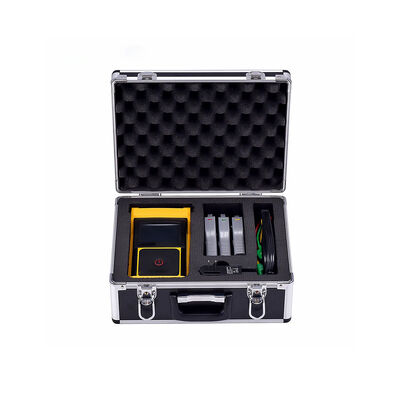

Product Images
