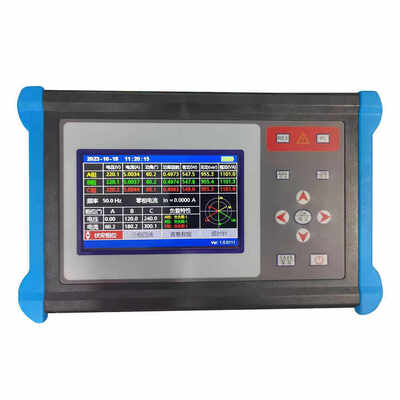

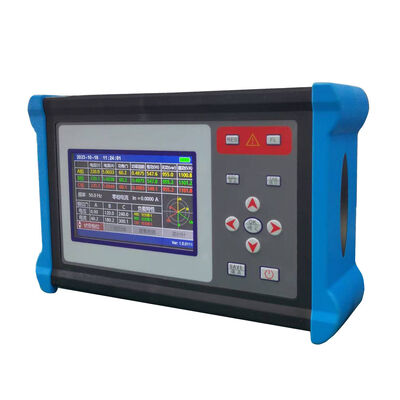

Handheld Power Quality Tester With 3 Phase Voltage 4 Circuit Current Measurement
| Place of Origin | Hubei China |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY6000 |
| Minimum Order Quantity | 1 |
| Price | 550usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1~500V 0.5% | Testing Voltage | 110V-220V(AC) |
|---|---|---|---|
| Dimensions | 380mm*260mm*180mm | Accuracy Class | 0.001~10A 0.2% |
| Operating Temperature | -10-40°C | Active Power | 0.001~5000W 0.5% |
| Apparent Power | 0.001~500VA 0.5% | Frequency | 45~65Hz 0.1% |
| Phase | 0~360° ± 2 | Weight | 10KG |
| Display Screen | Large Screen Color LCD | ||
| Highlight | Multi-Function Power Quality Analyzer,Ethernet Connectivity Surge Arrester Tester,Large Screen Color LCD Handheld DC Winding Meter |
||
Product Description
Handheld Three-Phase Power Parameter Analyzer for Voltage Current and Phase Angle Test
Product Description
Simultaneously measurement the voltage amplitude, current amplitude, voltage phase, current phase, the phase between voltage and current,frequency, power, active power, reactive power,harmonic, display the vector diagram of three-phase voltage and three-phase current in realtime.The meter can judge the three-phase phase sequence, sensibility and capacitance circuit, test the secondary circuit, check whether thewiring of the watt-hour meter is correct or not, overhaul the line equipment and so on.
Product Alias
Product Alias
Three-Phase Phase Voltammeter / Portable Power Quality Meter / Multi-function Power Parameter Test Instrument
Features
Features
1. Simultaneous measurement of three-phase voltage and four-circuit current (including zero line current)
2. At the same time, three-phase AC voltage phase angle, current phase angle and power angle are measured to measure grid frequency and phase sequence, hexagonal diagram display, color phase sequence analysis
3. Automatic identification of transformer winding, capacitance and inductive load
4. Active power, reactive power, apparent power, three-phase power and power factor measurement
Product Parameters1. Working power supply: built-in 8.4V/2.6AH lithium battery
2. Voltage range: 1~500V 0.5%
3. Current range: 0.001~10A 0.2%
4. Active power: 0.001~5000W 0.5%
5. Reactive power: 0.001~500VAR 0.5%
6. Apparent power: 0.001~500VA 0.5%
7. Frequency: 45~65Hz 0.1%
8. Phase: 0~360 ° ± 29. Display: large screen color LCD
|
Model |
MY6000 |
|
Working power supply |
built-in 8.4V/2.6AH lithium battery |
|
Voltage range |
1~500V 0.5% |
|
Current range |
0.001~10A 0.2% |
|
Active power |
0.001~5000W 0.5% |
|
Reactive power |
0.001~500VAR 0.5% |
|
Apparent power |
0.001~500VA 0.5% |
|
Frequency |
45~65Hz 0.1% |
|
Phase |
0~360 ° ± 2 |
FAQ
Question 1: Unstable phase angle reading and large data fluctuation
Customer: When conducting power parameter test on site, the phase angle data jumps constantly and cannot get stable readings. What leads to this problem?
Manufacturer: First check the wiring connection, confirm all voltage test leads are connected to corresponding phase terminals tightly without poor contact. Check the current clamps, ensure the jaws are fully closed and clamped in the correct direction, remove dirt or metal debris inside the jaw. Keep the instrument and test cables away from high-current cables and large transformers to reduce electromagnetic interference. Perform zero calibration before starting measurement. If the data is still unstable, check whether the current clamp cable is damaged. Stop testing and contact technical support, do not disassemble the clamps privately.
Question 2: Instrument fails to power on after pressing power button
Customer: The screen stays black and the instrument cannot boot up after power on. What are the possible reasons and solutions?
Manufacturer: Inspect the battery power first. If rechargeable battery is used, check whether it is fully installed with correct positive and negative polarity. Clean the oxidized or dirty metal contacts in battery compartment gently. Check if the power button is stuck. Try replacing with a fully charged spare battery pack. If the instrument still cannot start, stop operation and contact manufacturer technical support. Never open the instrument housing for self-maintenance.
Question 3: Current measurement shows zero value while voltage reading works normally
Customer: Voltage measurement displays correctly, but all current channels keep showing zero during the test. How to troubleshoot this fault?
Manufacturer: Check whether the current clamp jaws are fully closed without gaps. Confirm the current clamp cable is firmly plugged into the corresponding current port of the host, inspect the cable for breakage. Make sure the tested wire is placed in the center of the clamp jaw. Verify the measured current value is above the minimum measuring range of the instrument. Reconnect all clamps and restart the tester. If the problem still exists, contact technical support to inspect the clamp sensor.
Question 4: LCD screen flickers intermittently during substation field test
Customer: When used in substation environment, the color LCD screen flickers randomly while measuring power parameters. What causes this phenomenon?
Manufacturer: Strong electromagnetic interference from surrounding high-voltage equipment is the main factor. Move the instrument and test leads far away from high voltage busbars and large power equipment. Check whether the test wires are aging or have loose terminals. Low battery voltage can also trigger screen flickering, so confirm the battery is fully charged. Use proper shielding for test cables. If screen flickering remains after changing test position, stop the test and contact the technical team. Do not dismantle the display module without authorization.
Question 5: Saved test data cannot be found after measurement
Customer: I saved the test data after finishing measurement, but cannot find the recorded files when checking storage later. What should I do?
Manufacturer: Check whether you pressed the save button completely and confirm the "save success" prompt appeared on screen before powering off. Verify the storage space of the instrument, insufficient storage will cause saving failure. Avoid cutting off power immediately after clicking save, wait for data writing completed. Check the file folder selection on the instrument menu. If data still cannot be retrieved, do not format the storage, contact technical support for data recovery guidance.
Question 6: Shipping Method
Customer: If we place an order, how do you typically ship the goods? Will there be any issues with transporting bulky items such as reactors?
Manufacturer: We default to using dedicated logistics lines or brand-specific express shipping services; small-sized main units and accessories may also be shipped via standard courier services. Large items, such as reactors and excitation transformers, are packed using wooden crates or wooden frames for reinforcement to prevent bumps and moisture exposure during transit; a packing list is included with each package to facilitate item-by-item counting for you. Logistics costs are typically determined by both parties in accordance with the contract terms; after shipment, we will send you both the tracking number and the carrier's contact phone number for easy tracking.If your project site is remote or if delivery to the site is required with a specified logistics company, please inform us in advance when placing your order; we can then coordinate and arrange accordingly.
Question 7: Delivery Lead Time
Customer: Our project is under tight deadlines; how long will it take for the order to be shipped after we place it? Can we request expedited shipping?
Manufacturer: Standard specifications – stock available; typically delivered upon receipt of the order. Orders can be shipped within [X] working days; for non-standard products requiring customized voltage levels, capacities, or reactor combination configurations, the production cycle typically ranges from [X] to [Y] days.The delivery time will be approximately 7-15 working days; the specific timeline shall be subject to the sales confirmation provided upon order placement. If your project has a tight schedule, please inform us of the latest expected delivery date before placing your order; we will first verify the production schedule and inventory status, and where possible, will coordinate expedited production and prioritize shipment. However, it is recommended to allocate sufficient transit time for logistics to avoid delaying on-site testing.
Question 8: After-sales Service and Warranty
Customer: What is the warranty period for this equipment? If any issues arise during on-site use, how will your after-sales service respond?
Manufacturer: We provide a two-year free warranty on the entire unit and lifelong technical support services. During the warranty period, if issues arise due to defects in the equipment itself, we will provide free repair or replacement of components; when problems occur on-site, we commit to responding within 24 hours; most wiring and parameter configuration issues can be resolved through remote guidance via video or telephone; for cases where an on-site visit is necessary, we will arrange for our technicians to arrive at the location to resolve the issue. After the warranty period expires, we still offer repair services, with spare parts supplied at cost price for the long term, and software updates provided free of charge for life. Upon delivery of the equipment, we also offer free operational training (video operation guides)to ensure that your testing personnel can operate the equipment independently and proficiently; should you have any further questions, please feel free to contact our dedicated after-sales hotline directly.
Question 9: Shipping methods for each region (Sea freight)
Customer: Our projects are distributed across several states, and our procurement volumes are substantial; are the shipping methods consistent across all states? How is the delivery time calculated?
Manufacturer: The specifications are identical; however, it should be specifically noted that this equipment set is large in size and heavy in weight—components such as the reactor and excitation transformer are all classified as heavy components. Therefore, regardless of which state or region the shipment is destined for, we will uniformly utilize sea freight transportation. The packaging employs export-grade wooden crates with reinforced structures, along with moisture-proof and rust-proof treatments; the design of these wooden crates is optimized for long-distance sea transport and multiple lifting and transshipment operations. Upon arrival at the destination, simply unpack the goods and conduct an inspection before putting them into use. Regarding delivery time, the sea freight transit period depends on the port of destination: near-sea routes are generally faster, whereas ocean routes may take longer; the exact number of days will be confirmed based on the shipping schedule specified in the bill of lading. We have a dedicated freight forwarding agency to handle booking of shipping space, customs declaration, insurance, and other related procedures; once the vessel departs, we will send you documents such as the bill of lading and the packing list, enabling you to arrange for the receipt of goods at the port of destination and their inland transshipment in advance.
scenario
Scene (One)
Customer: When conducting power parameter test on site, the phase angle data jumps constantly and cannot get stable readings. What leads to this problem?
Manufacturer: First check the wiring connection, confirm all voltage test leads are connected to corresponding phase terminals tightly without poor contact. Check the current clamps, ensure the jaws are fully closed and clamped in the correct direction, remove dirt or metal debris inside the jaw. Keep the instrument and test cables away from high-current cables and large transformers to reduce electromagnetic interference. Perform zero calibration before starting measurement. If the data is still unstable, check whether the current clamp cable is damaged. Stop testing and contact technical support, do not disassemble the clamps privately.
Question 2: Instrument fails to power on after pressing power button
Customer: The screen stays black and the instrument cannot boot up after power on. What are the possible reasons and solutions?
Manufacturer: Inspect the battery power first. If rechargeable battery is used, check whether it is fully installed with correct positive and negative polarity. Clean the oxidized or dirty metal contacts in battery compartment gently. Check if the power button is stuck. Try replacing with a fully charged spare battery pack. If the instrument still cannot start, stop operation and contact manufacturer technical support. Never open the instrument housing for self-maintenance.
Question 3: Current measurement shows zero value while voltage reading works normally
Customer: Voltage measurement displays correctly, but all current channels keep showing zero during the test. How to troubleshoot this fault?
Manufacturer: Check whether the current clamp jaws are fully closed without gaps. Confirm the current clamp cable is firmly plugged into the corresponding current port of the host, inspect the cable for breakage. Make sure the tested wire is placed in the center of the clamp jaw. Verify the measured current value is above the minimum measuring range of the instrument. Reconnect all clamps and restart the tester. If the problem still exists, contact technical support to inspect the clamp sensor.
Question 4: LCD screen flickers intermittently during substation field test
Customer: When used in substation environment, the color LCD screen flickers randomly while measuring power parameters. What causes this phenomenon?
Manufacturer: Strong electromagnetic interference from surrounding high-voltage equipment is the main factor. Move the instrument and test leads far away from high voltage busbars and large power equipment. Check whether the test wires are aging or have loose terminals. Low battery voltage can also trigger screen flickering, so confirm the battery is fully charged. Use proper shielding for test cables. If screen flickering remains after changing test position, stop the test and contact the technical team. Do not dismantle the display module without authorization.
Question 5: Saved test data cannot be found after measurement
Customer: I saved the test data after finishing measurement, but cannot find the recorded files when checking storage later. What should I do?
Manufacturer: Check whether you pressed the save button completely and confirm the "save success" prompt appeared on screen before powering off. Verify the storage space of the instrument, insufficient storage will cause saving failure. Avoid cutting off power immediately after clicking save, wait for data writing completed. Check the file folder selection on the instrument menu. If data still cannot be retrieved, do not format the storage, contact technical support for data recovery guidance.
Question 6: Shipping Method
Customer: If we place an order, how do you typically ship the goods? Will there be any issues with transporting bulky items such as reactors?
Manufacturer: We default to using dedicated logistics lines or brand-specific express shipping services; small-sized main units and accessories may also be shipped via standard courier services. Large items, such as reactors and excitation transformers, are packed using wooden crates or wooden frames for reinforcement to prevent bumps and moisture exposure during transit; a packing list is included with each package to facilitate item-by-item counting for you. Logistics costs are typically determined by both parties in accordance with the contract terms; after shipment, we will send you both the tracking number and the carrier's contact phone number for easy tracking.If your project site is remote or if delivery to the site is required with a specified logistics company, please inform us in advance when placing your order; we can then coordinate and arrange accordingly.
Question 7: Delivery Lead Time
Customer: Our project is under tight deadlines; how long will it take for the order to be shipped after we place it? Can we request expedited shipping?
Manufacturer: Standard specifications – stock available; typically delivered upon receipt of the order. Orders can be shipped within [X] working days; for non-standard products requiring customized voltage levels, capacities, or reactor combination configurations, the production cycle typically ranges from [X] to [Y] days.The delivery time will be approximately 7-15 working days; the specific timeline shall be subject to the sales confirmation provided upon order placement. If your project has a tight schedule, please inform us of the latest expected delivery date before placing your order; we will first verify the production schedule and inventory status, and where possible, will coordinate expedited production and prioritize shipment. However, it is recommended to allocate sufficient transit time for logistics to avoid delaying on-site testing.
Question 8: After-sales Service and Warranty
Customer: What is the warranty period for this equipment? If any issues arise during on-site use, how will your after-sales service respond?
Manufacturer: We provide a two-year free warranty on the entire unit and lifelong technical support services. During the warranty period, if issues arise due to defects in the equipment itself, we will provide free repair or replacement of components; when problems occur on-site, we commit to responding within 24 hours; most wiring and parameter configuration issues can be resolved through remote guidance via video or telephone; for cases where an on-site visit is necessary, we will arrange for our technicians to arrive at the location to resolve the issue. After the warranty period expires, we still offer repair services, with spare parts supplied at cost price for the long term, and software updates provided free of charge for life. Upon delivery of the equipment, we also offer free operational training (video operation guides)to ensure that your testing personnel can operate the equipment independently and proficiently; should you have any further questions, please feel free to contact our dedicated after-sales hotline directly.
Question 9: Shipping methods for each region (Sea freight)
Customer: Our projects are distributed across several states, and our procurement volumes are substantial; are the shipping methods consistent across all states? How is the delivery time calculated?
Manufacturer: The specifications are identical; however, it should be specifically noted that this equipment set is large in size and heavy in weight—components such as the reactor and excitation transformer are all classified as heavy components. Therefore, regardless of which state or region the shipment is destined for, we will uniformly utilize sea freight transportation. The packaging employs export-grade wooden crates with reinforced structures, along with moisture-proof and rust-proof treatments; the design of these wooden crates is optimized for long-distance sea transport and multiple lifting and transshipment operations. Upon arrival at the destination, simply unpack the goods and conduct an inspection before putting them into use. Regarding delivery time, the sea freight transit period depends on the port of destination: near-sea routes are generally faster, whereas ocean routes may take longer; the exact number of days will be confirmed based on the shipping schedule specified in the bill of lading. We have a dedicated freight forwarding agency to handle booking of shipping space, customs declaration, insurance, and other related procedures; once the vessel departs, we will send you documents such as the bill of lading and the packing list, enabling you to arrange for the receipt of goods at the port of destination and their inland transshipment in advance.
scenario
Scene (One)
Scene (Two)
Attachment Directory
| NO. | Name | QTY |
|---|---|---|
| 1 | Instrument Host | 1 |
| 2 | Voltage Test Leads | 1 set |
| 3 | Current Clamp Sensors | 4 pcs |

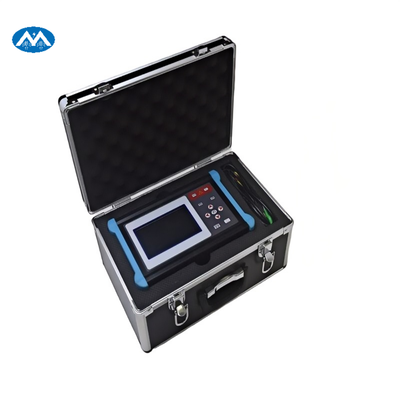

| 4 | Aluminium Alloy Carrying Case | 1 |
| 5 | User Operation Manual | 1 |
| 6 | Calibration Certificate | 1 |
| 7 | Inspection Report | 1 |
