Three Phase Power Quality Analyzer Desktop 3 Phase Harmonic Energy Analyzer Meter
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY3501 |
| Minimum Order Quantity | 1 |
| Price | 1500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Warranty | 3 Years | Type | Power |
|---|---|---|---|
| Customized Support | OEM, ODM, OBM | Place Of Origin | Hebei, China |
| Size | 320mm*240mm*130mm | Three-phase Current | 0 ~ 1000A |
| Work Power | 100~240V | Frequency | 40 ~ 70Hz |
| Neutral Current | 0 ~ 25A | ||
| Highlight | Three Phase Power Quality Analyzer,Desktop Power Quality Analyzer,240V harmonic energy analyzer |
||
Product Description
Desktop 3-Phase Power Quality Harmonic Energy Analyzer Meter
Product Overview
Professional desktop 3-phase power quality analyzer designed for comprehensive harmonic energy analysis and power quality monitoring in industrial and commercial applications.
Input Specifications
| Voltage Measurement Range | 20 ~ 800V, automatic shift |
| Current Measurement Range |
5A / 25A (standard)
100A / 500A (optional)
400A / 2000A (optional)
|
| Phase Angle Measurement Range | 0 ~ 359.99° |
| Frequency Measurement Range | 45 ~ 55Hz |
| Number of Voltage Channels | Three channels (UA, UB, UC) |
| Number of Current Channels | Three channels (IA, IB, IC) |
| Maximum Harmonic Analysis Times | 63 times |
| 1 Minute Interval Maximum Continuous Storage Cycle | 18 months |
Measurement Accuracy
| Parameter | Accuracy |
|---|---|
| Voltage | ± 0.1% |
| Frequency | ± 0.01Hz |
| Current and Power | ± 0.5% |
| Phase | ± 0.2° |
| Fundamental Voltage Allowable Error | ≤ 0.5% F.S |
| Fundamental Current Allowable Error | ≤ 1% F.S |
| Phase Difference Measurement Error | ≤ 0.2° |
| Harmonic Voltage Content Measurement Error | ≤ 0.1% |
| Harmonic Current Content Measurement Error | ≤ 0.2% |
| Three Phase Voltage Unbalance Error | ≤ 0.2% |
| Voltage Deviation Error | ≤ 0.2% |
| Voltage Variation Error | ≤ 0.2% |
General Specifications
| Working Temperature | -10℃ ~ +40℃ |
| Charging Power Supply | AC220V, 45Hz-55Hz |
| Host Power Consumption | ≤ 3VA |
| Maximum Working Time of Battery | ≤ 10 hours |
| Insulation Resistance | Voltage and current input terminals to casing ≤ 100mΩ |
| Power Frequency Withstand Voltage | 1.5kV (effective value) for 1 minute between input end and shell |
| Volume | 320mm * 240mm * 130mm |
| Weight | 1.5kg |

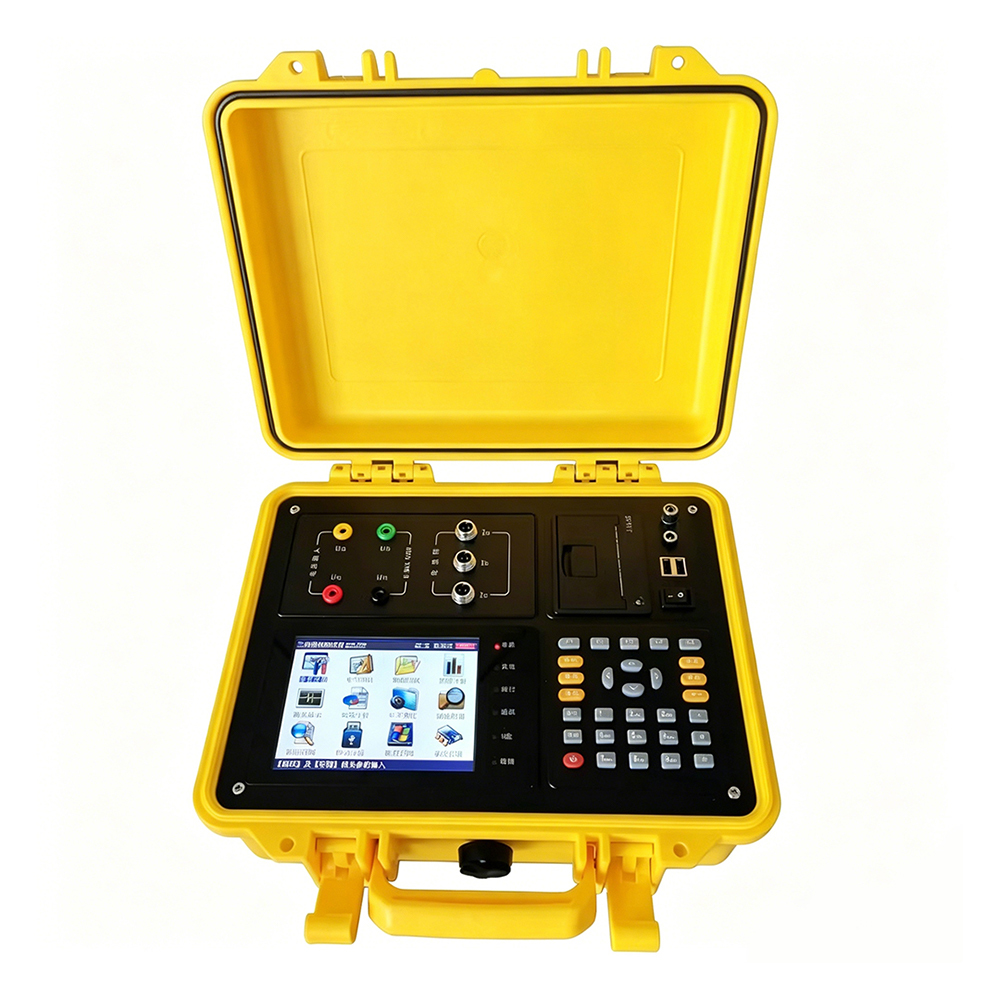

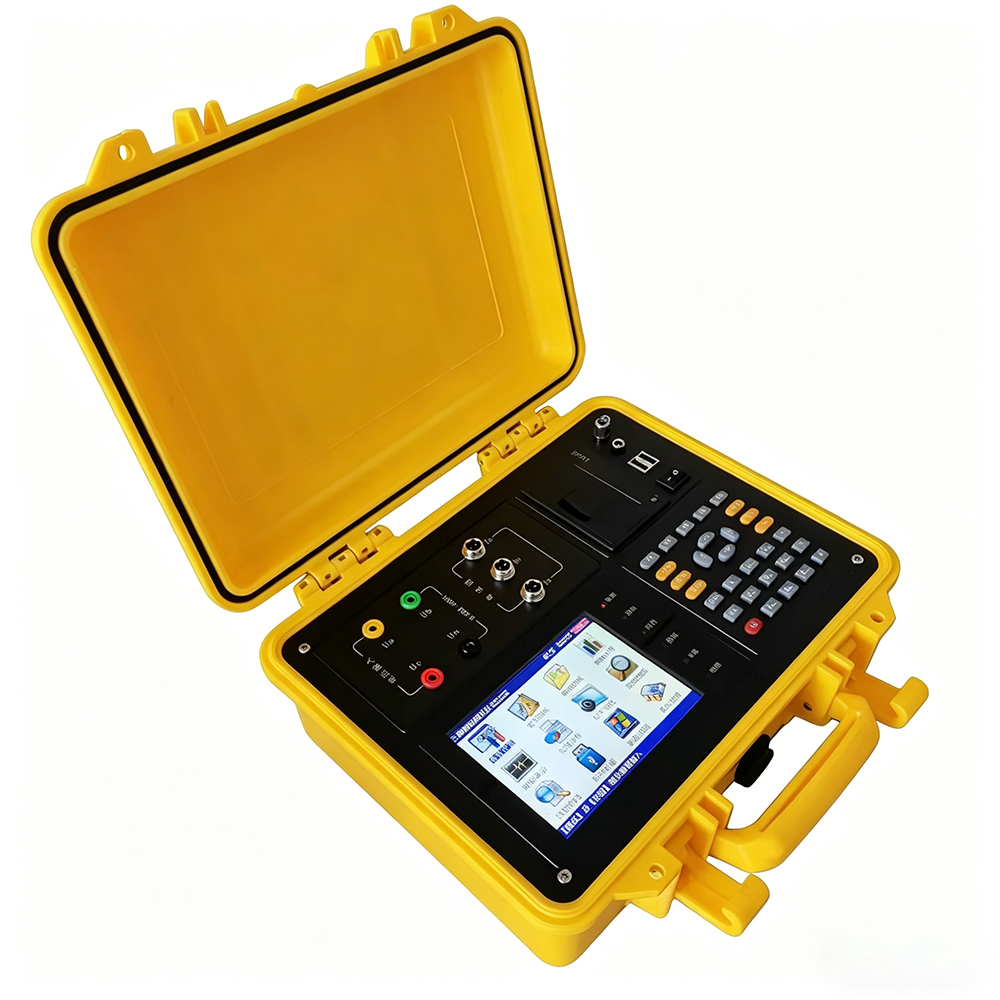

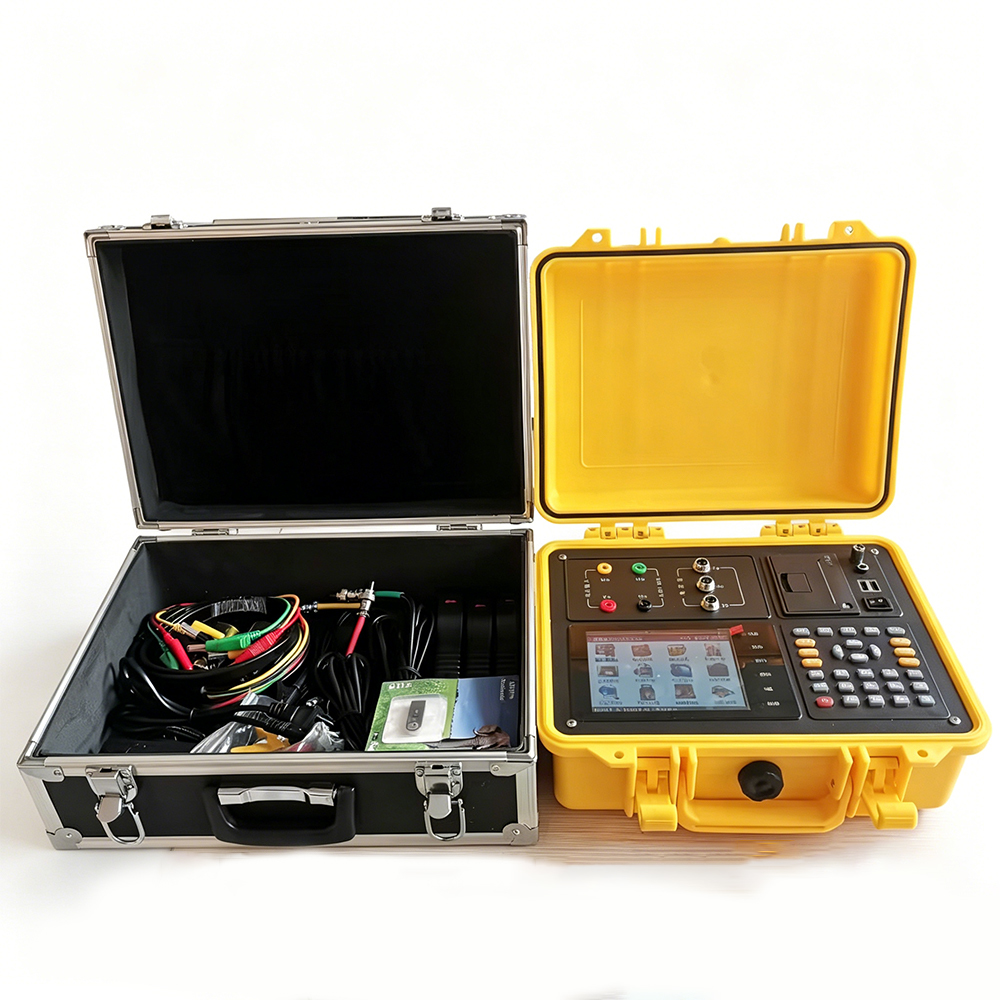

Product Images
