Digital Transformer Ratio Tester Voltage Extension Transformer Turns Ratio Test Set
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYC |
| Minimum Order Quantity | 1 |
| Price | 1800usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 0 Ω ~ 2000 Ω | Accuracy Class | 0.5% |
|---|---|---|---|
| Operating Temperature | 0 ℃ To 40 ℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 12kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Display Type | LCD Display |
| Testing Voltage | 2.5 KV, 5 KV | Current Resolution | 5mA |
| Insulation Resistance | > 500 KΩ | Dimensions | 285mmX247mmX120mm |
| Highlight | Digital transformer ratio tester,2.5kV transformer ratio tester,5kV automatic transformer tester |
||
Product Description
Digital Transformer Ratiometer Voltage Extension Transformer Turns Ratio Test Set with Software Background
Product Overview
Advanced digital transformer ratiometer designed for precise voltage extension transformer turns ratio testing with integrated software capabilities for comprehensive analysis and data management.
Technical Specifications
| Specification | Value |
|---|---|
| Place of Origin | China |
| Measuring Range | 0-2000Ω |
| Testing Voltage | 2.5kV, 5KV |
| Insulation Resistance | >500kΩ |
| Current Resolution | 5mA |
| Display Type | LCD |
| Operating Temperature | 0 ℃ to 40 ℃ |
| Dimensions | 285mm * 247mm * 120mm |

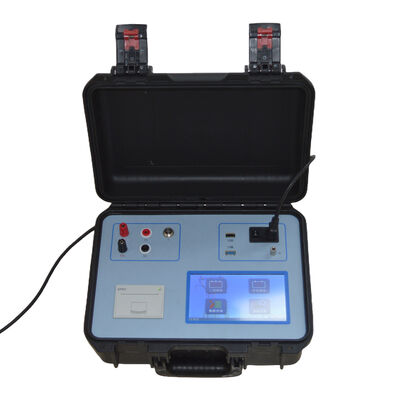

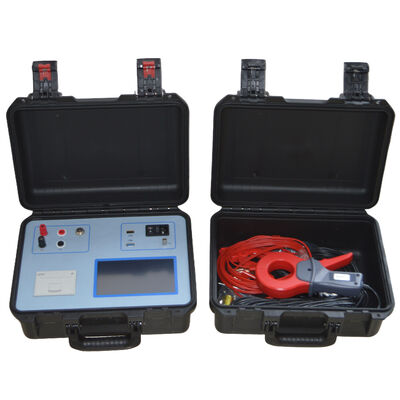

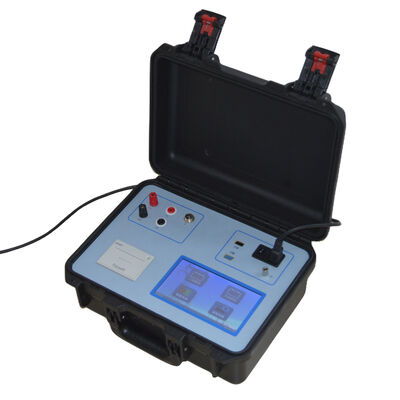

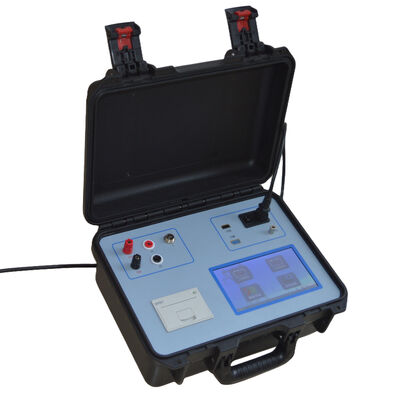

Product Images
