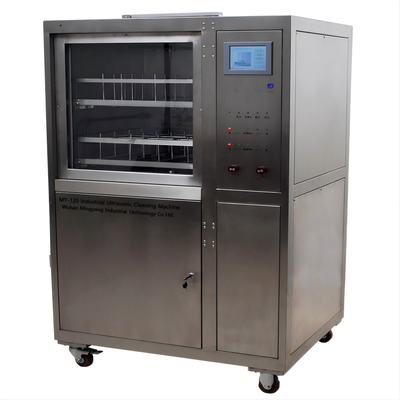

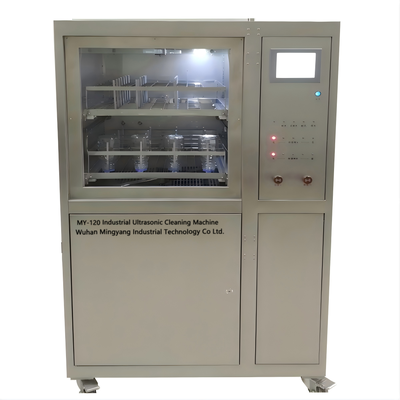

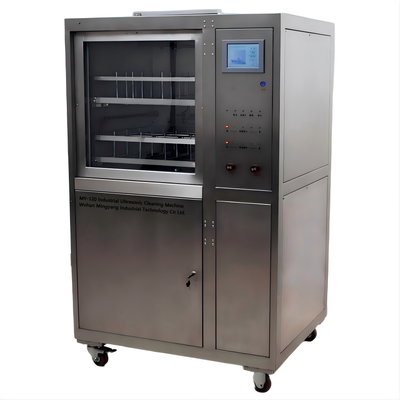

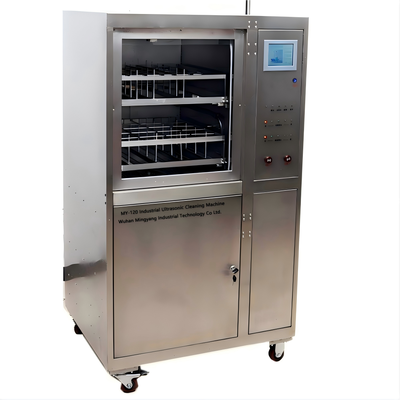

MY-120 GMP Compliant Automatic Laboratory Glassware Washer for Beakers, Flasks, Test Tubes & Heavily Oiled Transformer Oil Contaminated Utensils
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-120 |
| Minimum Order Quantity | 1 |
| Price | 5000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 500/Month |
Product Details
| Types | Automatic | Brand | MINGYANG |
|---|---|---|---|
| Application | Laboratory | Customized | Non-Customized |
| Material | Stainless Steel | Display | Touchscreen LCD Display |
| Control | Computer / Touch Screen Control | Power Source | AC220V ±5%, 50/60Hz |
| Maximum Power | 4000W | Weight | 120kg |
| Dimension | 850*700*1490mm | Transport Package | Wooden Box With Foam |
| Production Capacity | 500 Sets/Month | Cleaning System | High-pressure Circulating Spray System |
| Spray Pressure | ~0.45 MPa | Flow Rate | 200 L/min |
| Washing Liquid Temp. | Tap Water ~70℃, Accuracy ±2℃ | Drying System | Positive Pressure Air Drying |
| Drying Temp | Room Temp ~105℃, Accuracy ±5℃ | Cleaning Modes | Automatic Intermittent Mode / Custom Mode / Manual Mode |
| Average Cleaning Cycle | About 90 Minutes | Detergent Supply | Isolated Magnetic Pump Detergent Dispensing System |
| Detergent Residue | ≤0.1 µg/cm² | PH Range | 6.5~7.5 |
| External Casing Temp | ≤40℃ | Top Casing Temp. | ≤50℃ |
Product Description
MY-120 GMP Compliant Automatic Laboratory Glassware Washer for Beakers, Flasks, Test Tubes & Heavily Oiled Transformer Oil Contaminated Utensils
Product Description
Product Features
1. The instrument is controlled by double CPU mutual monitoring mode, which is stable and reliable;
2. The utensil cleaning integrates high temperature softening, high pressure stripping, acid esterification, oil emulsification, pH control, complex water softening, polymerization washing, high temperature drying and ultraviolet disinfection and other technological means to ensure the maximum cleanliness of washing;
3. Adopts upper and lower double shower arm spraying to ensure that there is no dead angle in the washing bin;
4. Multi-channel microcomputer automatic valve control system, so that the pipeline dead volume of sewage residue in the smallest. This greatly improves the cleaning efficiency, and significantly shorten the work cycle and reduce water and electricity consumption;
5. Adopts GC column box insulation technology, so that the box heat loss is greatly reduced. Improve the working efficiency and at the same time reduce the power consumption;
6. Adopts highly sensitive temperature sensors and supporting software control system, in order to achieve more accurate real-time monitoring of the temperature in the bin when cleaning and drying;
7. High throughput residue filtration system, not only to ensure high throughput of washing, but also to eliminate the high hardness residue on the high-pressure circulating pump serious damage;
8. A variety of customized washing mode automatically programmed to save the system to adapt to the cleaning program of different utensils;
9. Automatic hatch, normal washing hatch automatically locked to protect the circulating pump and heating system work, to prevent users from accidental injury and damage to the instrument itself;
10. Automatic control of intermittent cleaning operation process has a default mode, customized mode and manual mode to choose from, giving customers enough freedom of work;
11. Large LCD touch screen display, English menu interface, so that the operation is simple and clear, very convenient;

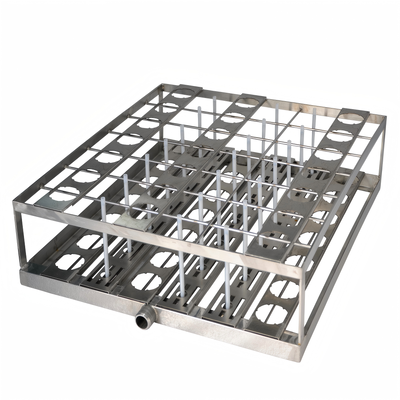

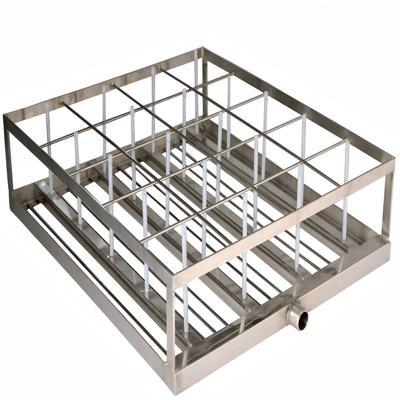

13. Interchangeable baskets to adapt to the cleaning of different utensils;
14. According to different baskets, and different washing quantity, automatic adjustment of water intake to achieve the purpose of saving water.
2. The utensil cleaning integrates high temperature softening, high pressure stripping, acid esterification, oil emulsification, pH control, complex water softening, polymerization washing, high temperature drying and ultraviolet disinfection and other technological means to ensure the maximum cleanliness of washing;
3. Adopts upper and lower double shower arm spraying to ensure that there is no dead angle in the washing bin;
4. Multi-channel microcomputer automatic valve control system, so that the pipeline dead volume of sewage residue in the smallest. This greatly improves the cleaning efficiency, and significantly shorten the work cycle and reduce water and electricity consumption;
5. Adopts GC column box insulation technology, so that the box heat loss is greatly reduced. Improve the working efficiency and at the same time reduce the power consumption;
6. Adopts highly sensitive temperature sensors and supporting software control system, in order to achieve more accurate real-time monitoring of the temperature in the bin when cleaning and drying;
7. High throughput residue filtration system, not only to ensure high throughput of washing, but also to eliminate the high hardness residue on the high-pressure circulating pump serious damage;
8. A variety of customized washing mode automatically programmed to save the system to adapt to the cleaning program of different utensils;
9. Automatic hatch, normal washing hatch automatically locked to protect the circulating pump and heating system work, to prevent users from accidental injury and damage to the instrument itself;
10. Automatic control of intermittent cleaning operation process has a default mode, customized mode and manual mode to choose from, giving customers enough freedom of work;
11. Large LCD touch screen display, English menu interface, so that the operation is simple and clear, very convenient;
13. Interchangeable baskets to adapt to the cleaning of different utensils;
14. According to different baskets, and different washing quantity, automatic adjustment of water intake to achieve the purpose of saving water.
Basic Info.
Model NO.
MY-120
Mass Scope of Workpiece
<900kg
Type
Utensils Washer
Maxcapacity
<1000KN
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Static Load
Display
Digital
Control
Computer Control
Weight
120kg
Power Source
AC380V
Oil Cylinder Position
Top
Model No.
Hzqx-S
Structure
Desktop
Application
Lab
Material
Stainless Steel
Customized
Non-Customized
Machine Weight
120kg
Dimension
1150*1000*1840mm
Transport Package
Wooden Box with Foam
Specification
850*700*1490mm
Trademark
MINGYANG
Origin
Wuhan, China
HS Code
9030899090
Production Capacity
500sets/Month
Product Parameters
| MY-120 Laboratory Glassware Washer Machine | |
| Cleanliness meets analytical chemistry requirements for glassware quality | pH = 6.5~7.5 |
| Detergent residue on the inner wall of the glassware | ≤0.1 μg/cm2 |
| Particulate matter residue | ≤ manual cleaning residue (meets oil analysis requirements) |
| High-pressure circulating spray system | Pressure: ~0.45 MPa |
| Flow rate: 200 L/min | |
|
Automatic intermittent cleaning operation modes
|
Default Mode 1: Suitable for heavily soiled dishes |
| Default Mode 2: Suitable for lightly soiled dishes | |
| Custom Mode: Users can freely change washing time, number of washes, washing temperature, hot air temperature, drying time, and other related parameters according to actual conditions to adapt to dishes with different levels of soiling | |
|
Manual Mode: Manual control of parameters, suitable for maintenance, repair, assembly, and debugging
|
|
| External casing temperature | ≤40ºC |
| Top casing temperature | ≤50ºC |
| Washing liquid temperature control system | Tap water temperature ~70ºC; Accuracy ±2ºC |
| Positive pressure air drying system | Room temperature ~105ºC; Accuracy ±5ºC |
| Cleaning cycle | Average working cycle is approximately 90 minutes throughout the four seasons (depending on room temperature, water temperature, and power supply configuration) |
| Detergent dispensing system | Employs a fully isolated magnetic pump to avoid detergent contamination |
| Environmental parameters | No harmful noise, exhaust gas, or waste residue is generated during operation. Wastewater discharge is comparable to domestic sewage levels |
| Display method | Touchscreen color LCD display |
| Dimensions | 85cm × 70cm × 149cm |
| Weight | 120 kg |
| Operating ambient temperature | 0~+40ºC, ≤ 85% |
| Power Supply | AC 220V ± 5%, 50/60 Hz |
| Maximum Power | 4000 W |
