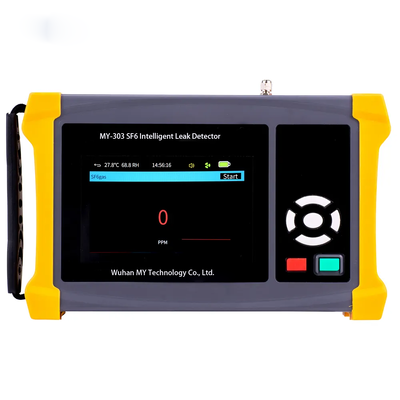

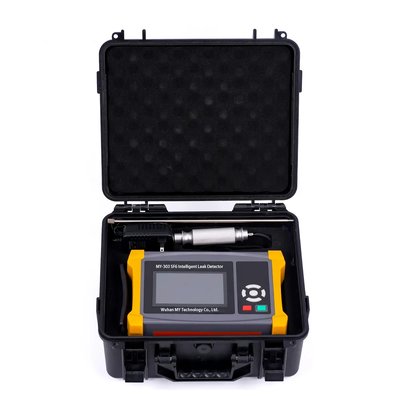

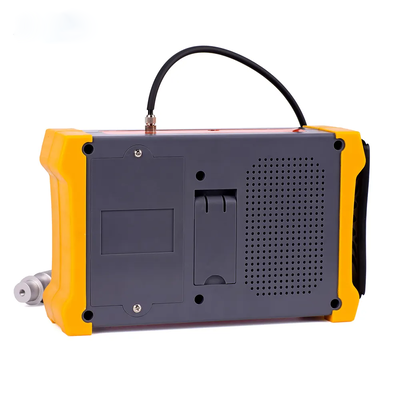

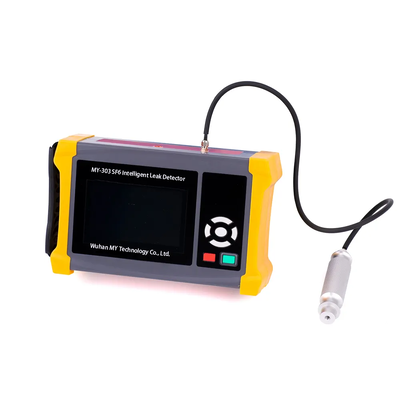

Multi Functional SF6 And Oxygen Gas Detector For High Voltage Substation
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-303 |
| Minimum Order Quantity | 1 |
| Price | 1500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Typer | SF6 Leak Detecto | Target Gas | Hydrogen Sulfide |
|---|---|---|---|
| Customized Support | OEM, ODM, OBM, Software Reengineering | Monitoring Gas | Sulfur Hexafluoride Gas |
| Repetitive Performance | 1% | Recovery Time | < 3 Seconds |
| Warranty | 1 Year | Measurement Range | 0-12000ppm |
| Accuracy | ± (1.5%+5d) | Place Of Origin | Hubei, China |
| Air Pump Extraction Speed | ≥ 800ml/min | ||
| Highlight | Multi Functional oxygen gas detector,High Voltage Substation oxygen gas detector,sf6 gas analyser |
||
Product Description
Multi-functional SF6 and Oxygen Gas Detector for High Voltage Substation
Advanced multi-functional gas detection system designed specifically for monitoring SF6 and oxygen levels in high voltage substation environments, ensuring safety and compliance.
Technical Specifications
| Measurement Method | NDIR single beam dual wavelength infrared measurement technology |
| Monitoring Gas | Sulfur hexafluoride gas |
| Measurement Range | 0-12000ppm |
| Resolution | 1ppm |
| Accuracy | ± (1.5%+5d) |
| Repetitive Performance | 1% |
| Air Pump Extraction Speed | ≥ 800ml/min |
| Continuous Working Time | ≥ 5 hours |
| Instrument Start-up Preheating Time | ≤ 10 seconds |
| Corresponding Time | < 3 seconds |
| Recovery Time | < 3 seconds |
| Charging Adapter Specifications | DC5V/1A |
| Surge (Impact) Immunity | ± 1.2kV |
| Environmental Temperature | -20 ℃~+50 ℃ |
| Environmental Humidity | Relative humidity of 5-95% (non condensing) |
| Atmospheric Pressure | 50kPa~110kPa |
| Protection Level | IP33, double insulation, CAT II standard |
| External Dimensions | Length 250mm * Width 70mm * Height 160mm |
| Host Weight | 1KG |
