0~100kV Surge Immunity Tester with ±1% Accuracy & IP65 Protection
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYCT-400kV/30kJ |
| Minimum Order Quantity | 1 |
| Price | 8000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Voltage | Other, 220V Electrical Equipment |
|---|---|---|---|
| Accuracy | ±1% | Power | 100 W |
| Place Of Origin | Hubei, China | Setting Range | 0 ~ 100kV |
| Setting Distinguish | 0.1kV | Warranty | 2 Years |
| Protection Class | IP65 | Overcurrent Protection Value | Can Be Set |
| Highlight | 0 ~ 100kV Setting Range Surge Immunity Tester,±1% Accuracy High Voltage Impulse Generator,IP65 Protection Class Lightning Generator Test Device |
||
Product Description

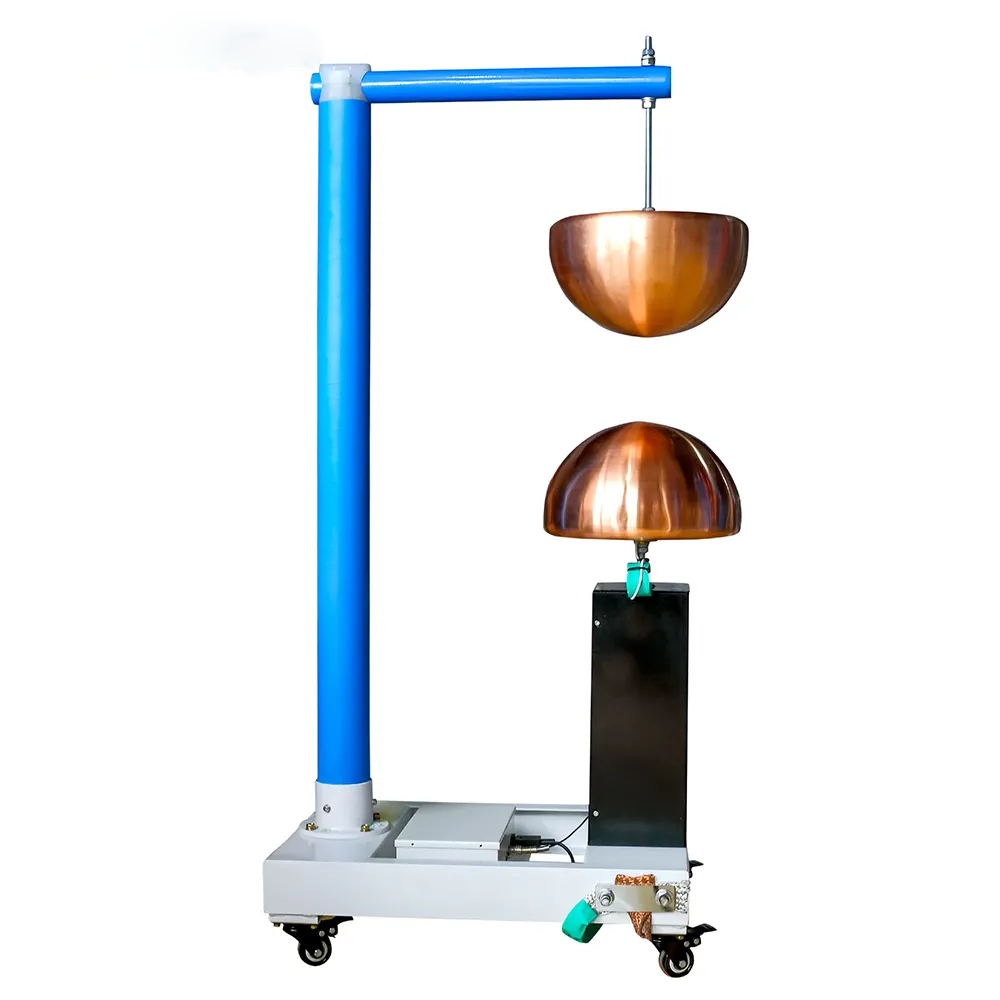

Surge Immunity Tester High Voltage Impulse Lightning Generator Test Device
Advanced high-voltage impulse generator designed for comprehensive surge immunity testing of electrical apparatus and insulation systems.
Key Features
- High-Voltage Impulse Simulation: Generates standard 1.2/50μs lightning impulses to verify dielectric strength and assess withstand capability of transformers, insulators, and arresters against atmospheric overvoltages.

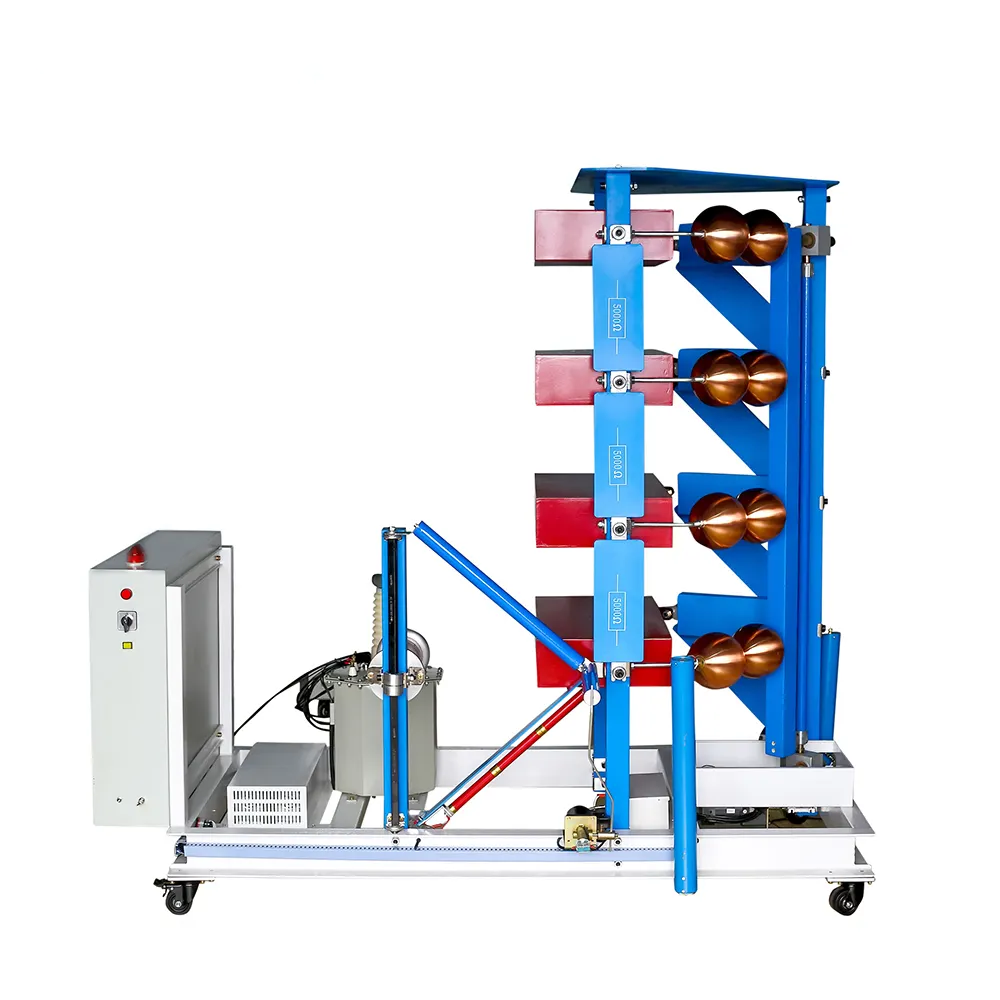

- Modular Design with Customizable Stages: Achieve precise test voltages up to 2400kV through stackable stage configuration with low-inductance capacitors and precise sphere gaps, compliant with IEC 60060-1 standards.

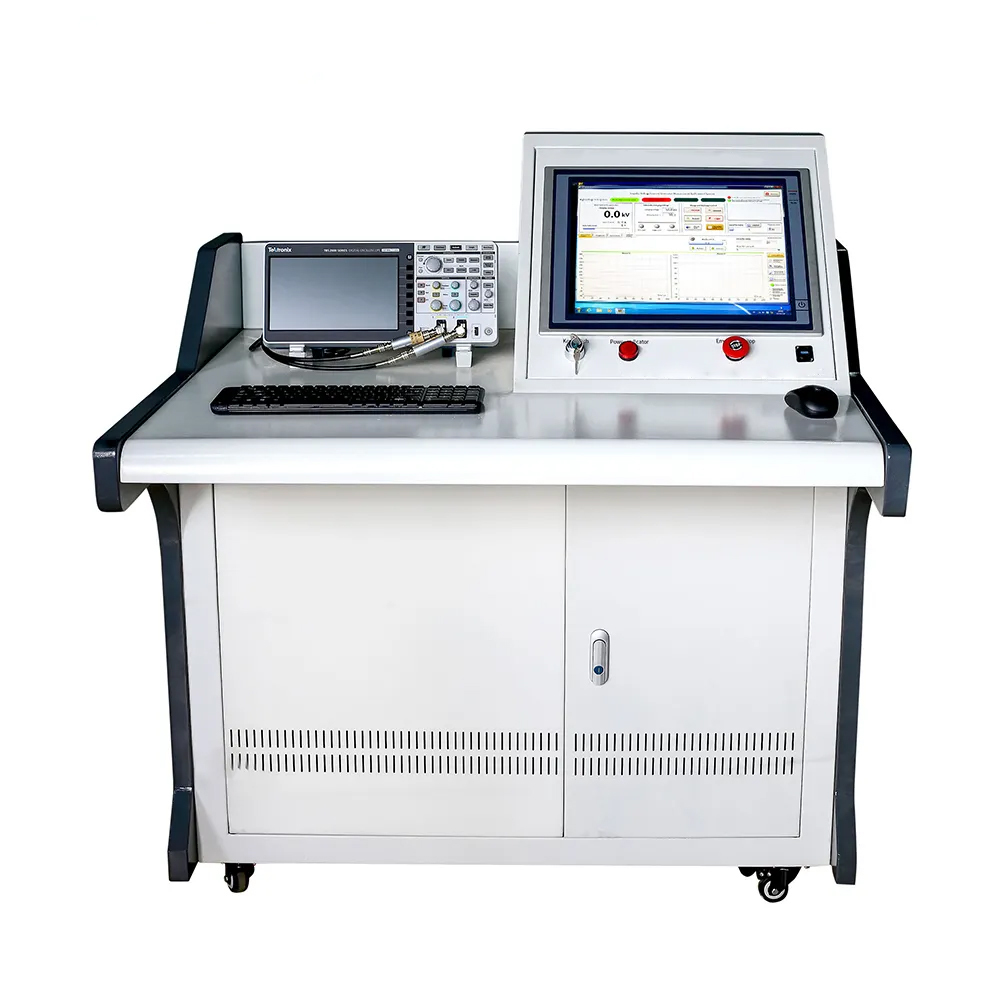

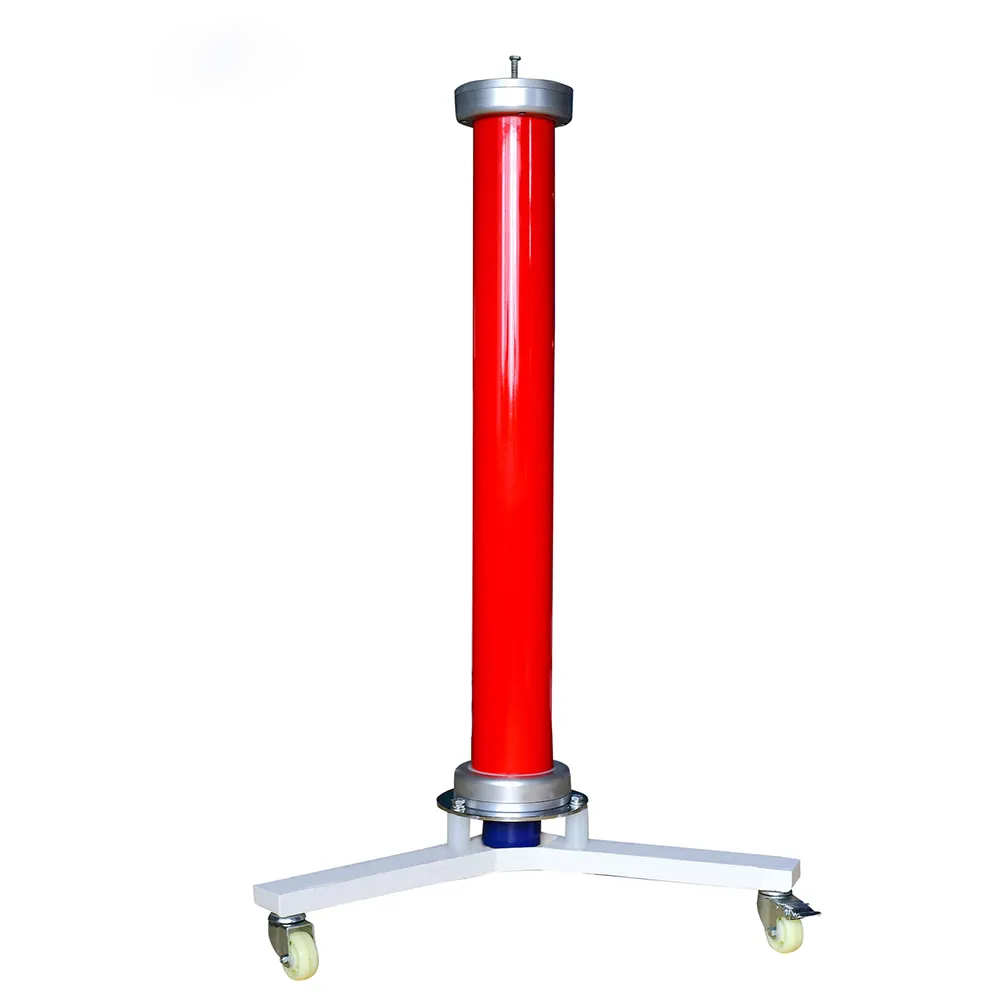

- Integrated Measurement & Control System: Digital control system with touchscreen interface for automated charging, triggering, and polarity reversal. Includes voltage divider, peak voltmeter, and advanced analysis software for comprehensive test reporting.

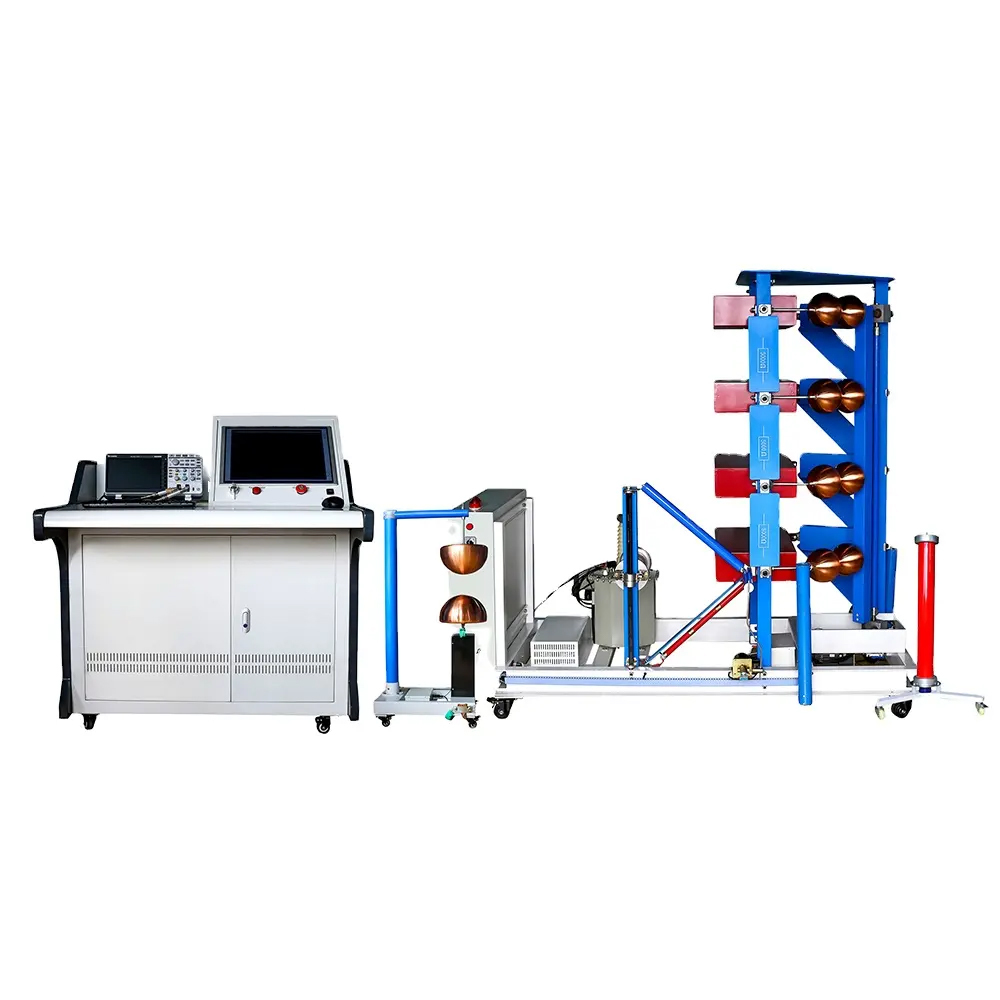

- Laboratory-Grade Performance: Complete system includes charging rectifier, wave-shaping resistors, and robust discharge gap assembly for reliable generation of lightning and switching impulses to validate product safety and reliability.
