Transformer On-Load Tap Analyzer with 6-Channel High-Speed Sampling
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYKG-300T |
| Minimum Order Quantity | 1 |
| Price | 3600usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Application | Industrial Equipment, Electronic Equipment, Electric Power Transmission | Material | Copper |
|---|---|---|---|
| Place Of Origin | Hebei, China | Output Current | ≥ 1A, 3 Channels. |
| Sampling Frequency | 10KHz/s | Dimensions | 350mm * 230mm * 200mm |
| Sampling Channels | 6 Channels | Host Weight | 5kg |
| Highlight | 6-channel high-speed synchronous data sampling Transformer On-Load Switch Tap Analyzer,1A 3 channels output current Surge Arrester Tester,10KHz/s sampling frequency High-Precision Measuring Instrument |
||
Product Description
High-Precision Transformer On-Load Switch Tap Analyzer
1A 3-Channel precision measuring instrument for transformer on-load switch analysis
Product Overview
The Transformer On-Load Tap Changer Analyzer is designed to measure transition waveforms, transition time, instantaneous transition resistance values, three-phase synchronization, and other critical parameters of on-load tap changers in transformers.
Key Features
- Built-in precision constant current source with comprehensive protection circuitry
- Testing capability with or without windings
- Embedded PC-104 industrial control computer for high-speed operation and large storage capacity
- 6-channel high-speed synchronous data sampling
Operation Interface
- 5.7-inch backlit wide-temperature LCD with clear sunlight visibility
- Graphical and text-based result display
- T9 input method supporting numbers, letters, Chinese characters, and symbols
Data Storage & Management
- 1GB internal storage capacity for tens of thousands of test datasets
- External USB storage functionality for expanded data capacity
- USB data synchronization for convenient data exchange
- Direct USB drive file access capability
- Tree-structured storage organized by station name, number, and tap position
- Windows-compatible OTS data management software
- USB and RS232 connectivity options
- Comprehensive PC data management and analysis functions
- Data import and on-site testing in PC online mode
Software Upgrading
- USB or RS-232 online upgrade capability
- On-site USB flash drive upgrade functionality
Technical Parameters
| Output Current | ≥ 1A, 3 channels |
| Data Sampling Channels | 6 channels |
| Sampling Frequency | 10KHz/s |
| Transition Resistance Range | 0.5 Ω ~ 20 Ω |
| Transition Time Range | ≤ 250ms |
| Resistance Resolution | 0.01 Ω |
| Time Resolution | 0.1ms |
| Transition Resistance Accuracy | ± (5% + 3 characters) |
| Transition Time Accuracy | ± (0.1% + 1 word) |
| Storage Method | USB flash drive storage with 1GB local storage |
| Dimensions | 350mm × 230mm × 200mm |
| Host Weight | 5kg |
Packaging & Delivery
Inner Package: Aluminum alloy + foam plate + dust bag
Outer Packaging: Standard import/export wooden box
Custom OEM Packaging: Available upon request
Instrument Size: 405mm × 370mm × 270mm
Instrument Weight: 13.58kg

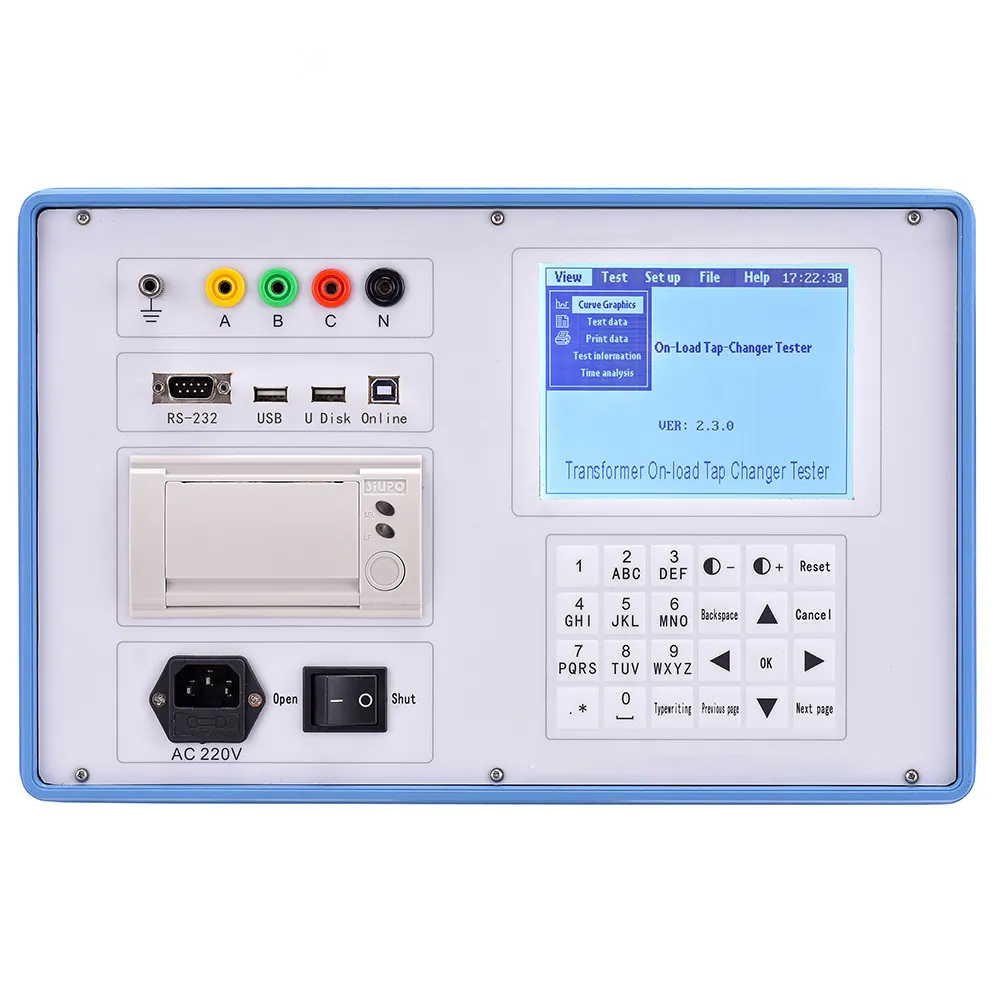

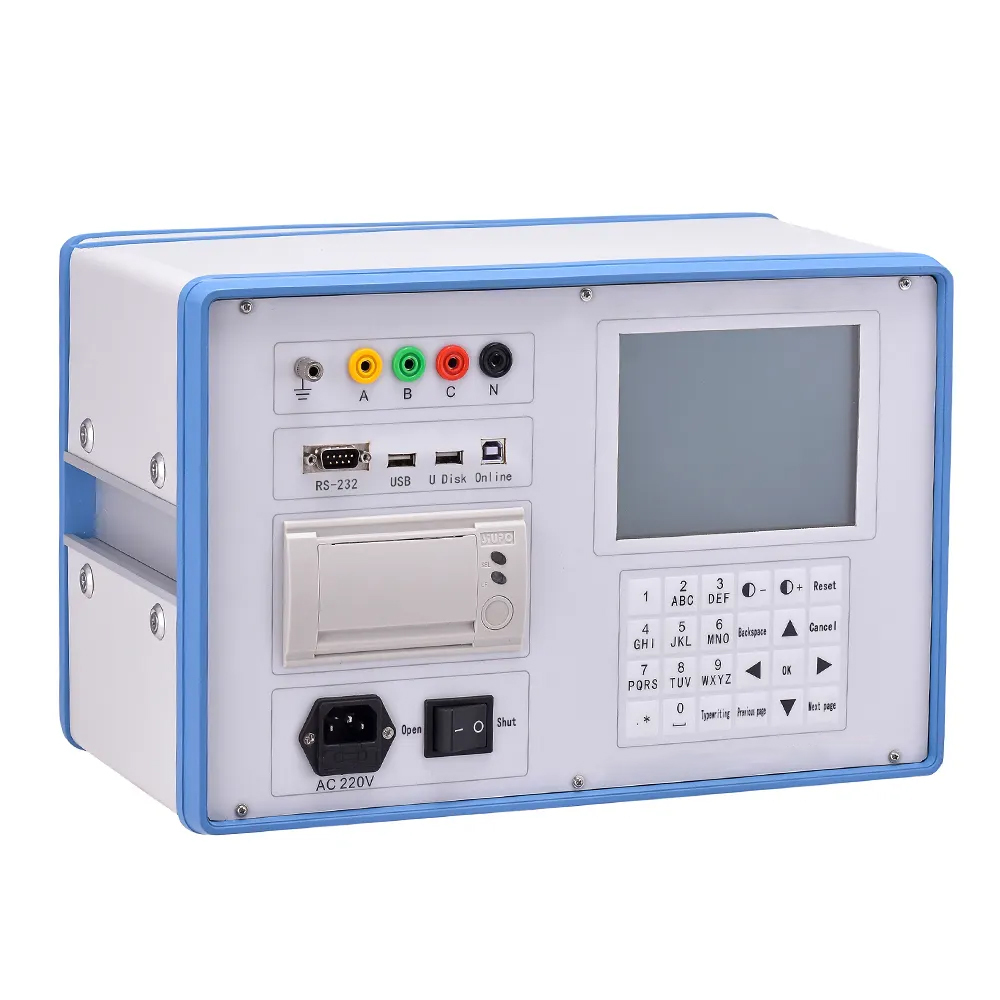

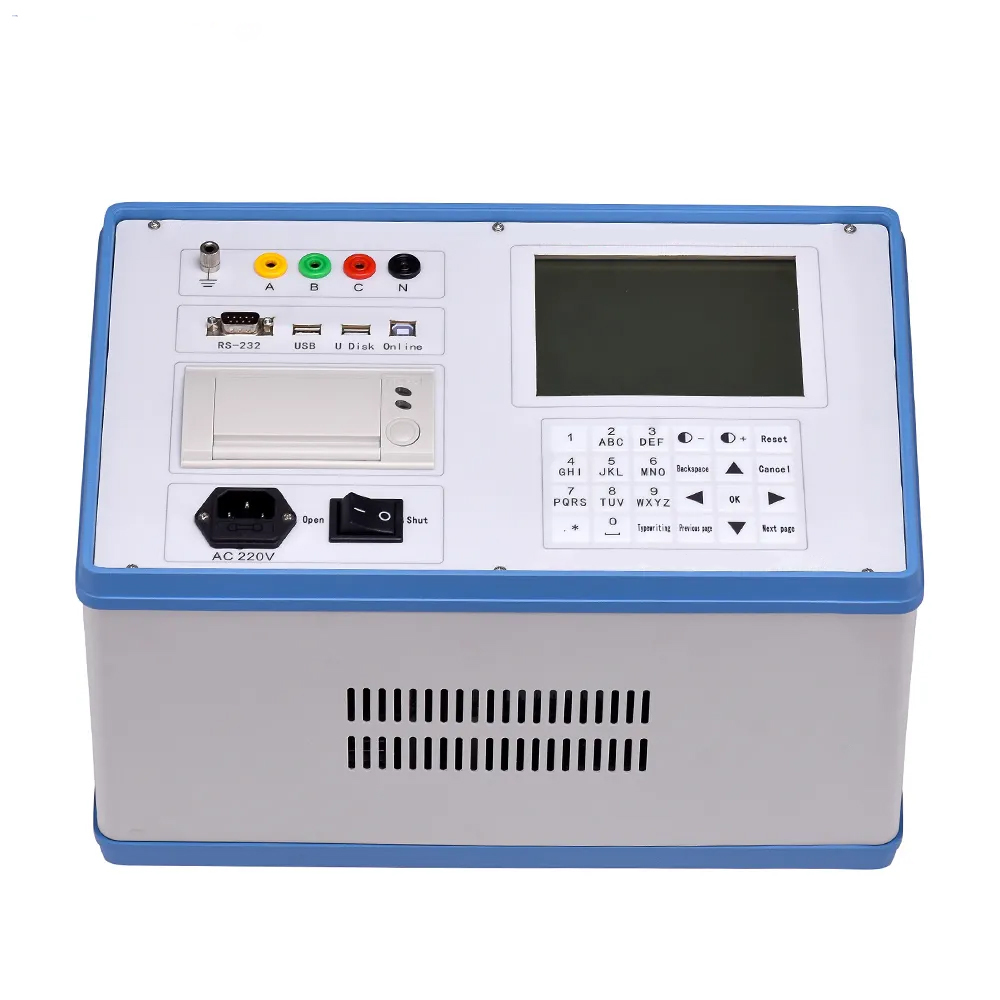

Product Images
