High Anti-Interference Underground Cable Fault Locator with 32KM Range
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-A10 |
| Minimum Order Quantity | 1 |
| Price | 4600usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Accuracy Class | High Accuracy |
|---|---|---|---|
| Protection Class | IP55 | Warranty | 2 Years |
| Power | 100W | Place Of Origin | Hubei, China |
| Testing .Dead Zone | 1~3m | Sampling Rate | 25MHz |
| Accuracy | ±1% | Display Resolution | V/50 M, V Is The Propagation Speed M/μs |
| The Longest Testing Distance | 32KM | ||
| Highlight | High Anti-interference Cable Fault Tester,32KM Testing Distance Underground Power Cable Locator,±1% Accuracy Cable Fault Location System |
||
Product Description
High Anti-interference Cable Fault Comprehensive Tester Location System
Underground Power Cable Fault Locator with advanced interference resistance capabilities for precise fault detection and location.
Technical Specifications
| Longest testing distance | 15km (100km for open-wire line) |
| Testing dead zone | 1m |
| Resolution of reading | 1m |
| Power dissipation | 5VA |
| Environment temperature | 0℃~＋40℃ |
| Terminal temperature | －10℃~＋50℃ |
| Relative humidity | 20-90%RH |
| Dimensions | 275*220*160mm³ |
| Weight | 1.8kg |
Pathfinder Specifications
| Operation mode | Output - fixed frequency intermittent square wave signal |
| Output Power | Pomax≥100W |
| Output impedance | 1Ω－∞ |
| Output signal frequency | 16kHz |
| Output signal amplitude | 15V-340V |
| Pathfinder transmitter power supply | AC220V±10% |
Fault Locator Specifications
| Rough measurement error | Less than 10% |
| Fixed-point error | <±10cm |
| Electromagnetic channel gain | >110dB (300,000 times) |
| Electromagnetic channel receiver sensitivity | <5μV |
| Sound channel audio amplifier gain | <120dB (1 million times when signal-to-noise ratio is 4:1) |
| 50Hz Power frequency rejection | >40dB (100 times) |
| Power consumption | <120mA (0.7W) |
| Buried depth detection | >≦3m |

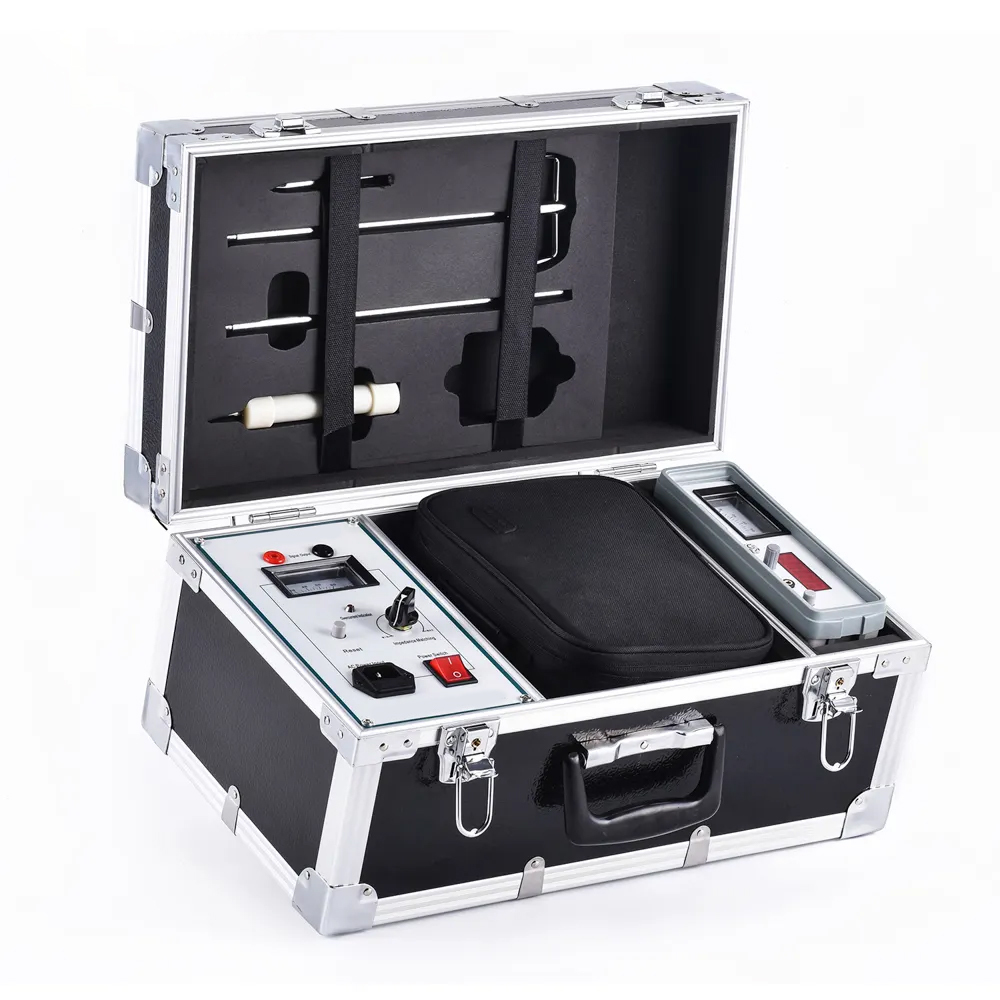

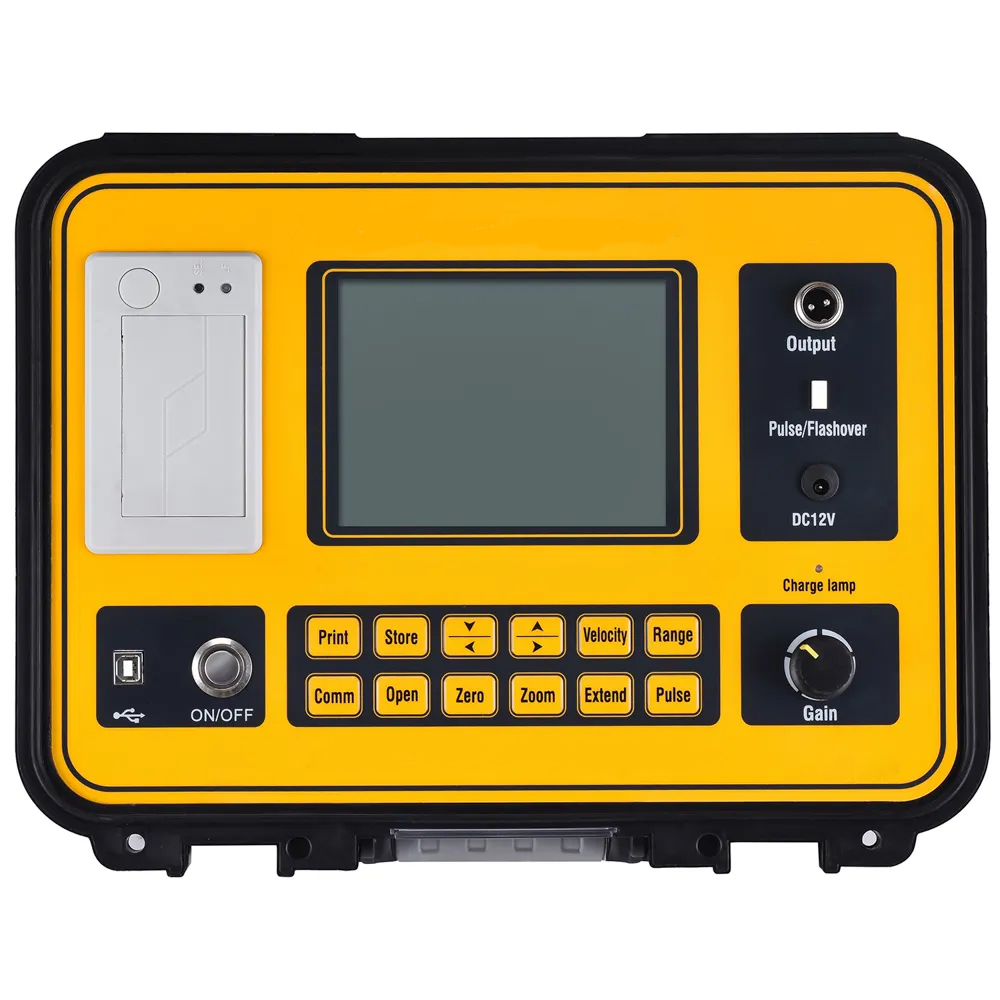

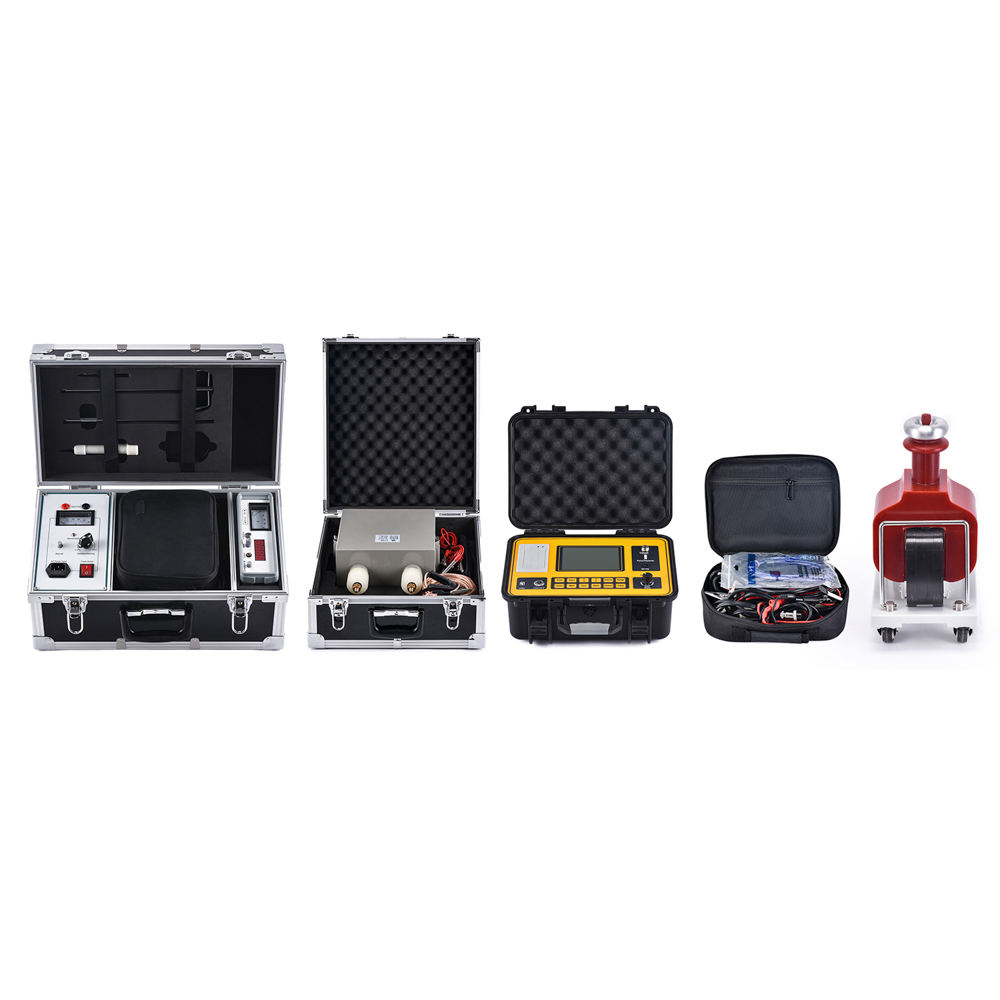

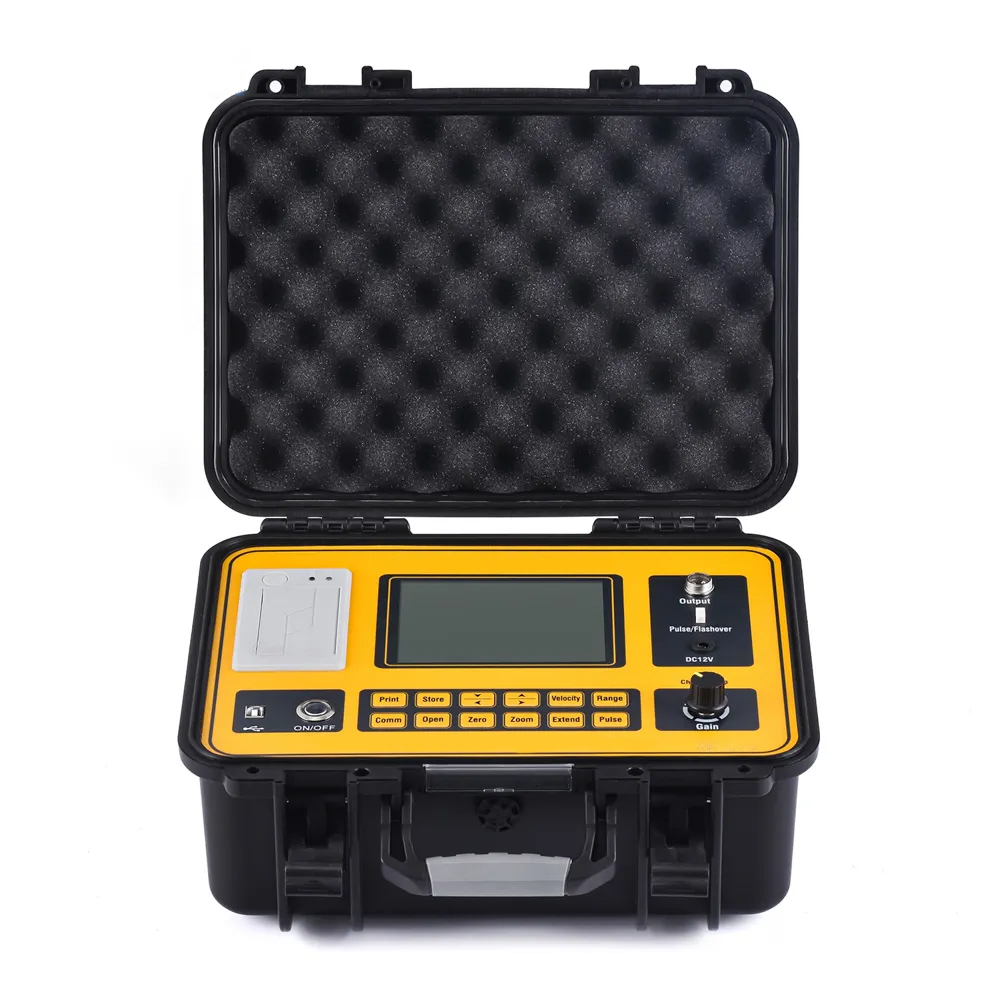

Product Images
