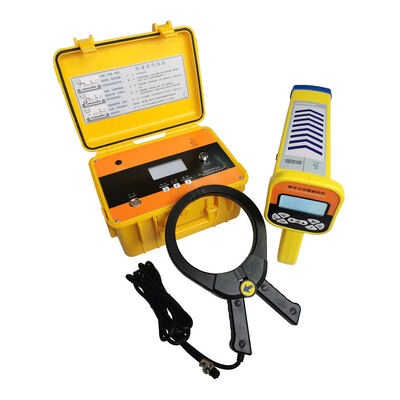

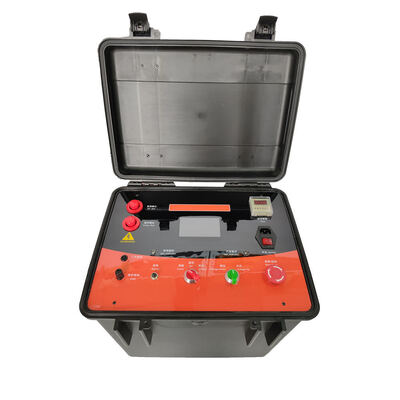

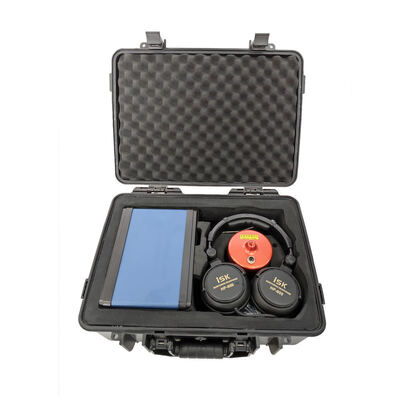

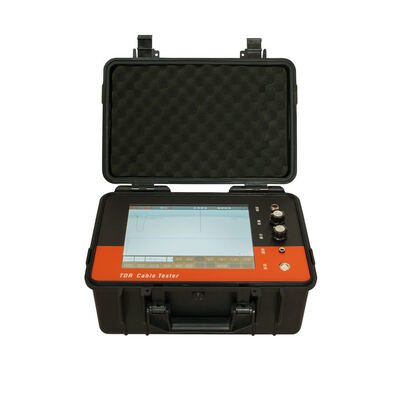

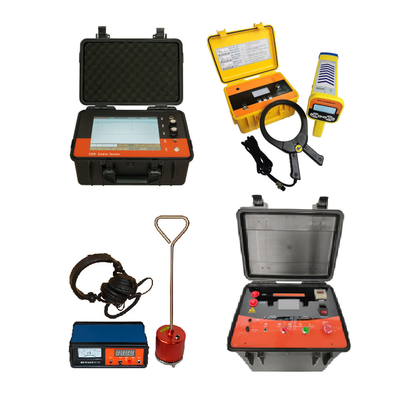

Full Set Cable Fault Tester with TDR, Path Tracer, Pinpointer and High Voltage Surge Generator for 0-35kV Power Cables
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-A30 |
| Minimum Order Quantity | 1 |
| Price | 7000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Warranty | 2 Years | Technology | Time Domain Reflection (TDR) Technology |
|---|---|---|---|
| Inner Package | Plastic Case+foam Plate+dust Bag | Place Of Origin | Hubei, China |
| 3 Capacitors | 2uF/30kV | Test Content | Cable Open Circuit |
| Outer Packaging | Standard Wooden Box For Import And Export | Online Services | Training/Technical Support |
| Highlight | TDR technology Cable Fault Locator,60 km test distance Underground Cable Fault Finder,Industrial-grade touch screen Cable Fault Tester |
||
Product Description
Cable Fault Finder Location System
Underground Cable Fault Locator for Pile Integrity Tests
Product Overview
The multiple pulse cable fault tester consists of a distance measurement host and pulse signal coupling unit. This dedicated system equipment was developed specifically for power cable fault testing to meet the evolving demands of the power industry. It provides comprehensive testing capabilities for various cable faults and establishes cable archives for maintenance and management.
Advanced TDR Technology
Utilizing the highest level of time-domain reflectometry (TDR) technology, this system features automatic fault distance determination with clear, simple waveforms. The multiple pulse technology based on TDR fundamentally transforms complex high-resistance fault waveforms into easily identifiable low-voltage pulse short-circuit fault waveforms, eliminating interpretation challenges.
The system converts any complex high-resistance waveform into familiar low-voltage pulse short-circuit fault waveforms, completely solving the long-standing problem of identifying complex high-resistance fault waveforms.
Key Features
- Applicable to various faults in power cables up to 35kV: open circuit, short circuit, low resistance, high resistance leakage and high resistance flashover faults
- Compatible with multiple testing methods: low-voltage pulse, impulse flashover, three-pulse, eight-pulse and velocity measurement methods
- Fully Chinese operation software with intuitive touch screen interface and text prompts
- Industrial-grade 10.4-inch color touch LCD screen with synchronous global and local waveform display
- Simultaneous collection of 8 real waveforms for easier interpretation and reduced testing errors
- Internal battery power for extended use in environments without power supply
- Compact, lightweight design with high fault detection success rate and testing accuracy
- Stable performance in any environment with safe high-voltage protection measures
- Internal storage/retrieval function for convenient data and waveform analysis
- Multiple pulse widths eliminate testing blind spots
Technical Specifications
| Sampling Methods | Low-voltage pulse, impulse flashover, three-pulse, eight-pulse, velocity measurement |
| Sampling Rate | 200 MHz, 100 MHz, 80 MHz, 40 MHz, 20 MHz, 10 MHz |
| Pulse Width | 0.05 μs, 0.1 μs, 0.2 μs, 0.5 μs, 1 μs, 2 μs, 8 μs |
| Wave Velocity Setting | Cross-linked ethylene, polyvinyl chloride, oil-impregnated paper, non-dripping oil and automatic unknown type |
| Impulse High Voltage | 40 kV and below |
| Test Distance | < 60 km |
| Resolution | 1 m |
| Test Accuracy | 1 m |
| Display | Industrial-grade 10.4-inch color touch LCD screen |
| Operating Modes | Touch screen operation, physical knob operation |
| Continuous Operation | > 4 hours (internal battery or external power supply) |
| Protection Rating | IP67 industrial-grade safety protection box |
| Dimensions | 365 mm * 269 mm * 169 mm |
| Weight | 3.8 kg |
