Digital Display Dry Type HV Generator Tester With Fast Protection 220V Supply
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-GTB |
| Minimum Order Quantity | 1 |
| Price | 2000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Voltage | 220 V |
|---|---|---|---|
| Warranty | 2 Years | Power | 2000 |
| Weight | 100kg | Application | Auto Testing |
| Protection Class | Ip56 | Customized Support | OEM, ODM, OBM |
| Accuracy | 0.1 | Place Of Origin | Hubei, China |
| Power Supply | 220V/50HZ | Packing | Wooden Case |
| Highlight | Dry Type High Voltage Generator Tester,Digital Display Surge Arrester Tester,220V Power Supply HV Tester |
||
Product Description

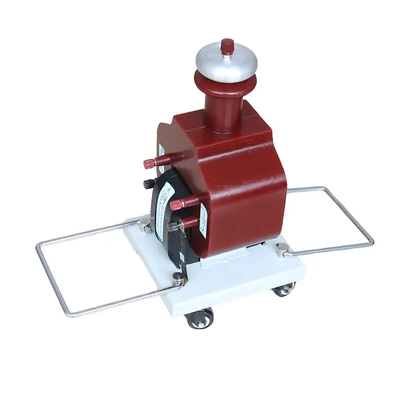

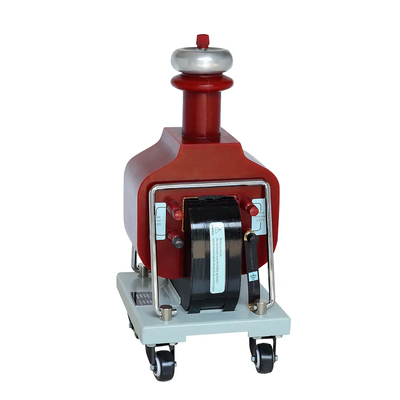

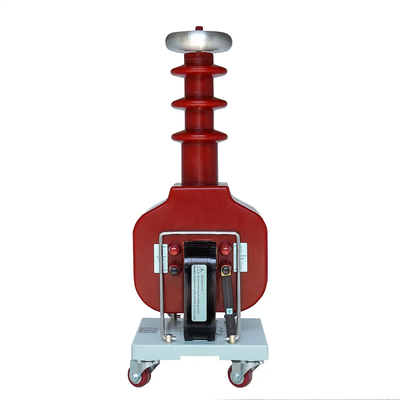

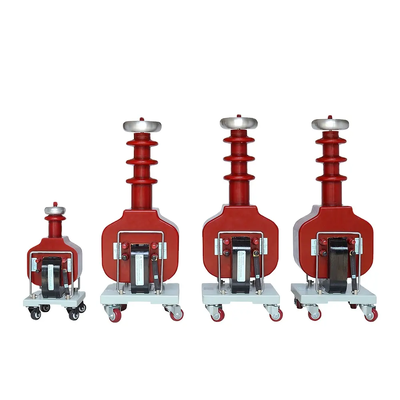

Dry Type Digital Display High Voltage Generator Tester
Professional high voltage testing equipment featuring digital display technology for precise measurements and reliable performance in industrial applications.
Key Features
- Digital LCD Display: Direct reading of output voltage and current values for easy observation and recording
- Fast Protection System: Mechanical relay-based over current protection for reliable and rapid response
- Timing Alarm Function: Acousto-optic signaling when preset time elapses, prompting voltage reduction
- Portable Design: Compact size and lightweight construction for convenient transportation
Technical Specifications
Power Supply Requirements
| Voltage | AC220V±10% |
| Frequency | 50Hz |
| Maximum Current | 25A |
Environmental Requirements
| Ambient Temperature | -10℃ ~ 40℃ |
| Relative Humidity | ≤80% |
Safety Performance
| Insulation Resistance | >2MΩ |
| Leakage Current | <3.5mA |
| Control Box Dielectric Strength | 1500V (50Hz RMS) 1 minute withstand voltage |
Measurement Accuracy
| Current Measurement | ±(2% * readings + 1A) |
| Current Protection | ±(5% * readings + 1A) |
| Voltage Measurement | ±(2% * readings + 1KV) |
| Time Trigger Accuracy | ±(5% * readings + 1KV) |
Control Box Output Capacity
| Output Voltage | AC 0~250V |
| Output Current | AC 0~25A |
| Timer Range | 0~999s |
High Voltage Transformer Parameters
| Capacity | 5kVA |
| Input Voltage | 0~200V |
| Input Current | 0~25A |
| Output AC HV Voltage | 0~100kV |
| Output AC HV Current | 0~50mA |
| Output DC HV Voltage | 0~140kV |
| Output DC HV Current | 0~50mA |
| Output Meter Voltage | 0~100V |
Product Images
Cable Fault Finder in use with clamp transformers
Cable Fault Finder measurement setup
Cable Fault Finder detailed controls and connections
