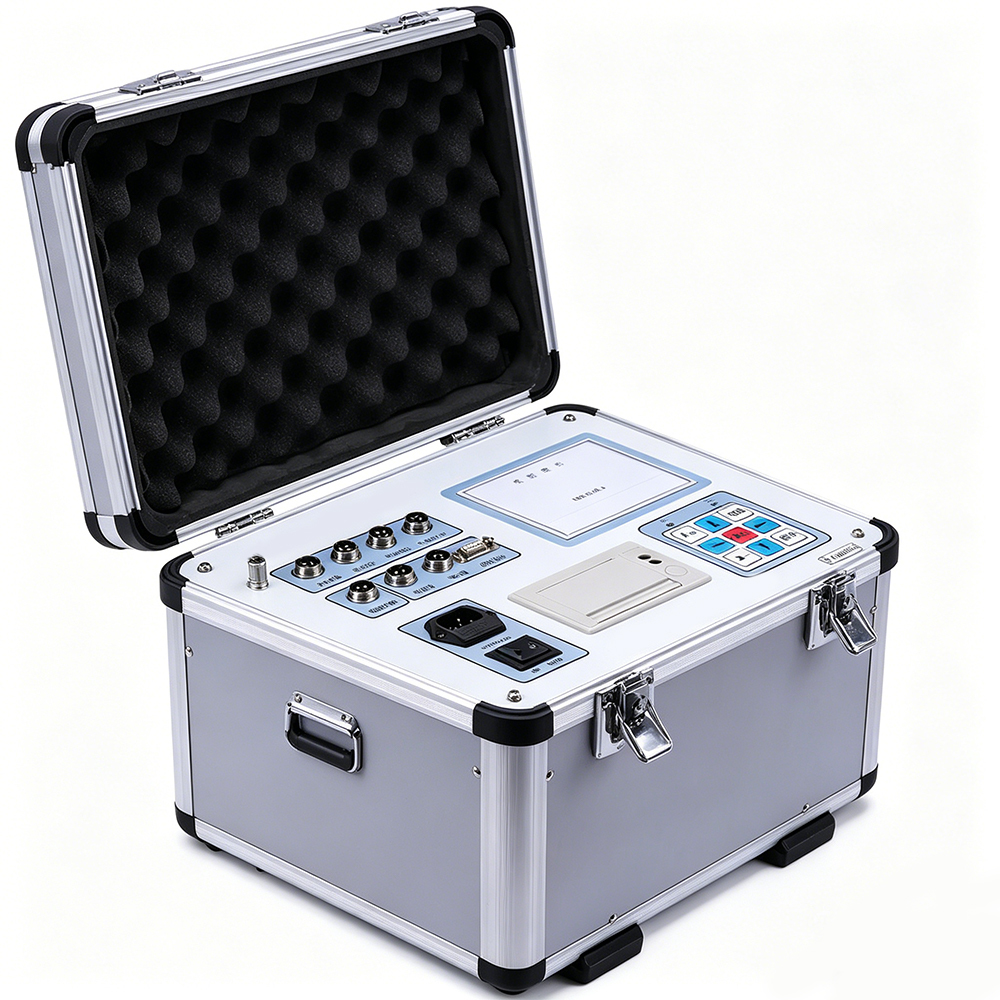

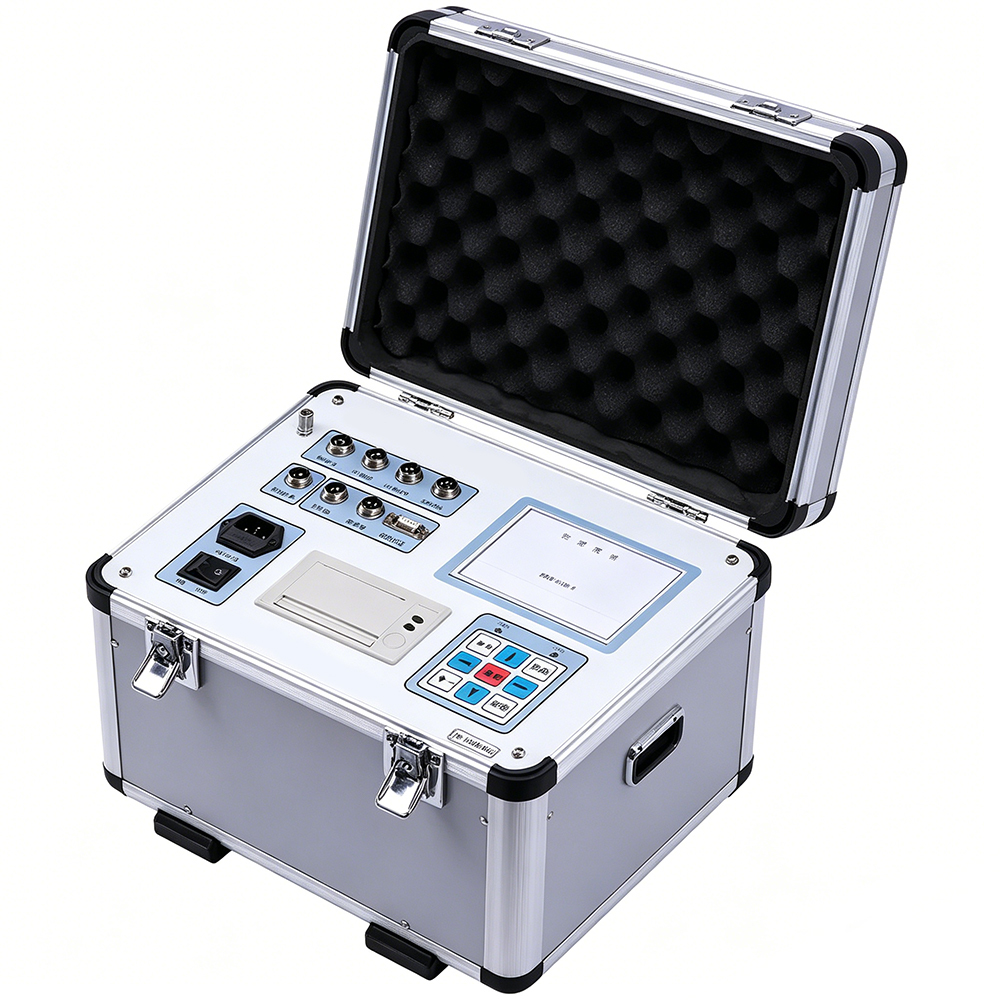

Portable Circuit Breaker Timing Tester HV Switchgear Dynamic Characteristic Test Set
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-GKC |
| Minimum Order Quantity | 1 |
| Price | 1300usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Warranty | 2 Years | Power | Electronic |
|---|---|---|---|
| Place Of Origin | Hubei, China | Resolution | 0.01A |
| Customized Support | OEM, ODM, OBM | Current Range | 20.00A |
| Range Offset | < 250 | Power Supply | 220V AC |
| Output Voltage | 30V - 260V | Dimension Of Host | 360mm*290mm*280mm |
| Highlight | Dynamic Characteristic Circuit Breaker Tester,220V AC Power Supply High Voltage Switch Analyzer,20.00A Current Range Circuit Breaker Analyzer |
||
Product Description
Dynamic Characteristic Circuit Breaker Tester for High Voltage Switch Test Set Circuit Breaker Analyzer
Product Overview
The MY-GKC circuit breaker analyzer tester is a specialized instrument developed to meet the testing requirements for various high voltage switch dynamic characteristics. This advanced testing equipment is designed for dynamic characteristic testing of indoor and outdoor less oil, more oil, vacuum, and SF6 switches. It accurately measures mechanical dynamic parameters of less-oil, more-oil, vacuum, sulfur hexafluoride, and other high voltage circuit breakers across all voltage levels. For circuit breakers with closing resistance, it precisely measures closing resistance and switching waveforms. Featuring a large screen display, user-friendly interface, intelligent operation, multi-functional capabilities, accurate data collection, strong anti-interference performance, easy operation, lightweight design, and attractive appearance.
Features and Functions
- Compatible with all types of metal contacts for SF6 switches, GIS combination electrical appliances, vacuum switches, and oil switches from domestic and international manufacturers
- Equipped with linear travel sensors and rotary sensors for easy installation
- Features a large host screen with transparent, backlit LCD display and electric contrast adjustment for comprehensive data and waveform display
- Host unit stores multiple groups of opening and closing test results with internal real-time clock for convenient recording and saving of test dates and times
- Includes internal fast micro printer for printing all data and maps
- Comprehensive data analysis function for detailed analysis of each circuit breaker mechanical characteristic parameter
Product Images
Circuit Breaker Tester in use with clamp transformers
Circuit Breaker Tester measurement setup

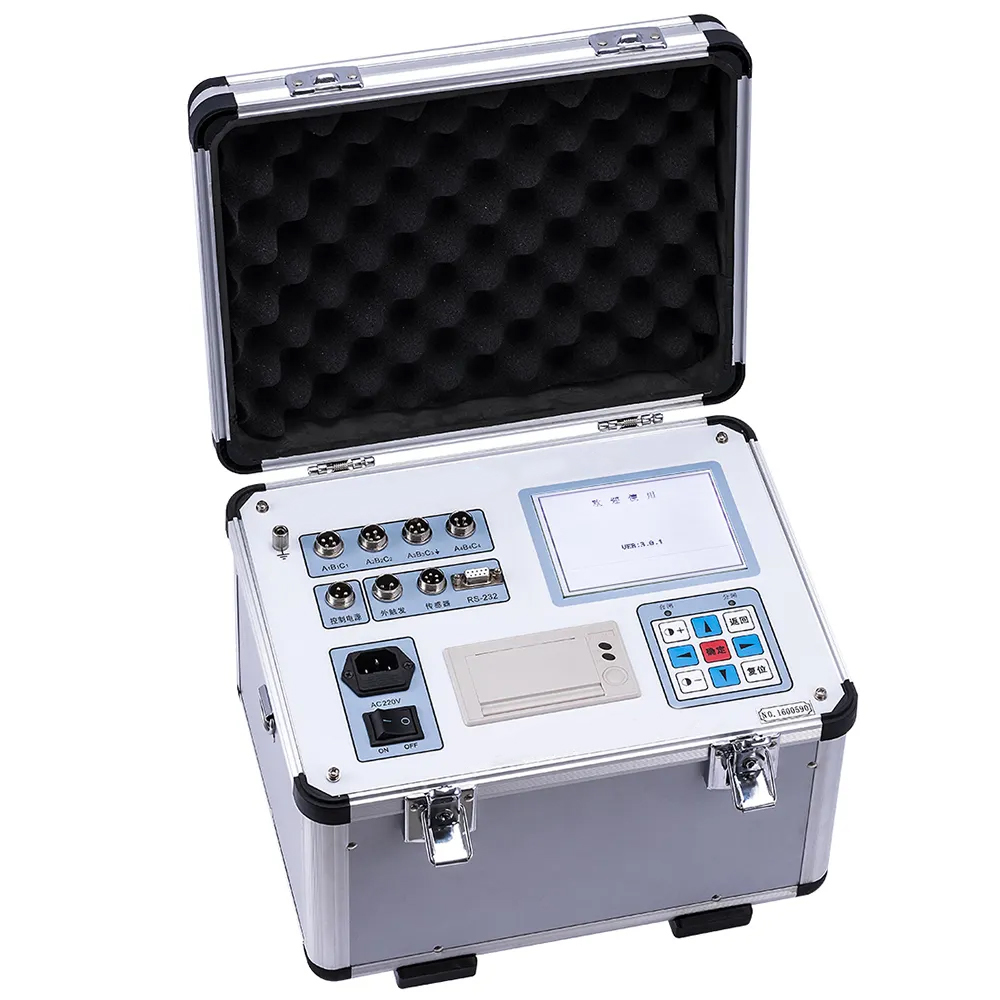

Detailed controls and connections
