0.1ms Resolution 20A Circuit Breaker Dynamic Characteristic Tester for HV Switches
| Place of Origin | Hubei China |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-GK |
| Minimum Order Quantity | 1 |
| Price | 1600usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Warranty | 2 Years | Power | Electronic |
|---|---|---|---|
| Place Of Origin | Hubei, China | Resolution(Time) | 0.1ms |
| Resolution(Speed) | 0.01m/s | Customized Support | OEM, ODM, OBM, Software Reengineering |
| Measurement Range(time) | 4000.0ms | Measurement Range(Speed) | 20.00m/s |
| Measurement Range(Current) | 20.00A | Output Power Supply | DC30~250V Digital |
| Highlight | 0.1ms Resolution Circuit Breaker Tester,20.00A Current Range High Voltage Switch Analyzer,DC30~250V Digital Output Circuit Breaker Analyzer |
||
Product Description
0.1ms Resolution 20A Circuit Breaker Dynamic Characteristic Tester for HV Switches
Product Description

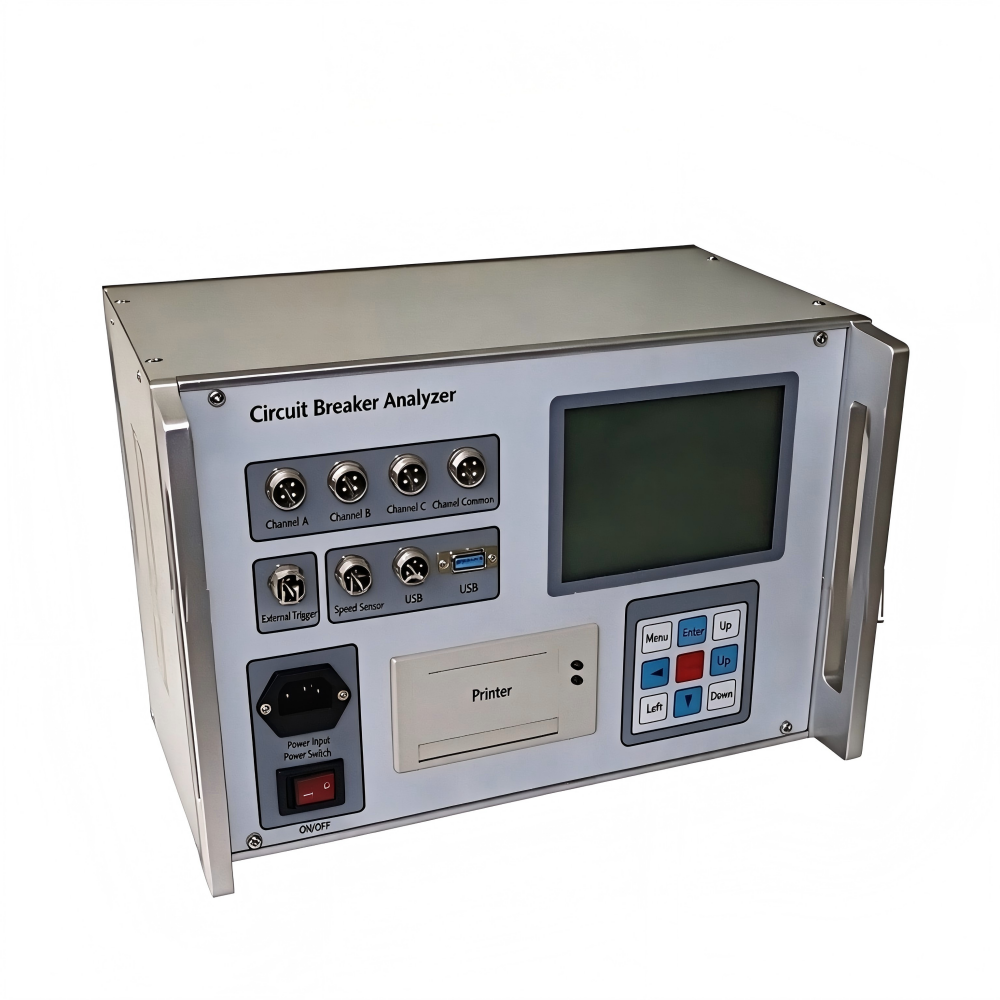

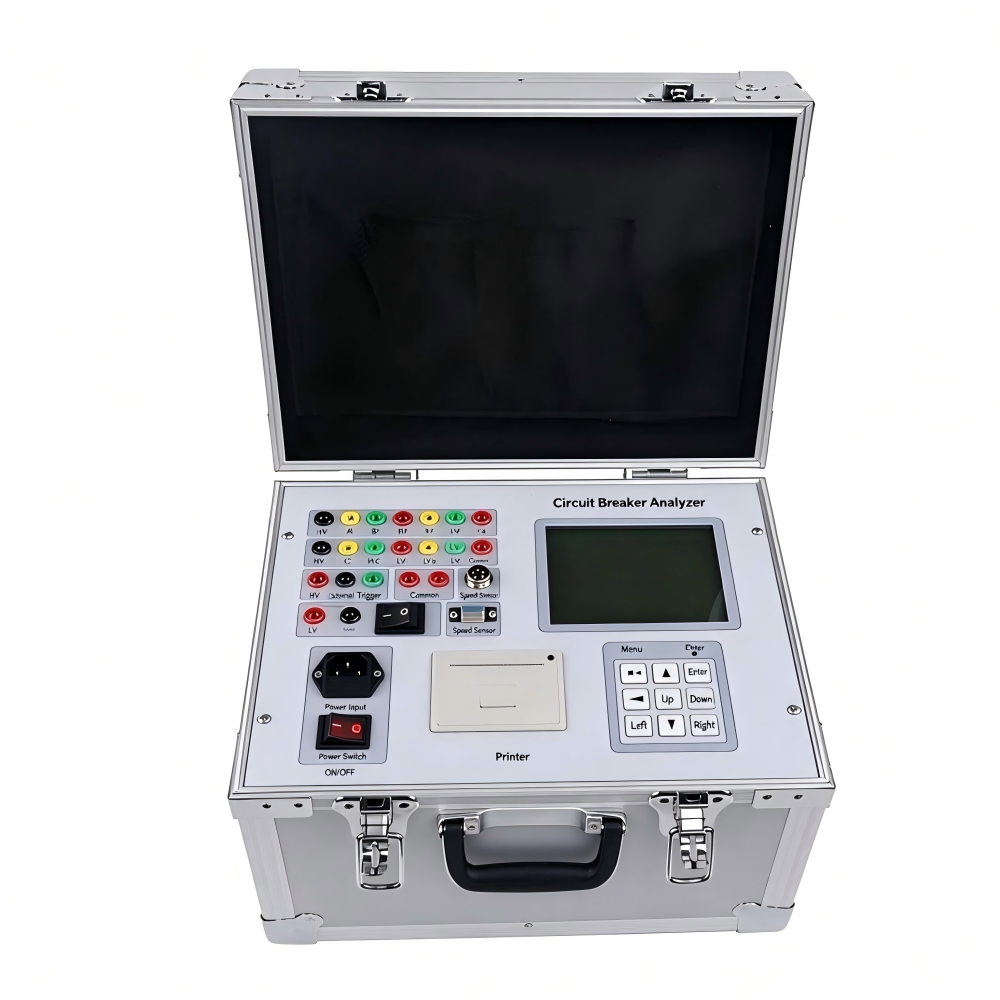

The DTC-306 High Voltage Circuit Breaker Characteristic Analyzer provides convenience for the dynamic analysis of various circuit breakers. It can accurately measure the mechanical dynamic characteristic parameters of high-voltage circuit breakers of various voltage levels, including minimum-oil, bulk-oil, vacuum, and sulfur hexafluoride (SF6) circuit breakers. It is applicable to the mechanical characteristic tests of all models of SF6 switches, GIS combined electrical apparatuses, vacuum switches and oil switches.
Product Alias
HV Circuit Breaker Dynamic Characteristic Tester, 0.1ms Circuit Breaker Performance Analyzer, 20A High Voltage Switch Dynamic Test Instrument
Features
Product Parameters
1. Operating environment
Input power supply: 220V±10% 50Hz±10%
Atmospheric pressure: 86~106kPa
Temperature: -10~40ºC
Humidity: ≤80%RH
2.Safety performance
Insulation resistance: >2MΩ
Dielectric strength: Power on power frequency 1.5KV pressure for 1 minutes.,without any arc over.
3. Basic parameters
Time: Measurement range: 4000.0ms
Resolution: 0.1ms
Error: 1)Within 100ms 0.1ms±1 words
2)Above 100ms 0.1%±1 words
3)Synchronization ±0.1ms
Speed: Measurement range: 20.00m/s Resolution: 0.01m/s
Error: 1)Within 0-2m/s ±0.1m/s±1 words
2)Above 2m/s ±0.2m/s±1 words
Travel:
Current: Measurement range: 20.00A Resolution: 0.01A
Output power supply: DC30~250V digital,
Adjustable/20A (instantaneous working)
Dimension: 360mm (L) ×280mm (W) ×300mm (H)
Weight: 10kg
Input power supply: 220V±10% 50Hz±10%
Atmospheric pressure: 86~106kPa
Temperature: -10~40ºC
Humidity: ≤80%RH
2.Safety performance
Insulation resistance: >2MΩ
Dielectric strength: Power on power frequency 1.5KV pressure for 1 minutes.,without any arc over.
3. Basic parameters
Time: Measurement range: 4000.0ms
Resolution: 0.1ms
Error: 1)Within 100ms 0.1ms±1 words
2)Above 100ms 0.1%±1 words
3)Synchronization ±0.1ms
Speed: Measurement range: 20.00m/s Resolution: 0.01m/s
Error: 1)Within 0-2m/s ±0.1m/s±1 words
2)Above 2m/s ±0.2m/s±1 words
Travel:
| Measurement range | Resolution | Error | |
| Vacuum circuit breaker | 50.0mm | 0.1mm | 1%±1 digit |
| SF6 Circuit breaker | 300.0mm | 1mm | |
| Oil-minimum breaker | 600.0mm |
Output power supply: DC30~250V digital,
Adjustable/20A (instantaneous working)
Dimension: 360mm (L) ×280mm (W) ×300mm (H)
Weight: 10kg
