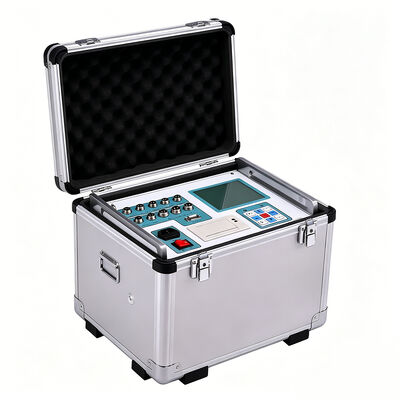

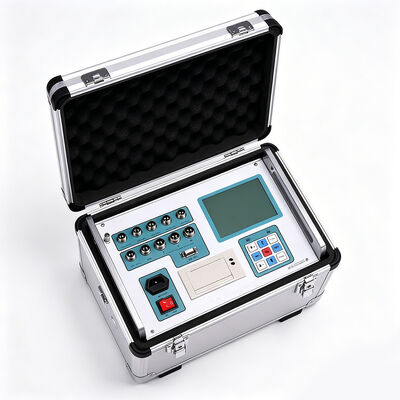

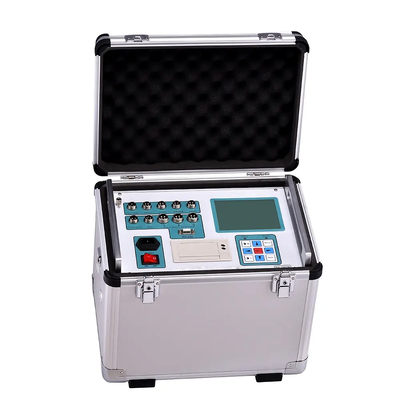

Circuit Breaker Dynamic Characteristic Tester, 0.1ms Resolution, 20A Range, for High Voltage Switches
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-GK |
| Minimum Order Quantity | 1 |
| Price | 1600usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Warranty | 2 Years | Power | Electronic |
|---|---|---|---|
| Place Of Origin | Hubei, China | Resolution(Time) | 0.1ms |
| Resolution(Speed) | 0.01m/s | Customized Support | OEM, ODM, OBM, Software Reengineering |
| Measurement Range(time) | 4000.0ms | Measurement Range(Speed) | 20.00m/s |
| Measurement Range(Current) | 20.00A | Output Power Supply | DC30~250V Digital |
| Highlight | 0.1ms Resolution Circuit Breaker Tester,20.00A Current Range High Voltage Switch Analyzer,DC30~250V Digital Output Circuit Breaker Analyzer |
||
Product Description
Dynamic Characteristic Circuit Breaker Tester
High Voltage Switch Test Set Circuit Breaker Analyzer for comprehensive electrical testing applications.
Product Overview
This circuit breaker analyzer is designed for testing all types of SF6 switches, GIS switchgear, vacuum switches, and oil switches with metal contacts manufactured domestically and internationally.
Key Features
- Universal speed sensors, linear travel sensors, and rotation sensors for convenient installation
- Large transmissive LCD screen with electronic contrast adjustment and English menu prompts
- Stores multiple sets of switch test results with real-time clock for accurate documentation
- Built-in high-speed micro-printer for comprehensive data and illustration output
- Windows-compatible data analysis management software for computer-based field testing
- Advanced data analysis capabilities for comprehensive circuit breaker mechanical characteristic evaluation
- User-customizable speed programming for adding various instantaneous opening and closing speeds
Performance Characteristics
Time Measurement
Intrinsic switch off/on time, 12-break phase synchronization analysis
Reclose Timing
Switch on-switch off, switch off-switch on, and complex sequence timing
Process Analysis
A-time, two-minute, short-time, and no-current time value measurements
Bounce Analysis
Switch on bouncing time, frequency, process, waveform, and rebound amplitude
Speed Analysis
Instantaneous opening/closing speeds, maximum speed, time-travel characteristic curves
Travel Measurement
Total travel, opening, overtravel, overshoot travel, and rebound amplitude
Current Analysis
Switch off/on coil currents with comprehensive oscillogram display
Operating Power
DC 30-250V/20A digital regulated power supply with automatic low-pressure testing
