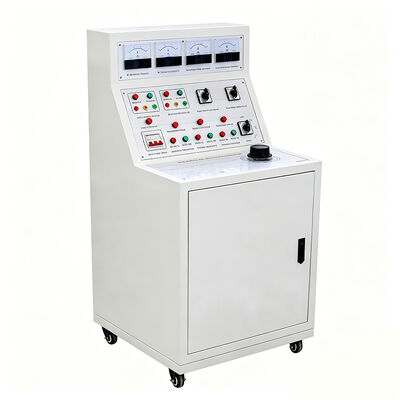

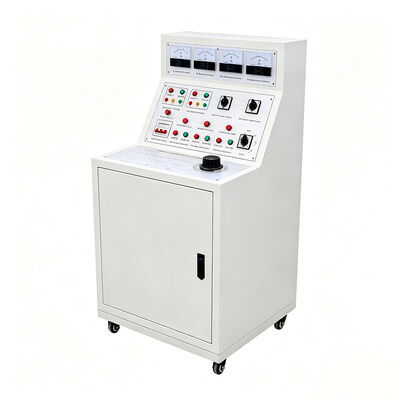

AC/DC Output Switchgear Power Test Bench for High/Low Voltage Switch Cabinet Factory Inspection
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYKG-V |
| Minimum Order Quantity | 1 |
| Price | 1800usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Voltage | 220 V |
|---|---|---|---|
| Accuracy Class | Standard Accuracy | Protection Class | IP55 |
| Customized Support | OBM, ODM, OEM, Software Reengineering | Accuracy | ±1.0%~±2.0% FS |
| Warranty | 2 Years | Place Of Origin | Hubei, China |
| Output Voltage And Current | ±(1.0%Reading + 2 Words) | Input Power | Three-phase Four-wire AC380V |
| AC Voltage Output AC | 0~430V, 220V | Single-phase AC220V Output | 2 Groups |
| Weight | 45kg | Power | Electronic |
| Highlight | 220V Voltage Switchgear Tester,IP55 Protection Switchgear Tester,2 Years Warranty Power Plant Testing Machine |
||
Product Description
Electrical Equipment Supplies Switchgear for Power Plant
2 Years Warranty Included
High-performance switchgear testing equipment designed for power plant applications, featuring integrated AC and DC power supplies for comprehensive electrical testing.
Key Features
- Integrated high and low voltage switchgear power-on test bench
- Combines multiple AC and DC power sources in single unit
- Streamlines switch cabinet detection and testing procedures
- Significantly improves work efficiency and testing accuracy
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | Three-phase four-wire AC380V |
| Output Voltage and Current | Three phase AC100V Output (Fixed value) - One group |
| Adjustable Output | Three phase AC0~10A Output (100V, Adjustable value) - One group |
| AC Voltage Output | AC 0~400V, when 220V, current less than 10A - One group |
| DC Operating Voltage | DC 0~260V Output - One group |
| Single Phase Output | Single phase AC220V Output (fixed value, socket) - Two groups |
| Three Phase Output | Three phase AC380V Output (Fixed value, terminal) - One group |
| DC Fixed Voltage | 24V, 36V, 110V, 220V output - One group |
| Dimensions | 550×750×800mm³ |
| Weight | 45kg |
