Multi-station High Precision Dielectric Test System for Electrical Safety PPE
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-RT |
| Minimum Order Quantity | 1 |
| Price | 5000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Voltage | Other |
|---|---|---|---|
| Warranty | 2 Years | Accuracy Class | High Accuracy |
| Protection Class | IP55 | Customized Support | OBM, ODM, OEM, Software Reengineering |
| Accuracy | ±0.5%~±1.0% FS | Input Voltage | AC 220V 50Hz |
| Capacity | 3kVA | Temperature Range | -10℃ ~ +50℃ |
| Output Voltage | 1-30kV | Place Of Origin | Hubei, China |
| Test Vehicle Diemension | 75*90*102cm | Test Vehicle Weight | 60kg |
| Highlight | 8-sample simultaneous testing High Voltage Insulating Boots Tester,7-inch TFT touch screen Dielectric Safety Shoes Tester,Anti-jamming wireless transmission Withstand Voltage Tester Boots |
||
Product Description
High Voltage Insulating Boots and Dielectric Safety Shoes Withstand Voltage Tester Boots
Comprehensive testing equipment for high voltage insulating boots and dielectric safety shoes with advanced withstand voltage testing capabilities.
Product Parameters
| Parameter | Specification |
|---|---|
| Power supply | 220V±10% 50Hz |
| Control box output voltage | 0-250V |
| Control box output current | 12A |
| Rated output voltage | 50kV |
| Rated output capacity | 5kVA |
| Maximum range | 25mA |
| Leakage current range after tripping system | ≥12mA |
| Voltage measurement error | ±1% +3 digitals |
| Leakage current measurement error | ±1% +3 digitals |
| Leakage current resolution | 0.01mA |
| Digital timing | 99 minutes free setting |
| Ambient temperature | -10℃-40℃ |
| Humidity | ≤90%RH, No condensation, no flickering of the instrument |
| Control box dimensions | 420mm×340mm×520mm |
| Dimensions of the testing machine | 260mm×980mm×480mm |
| Control box weight (kg) | 22 |
| Test machine weight (kg) | 8 |
Features & Characteristics

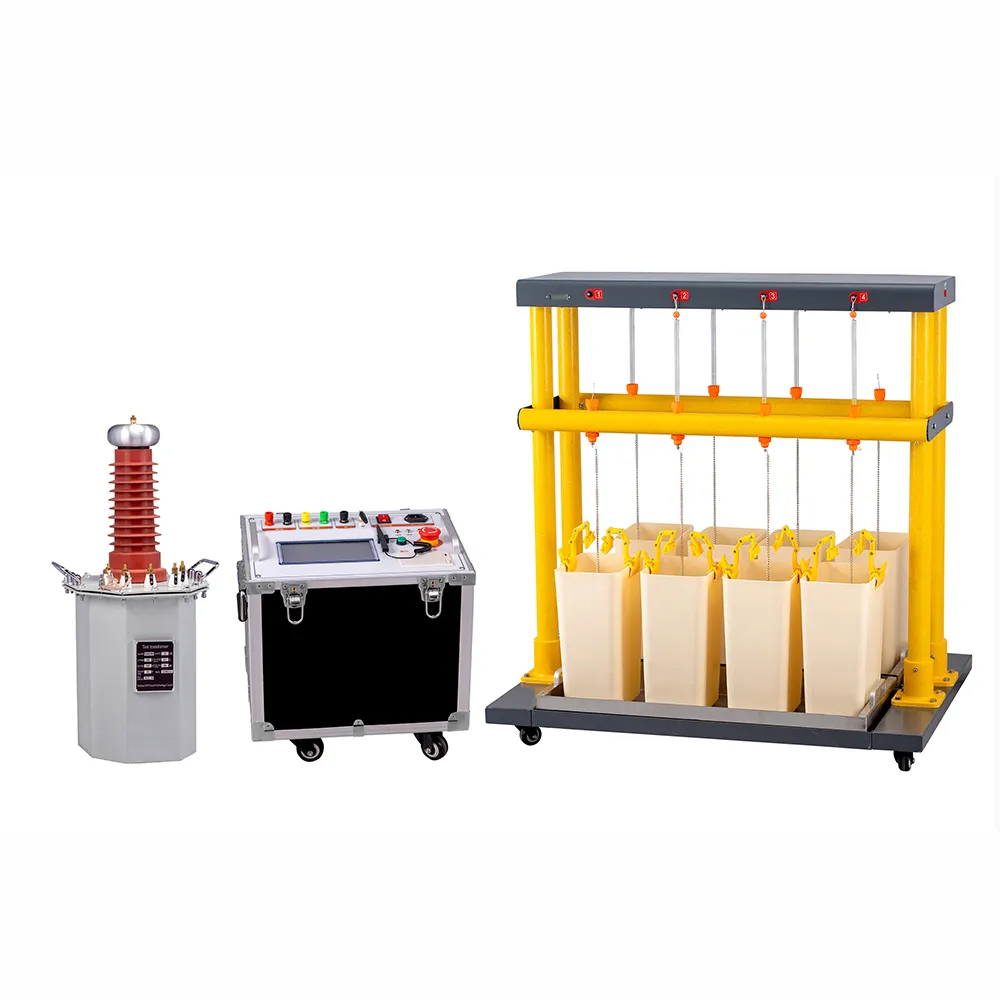

- Simultaneously tests 8 insulating boots or gloves while measuring leakage current for each sample
- Dry test method using small steel balls inside insulating shoes eliminates traditional water pouring and drying issues
- High and low voltage separation with anti-jamming wireless transmission for enhanced personal safety
- Individual breaking mechanism for each test sample - faulty circuits automatically disconnect without affecting other tests

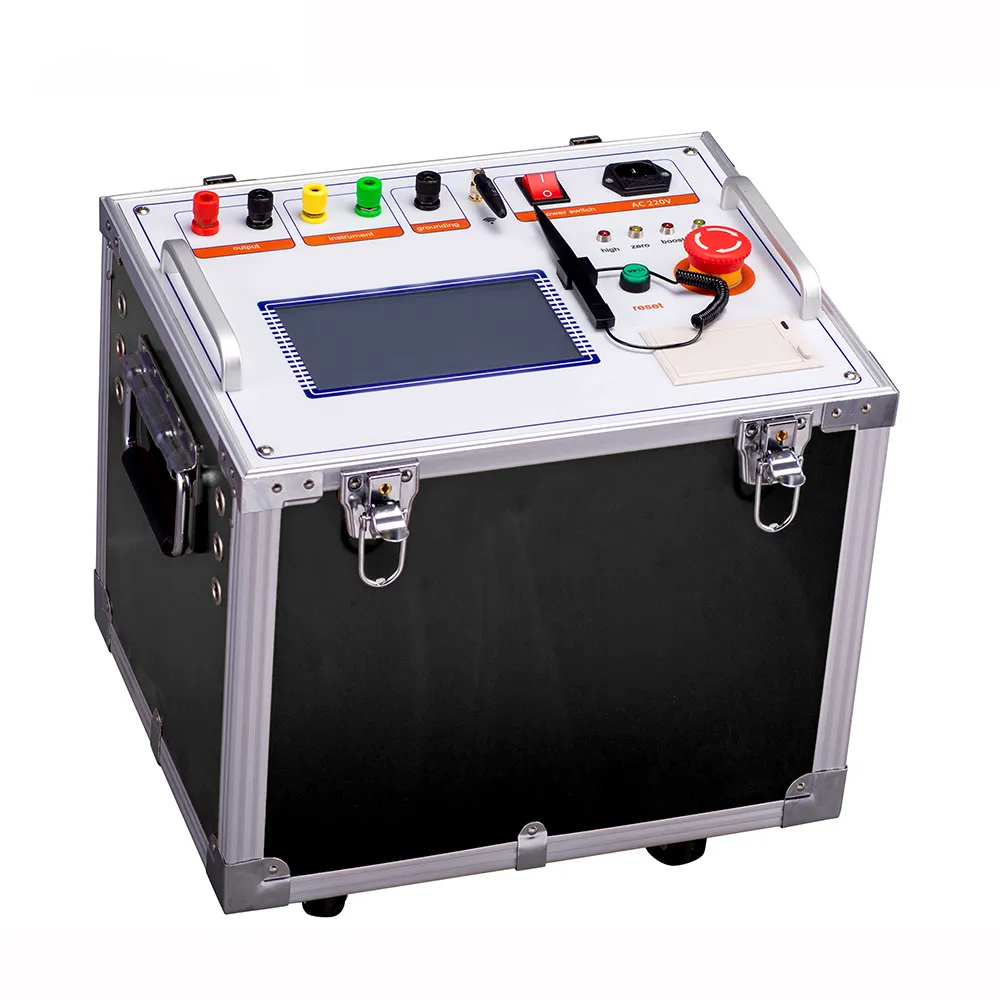

- 7-inch TFT touch screen with Chinese character display showing test voltage, 8-channel leakage current, timing, and parameters
- Fully automatic voltage regulation with DC motor control and automatic test sequence according to national standards

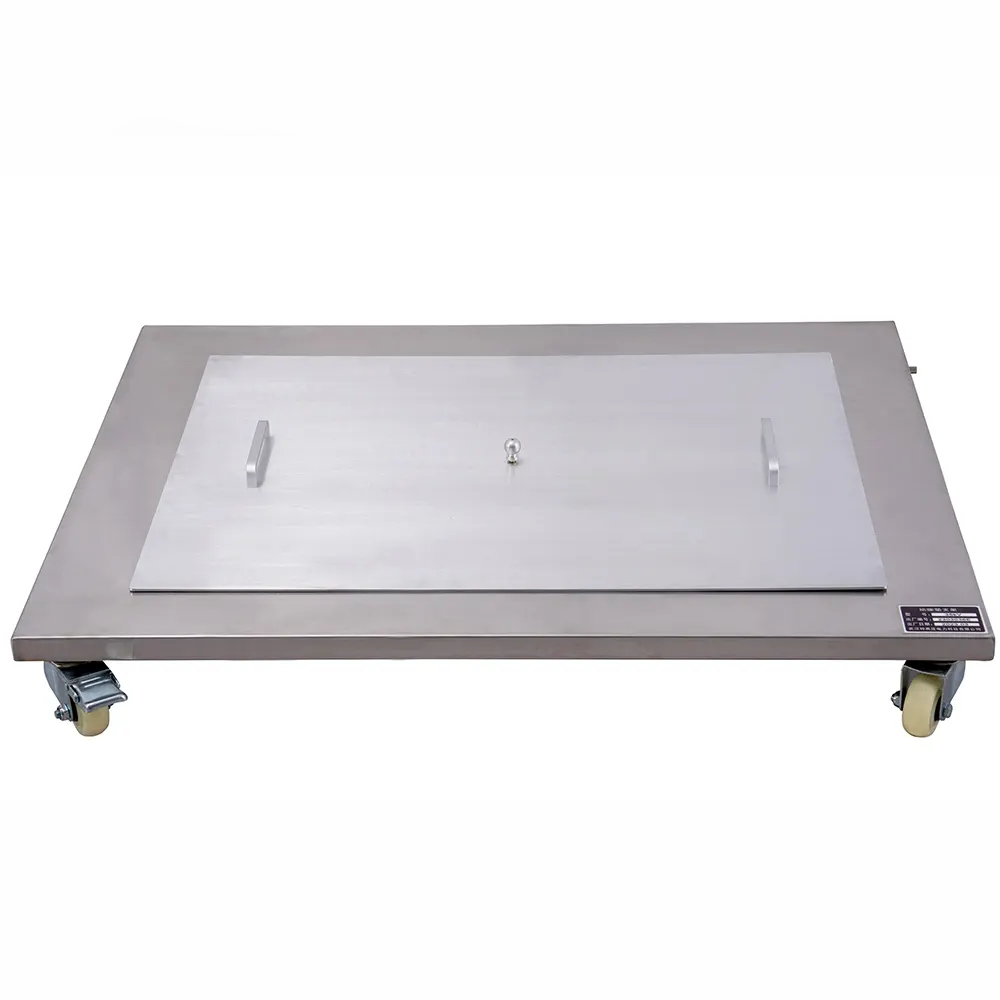

- Special metal grounding tray for boot testing and dedicated containers for glove testing

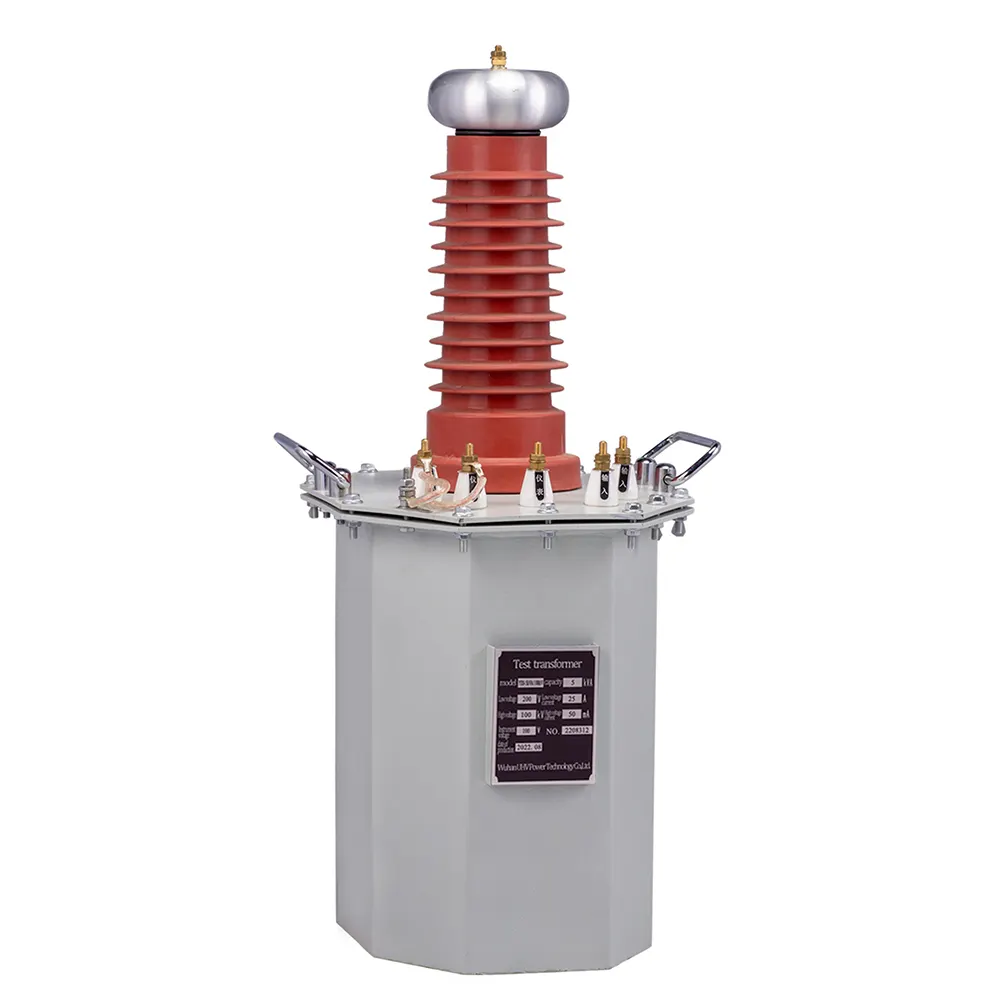

- Customizable test transformer ratio for compatibility with existing customer equipment
- Integrated overcurrent protection system

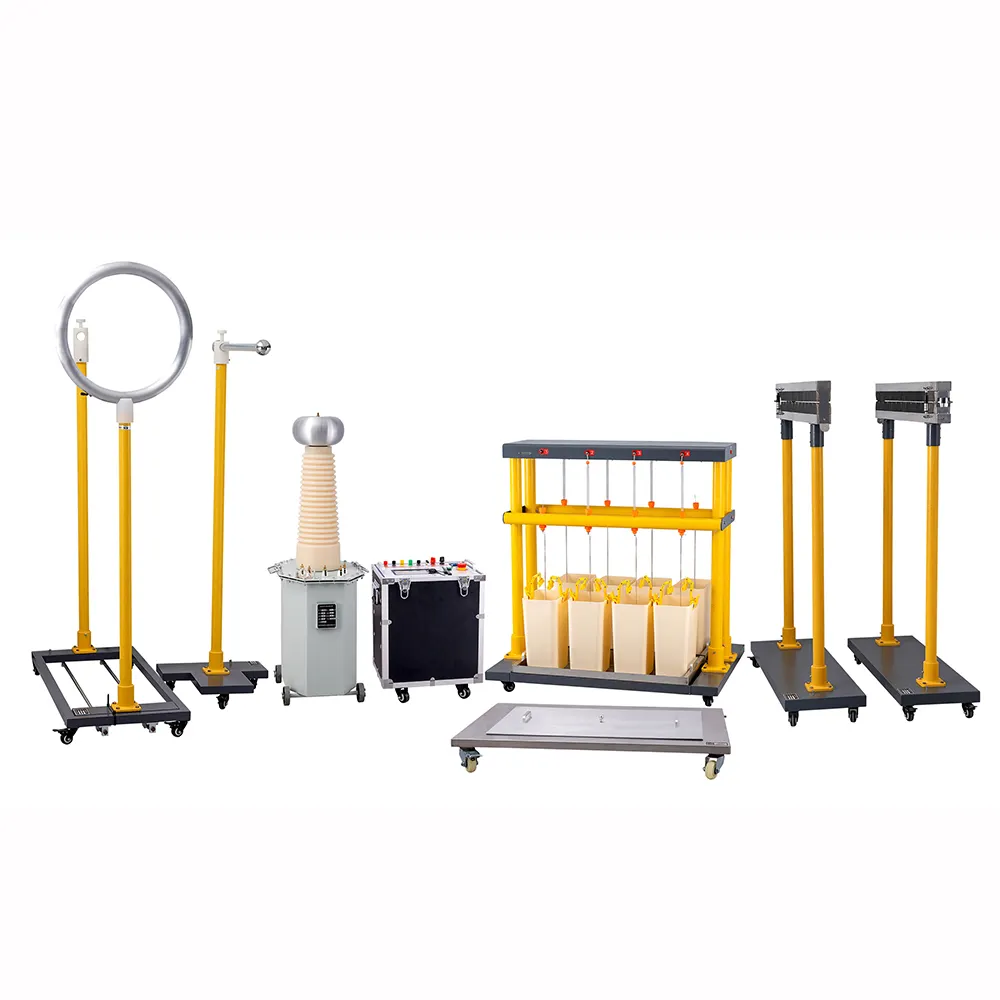

Product Images
