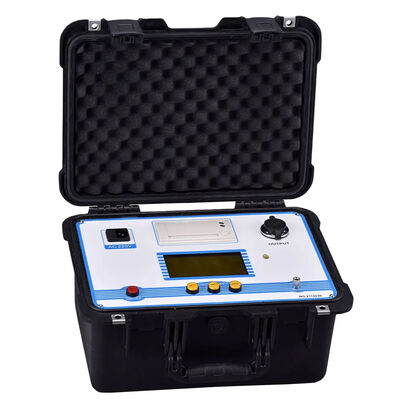

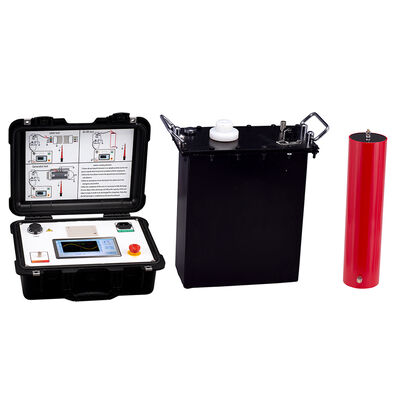

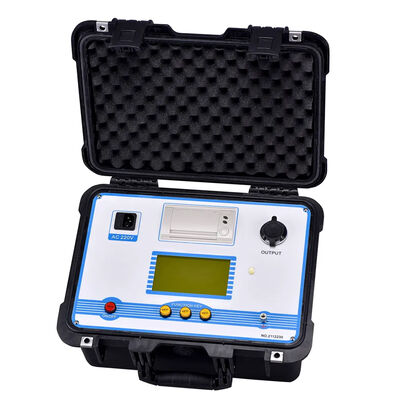

Portable 0.1Hz High Voltage Generator Tester with Digital Display for Transformer Testing
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-VLF |
| Minimum Order Quantity | 1 |
| Price | 8000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Power | Electronic | Warranty | 2 Years |
|---|---|---|---|
| Customized Support | OEM | Function | Withstand Voltage Test |
| Measuring Range | 0.1hZ | Fuse | 6A |
| Place Of Origin | Hubei, China | Measurement Accuracy | 3% |
| Output Frequency | 0.1Hz, 0.05Hz, 0.02Hz | Booster | 35kg |
| Highlight | Portable High Voltage Generator Tester,Digital Display Surge Arrester Tester,0.1Hz Output Frequency Transformer Tester |
||
Product Description
High Voltage Generator Tester for Transformer Portable Conductive Footwear Resistance Tester with Digital
Professional high voltage testing equipment designed for transformer testing and conductive footwear resistance measurement with digital precision.
Product Specifications
| Model | Rated Voltage/Current | Load Carrying Capacity | Power Fuse Tube | Product Structure and Weight |
|---|---|---|---|---|
| 30/1.1 | 30kV/20mA (Peak) | 0.1Hz,≤1.1µF 0.05Hz,≤2.2µF 0.02Hz,≤5.5µF |
5A | Controller: 4kg Booster: 25kg |
| 40/1.1 | 40kV/30mA (Peak) | 0.1Hz,≤1.1µF 0.05Hz,≤2.2µF 0.02Hz,≤5.5µF |
15A | Controller: 4kg Booster: 30kg |
| 50/1.1 | 50kV (Peak) | 0.1Hz,≤1.1µF 0.05Hz,≤2.2µF 0.02Hz,≤5.5µF |
15A | Controller: 4kg Booster: 50kg |
| 60/1.1 | 60kV (Peak) | 0.1Hz,≤1.1µF 0.05Hz,≤2.2µF 0.02Hz,≤5.5µF |
20A | Controller: 4kg Booster: 45kg |
| 80/1.1 | 80kV/30mA (Peak) | 0.1Hz,≤1.1µF 0.05Hz,≤2.2µF 0.02Hz,≤5.5µF |
20A | Controller: 4kg Booster: 55kg |
Key Features
- Direct sampling of current, voltage, and waveform data at high voltage side for real and accurate measurements
- Overvoltage protection: Automatic shutdown when output exceeds set voltage limit with actuation time less than 20ms
- Overcurrent protection: High-low voltage dual protection design with precise shutdown based on set values at high voltage side
- Built-in high voltage output protective resistor in voltage boost body eliminates need for external protective resistors
Technical Specifications
Output voltage ratings:
See Details in Specifications Table
Output frequency:
0.1Hz, 0.05Hz, 0.02Hz
Measurement accuracy:
3%
Positive and negative voltage peak errors:
≤ 3%
Voltage wave form distortion:
≤ 5%
Use condition:
Indoor and outdoor: Temperature: -10℃~+40℃; Humidity: ≤ 85%RH
Power:
AC50Hz, 220V ±5%
Power supply fuse tube:
See Details in Specifications Table
