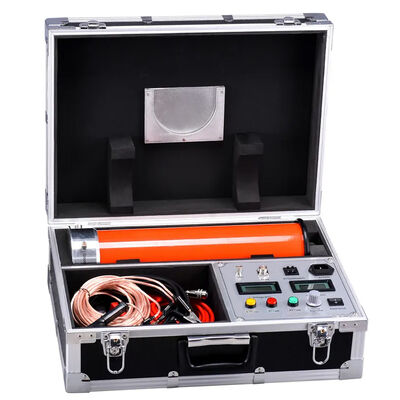

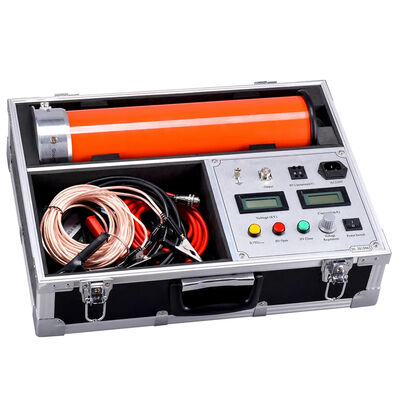

60kV Rated Voltage DC Hipot Tester with 2 Years Warranty and ≤0.5% Ripple Factor for High Voltage Testing
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-ZGF |
| Minimum Order Quantity | 1 |
| Price | 1500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Electric Test Equipment | Voltage | 220 V, 110 V, Other |
|---|---|---|---|
| Customized Support | OEM, ODM | Application | High Voltage Test |
| Place Of Origin | Hebei, China | Power | <100w |
| Ripple Factor | Better Than 0.5% | MOQ | 1 Set |
| Keyword | HIPOT TESTER | Rated Voltage | 60kv |
| Warranty | 2 Years | ||
| Highlight | 60kV Rated Voltage DC Hipot Tester,2 Years Warranty High Voltage Generator,≤0.5% Ripple Factor Surge Arrester Tester |
||
Product Description
2 Years Warranty High Voltage Generator DC Hipot Tester
Product Overview
Professional DC Hipot Tester designed for DC high voltage test equipment applications, backed by a comprehensive 2-year warranty.
Technical Specifications
| Parameter | Model 1 | Model 2 | Model 3 |
|---|---|---|---|
| Rated Voltage (kV) | 60 | 60 | 60 |
| Rated Current (mA) | 2 | 3 | 5 |
| Rated Power (W) | 120 | 180 | 300 |
| Weight (kg) | 9 | ||
| Dimension (mm³) | 465 × 390 × 190 | ||
| Output Voltage Accuracy | ±(1.0% readings ± 2 digit) | ||
| Output Current Accuracy | ±(1.0% readings ± 2 digit) | ||
| Ripple Factor | ≤ 0.5% | ||
Operating Parameters
Work Method: Interval working, less than 30 minutes under rated load
Overload Capacity: No-load voltage can exceed 10% of rated voltage for 10 minutes. Maximum charging current is 1.25 times the rated current.
Power Supply: AC220V ±10% 50HZ
Working Environment
Temperature: -10°C to 40°C
Relative Humidity: No more than 85% when room temperature is 25°C (no condensation)
Altitude: Below 1500m
Key Features
- Stable Output Current: High-frequency voltage doubler circuit with PWM pulse width modulation and voltage/current double closed-loop feedback technology for high voltage stability and minimal ripple. Full-scale smooth voltage regulation with 0.1kV voltage resolution and 1μA current resolution.
- Comprehensive Protection: Complete protection functions including zero-position, over-voltage, over-current, and breakdown protection. Nanosecond-level sensors ensure rapid, reliable operation for personnel and equipment safety.
- 75U Function: Smart high-precision 0.75U function button automatically sets voltage and current to 0.75U state, ideal for zinc oxide arrester testing.
- Zero-Start Boost: Imported multi-turn potentiometer ensures stable boost process with high adjustment accuracy.
- Overvoltage Setting: Digital dial switch for easy operation and high setting accuracy.
- Integrated Design: Compact design with host and pressure doubler in one chassis. Imported high-frequency high-voltage rectifier diodes improve efficiency and portability.
- Reliable Performance: High-performance imported components with special insulating coatings for excellent electrical performance, moisture resistance, and leak prevention.
- Simple Operation: Well-arranged interface with clear instructions for easy learning and use.
Product Images
