Dynamic Circuit Breaker Tester For High Voltage Circuit Breaker Test Equipment Switchgear Dynamic
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYKC_L |
| Minimum Order Quantity | 1 |
| Price | 2200usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Warranty | 2 Years | Power | Electronic |
|---|---|---|---|
| Pustomized Support | OEM, ODM, OBM | Place Of Origin | Hubei, China |
| Usage | Auto Testing Machine | Resolution(Time) | 0.1ms |
| Resolution(Speed) | 0.01m/s | Measurement Range(Current) | 20.00A |
| Measurement Range(Speed) | 20.00m/s | Dimension | 360mm (L) *280mm (W) *300mm (H) |
| Output Power Supply DC | 30~250V Digital | ||
| Highlight | high voltage ground tester,high voltage resistance tester,electronic ground tester |
||
Product Description
Dynamic Characteristic Circuit Breaker Tester for High Voltage Circuit Breaker Test Equipment Switchgear Dynamic
Product Overview
This circuit breaker analyzer is suitable for mechanical characteristic testing of SF6 switches, GIS combinations, vacuum switches, and oil switches produced domestically and internationally.
Main Features
- Applicable to all types of SF6 switches, GIS switchgear, vacuum switches, and oil switches with metal contacts manufactured domestically and internationally
- Universal speed sensor, linear travel sensor, and rotation sensor for convenient and simple installation
- Large LCD screen with direct transmissive type, background light, and electronically adjusted contrast
- English menu prompts for operation; displays all data and oscillograms after single on-off action
- Stores multiple sets of switch off and switch on test results with real-time clock for date and time recording
- Built-in high-speed micro-printer for printing all data and illustrations
- Includes Windows DB-8001/8001(II) Circuit Breaker Data Analysis Management Software for PC connectivity
- Strong data analysis function for effective analysis of circuit breaker mechanical characteristic parameters
- User-defined additional speed program for adding various instantaneous opening and closing speeds
Technical Parameters
Operating Environment
- Input power supply: 220V±10% 50Hz±10%
- Atmospheric pressure: 86~106kPa
- Temperature: -10~40℃
- Humidity: ≤80%RH
Safety Performance
- Dielectric strength: Power on power frequency 1.5KV pressure for 1 minute, without any arc over
Basic Parameters
- Time measurement range: 4000.0ms
- Time resolution: 0.1ms
- Error: Within 100ms: 0.1ms±1 digit; Above 100ms: 0.1%±1 digit; Synchronization: ±0.1ms
- Speed measurement range: 20.00m/s
- Speed resolution: 0.01m/s
- Error: Within 0-2m/s: ±0.1m/s±1 digit; Above 2m/s: ±0.2m/s±1 digit
Travel Specifications
| Items | Measurement Range | Resolution | Error |
|---|---|---|---|
| Vacuum Circuit Breaker | 50.0mm | 0.1mm | 1%±1 digit |
| SF6 Circuit Breaker | 300.0mm | 1mm | - |
| Oil-Minimum Breaker | 600.0mm | - | - |

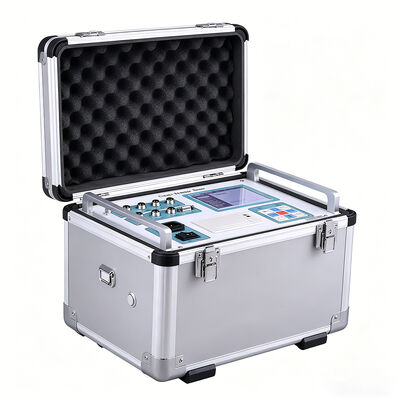

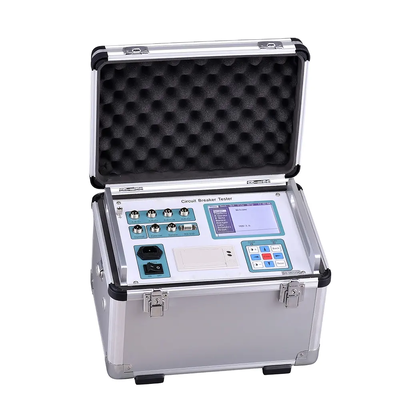

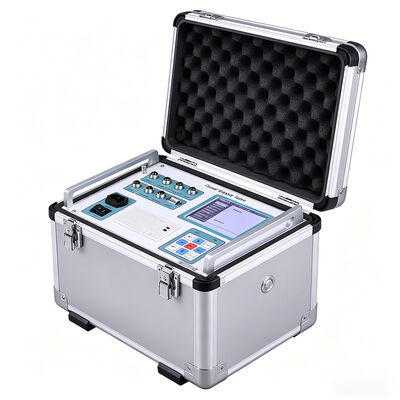

Product Images
