High Voltage Vacuum Checker Switch And Circuit Breaker Dynamic Characteristic
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYKV |
| Minimum Order Quantity | 1 |
| Price | 1600usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Application | Electrical Testing |
|---|---|---|---|
| Voltage | 220V±10% | Warranty | 2 Years |
| Power | 3300W | Place Of Origin | Hebei, China |
| Customized Support | OEM, OBM | Protection Class | IP55 |
| Accuracy Class | Standard Accuracy | ||
| Highlight | high voltage ground tester,high voltage resistance tester,220v ground tester |
||
Product Description
High Voltage Vacuum Checker Switch and Circuit Breaker Dynamic Characteristic With 2 Years Warranty
Product Overview
This high-voltage vacuum checker switch and circuit breaker dynamic characteristic analyzer comes with a comprehensive 2-year warranty, providing reliable testing and analysis for various electrical switching equipment.
Applications
- Suitable for domestic and foreign production of SF6 switches, GIS combination electrical appliances, vacuum switches, oil switches, vacuum contactors, and special circuit breakers (including train circuit breakers)
- Capable of measuring 12 metal contact fractures simultaneously - 6 main fractures and 6 auxiliary fractures
- Operates circuit breaker once to obtain comprehensive data and waveforms including time, bounce number and time, speed, coil current, and coil resistance
Key Features
- Energy storage capability with automatic and manual low jump test functions
- Circuit breaker life testing capabilities
- Lock power supply and dry contact control options available
- Equipped with high-speed thermal printer for convenient on-site test data printing
Technical Specifications
| Parameter | Specifications |
|---|---|
| Time Measurement | 12 natural switching (closing) time, opening/closing phase synchronization, bounce time measurement; Internal trigger: 1ms-10000ms, resolution 0.01ms; External trigger: 1ms-10000ms with variable resolution |
| Velocity Measurement | Instant separating/closing velocity, appointed time slot average velocity; Range: 1mm sensor 0.01-20.00m/s, 345° angle sensor 1 cycle/0.01° |
| Travel Measurement | Moving contact travel, contact stroke, over travel, overshoot/rebound stroke; Linear sensor: 50mm range (0-50mm), resolution 0.1mm; Optional 100-1000mm sensors; Encoder: 345° rotate sensor, 0-1000mm range |
| Current/Resistance Range | Maximum current: 20A, resolution: 0.01A; Resistance: 1000Ω, resolution: 0.01Ω |
| Power Supply | AC 220V ±10%; 50Hz ±10% |
| DC Power Output | Continuously adjustable DC20-270V, DC220V≤20A (short time), Power: 4400W |
| External Trigger Voltage | AC/DC10-300V, current ≤120A |
| Disconnecting Switch Measurement | Voltage output: DC20-270V (adjustable); Current output time: 0.01-10s (settable); Fracture signal maximum acquisition time: 10s; Measurable fracture closing, separation time, three-phase synchronization, bounce time and frequency |
| Mainframe Volume | 360*260*170mm |
| Operating Environment | -20℃ to +50℃ |
| Relative Humidity | ≤90% |
Product Images

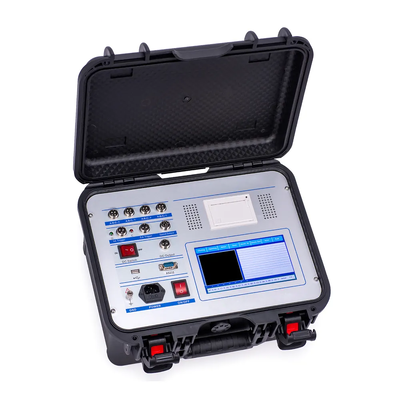

Equipment in use with clamp transformers

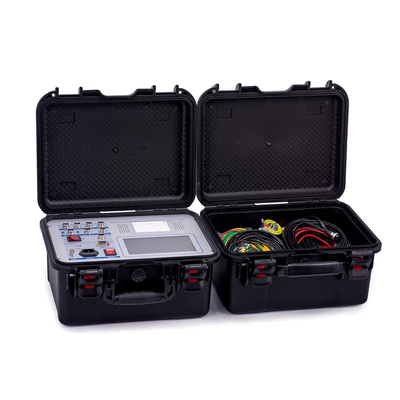

Measurement setup and configuration

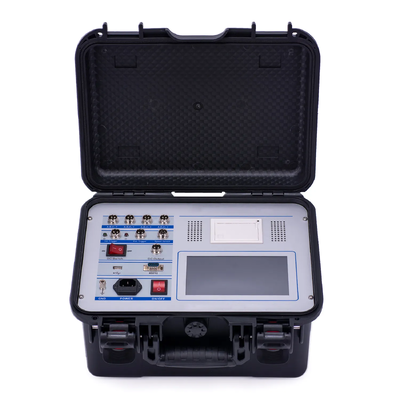

Detailed controls and connections
