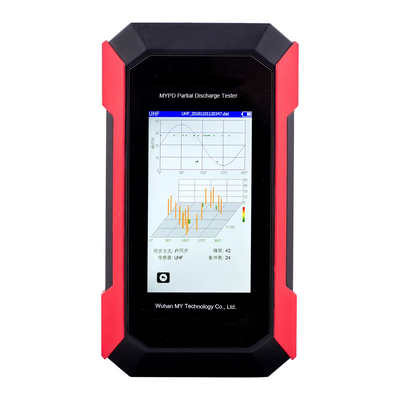

IP55 Digital Cable Partial Discharge Test Equipment For Electronic Power Testing
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYPD |
| Minimum Order Quantity | 1 |
| Price | 6000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Voltage | 220 V |
|---|---|---|---|
| Protection Class | IP55 | Accuracy Class | High Accuracy |
| Customized Support | OEM, ODM, OBM, Software Reengineering | Accuracy | ±0.1% ~ ±0.5% FS |
| Warranty | 2 Years | Sensor Transmission Impedance | 5mV/mA |
| Sensitivity | ≤50pC | Battery | 3.7V/5000mAh Lithium Battery |
| Working Time | About 6 Hours | Detection Frequency | 1~30MHz |
| Charger | AC 90-264V Or DC 5V | ||
| Highlight | IP55 partial discharge test equipment,220V partial discharge test equipment,5V partial discharge test kit |
||
Product Description
Hot Price Partial Discharge Digital Cable Partial Discharge Measuring for Electronic Power Testing
Advanced partial discharge detector for electronic power testing applications. Features steel material construction with IP55 protection and backed by 2-year warranty.
Key Features
- Real-Time Partial Discharge Monitoring: Continuously monitors PD activity in high-voltage equipment, enabling early detection of insulation defects before catastrophic failure in transformers, switchgear, cables, and rotating machinery.
- Multi-Channel Simultaneous Measurement: Multiple independent channels for concurrent PD measurement across different phases or equipment, allowing comprehensive insulation assessment and precise location of discharge sources.
- Advanced Pulse Discrimination Technology: Sophisticated noise gating and pulse discrimination algorithms separate partial discharge signals from external interference, ensuring accurate PD pattern recognition in noisy substation environments.
- Wide Frequency Range Selection: Adjustable measurement bandwidth from narrowband to ultra-wideband configurations, providing flexibility to optimize signal-to-noise ratio and detect various PD types including internal, surface, and corona discharges.
Technical Specifications
| Parameter | Specification |
|---|---|
| Shell Material | ABS |
| Screen | 4.3 inch RGB LCD screen, resolution 800*480 |
| Sampling Accuracy | 12bit |
| Synchronization Mode | Internal synchronization |
| Connectors | USB interface (charger input), 3.5mm stereo headphone jack, External sensor input interface |
| Earphone Compatibility | 8 Ω minimum |
| SD Card | Standard configuration 16G ~ 64G |
| Built-in Battery | 3.7V/10000mAh lithium battery |
| Operating Hours | Approximately 12 hours |
| Charger | DC 5V/3A |
| Operating Temperature | -20 ~ 50℃ |
| Humidity | 20-85% relative humidity |
| Volume and Weight | 210*100*35(mm) 0.4KG (host) |

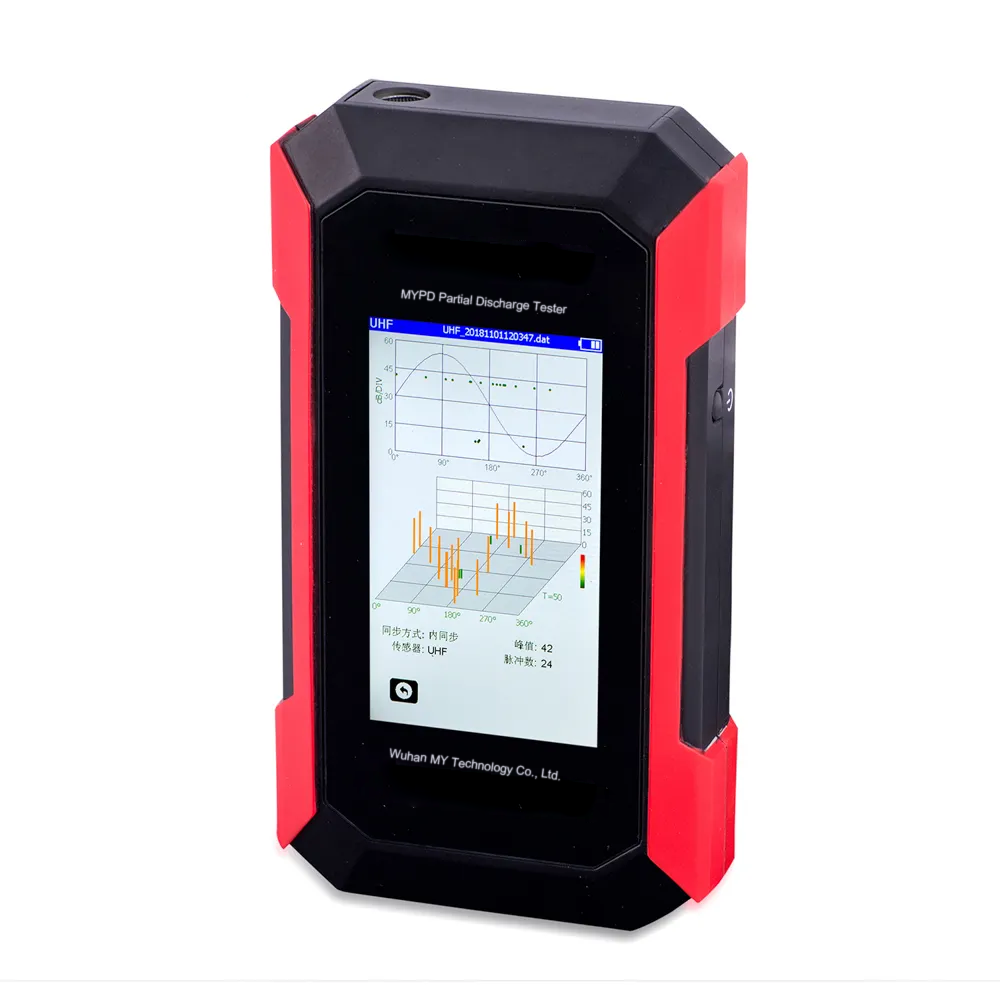

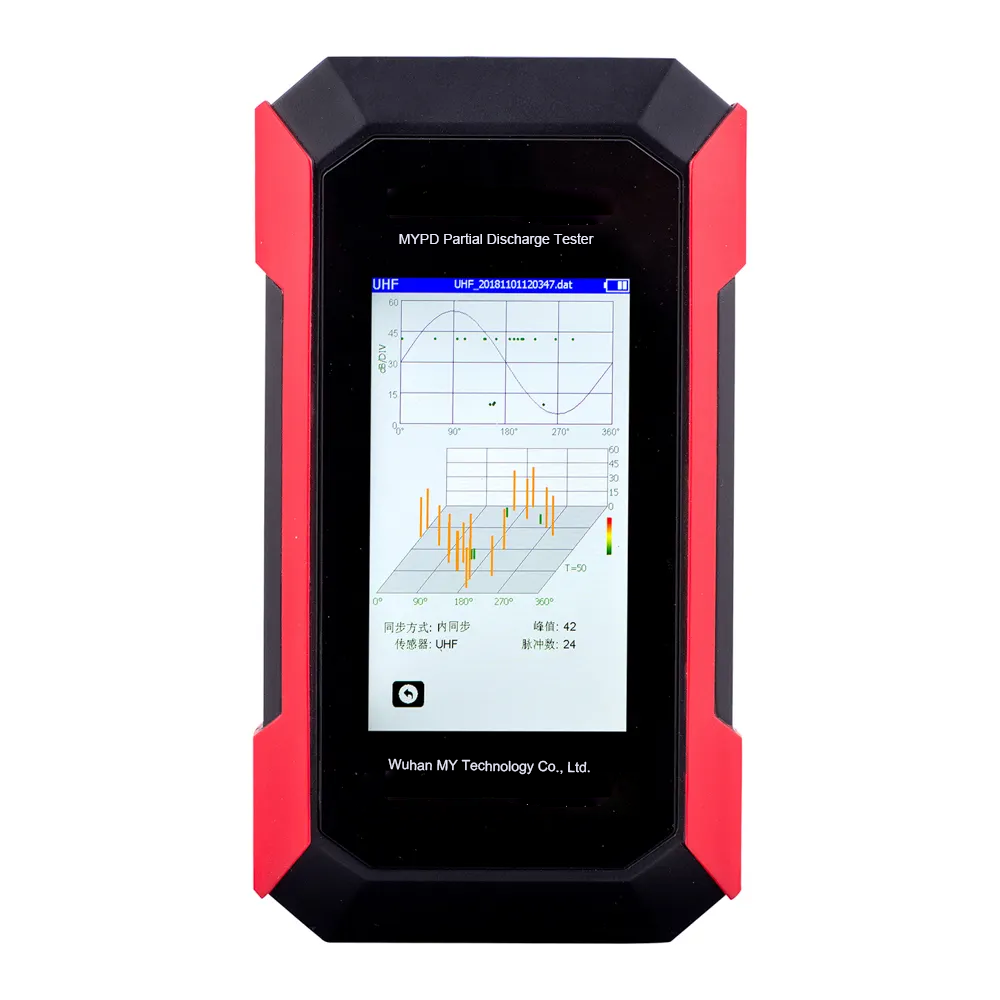

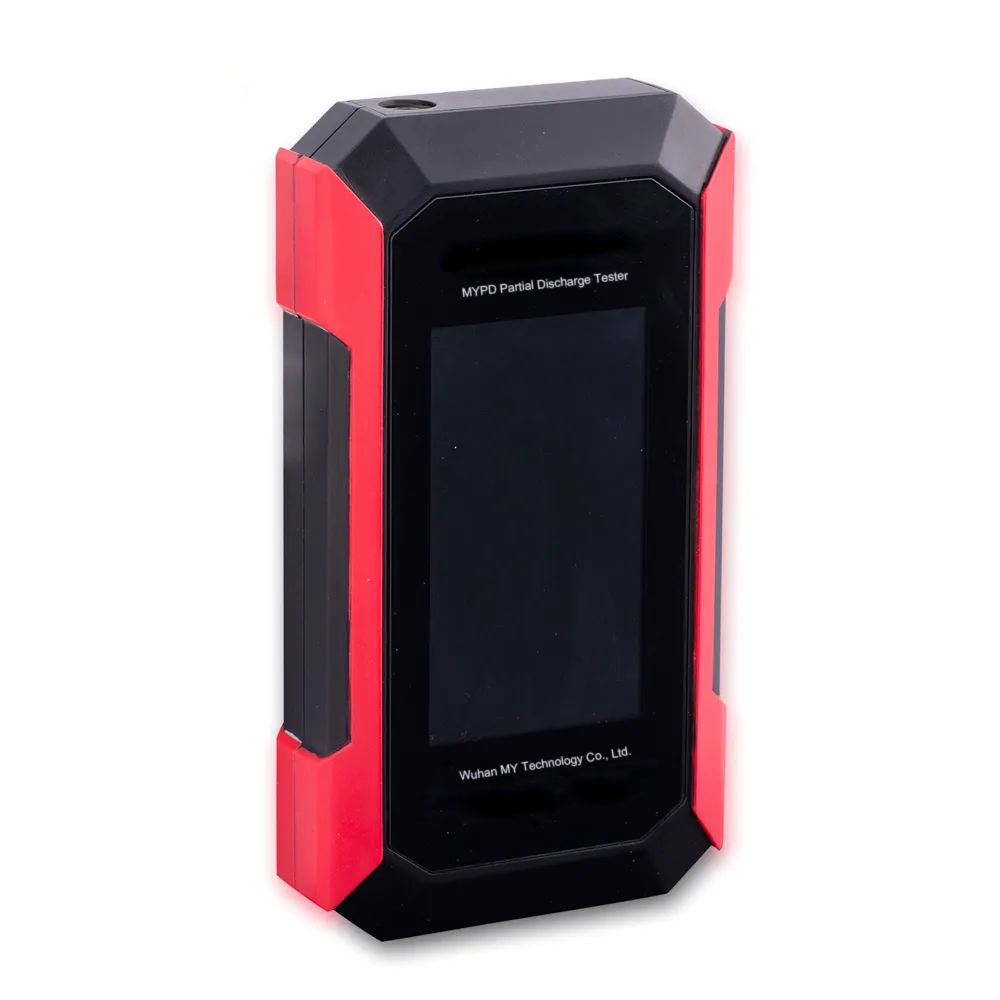

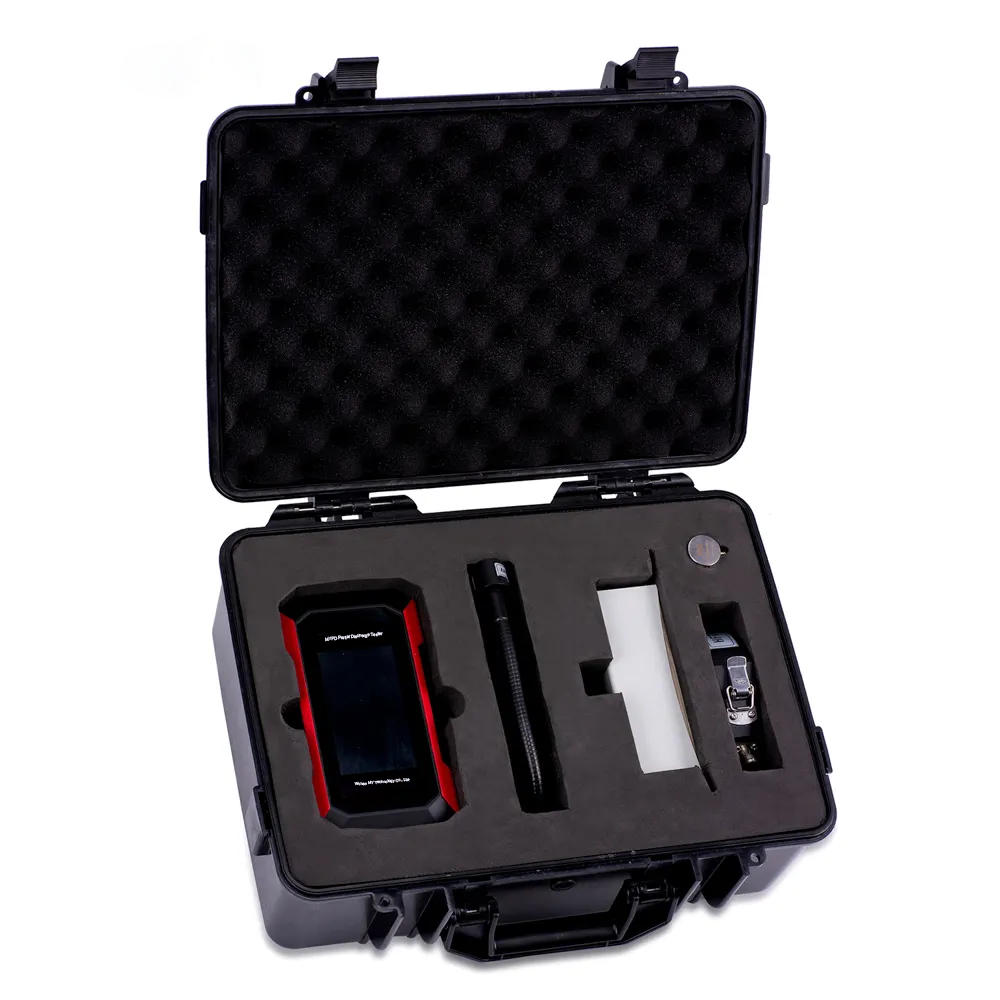

Product Images
