Portable Transformer Oil Test Insulating Oil Chromatography Oil Dissolved Gas Analyzer
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY DGA |
| Minimum Order Quantity | 1 |
| Price | 10000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Accuracy Class | High Accuracy |
|---|---|---|---|
| Protection Class | IP65 | Customized Support | OEM, ODM, OBM |
| Application | Auto Testing, Electrical Testing | Voltage | 380 V, 220 V |
| Warranty | 2 Years | Power | 300W |
| Place Of Origin | Hubei, China | Output Current AC | 0~20A |
| Utmost Output Capacity | 3*300VA | Display | 192*64 LCD |
| Three Phase Coarse Tuning | 0°~360°, 300 Phase Shifting Each Step. | Temperature Rise | < 60℃ |
| Insulation Resistance | No Less Than 22MΩ | Accuracy | ±1% |
| Phase Of Output | Single-phase | Max. Output Current | 1A Single Piece (could Be Customized) |
| Regulating Range Of Frequency | 30Hz-300Hz | Max. Output Voltage | 300kV (could Be Customized) |
| Insulation Level | Under 1.1 Times And Keeping 1 Min, Normal | Noise Level | No More Than 65dB |
| Temperature Control Area | 6 Loops | Programmed Temperature Order | 16 |
| External | 4 Loops | Dimension | Fid, Tcd, Ecd, Fpd, Npd (Optional) |
| Number Of Detectors | >40db | Start Sampling | Manual, Auto |
| Highlight | portable surge arrester tester,portable lightning arrester leakage current tester,20a surge arrester tester |
||
Product Description
Portable Transformer Oil Test Insulating Oil Chromatography Oil Dissolved Gas Analyzer
Advanced portable testing instrument designed for comprehensive analysis of transformer oil and insulating oil through chromatography and dissolved gas analysis.
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Display | 192*64 lattice sinicized liquid crystal |
| Temperature Control Zones | 6 routes |
| Temperature Range | Indoor temperature +5℃～400℃, increment: 1℃, precision: ±0.1℃ |
| Temperature Program Steps | 16 steps |
| Heating Rate | 0.1～40℃/min |
| Pneumatic Control | Mechanical valve control mode or electronic pressure flow control mode (optional) |
| External Events | 4 routes |
| Sample Injector Types | Fill column, capillary, six way valve gas injection, automatic headspace injection, etc. (optional) |
| Detection Configuration | 5 entries: FID, TCD, ECD, FPD, NPD (optional) |
| Sample Start | Manual or automatic (selectable) |
| Communication Port | Ethernet: IEEE802.3 |

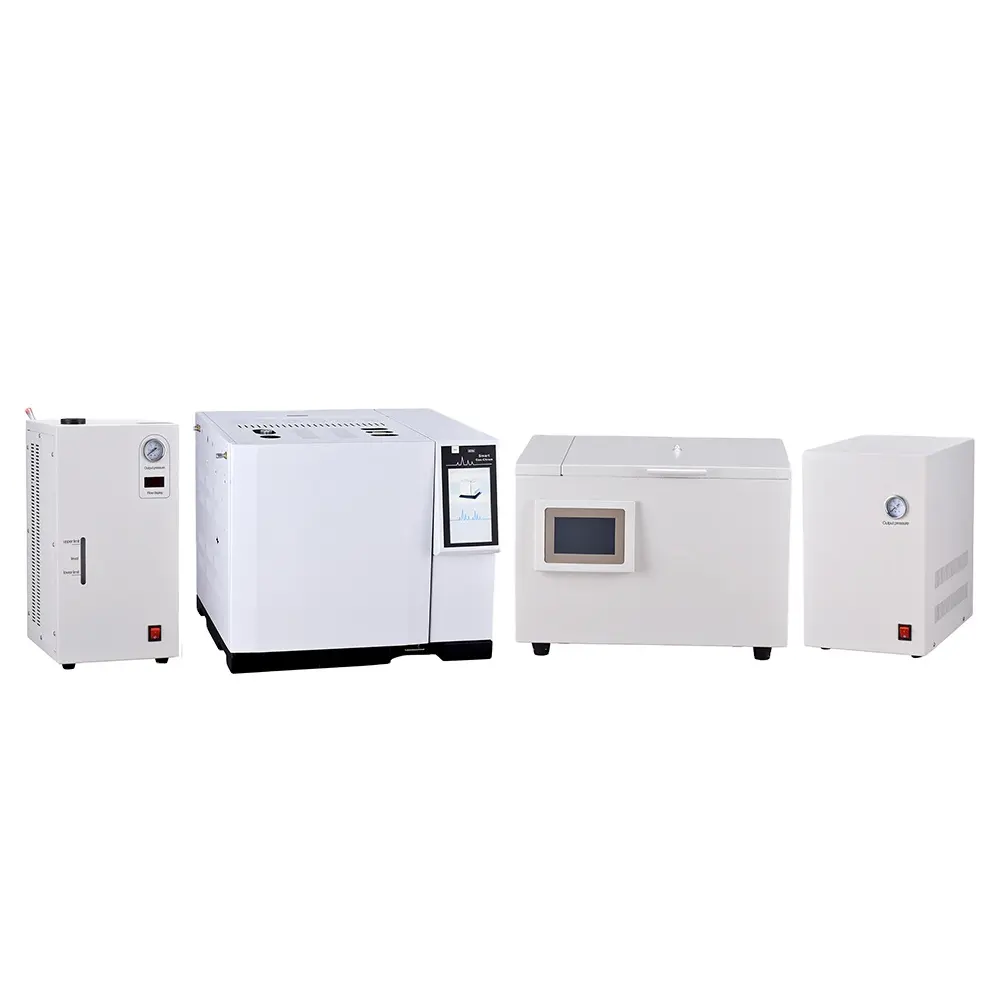

System Components & Dimensions

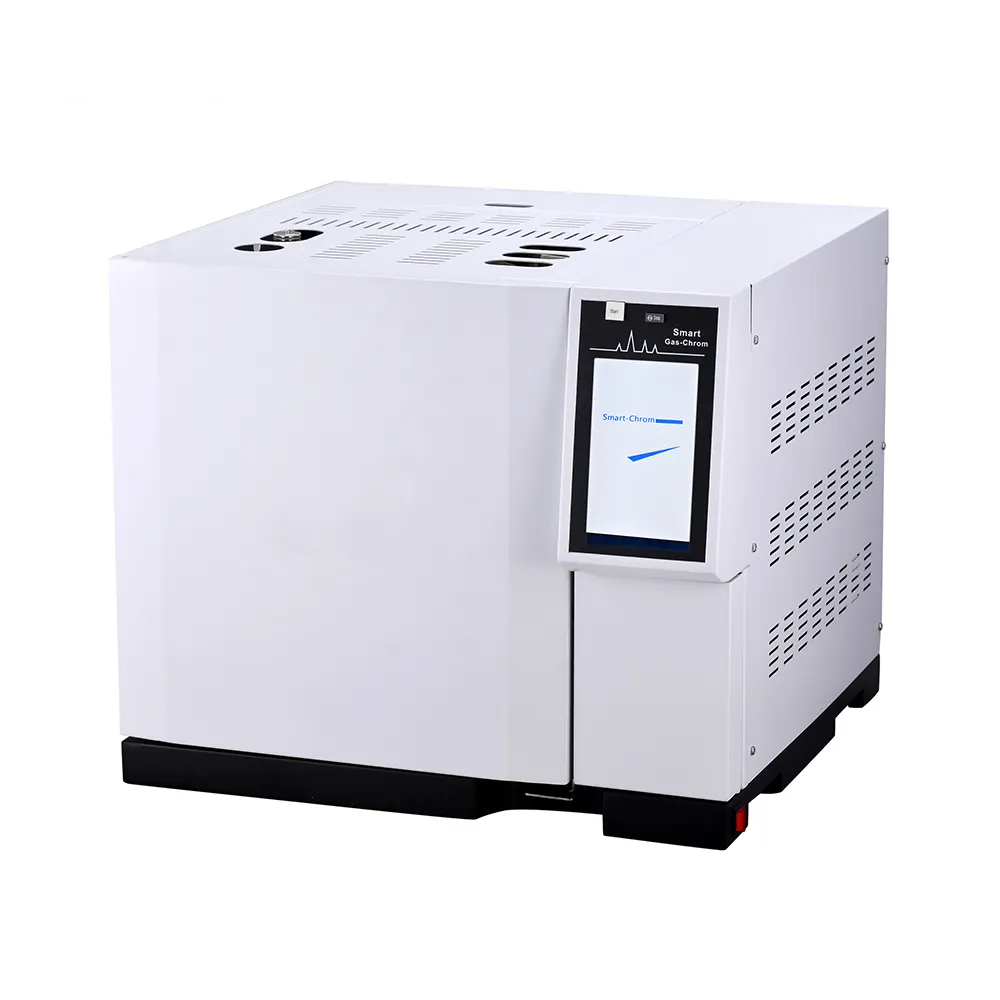

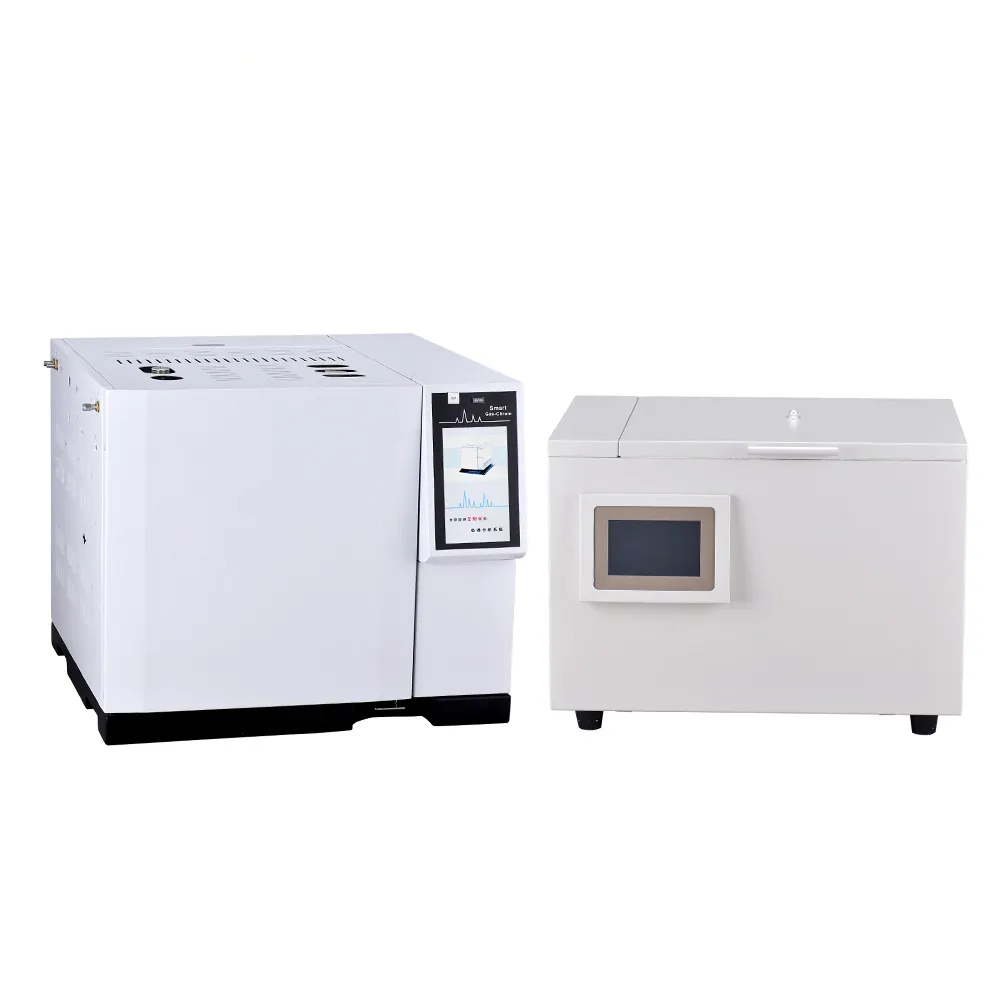

Main Unit: Gross weight: 59kg, Dimensions: 70*60*65cm³
Oscillation Device: Gross weight: 42kg, Dimensions: 61*46*57cm³

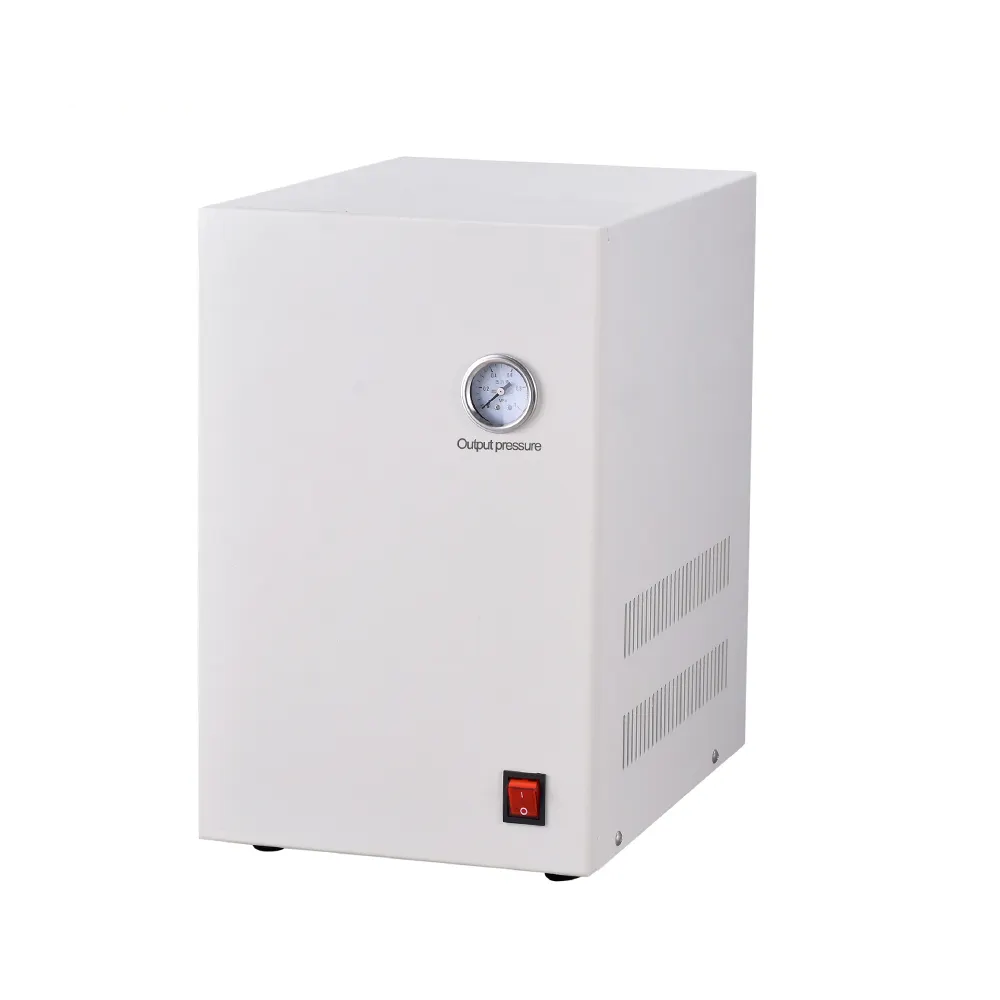

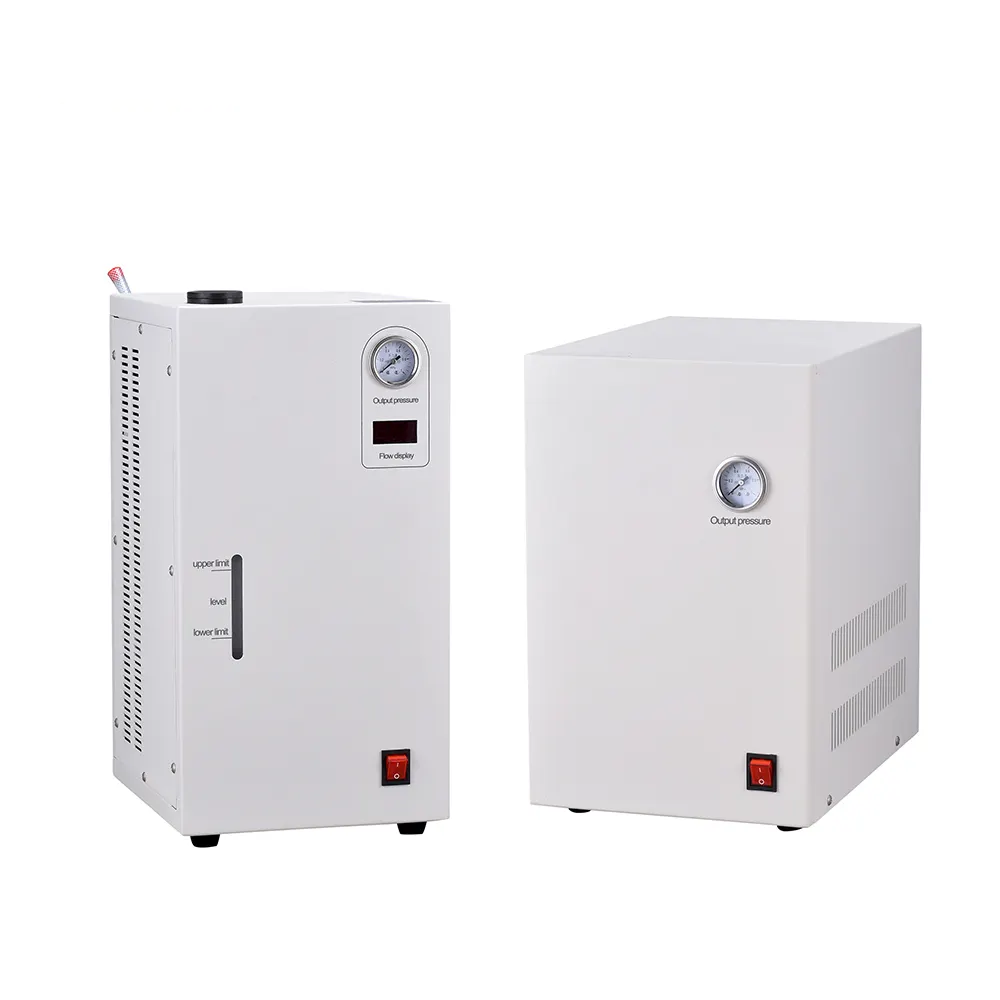

Air Gas Generator: Gross weight: 42kg, Dimensions: 65*40*77cm³

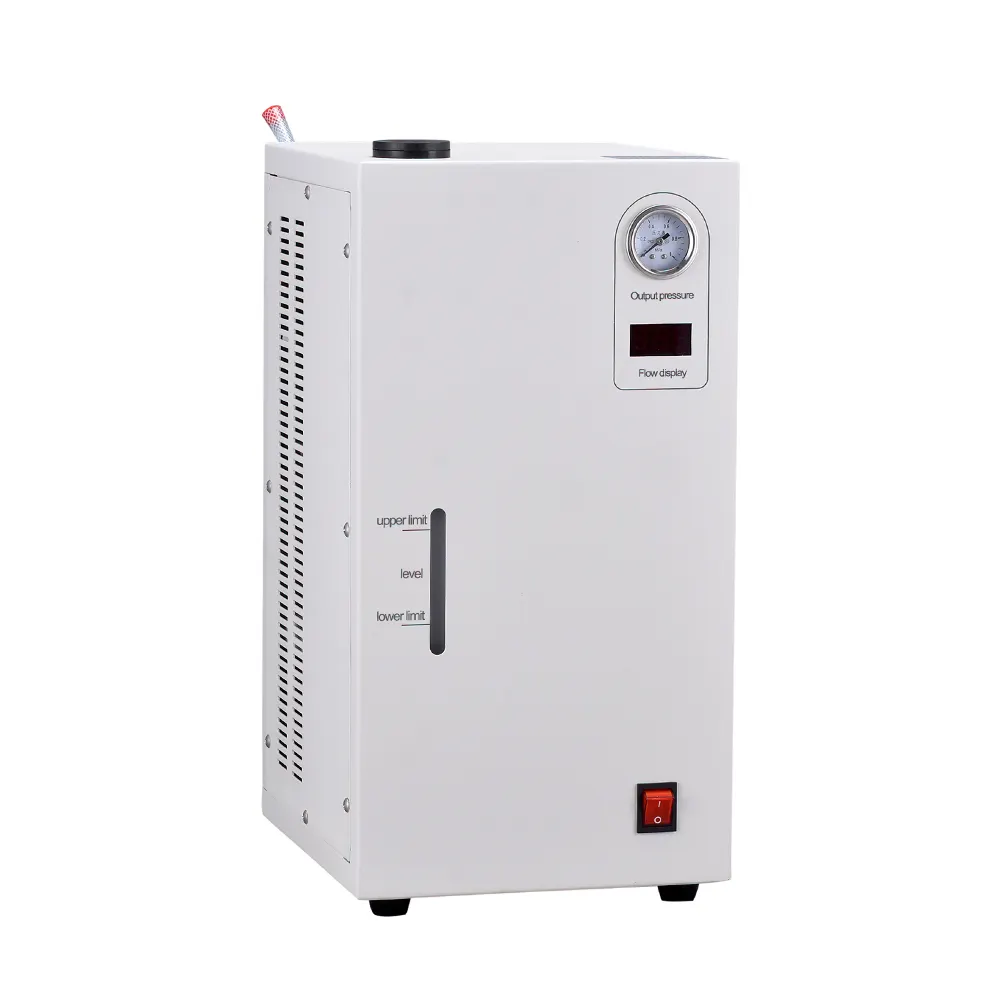

Hydrogen Generator: Gross weight: 21kg, Dimensions: 53*36*55cm³
Gas Cylinders: Gross weight: 17kg, Dimensions: 96*21.5*21.5cm³
Product Images
High Voltage Transformer in use with clamp transformers during dielectric strength testing
High Voltage Transformer measurement setup and configuration
Detailed view of High Voltage Transformer controls and electrical connections
