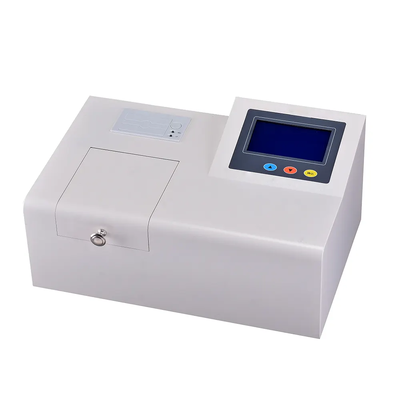

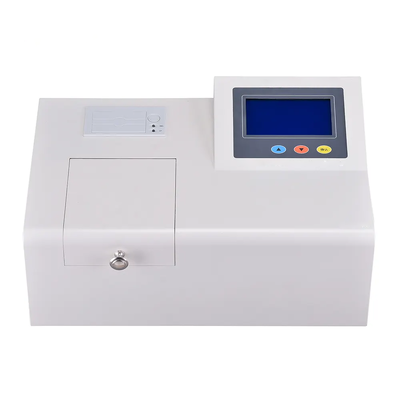

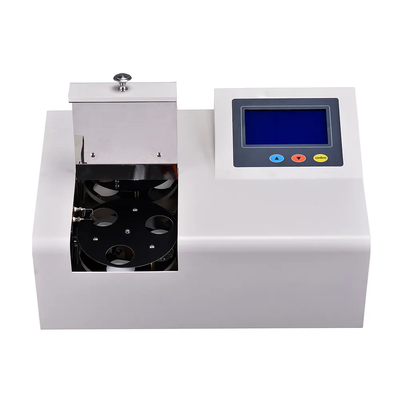

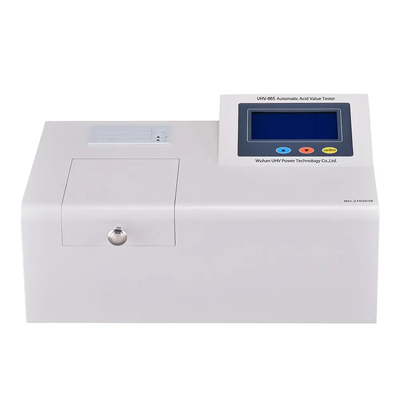

Automatic Insulation Oil Acidity Tester High Accuracy IP65 For Petroleum Products
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY SD |
| Minimum Order Quantity | 1 |
| Price | 2500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Warranty | 1 Years | Power | Electronic |
|---|---|---|---|
| Customized Support | OEM | The Environment Temperature | 0℃~+45℃ |
| Place Of Origin | Hubei, China | Maximum Power Loss | ≤2W |
| Weight | ≤1.4kg | Dimension | 220*200*105mm3 |
| Allowable Ground Voltage | ≤5V,error≤±5% | Resistance | 0~2Ω(10mA),2~20Ω(10mA),20~200Ω(1mA) |
| Type | Oil Acid Value Tester | Application | Oil Acid Value Tester |
| Voltage | 220 V | Protection Class | IP55 |
| Accuracy Class | Standard Accuracy | Accuracy | ±1% |
| Huminity | ≤85% RH | Temperature | 10 ℃ ~ 45 ℃ |
| Power Supply | AC220V / 50Hz | ||
| Highlight | Automatic Insulation oil acidity tester,High Accuracy oil acidity tester,IP65 oil acidity tester |
||
Product Description
Automatic High Accuracy Insulation Oil Acidity Analysis Machine
This advanced analysis machine features standard IP65 protection and is specifically designed for petroleum products testing. It provides precise measurement of acidic substances in insulation oil and other petroleum-based products.
Product Overview
Petroleum products contain various acidic substances including inorganic acids, organic acids, esters, phenolic compounds, lactones, heavy metal salts, amine salts, and other compounds. These acidic components vary with the degree of oil refinement - less refined products typically contain higher concentrations. Organic acids can corrode metals, with smaller molecules being particularly corrosive to materials like lead and zinc, forming soaps that can aggregate into deposits affecting product storage and performance.
Key Features
- Large blue LCD display with English menu interface
- Logo-free button design for intuitive operation
- Microcomputer-controlled automatic measurement and printing
- Magnetic stirring system - quiet and reliable operation
- Compact design with standard IP65 protection
- Ideal for petroleum refineries, power plants, and research facilities
Technical Specifications
| Test Capabilities | Essential instrument for oil analysis and quality inspection in refineries, power plants, and research units |
|---|---|
| Compliance Standards | GB/T 264 "Determination of Acid Value of Petroleum Products", GB7599, and GB7299 requirements |
| Operating Principle | Titration and neutralization method with microcomputer-controlled automatic liquid injection, titration, stirring, and endpoint determination |
