Desktop Oil Particle Counter Detecting The Concentration Of Pollutant Particles
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY YK |
| Minimum Order Quantity | 1 |
| Price | 9000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Accuracy Class | High Accuracy |
|---|---|---|---|
| Protection Class | IP65 | Customized Support | OEM, ODM, OBM, Software Reengineering |
| Application | Auto Testing, Electrical Testing | Voltage | 380 V, 220 V |
| Warranty | 2 Years | Power | Electronic |
| Place Of Origin | China | Output Current AC | 0~20A |
| Utmost Output Capacity | 3*300VA | Display | Three And Half Digital Display, Accuracy: 1.5% |
| Three Phase Coarse Tuning | 0°~360°, 300 Phase Shifting Each Step. | Temperature Rise | < 60℃ |
| Insulation Resistance | No Less Than 22MΩ | Accuracy | ±1% |
| Phase Of Output | Single-phase | Max. Output Current | 1A Single Piece (could Be Customized) |
| Regulating Range Of Frequency | 30Hz-300Hz | Max. Output Voltage | 300kV (could Be Customized) |
| Insulation Level | Under 1.1 Times And Keeping 1 Min, Normal | Noise Level | No More Than 65dB |
| Resolution | 10% | Data Output | Built-in Printer And RS232 Interface |
| Measurement Channel | 64, Channel, Particle Size Arbitrarily Set | Limit Of Coincidence Error | 24,000 Grains / Ml |
| Power Supply | AC220V± 10%; 50Hz; 200W | ||
| Highlight | Desktop oil particle counter,High Accuracy oil particle counter,IP65 oil particle count testing equipment |
||
Product Description

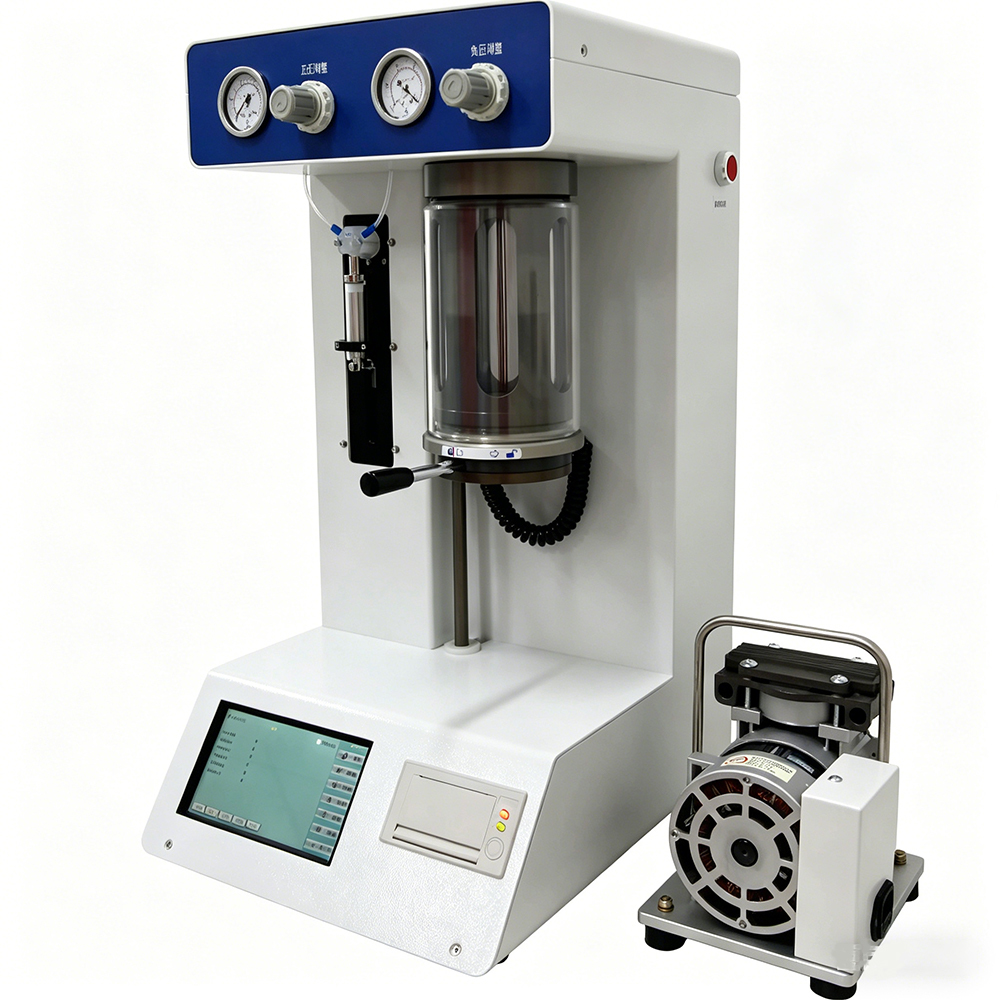

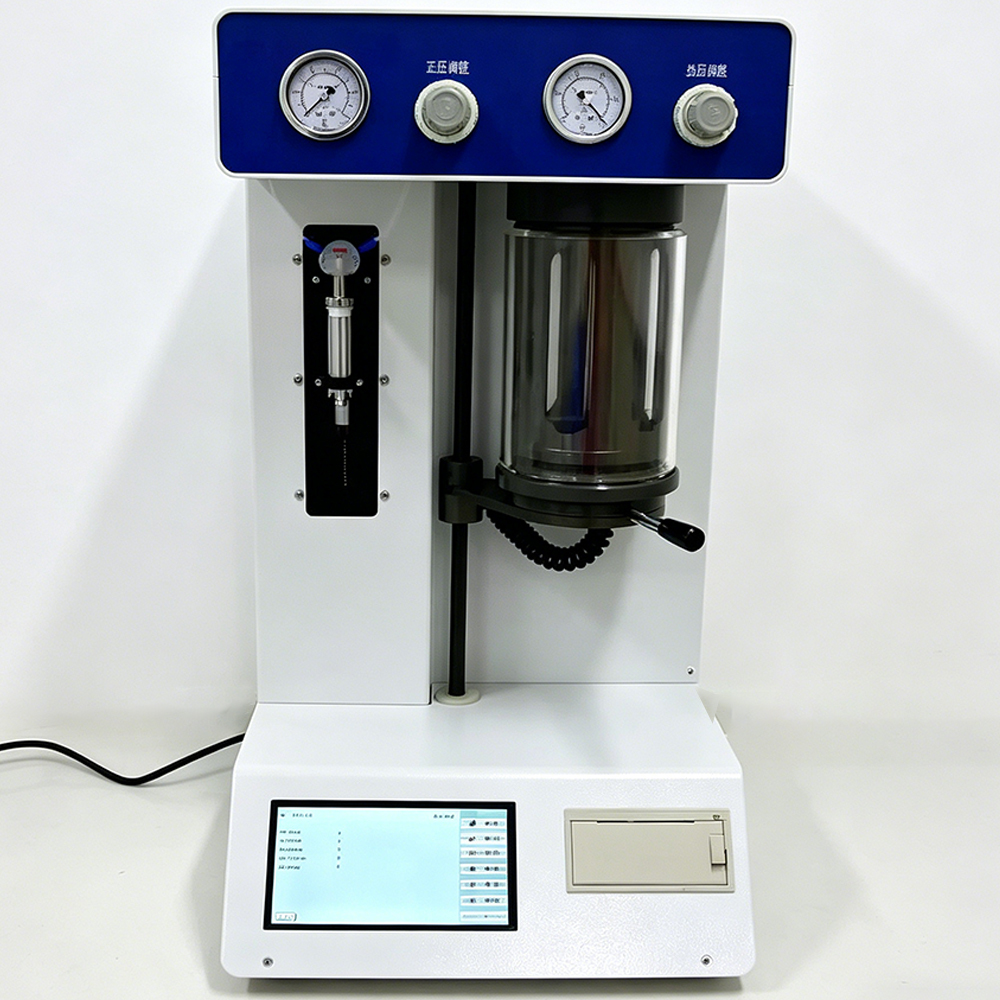

Desktop Oil Particle Counter
The Desktop Oil Particle Counter detects the concentration of pollutant particles in oil with reliable results, designed using the optical resistance method (shading method) principle to measure particle size and quantity in liquids.
Applications
Widely used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, ports, metallurgy, machinery, and automotive manufacturing for detecting contamination levels in various oils including hydraulic oil, lubricating oil, transformer oil (insulating oil), turbine oil, gear oil, engine oil, aviation kerosene, water-based hydraulic oils, and insoluble particles in organic liquids and polymer solutions.
Key Features
- Touch display screen: Menu-driven touch interface for intuitive instrument operation
- High-pressure injection pump: Advanced sampling device
- Positive pressure meter: Displays positive pressure values in the air pressure chamber
- Positive pressure regulating valve: Adjusts maximum positive pressure values
- Negative pressure meter: Displays negative pressure values in the air pressure chamber
- Negative pressure regulating valve: Adjusts maximum negative pressure values
- Sampling needle: Precision tool for accurate sampling
- Pressure chamber: Holds measured liquid with positive or negative pressure storage capability
- Handle: Controls air pressure chamber opening and closing operations
- Test table: Platform for placing test paper during analysis
- Printer: Outputs test data upon completion of analysis
Technical Specifications
| Parameter | Specification |
|---|---|
| Measuring Range | 0.8 µm ~ 600 µm |
| Measurement Channels | 64 channels, particle size arbitrarily set |
| Sampling Volume | 0.2 mL ~ 6553.5 mL |
| Sampling Speed | 5 mL/min ~ 80 mL/min |
| Resolution | 10% |
| Limit of Coincidence Error | 24,000 grains/mL |
| Maximum Positive Pressure | 0.8 MPa |
| Maximum Negative Pressure | 0.08 MPa |
| Data Output | Built-in printer and RS232 interface |
| Sample Test Viscosity | 650 cSt (excessive viscosity can be tested by heating or dilution method) |
