Automatic Open Cup Flash Point Tester For Oils With Touch Screen And Room
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY202 |
| Minimum Order Quantity | 1 |
| Price | 1200usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Open Cup Flash Point Tester | Warranty | 2 Years |
|---|---|---|---|
| Customized Support | OEM | Bandwidth | 70MHz |
| Record Length | 2M | Rise Time At BNC(typical) 5ns | 5ns |
| Vertical Resolutior | 8-bit Resolution, All Channel Sampled Simultaneously | Inputs Impendance3pF | 1MΩ+2% 20pF± |
| Probe Attenuation | 1X, 10X | Sampled Simultaneously Inputs Coupling | AC, DC, GND |
| Supported Probe Attenuation Factor | 1X, 10X, 100X, 1000X | Measuring Range | 0-20kΩ |
| Accuracy Class | ±(0.2%RD+0.05%FS) | Operating Temperature | -10~50°c |
| Dimensions | 320mm*240mm*130mm | Minimum Resolution | Min. 0.1 μ Ω |
| Frequency | 50Hz/60Hz | Usage | Testing Machine |
| Measurement Time | Fast, 10~60 Seconds, Continuous Testing Optional | Working Power Supply | Built-in 12.6V/7.8AH Lithium Battery |
| Weight | 6KG | Resolution | 0.1 ℃ |
| Repeatability Test | ±1℃ | Ignition Method | Spark Ignition |
| Operating Humidity | ≤85% | Cooling Method | Natural Cooling |
| Measuring Range | RT~400°C | Accuracy | ±1°C |
| Ignition Mode | Electric Ignition | Power Supply | 220V 50Hz |
| Temperature Detection | Platinum Resistance | Data Storage | 3000 Data Records |
| Cooling Method | Forced Air Cooling | Ambient Temperature | 10~35°C |
| Highlight | Automatic open cup flash point tester,Touch Screen open cup flash point tester,220V flash point tester |
||
Product Description

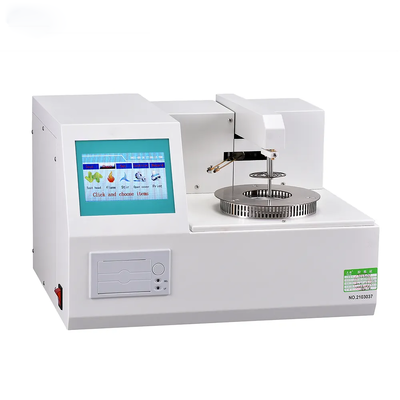

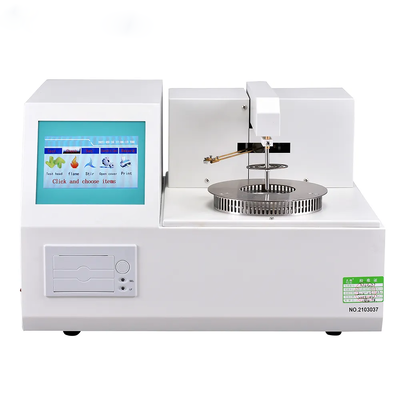

Automatic Open Cup Flash Point Tester for Oils with Touch Screen and Room
Product Overview
Advanced automatic open cup flash point tester designed for oil analysis, featuring touch screen operation and integrated testing environment.
Key Features
- High degree of automation: automatic heating, stirring, lifting, cooling, printing, and calibration test results
- Accurate temperature control with strict compliance to national standard requirements
- Automatic test overtemperature stop function
- Comprehensive instrument self-test capability
- Adjustable igniter brightness control
- Large data storage capacity: 3000 analysis and test records (optional)
- Vertical structure test arm lifting mechanism
- Data record printing functionality
- Pre-test method capability for all unknown flash point samples
- High-performance ARM microprocessor with fuzzy PID temperature control technology for uniform and stable heating
- Touch color LCD display for enhanced human-computer interaction
Technical Specifications
| Measuring Range | Room temperature ~400°C, ~350°C |
| Detection Range | Opening flash point or ignition point |
| Temperature Detection | Platinum resistance |
| Accuracy | ±1°C |
| Repeatability Standards | GB/T3536-2008(ASTM D92), GB/T267-88ASTM D93, GB/T261-2008 |
| Display | Touch color LCD display |
| Data Storage | 3000 data records (displayable and printable) |
| Ignition Mode | Electric ignition |
| Cooling Method | Forced air cooling |
| Printer | Dot matrix thermal printer |
| Work Rate | ≤600W, 300W |
| Power Supply | 220V 50Hz |
| Ambient Temperature | 10~35°C |
| Ambient Humidity | ≤85% |
| Weight | Approximately 17kg |
