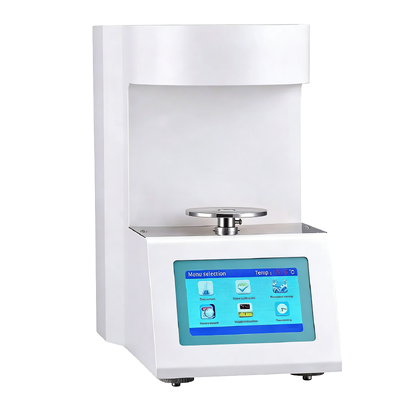

Oil Interfacial Tension Meter Surface Tension Measuring Instrument With Platinum Loop
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY SL |
| Minimum Order Quantity | 1 |
| Price | 2000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1-1999μΩ | Accuracy Class | 0.5% |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | China |
| Resolution | 0.1mN/m | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 12kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Accuracy | 0.1%reading±0.1 MN/m |
| Test Range | 0~200mN/m | Ambient Humidity | ≤85% RH |
| Power | AC220V±20%,50Hz±10% | Maximum Power Consumption | 20W |
| Ambient Temperature | 10 ~ 30 ℃ (typical Value 25 ℃) | Diemension | 200*300*330(mm) |
| Highlight | Oil Interfacial tension meter,20W tension meter,0.5% tension measuring instrument |
||
Product Description

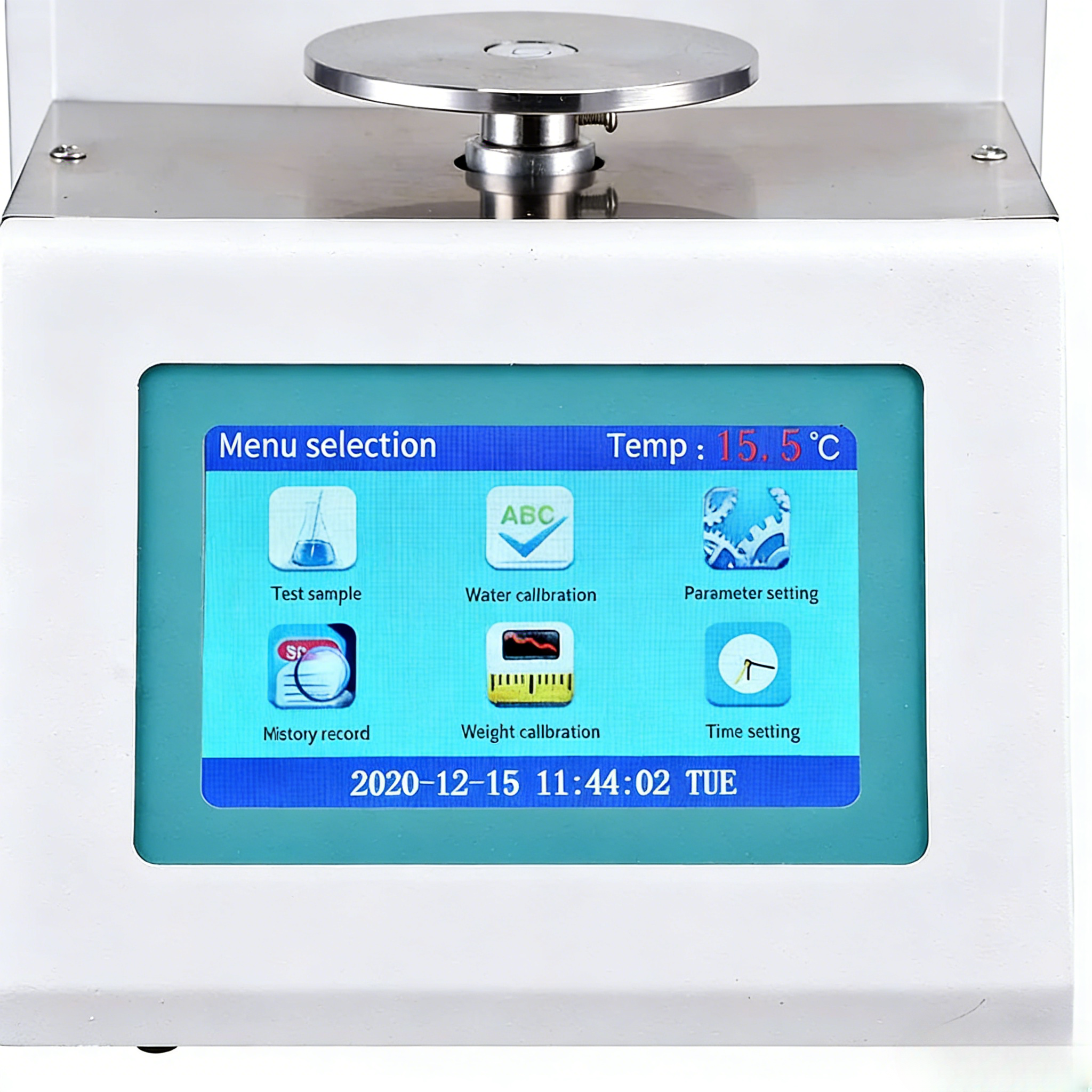

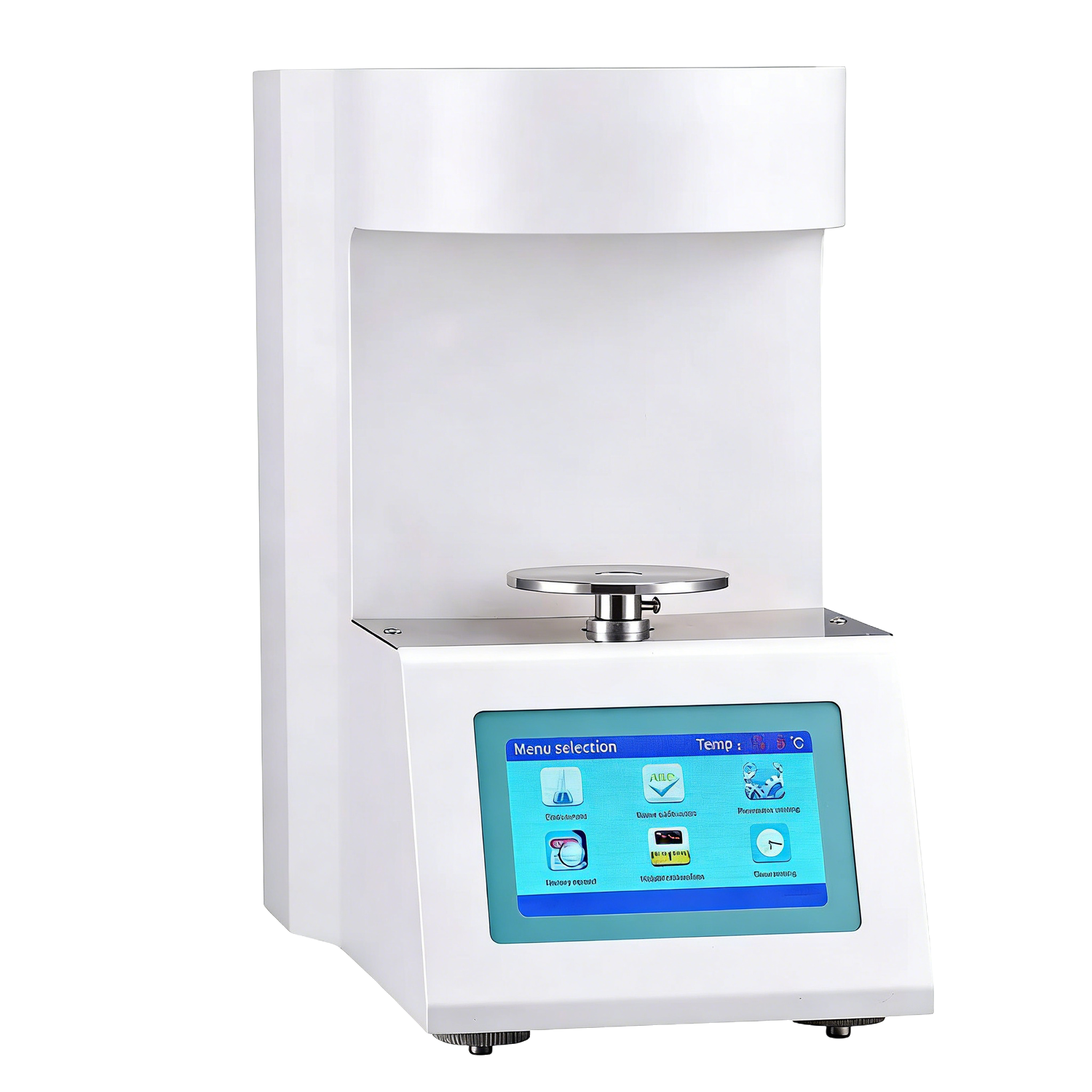

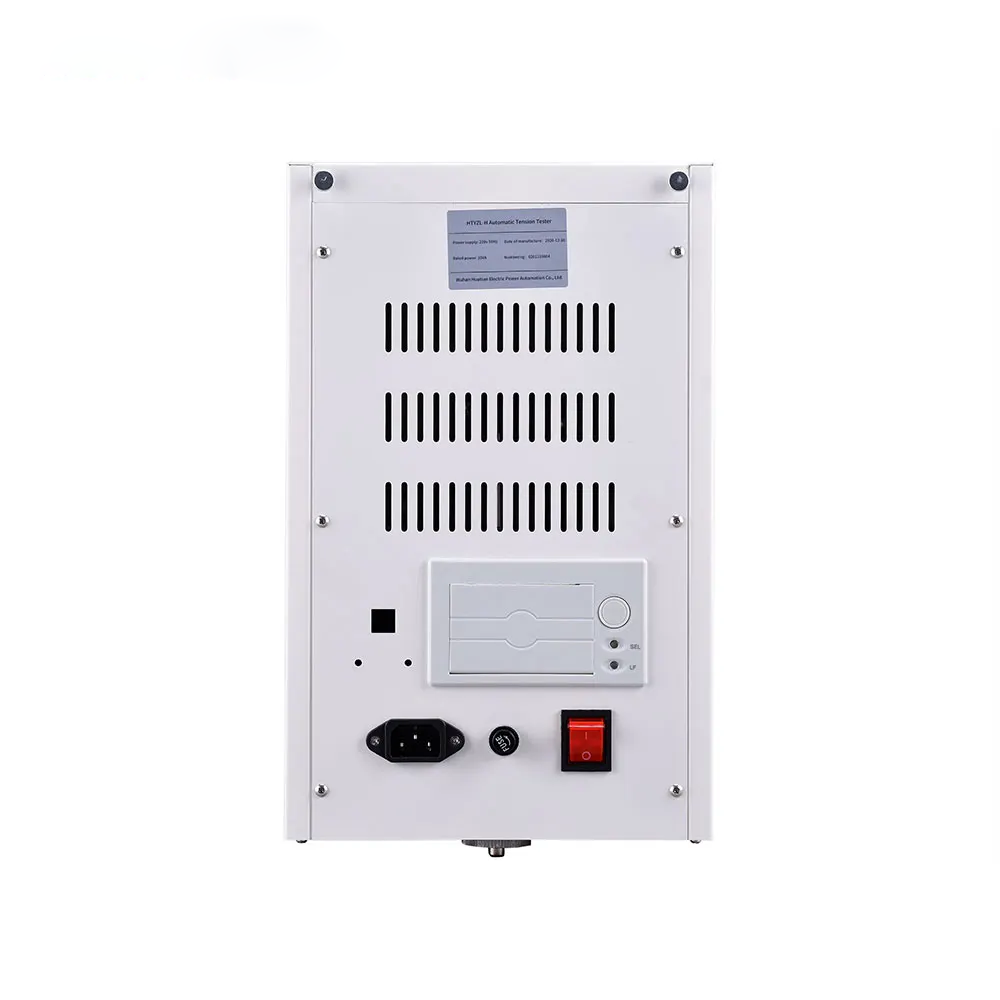

Oil Interfacial Tension Meter Surface Tension Measuring Instrument
This precision instrument measures liquid surface tension using the DuNouy Ring method, featuring a platinum loop for accurate measurements. Designed for simple operation and high accuracy, it is essential for quality assessment in power, petroleum, chemical, and related industries.
Precision Oscillator Design
Features a Wien bridge sine wave oscillator with high-precision, high-speed operational amplifiers, ensuring low distortion and ease of debugging for accurate surface tension measurements.
Enhanced Sensor Technology
Equipped with a newly improved magnetic tank sealed electromagnetic force balance sensor, providing enhanced response speed and linearity. The sensor requires calibration at only one point for optimal performance.
Comprehensive Temperature Compensation System
The internal microprocessor enables bi-directional compensation based on working temperature, with 25°C as the reference point for consistent measurement accuracy across varying environmental conditions.
