0.5% Accuracy Circuit Breaker Analyzer Electric ELECTRIC Switch Characteristic Tester
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYH |
| Minimum Order Quantity | 1 |
| Price | 1600usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Measuring Range | 1-1999μΩ | Accuracy Class | 0.5% |
|---|---|---|---|
| Operating Temperature | -10℃~40℃ | Time Resolution | 1s |
| Current Resolutio | 1μΩ | Place Of Origin | Hubei, China |
| Resolution | 1μΩ | Measurement Accuracy | 0.5% |
| Measurement Range | 1-1999μΩ | Working Power Supply | AC220V ± 10%, 50Hz ± 1Hz |
| Weight | 12kg | Display Mode | Three-and-a-half-digit LCD |
| Volume | 380*350*260 Mm | Warranty | 2 Years |
| Customized Support | OEM, ODM | Place Of Origin | Hebei, China |
| Keyword | Circuit Breaker Analyzer | Power Supply | 220V 50Hz |
| Speed Range | 20m/s | Humidity | ≤80%RH |
| Time Range | 250-20000ms | Power | Electronic |
| Atmospheric Pressure | 86~106kpa | Insulation Resistance | >2MΩ |
| Temperature | -10~40℃ | ||
| Highlight | 0.5% Accuracy Circuit Breaker Analyzer,220V Circuit Breaker Analyzer,Electronic cb analyzer |
||
Product Description
Electric Switch Characteristic Tester - Circuit Breaker Timing Testing Machine
Professional electric switch characteristic tester designed for comprehensive circuit breaker timing analysis and performance testing. This robust testing machine comes with a 2-year warranty for reliable industrial use.
Technical Specifications
| Parameter | Specifications | Accuracy |
|---|---|---|
| Input Power | 220V±10%, 50Hz±10% | - |
| Air Pressure | 86 ~ 106 KPA | - |
| Temperature | ≤80%RH, non-condensing | - |
| Relative Humidity | >2MΩ | - |
| Dielectric Strength | 1.5KV withstand voltage to chassis for 1 minute, no flashover and arcing | - |
| Timing | Range: 250-4000ms, resolution: 0.1ms Range: 10000-20000ms, resolution: 1ms |
0.1ms±1 digit 1m±1 digit |
| Speed | Range: 20.00m/s, resolution: 0.001m/s | ±0.01m/s±1 digit |
| Current | Range: 10A, Resolution: 0.01A | 1% ±0.1A |
| Output Power | DC5 - 270V digital adjustable 10A (instant) | - |
| Type | Range (mm) | Resolution (mm) | Accuracy |
|---|---|---|---|
| Vacuum Circuit Breaker | 50 | 0.1 | 1%±1 digit |
| SF6 Circuit Breaker | 300 | - | - |
| Minimum Circuit Breaker | 1000 | - | - |
Key Features
- Measure inherent opening and closing time of 12-way metal fracture, time tolerance in same phase, time tolerance in different phase, close-open time and no flow time in process of close-open, open-close, open-close-open, closing bounce time
- Some models can measure the pre-cast time of the closing resistance
- Record and measure closing bounce time, bounce times, bounce process, and bounce waveform of each fracture
- Record and measure opening/closing speed, maximum speed, average speed, overall limit, clearance, overtravel limit switch, rebound amplitude, time-travel characteristic curve
- Record opening/closing current value and current waveform of opening/closing coil
- Provides DC5-270V/10A (20A) digital adjustable circuit breaker operation power supply
- Automatically completes low voltage test of circuit breaker and measures operating voltage value of device
- Simultaneously measure 6-way closing resistance value and its pre-casting time in some models

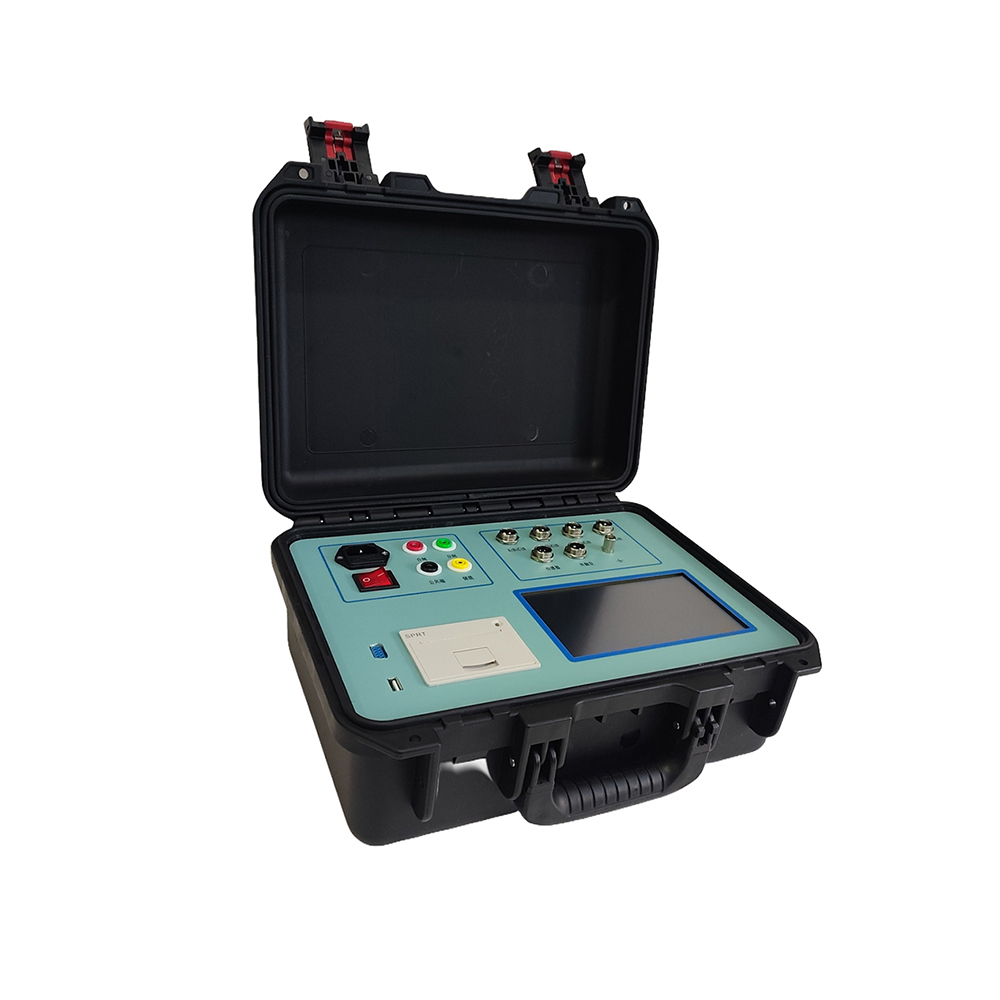

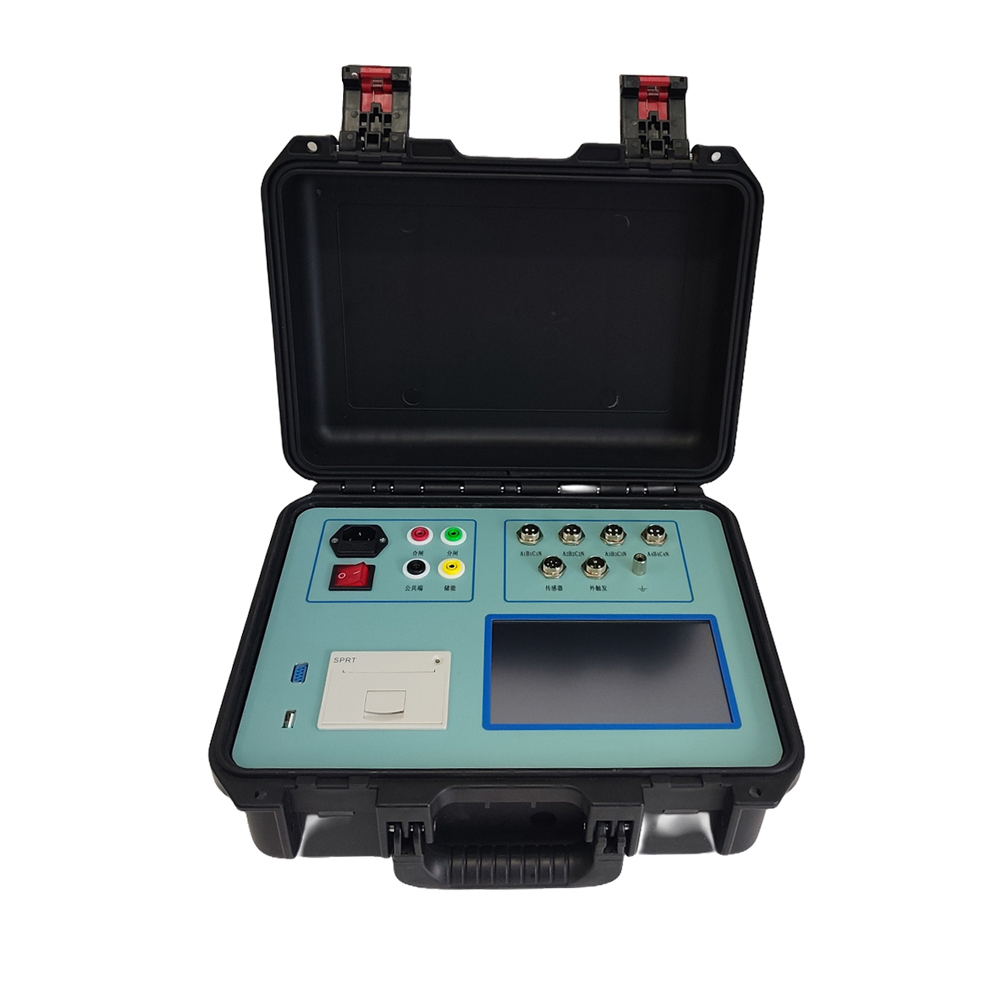

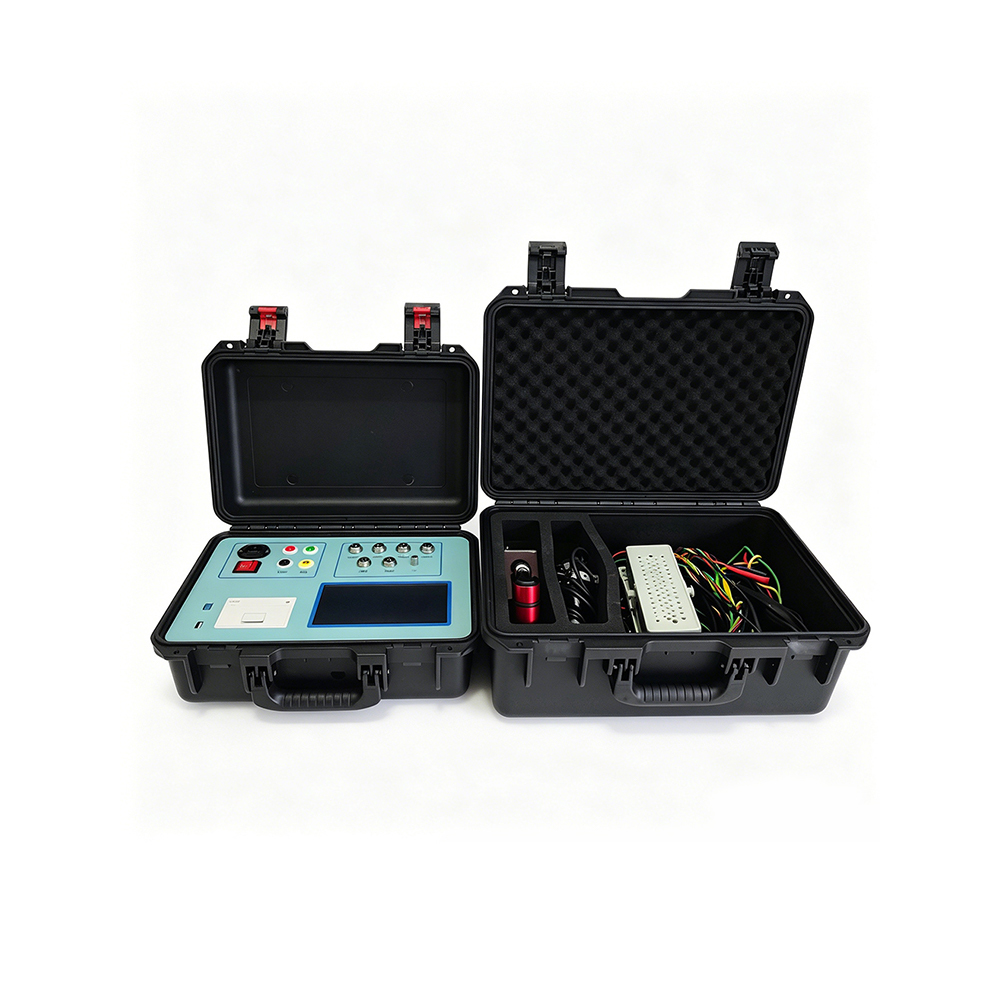

Product Images
