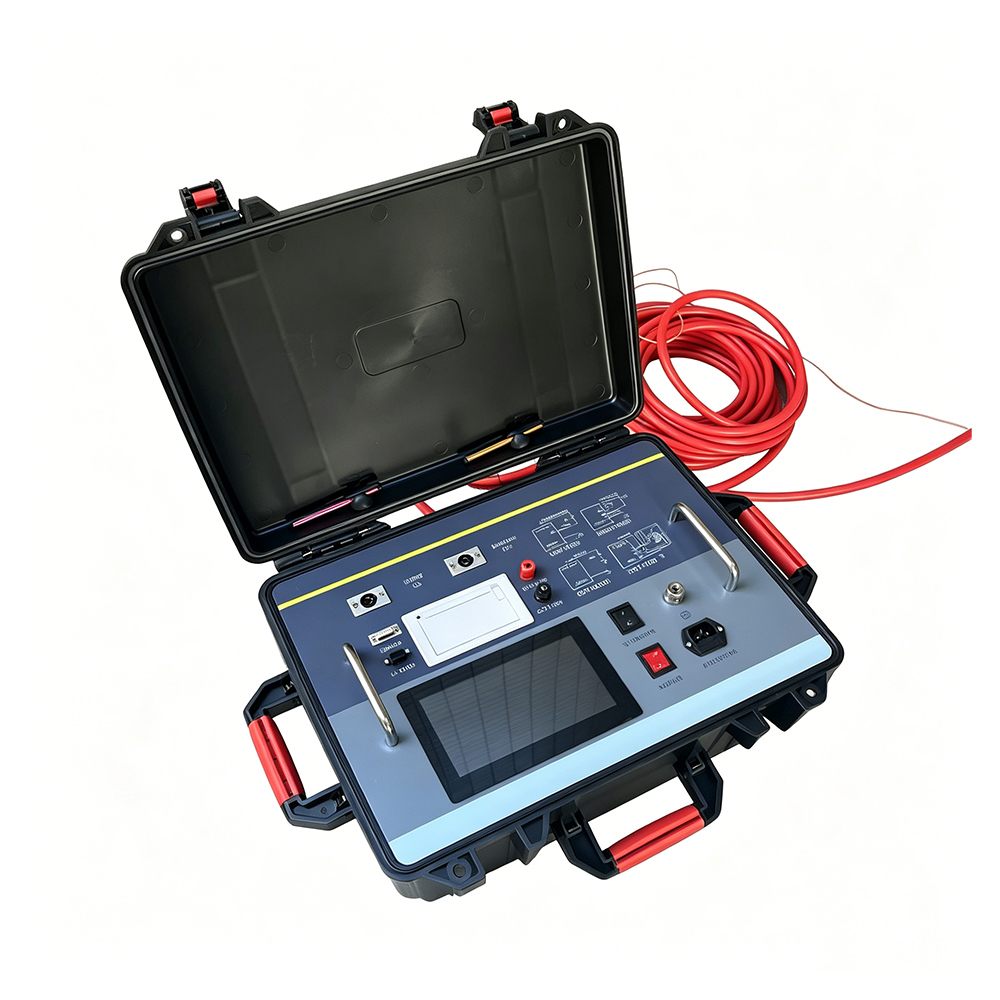

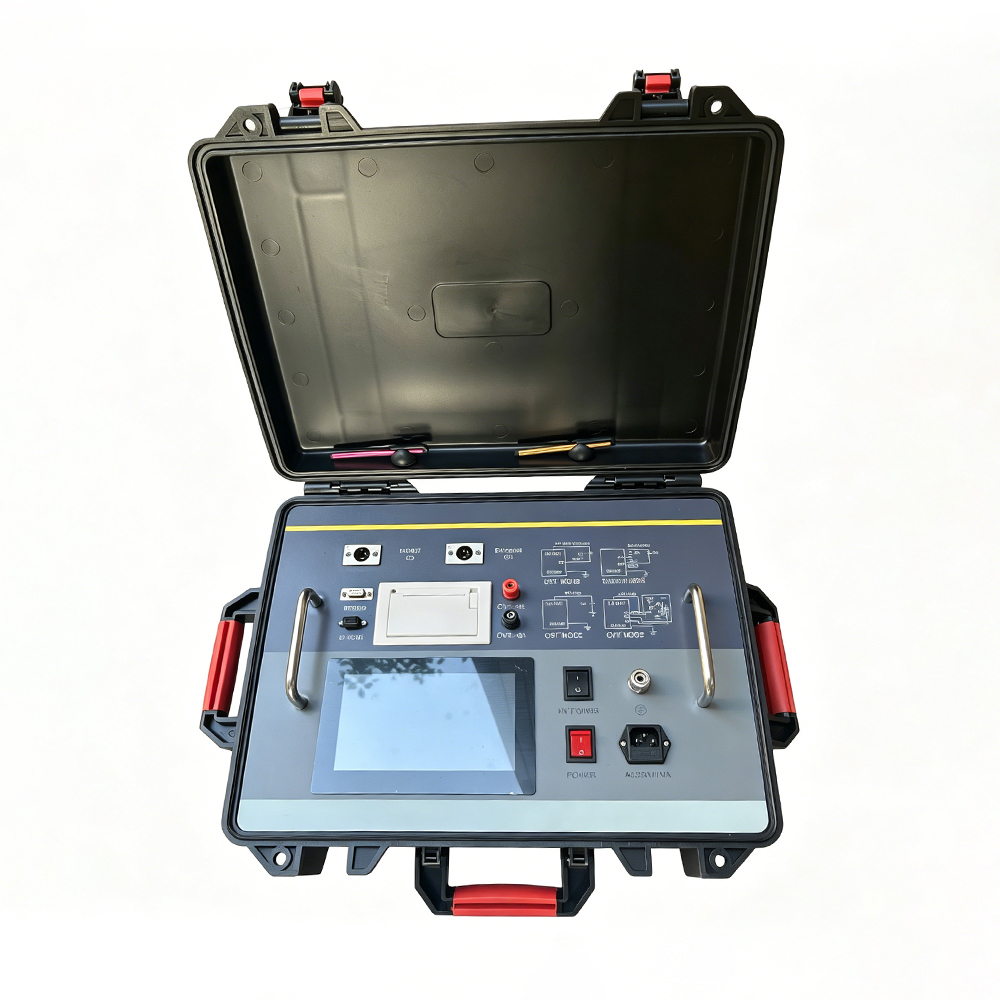

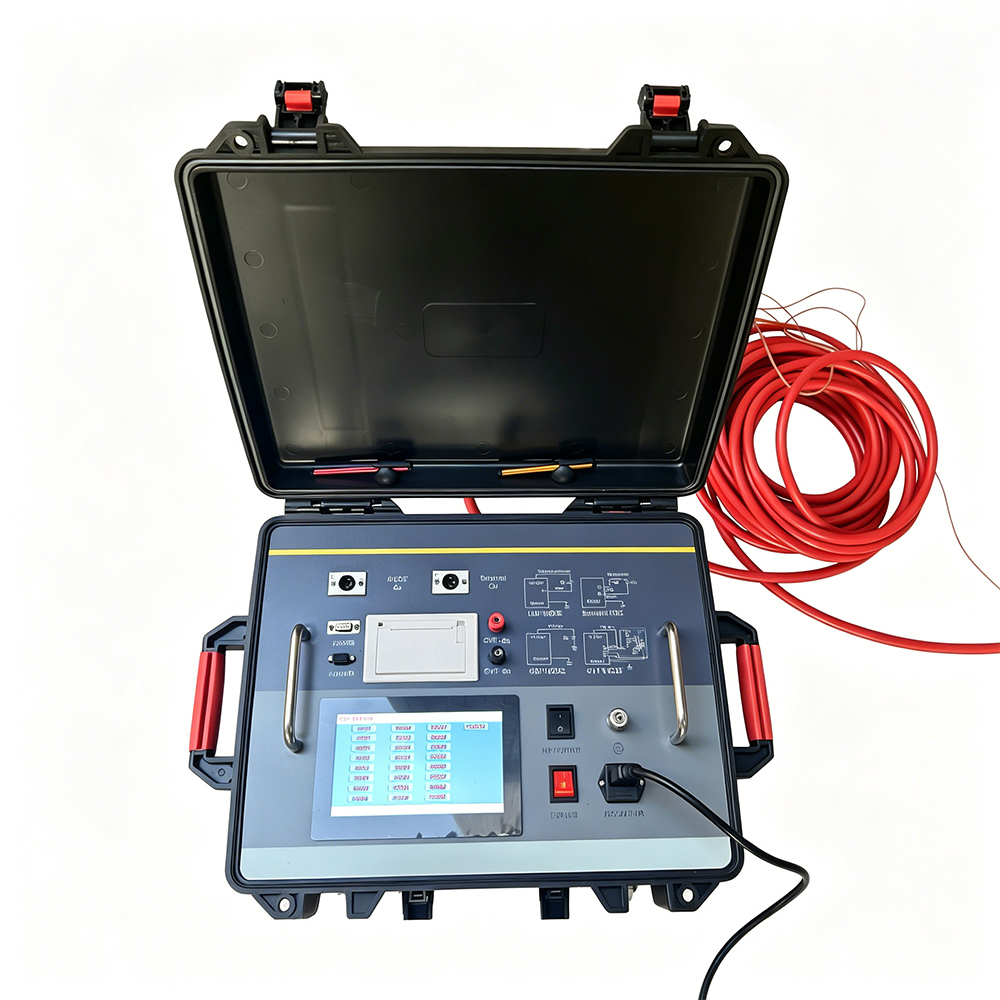

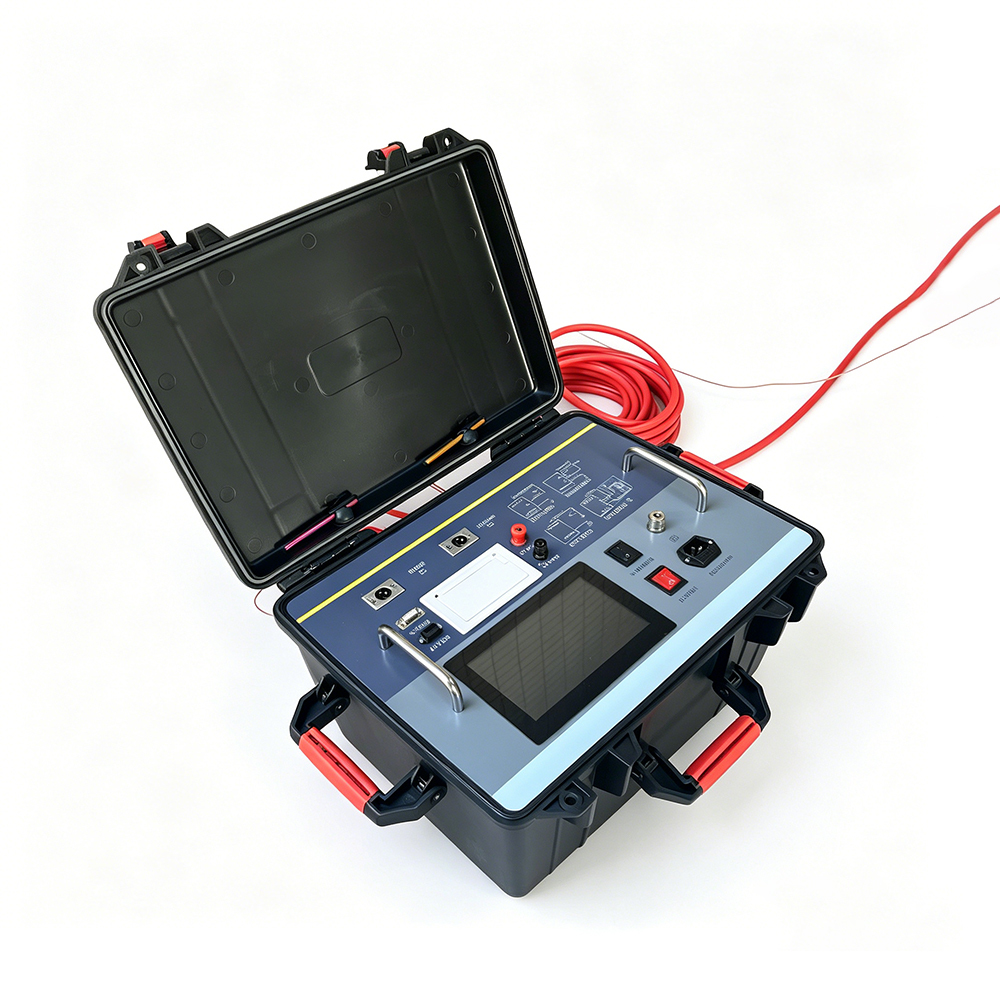

High Precision Automatic Variable Frequency Anti Interference Dielectric Loss Tester
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-JSI |
| Minimum Order Quantity | 1 |
| Price | 3000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Place Of Origin | Hebei, China | Warranty | 2 Year |
|---|---|---|---|
| Maximum Output Power Per Phase | 320VA | Frequency Range | 0 -- 1000Hz, Accuracy 0.001Hz |
| Customized Support | OEM | Single Phase Current Output (RMS) | 0 -- 30A / Phase, Accuracy: 0.2% ± 5mA |
| Working Value Of Phase Current | 9.9A | Single Phasevoltage Output Amplitude | 0--± 160V, Accuracy: 0.5% ± 5mv |
| Single Package Size | 45X60X80 Cm | Accuracy | 0.5 |
| Maximum Output Current | 10 A | Display Type | Touchscreen |
| Communication Interface | RS-232 | Power Supply | 220V 50Hz |
| Maximum Test Voltage | 10 KV | Protection Class | IP65 |
| Control Method | Manual Control | Place Of Origin | Hubei, China |
| Application | Electrics | Warranty | 2 Years |
| Function | Detect | ||
| Highlight | automatic ground tester,automatic resistance tester,high precision ground tester |
||
Product Description
High-Precision Automatic Variable-Frequency Anti-Interference Dielectric Loss Tester
Key Features
- Fourier transform digital filtering technology for high-precision capacitance and dielectric loss measurements with automated testing capabilities
- Frequency conversion technology eliminates 50Hz power frequency interference, ensuring reliable data even in strong electromagnetic environments
- User-friendly full touch LCD with intuitive graphics interface requiring no additional operator training
- Integrated calendar chip and large-capacity memory for data storage, historical record viewing, and printing with timestamp display
- Advanced data management with USB export capability and dedicated PC software for comprehensive data analysis
- Microprocessor-controlled measurement process with automatic data collection in selected measurement modes
- Integrated design with built-in standard capacitor and high voltage power supply for convenient field testing
- High accuracy meets oil dielectric loss measurement requirements with standard oil cup and dedicated testing lines
- Low voltage shielding for reverse wiring functionality, enabling dielectric loss measurement without disconnection in 220kV CVT bus grounding conditions
- AC voltage withstand testing capability for PT, CT secondary testing and 400V low voltage system voltage withstand tests
- External high-voltage power supply frequency recognition (40Hz-70Hz) supporting large capacity dielectric loss testing with power frequency or series resonant power supplies
- CVT testing functionality with self-excitation test capability and four-level protection limits for personnel and equipment safety
- Automatic testing of C1 and C2 capacitance and dielectric loss values, plus total CVT equipment capacitance and dielectric loss measurements
- Integrated thermal printer with calendar clock for test report generation and USB data output
- Computer interface supporting control of up to 32 instruments for integrated high-voltage test vehicle applications
- Comprehensive safety features including grounding protection and overcurrent protection for short-circuit or breakdown scenarios
- Automatic safety cutoff upon operator contact with live parts for personnel protection
- Compliance with State Grid specifications for electrical equipment digital testing instruments with optional Bluetooth communication
