Handheld Portable Parameter Measuring Instrument Partial Discharge Tester IP55
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYPD |
| Minimum Order Quantity | 1 |
| Price | 6000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Voltage | 220 V |
|---|---|---|---|
| Warranty | 2 Years | Power | ≤1000W |
| Place Of Origin | Hubei, China | Accuracy | ±0.1% ~ ±0.5% FS |
| Customized Support | OBM, ODM, OEM | Protection Class | IP55 |
| Application | Electrical Testing | Accuracy Class | High Accuracy |
| Sensitivity | ≤50pC | Diaplay | 4.0 Inch RGB LCD Display Resolution: 800 X 480 |
| Detection Frequency | 1~30MHz | Battery | 3.7V/5000mAh Lithium Battery |
| Working Time | About 6 Hours | Charger | AC 90-264V Or DC 5V |
| Highlight | Portable partial discharge tester,Handheld partial discharge tester,IP55 pd test equipment |
||
Product Description
Handheld Portable Parameter Measuring Instrument Partial Discharge Tester
Product Overview
This partial discharge detector continuously monitors PD activity in high-voltage equipment, enabling early detection of insulation defects before they lead to catastrophic failure in transformers, switchgear, cables, and rotating machinery.
Key Features
- Real-Time Partial Discharge Monitoring: Continuous monitoring of PD activity for early insulation defect detection
- Multi-Channel Simultaneous Measurement: Multiple independent channels for concurrent PD measurement across different phases
- Advanced Pulse Discrimination Technology: Sophisticated noise gating and pulse discrimination algorithms for accurate signal separation
- Wide Frequency Range Selection: Adjustable measurement bandwidth from narrowband to ultra-wideband configurations
Technical Specifications
| Parameter | Specification |
|---|---|
| Shell Material | ABS |
| Screen | 4.3 inch RGB LCD screen, resolution 800*480 |
| Sampling Accuracy | 12bit |
| Synchronization Mode | Internal synchronization |

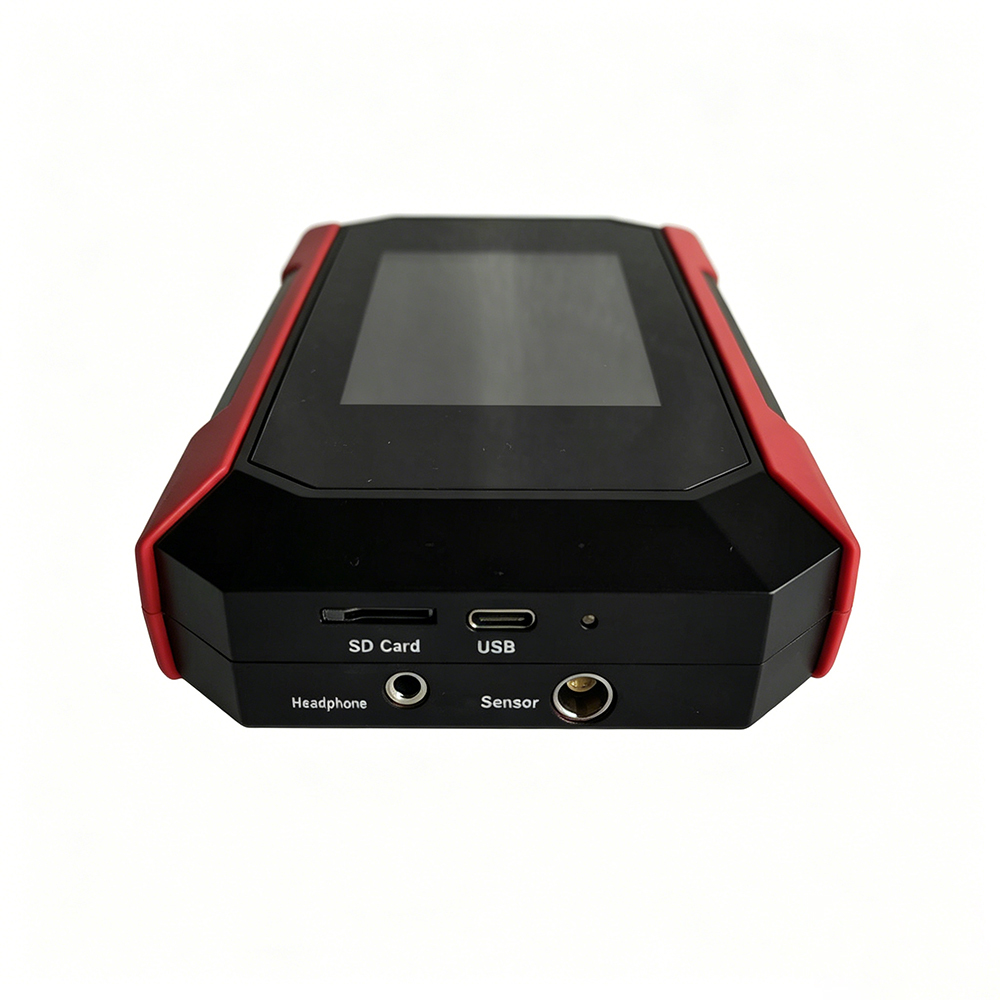

| Connectors | USB interface (also charger input), 3.5mm stereo headphone jack, External sensor input interface |
| Earphone | 8 Ω minimum |
| SD Card | Standard configuration 16G ~ 64G |
| Built-in Battery | 3.7V/10000mAh lithium battery |
| Operating Hours | Approximately 12 hours |
| Charger | DC 5V/3A |
| Operating Temperature | -20 ~ 50℃ |
| Humidity | 20-85% relative humidity |
| Volume and Weight | 210*100*35(mm) 0.4KG (host) |

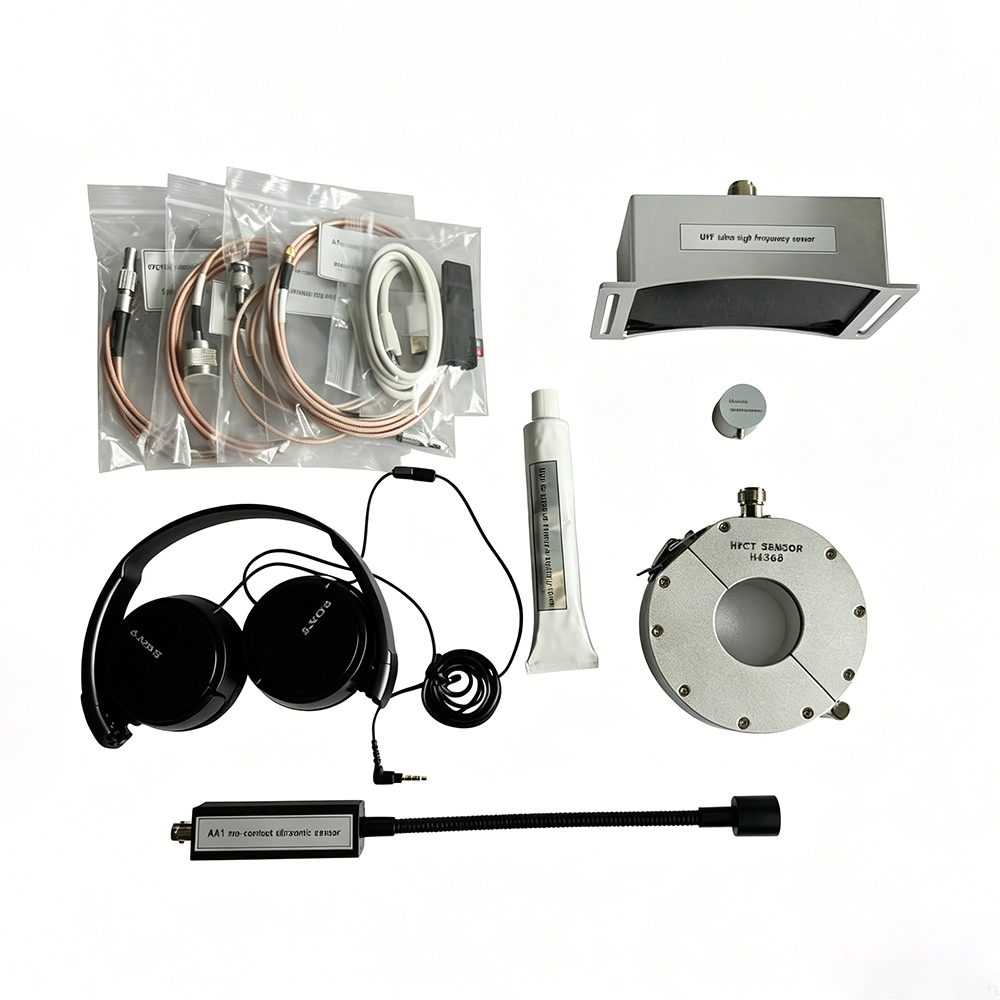

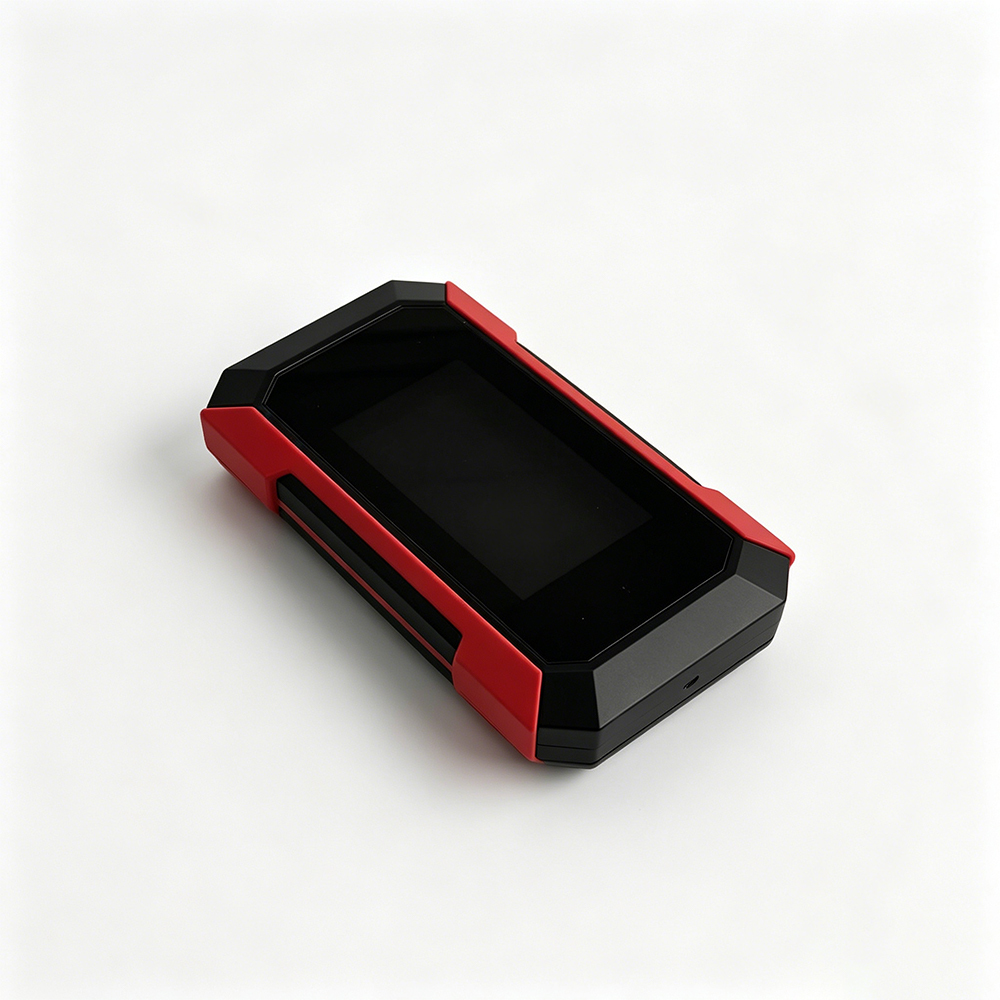

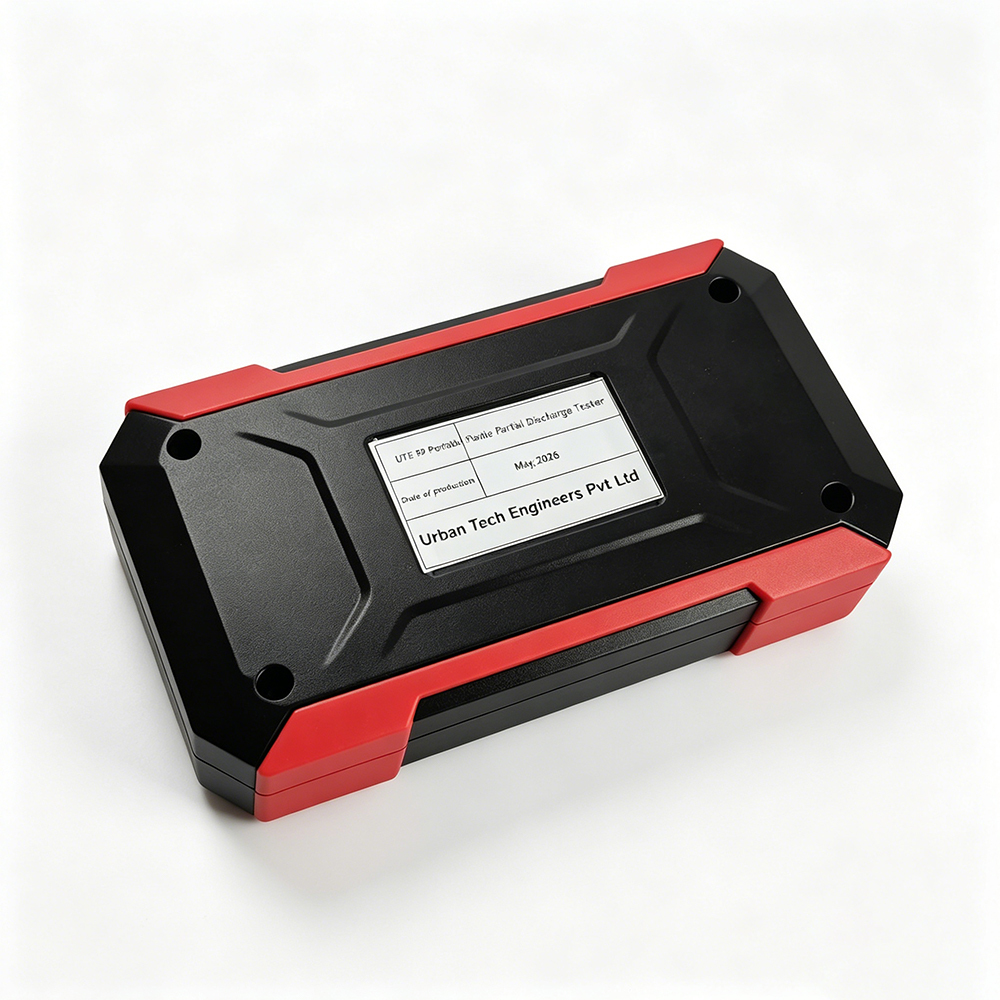

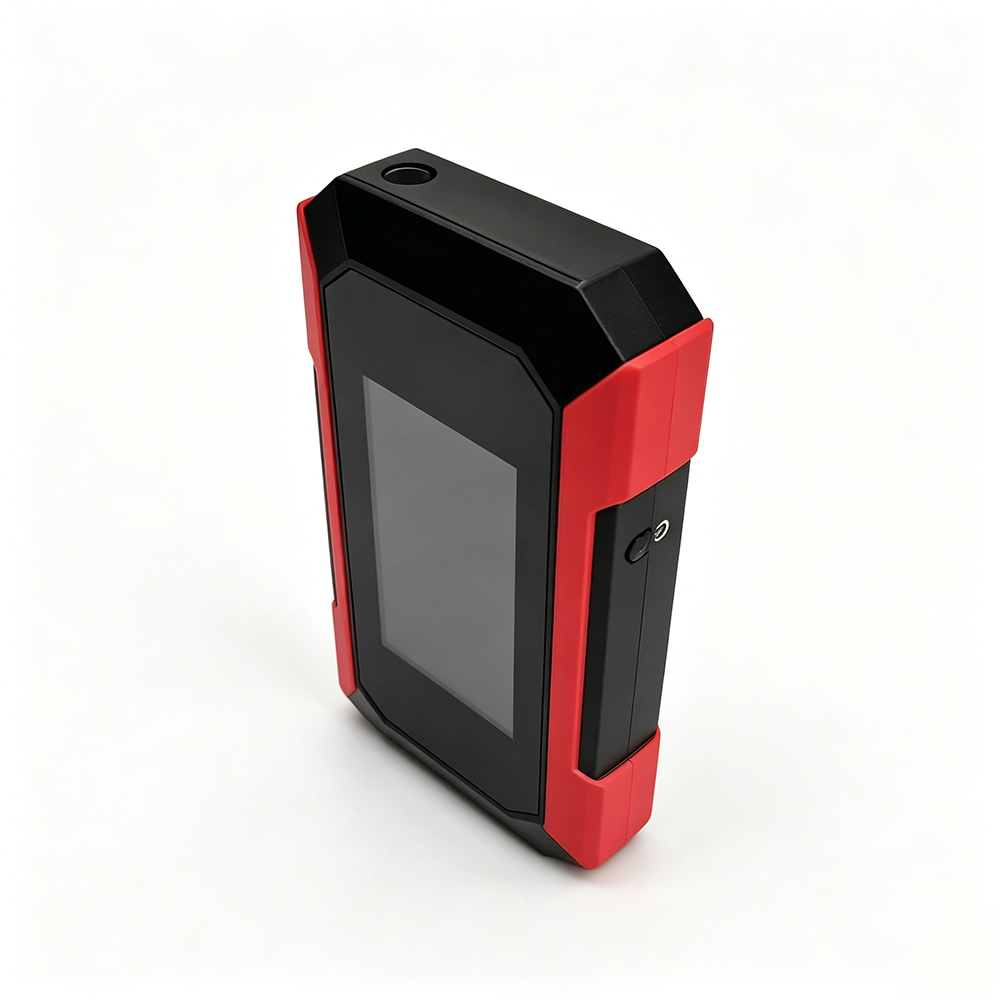

Product Images
