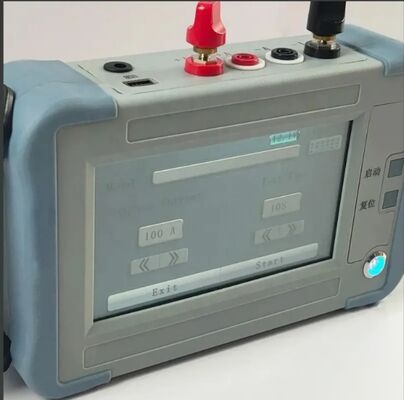

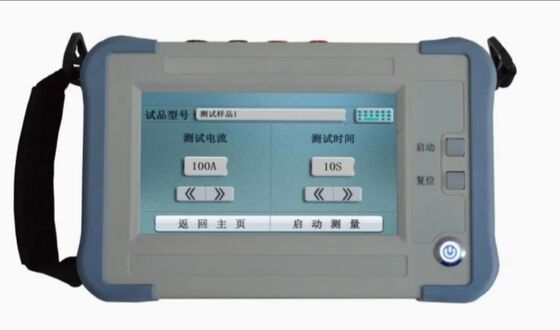

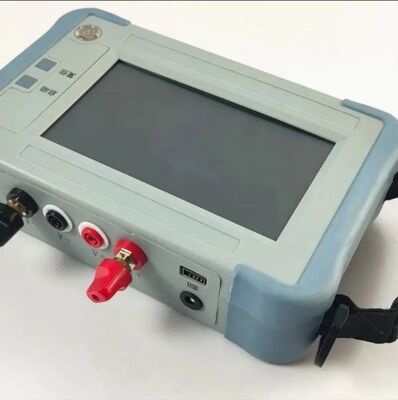

High Precision Handheld LC Measuring Instrument for Power Capacitor Compensation Cabinet Test
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MYSZ |
| Minimum Order Quantity | 1 |
| Price | 2500usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 1000pcs/month |
Product Details
| Type | Testing Machine | Accuracy Class | High Accuracy |
|---|---|---|---|
| Protection Class | IP65 | Customized Support | OEM |
| Accuracy | ±1% | Application | Zinc Oxide Arrester Tester |
| Voltage | 220 V, 110 V | Warranty | 2 Years |
| Power | Electric | Place Of Origin | Hebei, China |
| Highlight | Handheld LC measuring instrument,Power capacitor compensation tester,Surge arrester LC test tool |
||
Product Description
High Precision Handheld LC Measuring Instrument for Power Capacitor Compensation Cabinet Test
Professional handheld tester designed for capacitor compensation devices with comprehensive measurement capabilities and 2-year warranty protection.
Product Description
Capacitance and Inductance Tester is used to measure the capacitance of capacitive equipment such as reactive compensation and the inductance of other inductive equipment, especially the measurement of capacitor capacity, which is extremely important for discovering whether the capacitor is damaged and avoiding accidents. It has two types of single-phase measurement and three-phase measurement.
Electrical Parameters
| Measurement Item | Test Range | Test Accuracy |
|---|---|---|
| Full Current | 0-20mA | ±(reading*5%+5uA) |
| Resistive Current | 0-20mA | ±(reading*5%+5uA) |
| Capacitive Current | 0-20mA | ±(reading*5%+5uA) |
| Current Harmonics | 0-20mA | ±(reading*10%+10uA) |
| Reference Voltage | Maximum 250V RMS | ±(reading*5%+0.5V) |
| Voltage Harmonics | Maximum 250V RMS | ±(reading*10%) |
B
asic Info.
Model NO.
MYSZ
Maxcapacity
>1000KN
Accuracy Grade
0.1
Load Way
Electronic Load
Display
Digital
Control
Computer Control
Weight
0-100Kg
Power Source
AC220V
Test Voltage
AC 100V/40V/8V/2V ±10%, 50Hz
Ambient Temperature
0℃-40℃
Ambient Humidity
≤85%Rh
Working Power
AC220V±10%
Power Frequency
(50±1)Hz
Transport Package
Wooden Box with Foam Inside
Specification
252*160*65mm
Trademark
MINGYANG
Origin
Hebei, China
HS Code
9030891000
Key Features
- Seven-inch high-brightness touch color LCD with clear display under strong light conditions
- Full touch screen operation with Chinese and English language support
- High-precision sampling and advanced Fourier harmonic analysis technology for reliable data
- Harmonic content testing function with single-phase or three-phase measurement capability
- Resistive current fundamental wave peak output function
- Built-in large-capacity memory storing up to 200 measurement records with cyclic update mode
- USB interface for external storage of test records
- Safety-protected voltage test lines with anti-misconnection features
- Built-in wireless module for wireless voltage collection and measurement
- High-precision real-time clock with date and time calibration
- External printer connectivity for measurement data printing (optional)
- Large-capacity lithium battery providing up to 6 hours of continuous operation
Environmental & Physical Specifications
Working Temperature: -10℃ to 40℃
Ambient Humidity: ≤85% without condensation
Storage Temperature: -20℃ to 50℃
Dimensions: Host 360*290*170(mm), Box 425*335*210(mm)
Weight: Host 1.6KG, Box 8KG
Test Line Length: Standard 10 meters (customizable)
