MY-103 Single Cup Button Type 80kV Automatic Transformer Insulating Oil BDV Tester
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-103 |
| Minimum Order Quantity | 1 |
| Price | 1300USD |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 100/Month |
Product Details
| Application | Electrical Power Industry / Transformer Insulating Oil Test | Certification | RoHS, FCC, CE, ISO9001 |
|---|---|---|---|
| Type | Electric Portable Type | Display | LCD LED Screen |
| Display Mode | LCD Digital Display | Working Power Supply | AC 220V ±10%, 50Hz ±5% |
| Booster Capacity | 1.5 KVA | Accuracy | 2% |
| Resolution | 0.1kV | Overall Dimension | 730×410×390 Mm / 430×350×370 Mm |
| Net Weight | 36 Kg | HS Code | 9030332000 |
| Customized Support | OEM, ODM, Obm, Software Reengineering | Output Voltage Range | AC 0~80kV |
| Boost Speed | 0.5kV/s ~ 5.0kV/s | Power Distortion Rate | ＜1% |
| Standard Electrode Gap | 2.5 Mm | Quiet Time | 900s |
| Interval Rest Time | 300s | Mixing Time | 15s |
Product Description

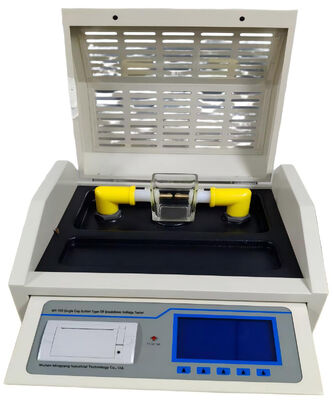

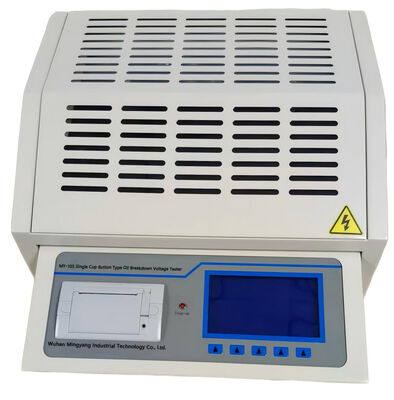

MY-103 Single Cup Button Type 80kV Automatic Transformer Insulating Oil BDV Tester
Product Description
Portable Insulating Oil Breakdown Voltage Bdv Tester is mainly used for measure breakdown voltage of insulation oil accurately. It's preprogrammed with worldwide acceptable standards, with colorful large LCD display, available to store test result and built in thermal printer for on-site report.
Basic Info.
Model NO.
MY-103
Display
LED
Appliance
electric
Portable
Portable
Certification
RoHS, FCC, CE, ISO9001
Type
electric
Measurement Range
AC 0-80kv (0-40kv)C
Display Mode
LCD
Error
± (1% Rd + 1kv) (Rd Is The Reading Value)
Working Power Supply
AC 220V ± 10%, 50Hz ± 5%
Power
Electric
Customized Support
OEM, ODM, Obm, Software Reengineering
booster capacity
1.5 kVA
boost speed
2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s
Accuracy
2%
resolution
0.1kV
Transport Package
Carton or Wooden Case
Specification
730×410×390(mm)
Trademark
MINGYANG
Origin
Hubei, China
HS Code
9030332000
Production Capacity
100
Product Parameters

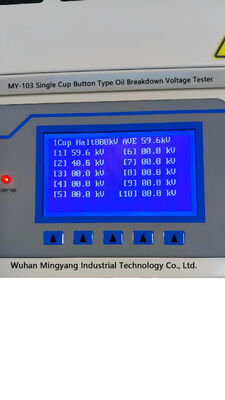

| Technical indicators | |
| Booster capacity | 1.5kVA |
| Boost speed | 0.5kV/s-5.0kV/s (every 0.5 increments), ten levels can be selected, with an error of 0.2kV/s |
| Output voltage | 0-80 kV,0-100kV (optional) |
| Voltage accuracy | (2% reading+2 words) |
| Power distortion rate | < 1% |
| Electrode gap | standard 2.5 mm |
| Test frequency | 6 times (1-10 times optional) |
| Quiet time | 900S (0-5900 S optional) |
| Interval rest time | 300S (0-5900S optional) |
| Mixing time | 15S (0-250S optional) |
| Display method | Large screen LCD Chinese character display |
| Communication interface | Standard 232 communication interface |
| Overall dimensions | 430 mm long; 350 mm wide; 370 mm high |
| Instrument weight | 36 kg |
| Usage conditions | |
| Environmental temperature | 0-40 ºC |
| Relative humidity | ≤ 85% |
| Working power supply | AC 220V ± 20% |
| Power frequency | 50 Hz ± 5 Hz |
| Power consumption | < 200 W |
Instrument characteristics
1. The instrument is controlled by a large capacity microcontroller, ensuring stable and reliable operation;
2. The instrument is equipped with a wide range watchdog circuit to prevent crashes;
3. Multiple operation options, the instrument program has two national standard methods, GB507-1986 and GB507-2002, industry standard DL/429, international standard IEC156, and custom operations, which can adapt to various choices of different users;

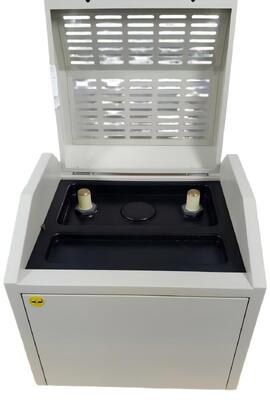

4. The instrument oil cup is cast with special glass in one go to prevent interference such as oil leakage;
5. The high-voltage sampling design of the instrument allows the test values to directly enter the A/D converter, avoiding errors caused in analog circuits and making the measurement results more accurate;
6. The instrument has the functions of overcurrent, overvoltage, short circuit and other protection, and has anti-interference capability and good Electromagnetic compatibility;
7. Portable structure, easy to move, and convenient for both indoor and outdoor use.
1. The instrument is controlled by a large capacity microcontroller, ensuring stable and reliable operation;
2. The instrument is equipped with a wide range watchdog circuit to prevent crashes;
3. Multiple operation options, the instrument program has two national standard methods, GB507-1986 and GB507-2002, industry standard DL/429, international standard IEC156, and custom operations, which can adapt to various choices of different users;
4. The instrument oil cup is cast with special glass in one go to prevent interference such as oil leakage;
5. The high-voltage sampling design of the instrument allows the test values to directly enter the A/D converter, avoiding errors caused in analog circuits and making the measurement results more accurate;
6. The instrument has the functions of overcurrent, overvoltage, short circuit and other protection, and has anti-interference capability and good Electromagnetic compatibility;
7. Portable structure, easy to move, and convenient for both indoor and outdoor use.
