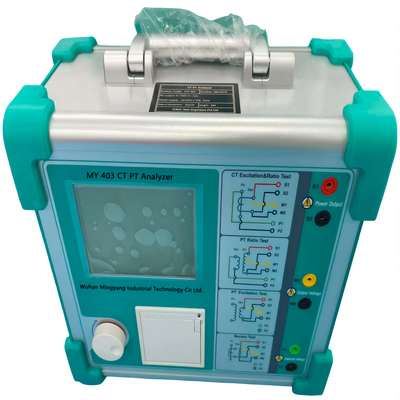

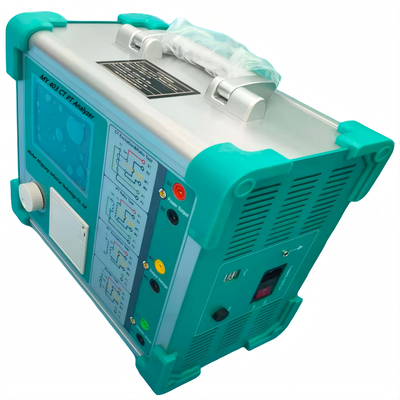

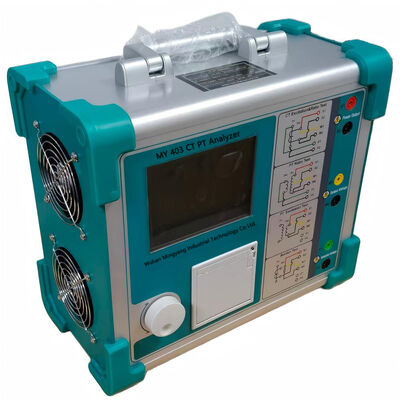

MY-403 CT PT Analyzer Portable Variable Frequency Transformer Tester CT/PT Comprehensive Test Equipment
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-403 |
| Minimum Order Quantity | 1 |
| Price | 1800usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Supply Ability | 500/Month |
Product Details
| Types | Automatic | Brand | MINGYANG |
|---|---|---|---|
| Accuracy Grade | ±0.2% | Loading Method | Dynamic Electronic Load |
| Control Mode | Manual Control | Display Type | Digital LCD Display |
| Power Supply | AC220V±10%,50Hz | CT Ratio Test Range | 1 ~ 30000 |
| PT Ratio Test Range | 1 ~ 10000 | Phase Measurement Accuracy | ±5min, Resolution:0.5min |
| Secondary Winding Resistance Range | 0~300Ω | Max Output Voltage | 0~180Vrms |
| Max Output Current | 12Arms, Peak 36A | Data Storage Capacity | Store 2000 Groups Of Test Data |
| Language Interface | Chinese & English Graphical Interface | Weight | ＜9kg |
| Transport Package | Wooden Case With Foam Inside | Origin | Hubei, China(Mainland) |
| HS Code | 9030390000 | Monthly Production Capacity | 500sets |
Product Description
MY-403 CT PT Analyzer Portable Variable Frequency Transformer Tester CT/PT Comprehensive Test Equipment
Product Description
The tester is a new generation of current and voltage transformer testing instruments developed by our factory, it is produced after widely listening to users' opinions and a large number of market research and in-depth theoretical research. The device is manufactured by process of high performance DSP and ARM, it has the advantage of advanced design, stable and reliable product performance, complete functions, high automation and good testing efficiency, it is used for professional testing instrument transformer in electric power industry.
Basic Info.
Model NO.
MY-403
Type
CT/PT Analyzer
Accuracy Grade
0.2%
Load Way
Electronic Load
Loading Method
Dynamic Load
Display
Digital
Control
Manual Control
Weight
<9kg
Power Source
AC220V

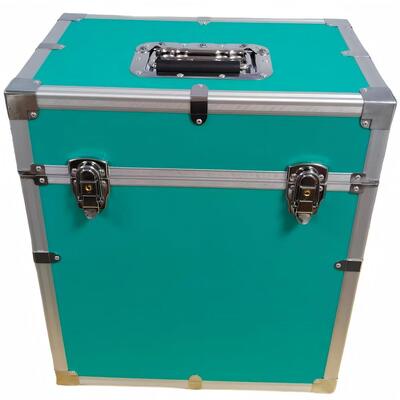

Transport Package
Wooden Box with Foam Insde
Trademark
MINGYANG
Origin
Hubei, China(Mainland)
HS Code
9030390000
Production Capacity
500sets/Month
Main technical features
Very comprehensive functions, it can meet the various types of CT (such as: protection, measurement and TP) excitation characteristic (Volt ampere characteristic) such as Ratio, polarity, winding resistance, secondary load,ratio difference and angle difference testing, and it can be used for various electromagnetic excitation properties, PT ratio,polarity,winding resistance,ratio difference and angle difference testing etc..
Automatically gives the knee point voltage / current, 10% (5%) error curve, accuracy limit factor (ALF), meter's safety coefficient (FS), secondary time constant (Ts) and remanence coefficient (Kr), CT/PT saturated and unsaturated inductance parameters.

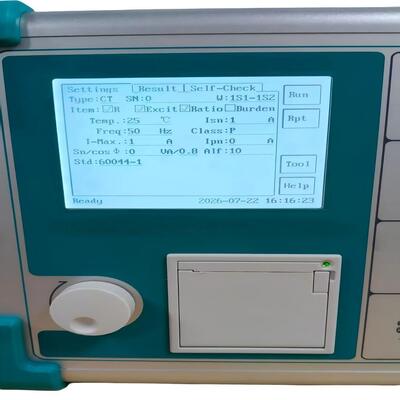

To meet the standards of GB1208(IEC60044-1), GB16847 (IEC60044-6),GB1207 and other types of transformer standard, and it is in accordance with the transformer type and level automatic choice of the standard test.This principle based on advanced low frequency testing, it can test CT kenn point up to 45KV. Very friendly and beautiful interface, full Chinese/English graphical interface.
6.This device can save 2000 groups of datas,never power failure. After testing, U disk is stored in PC, and data analysis can be used by the software and WORD report is generated.

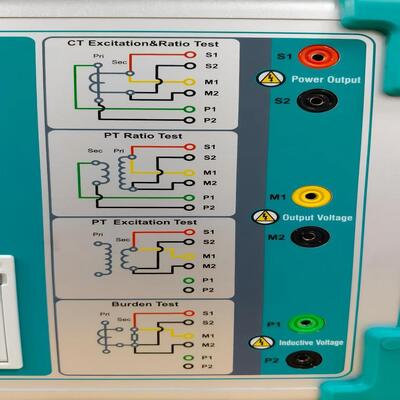

7.Easy to test, a key to complete measuring CT resistance, excitation, ratio and polarity, except for load test, other CT test items are same connection mode.
8. It is easy to carry, weight < 9Kg.
Very comprehensive functions, it can meet the various types of CT (such as: protection, measurement and TP) excitation characteristic (Volt ampere characteristic) such as Ratio, polarity, winding resistance, secondary load,ratio difference and angle difference testing, and it can be used for various electromagnetic excitation properties, PT ratio,polarity,winding resistance,ratio difference and angle difference testing etc..
Automatically gives the knee point voltage / current, 10% (5%) error curve, accuracy limit factor (ALF), meter's safety coefficient (FS), secondary time constant (Ts) and remanence coefficient (Kr), CT/PT saturated and unsaturated inductance parameters.
To meet the standards of GB1208(IEC60044-1), GB16847 (IEC60044-6),GB1207 and other types of transformer standard, and it is in accordance with the transformer type and level automatic choice of the standard test.This principle based on advanced low frequency testing, it can test CT kenn point up to 45KV. Very friendly and beautiful interface, full Chinese/English graphical interface.
6.This device can save 2000 groups of datas,never power failure. After testing, U disk is stored in PC, and data analysis can be used by the software and WORD report is generated.
7.Easy to test, a key to complete measuring CT resistance, excitation, ratio and polarity, except for load test, other CT test items are same connection mode.
8. It is easy to carry, weight < 9Kg.
Technical parameter
| Variable Frequency CT/PT Tester | ||
| Application | CT and PT proteciton | |
| Output | 0~180Vrms,12Arms,36A(Peak) | |
| Voltage Measuring Accuracy | ±0.2% | |
| CT Ratio | Range | 1~30000 |
| Accuracy | ±0.2% | |
| PT Ratio | Range | 1~10000 |
| Accuracy | ±0.2% | |
| Phase | Accuracy | ±5min |
| Resolution | 0.5min | |
| Seconday winding resistance |
Range | 0~300Ω |
| Accuracy | 2%±2mΩ | |
| AC load measurement | Range | 0~300VA |
| Accuracy | 2%±0.2VA | |

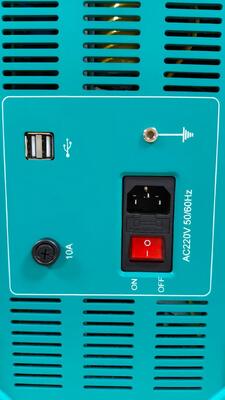

| Power supply | AC220V±10%,50Hz | |
| Envirement | Temperature:-10οC~50οC, Humidity:≤90% | |
| Size/weight | Size 33cm x 29.4cm x 18cm Weight <9kg | |
