MY-106 Automatic XRF Oil Sulfur Content Analyzer Compliant with ASTM D4294
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-106 |
| Minimum Order Quantity | 1 |
| Price | 4000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 100/Month |
Product Details
| Types | Automatic | Brand | MINGYANG |
|---|---|---|---|
| Origin | Hubei, China | HS Code | 9026080900 |
| Standard | ASTM D4294、GB/T 17040、GB 11140 | Monthly Output | 100 Sets |
| Sulfur Measuring Range | 7ppm ~ 5% | Sample Volume | 2~3ml (equivalent To Sample Depth 3mm~4mm) |
| Repeatability | R＜0.02894 (X+0.1691) | Reproducibility | R＜0.01215 (X+0.0555) |
| Calibration Curve Storage | 10 Groups | Power Supply | AC220V±20V 50Hz |
| Rated Power | 30W | Humidity | ≤85% (30ºC) |
| Overall Size | 430mm×250mm×240mm | Net Weight | 10kg |
Product Description

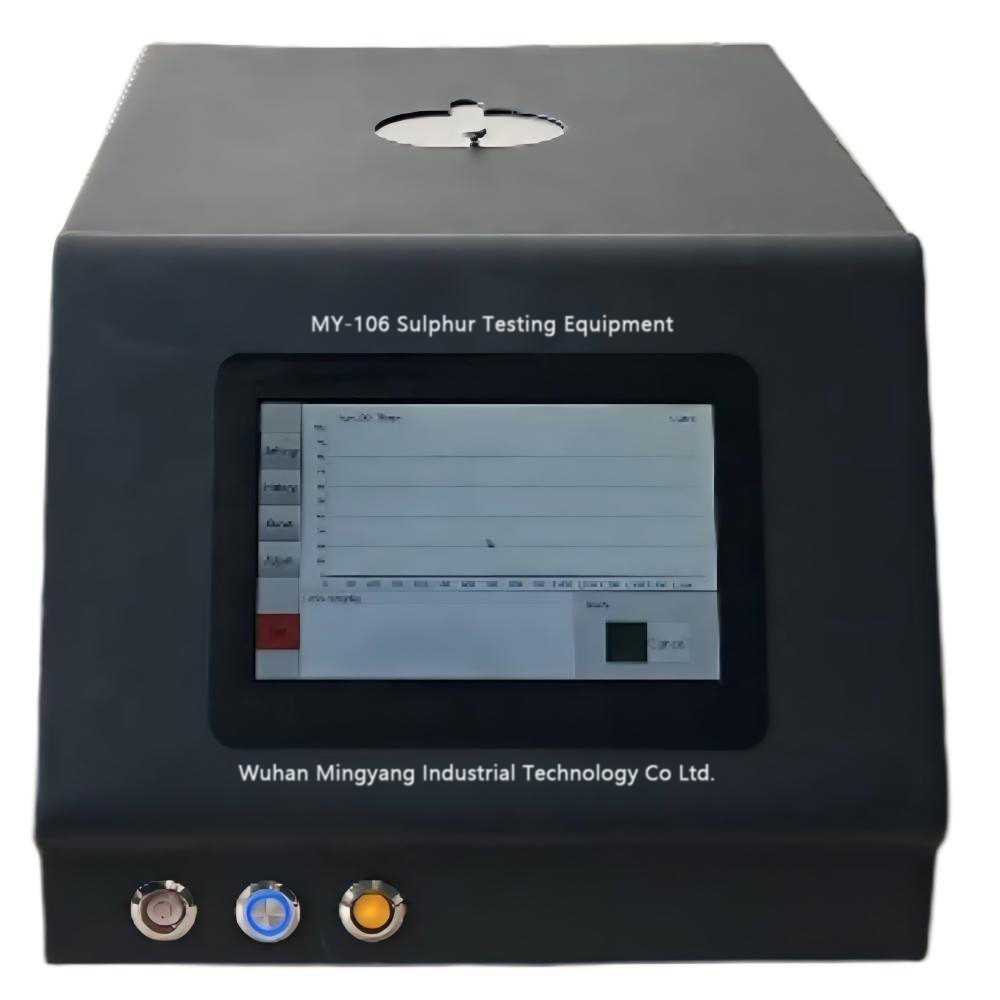

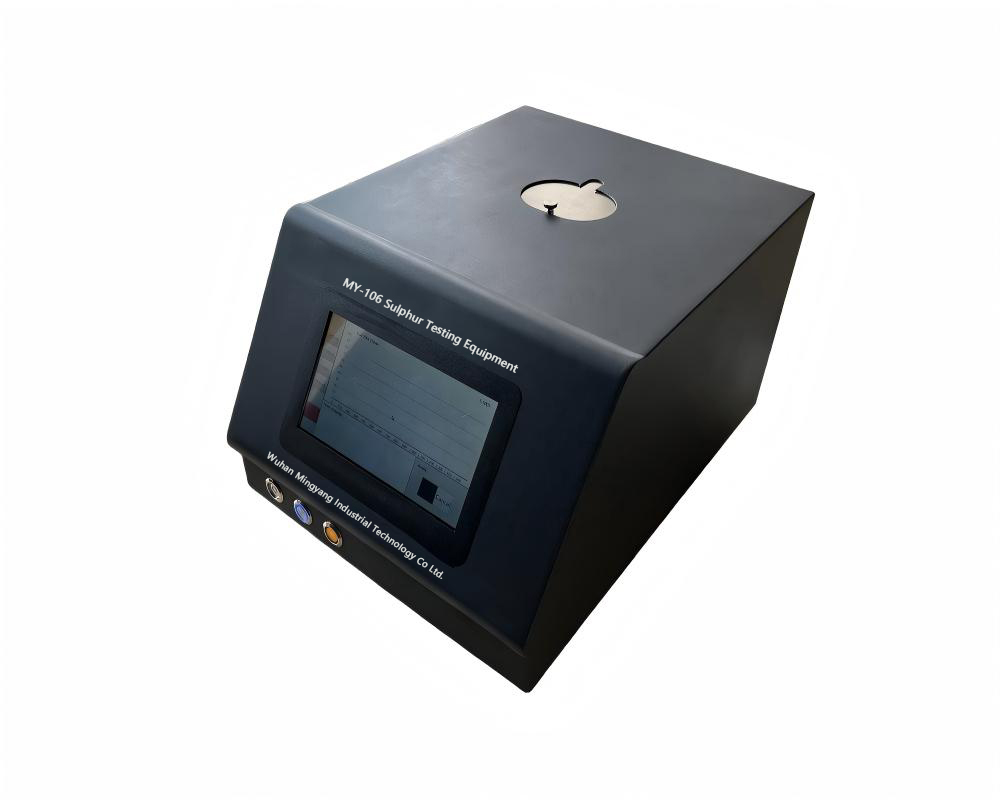

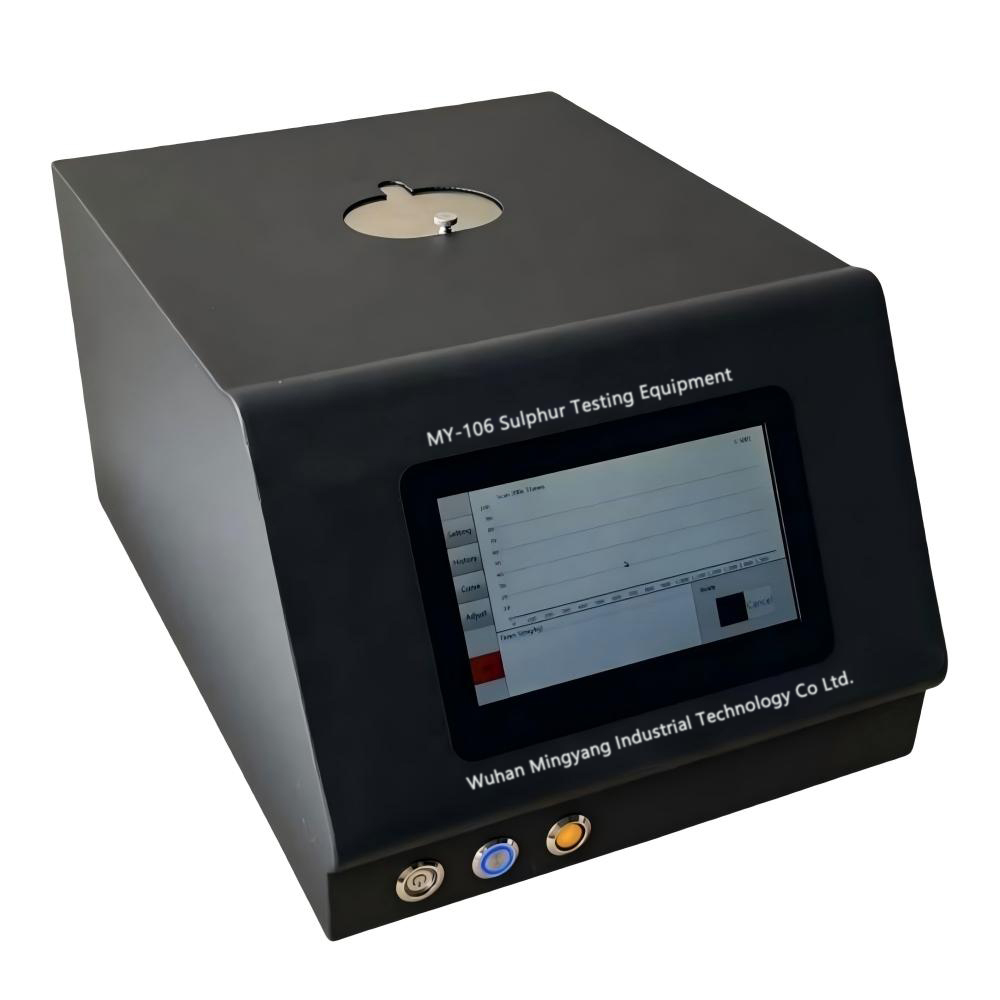

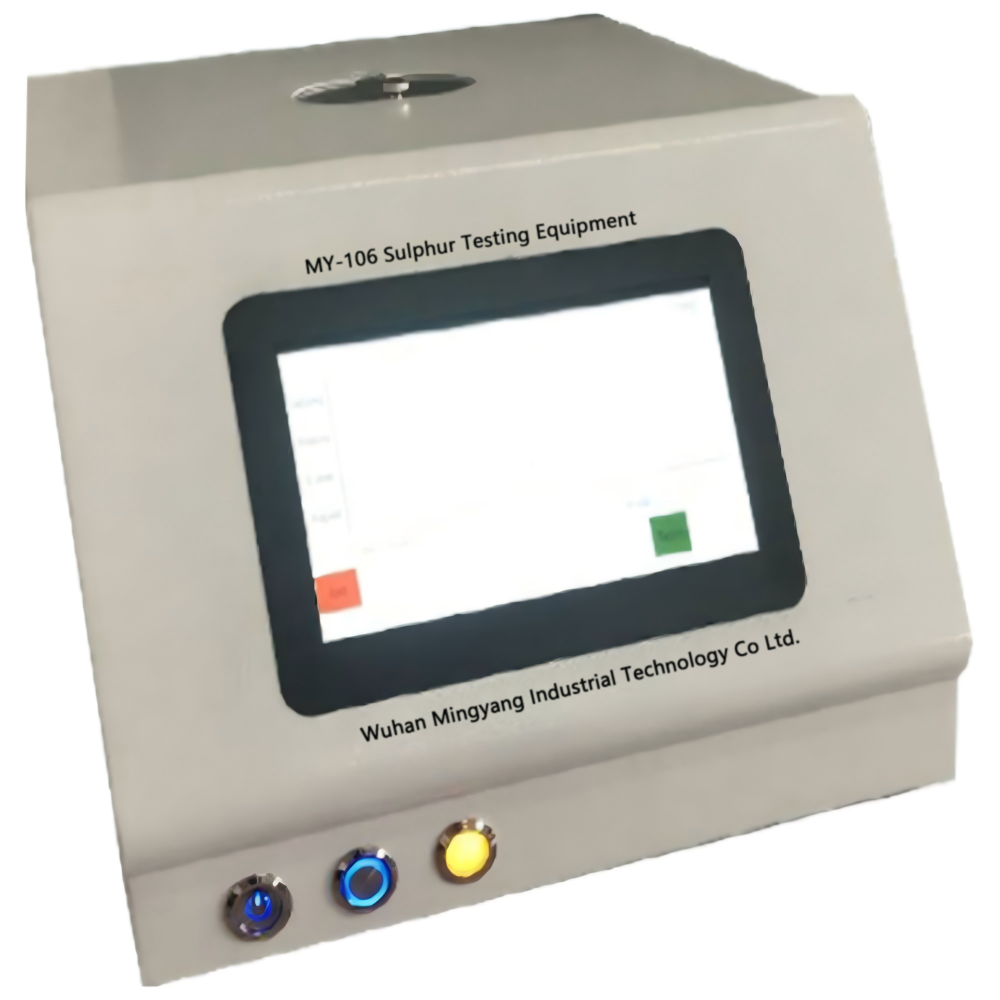

MY-106 Automatic XRF Oil Sulfur Content Analyzer Compliant with ASTM D4294
Product Description
X fluorescence oil sulfur analyzer is a special X fluorescence analyzer developed and manufactured to meet the needs of sulfur content detection in oil products. It adopts the principle of energy dispersion, a microcomputerized design of electromechanical integration, and the analysis is fast and accurate. Its repeatability and reproducibility are in line with the relevant requirements of the national standards GB/T 17040 and GB 11140, and it also fully meets the requirements of the more stringent American National Standard D 4294-03, which is the sulfur content in the crude oil or petrochemical production process. Detection provides an important means. The instrument itself is green and environmentally friendly, and its price is only a fraction of that of imported instruments.
Basic Info.
Model NO.
MY-106
Applicable Standards
ASTM D4294
Sample Size
2~3ml (Equivalent to Sample Depth 3mm~4mm);
Measuring Range of Sulfur
7ppm~5%
Measuring Time
30, 60, 90, 120, 150 Seconds, Arbitrarily Set
Transport Package
Standard Export Wooden Case
Trademark
MINGYANG
Origin
Hubei, China
HS Code
9026809000
Production Capacity
100/Month
Performance characteristics
1. The fluorescence intensity ratio analysis method is adopted to detect a wide variety of samples, with 12 standard samples, wide range, fast analysis speed, and low sample consumption.
2. Adopt electromechanical integrated microcomputer design, liquid crystal display, operation interface man-machine dialogue, automatic diagnosis function, judging the working status and electrical parameters of the instrument, automatic correction of temperature and air pressure, and the ratio of carbon to hydrogen (C/H) can also be corrected.
3. The disposable Mylar membrane sample cup is used to avoid cross-contamination.
4. The instrument has a standard serial communication RS-232C interface, which can realize communication with a computer.
5. Safe X-ray protection measures have been strictly tested by the Shanghai Institute of Preventive Medicine, and there will be no X-ray electric radiation damage to individuals and groups.
6. National exempt products.

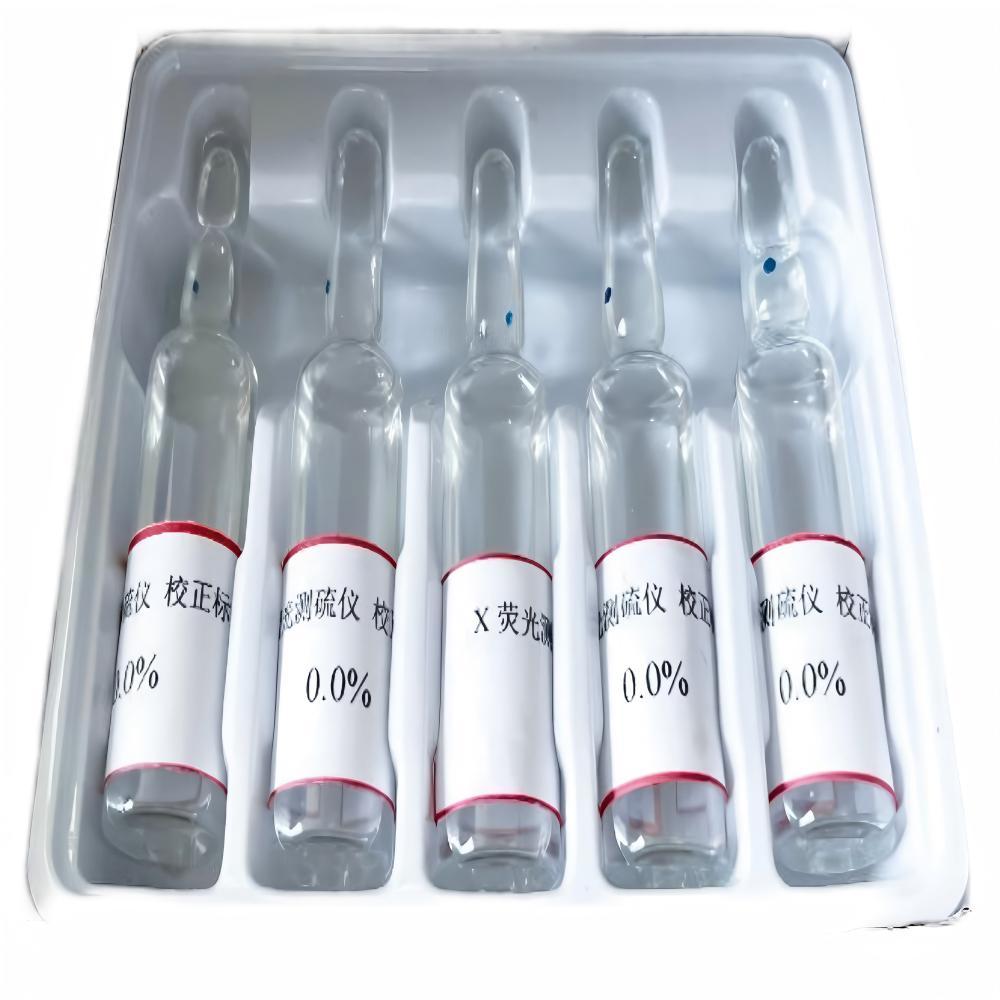

7. The biggest feature of this instrument is: the minimum test index is 7ppm, it is equipped with 12 calibration (calibration) samples, different curves are automatically selected according to different oil samples, and it is equipped with reliable airtight X-ray radiation protection measures.
Technical parameter
1. Measuring range of sulfur: 7ppm~5%;
2. Precision: a Repeatability (r): <0.02894 (X+0.1691); b Reproducibility (R): <0.01215 (X+0.05555);
3. Sample size: 2~3ml (equivalent to sample depth 3mm~4mm);
4. Measuring time: 30, 60, 90, 120, 150 seconds, arbitrarily set;
5.Single sample is automatically measured, the number of measurements: 1, 2, 3, 5, 10 times can be set arbitrarily, and the average value and standard deviation are given at the end of the measurement;
6. The instrument can store 10 calibration curves,
7. Working conditions: Temperature: 5~35ºC; Relative humidity: ≤85% (30ºC); Power supply: AC220V±20V, 50Hz; Rated power: 30W;
8. Dimensions and weight: 430mm×250mm×240mm; 10kg.
FAQ
What is the mini order quantity?
MOQ: generally 1 unit/piece/set
What payment methods are supported?
Payment method: By T/T, L/C, ****** Trade Assurance etc.
Payment terms: Generally, T/T 40% advanced, the balance paid by T/T when the machine is ready; or 100% irrevocable L/C at sight.
What are the available delivery methods?
Our port location: Chongqing, Shanghai or other main port of China
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation
How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 10 ~ 20 days; test equipment or analyzer delivery date is around 5~10 days. Some products have stock, contact us anytime to get more information.
How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 2 years after start up of the system.
How is the technical services on the product?
Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.
