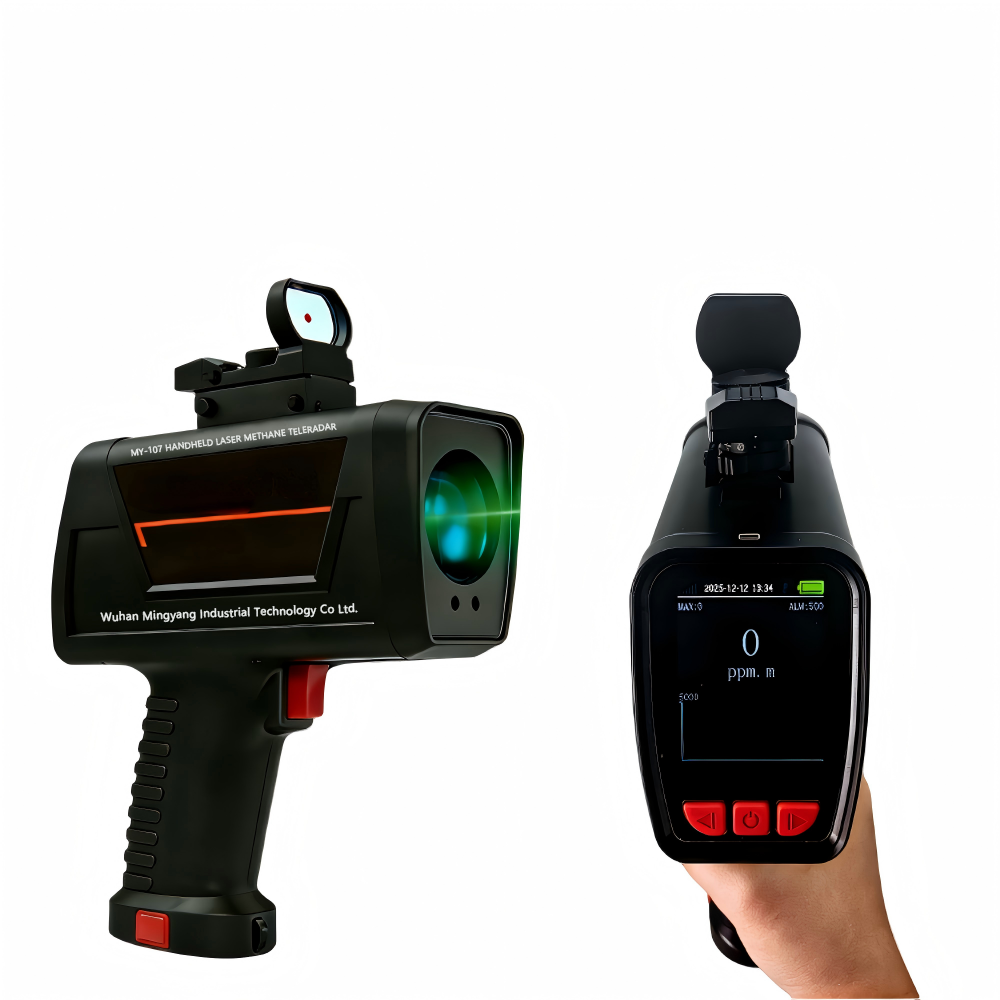

MY-107 Handheld Laser Methane Telemeter, 150m Long Distance CH4 Leak Detector
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-107 |
| Minimum Order Quantity | 1 |
| Price | 8000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 100/Month |
Product Details
| Types | Automatic | Brand | MINGYANG |
|---|---|---|---|
| Detection Gas | Methane (CH4) | Measurement Range | 0ppm·m ~100000 Ppm·m |
| Sensitivity | 2.5 Ppm·m | Response Time | 0.05s |
| Max Detection Distance | 200m | Protection Grade | IP66 |
| Explosion Proof Grade | Ex Ib IIA T4 Gb | Working Temperature | -20℃ ~ 50℃ |
| Battery Working Time | 12 Hours | Power Supply | 2 Replaceable Lithium Batteries |
| Dimension | 201mm76mm248mm | Weight | 0.75kg |
| Display | 2.3-inch High Brightness LCD | HS Code | 9026900000 |
Product Description
MY-107 Handheld Laser Methane Telemeter, 150m Long Distance CH4 Leak Detector
Product Description
Working principle:
The laser methane detection handheld device utilizes the interaction between laser beams and methane gas for measurement. It emits laser beams, and when the beams pass through the air containing methane gas, some of the light is absorbed or scattered by methane. By measuring the changes in the intensity of absorbed or scattered light, the concentration of methane gas can be estimated.
Portability:
Portability:
The laser methane detection handheld device is designed to be portable, allowing operators to move and use it in different locations. It usually consists of a handheld device with a compact structure that is easy to carry.
High accuracy and sensitivity:
High accuracy and sensitivity:
The device offers high accuracy and sensitivity, enabling precise measurement of methane gas concentrations. It can detect very low levels of methane concentration and provides reliable measurement results.
Real-time monitoring and data display:
Real-time monitoring and data display:
The laser methane detection handheld device can monitor methane gas concentrations in real-time and display the measurement results on its screen. Operators can instantly access measurement data to take necessary safety measures.
Alarm function:
Alarm function:
The device is typically equipped with an alarm function that produces sound or light signals when methane gas concentrations exceed the set safety threshold. This alerts operators to potential hazards.
Data recording and storage:
Data recording and storage:
Some laser methane detection handheld devices have data recording and storage capabilities, allowing for the recording of multiple measurement results. This facilitates subsequent analysis and report generation.
Basic Info.
Model NO.
MY-107
After-sales Service
3 Years
Warranty
2 Years
Style
Portable
Alarm Form
Display Alarm
Certification
CE, ISO, RoHS
Application
Gas Station
Concentration Measurement Range
0~5% Vol(0~50,000ppm-M)
Detection Distance
30m
Accuracy
±10%@100ppm-M(2m)
Working Time
≥10 Hours
Working Temperature
-30~70℃
Weight
380g
Size
158*77*37mm
Protection Class
IP56
Trademark
MINGYANG
Transport Package
Carton Package
Origin
Hubei, China
HS Code
9026900000
Product Parameters
| Model | MY-107 |
| Measurement Range | 0ppm·m ~100000 ppm·m |
| Sensitivity | 2.5 ppm·m |
| Response Time | 0.05s |
| Detection Distance | 200m |
| Detector Laser | Class I |
| Spotter Laser | Class III R |

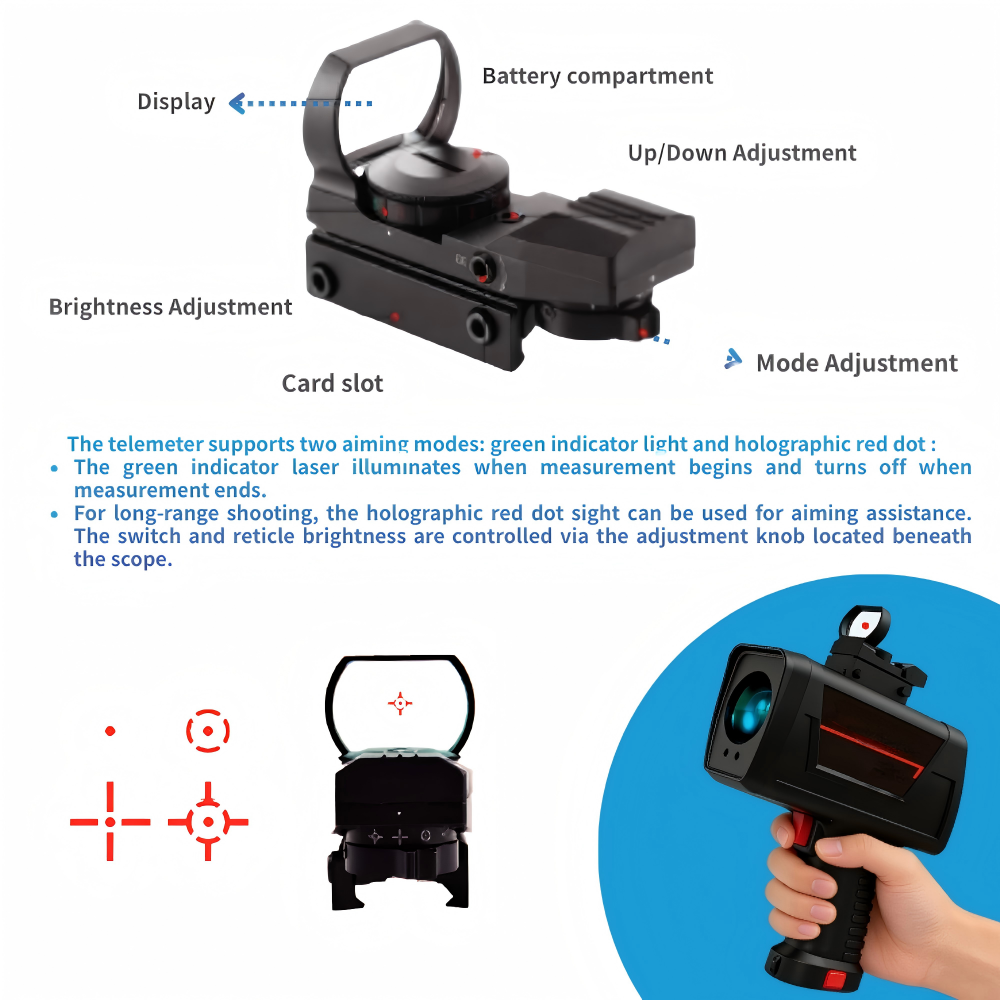

| Aiming Method | Green spotter laser and optical sight (internal power supply, no need to replace the battery) |
| Ingress Protection | IP66 |
| Explosion Proof Classification | Exib II A T4 Gb |
| Operating Temperature | -20ºC ~ 50ºC |
| Battery Operating Life | 12 hours |
| Power | 2 Replaceable Lithium Battery |
| Size | 201mm*76mm*248mm |
| Instrument Weight | 0.75kg |

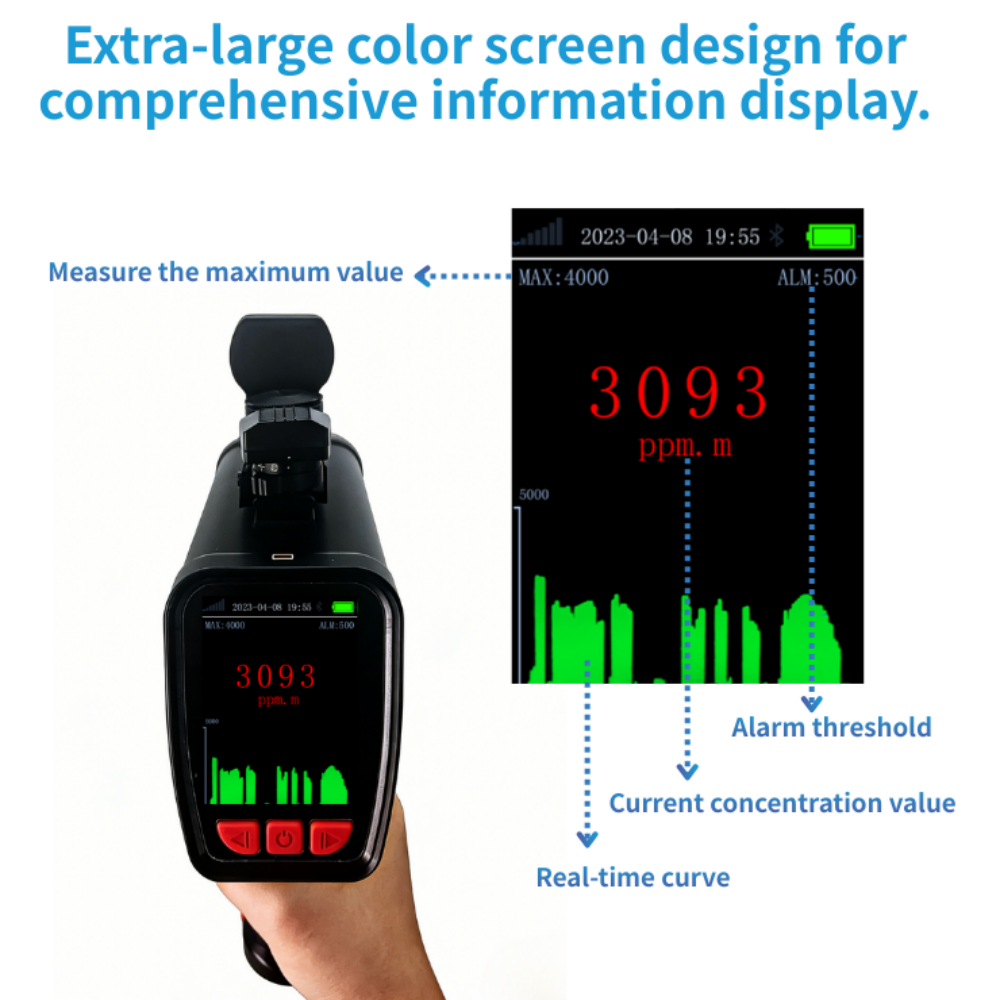

| Display Screen | 2.3-inch high brightness LCD |
| Inspection Software | IOS and Android, PC client end |
| Ranging Measurement | With range finder to measure as far as 100m |
Features
1. 200 meters detection distance, and can detect indoor natural gas leakage in 30-story buildings through window glass, reducing the safety hazards caused by gas leakage
2. 0.05s response time, which greatly improves the inspection efficiency
3. 2.5 ppm·m sensitivity - tiny leaks can be detected
4. Equipped with a range finder, it can display the distance of the leakage point in real time, which is convenient for the deduction of methane concentration in the air and the elimination of false alarms.

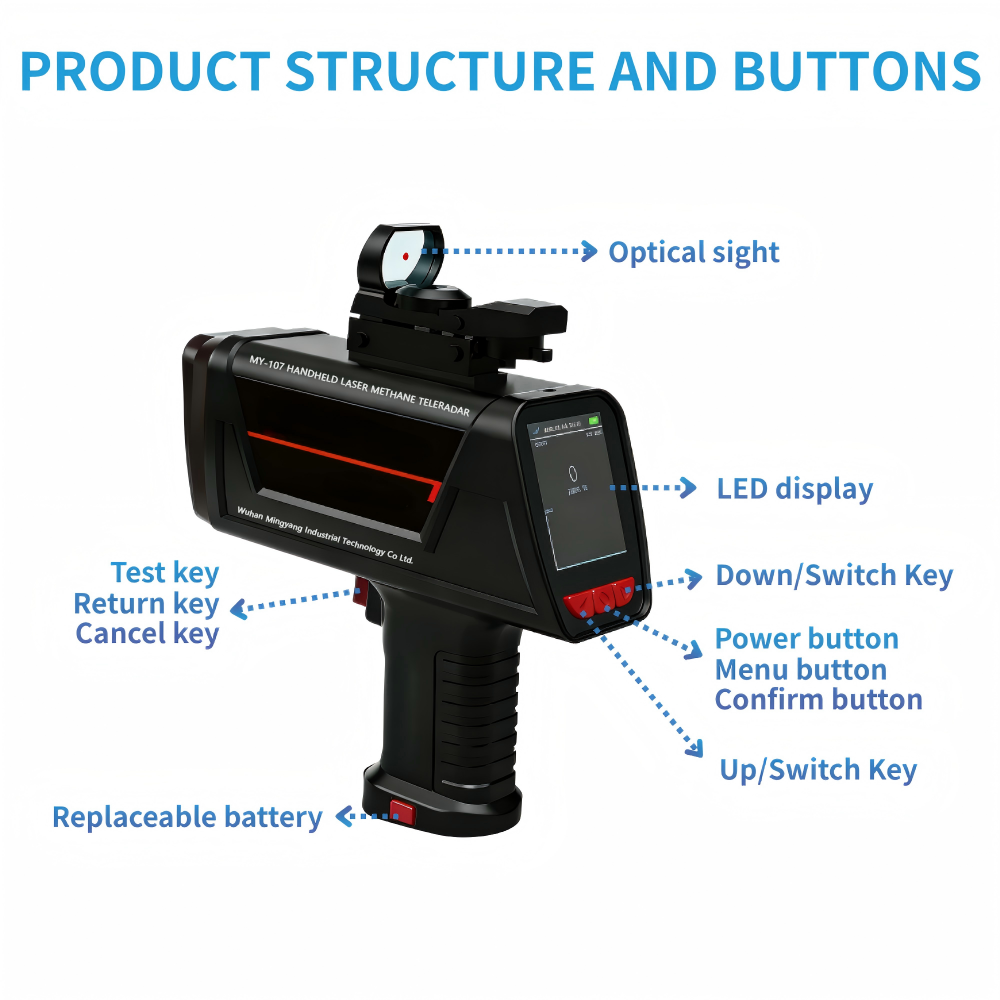

5. The product is equipped with an optical sight which is powered by the host of the device, no need to replace the battery, and the detection point can be accurately found under the sun.
6. The product is equipped with two rechargeable lithium batteries, long time running time.
Detection Principle
Advanced technology: TDLAS (Tunable Diode Laser Absorption Spectroscopy) 1. The laser emitted by gas detector passes through the air mass of natural gas 2. Methane gas absorbs part of this laser light 3. The remaining laser is received by the detector through diffuse reflection 4. Data collection and processing by our equipment to obtain concentration information of methane gas leakage
