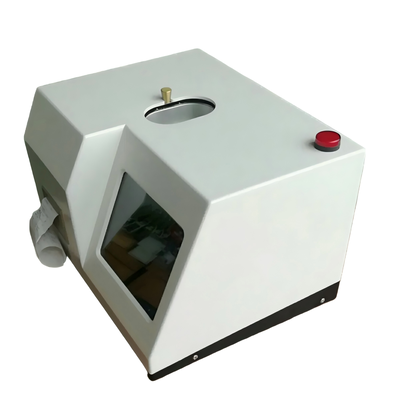

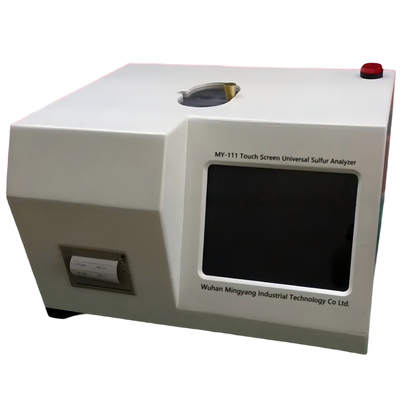

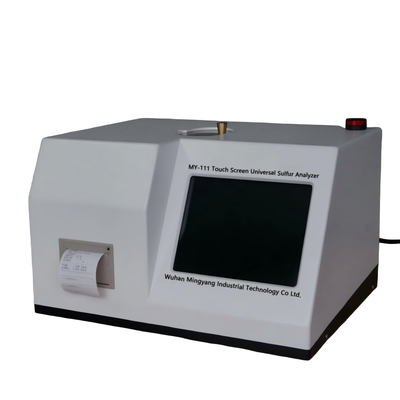

MY-112 Total Sulfur Analyzer Diesel Fuel Oil Sulfur Content Testing Equipment for Laboratory
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-112 |
| Minimum Order Quantity | 1 |
| Price | 7800usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 100/Month |
Product Details
| Standard | ASTM D4294, ISO 8754 | Origin | Hubei, China |
|---|---|---|---|
| TradeMark | MINGYANG | Production Capacity | 100 Sets/Month |
| HS Code | 9031809090 | Transport Package | Wooden Case Or Customized |
| Weight | 12 Kg | Output | Average & Standard Deviation Auto Calculation |
| Port | RS232 Serial Port |
Product Description
MY-112 Total Sulfur Analyzer Diesel Fuel Oil Sulfur Content Testing Equipment for Laboratory
Product Description
MY-112 Sulfur in Petroleum and Petroleum Products by Energy Dispersive X-ray Fluorescence Spectrometry (XRF):
Sulfur content analyzer adopts X-ray fluorescence spectrometry to determine the total sulfur in petroleum and petroleum products. The test samples can include diesel fuel, jet fuel, kerosene, naphtha, residual oil, lubricating base oil, hydraulic oil, crude oil, unleaded gasoline, gasohol, biodiesel, and similar petroleum products.
Sulfur analyzer is in line with the relevant requirements of national standards GB/T 17040 and GB 11140, and fully comply with the requirements of the more stringent US national standard ASTM D4294-03.
Basic Info.
Model NO.
MY-112
Max Diameter of Workpiece
<500mm
Mass Scope of Workpiece
<900kg
Type
Universal Testing Machine
Maxcapacity
<1000KN
Accuracy Grade
0.5
Display
Digital
Weight
0-100Kg
Power Source
AC220V
Communication Port
RS232 Serial Port
ISO 8754
Sulfur in Fuel Analysis to ASTM D4294, ISO8754
Detection Limit
10 Ppm
Touch Screen
8-Inch (1024*768)Capacitive Touch Screen
Oil Sample Quantity
3 Ml
Sulfur in Oil
ASTM D4294 Sulfur Content Tester
Measurement Time
It Can Be Set to 30s or 60s or 90s or 120s or 150s
Measurement Range
10ppm to 5%
Calibration Curve Numbers
It Can Save 10 Calibration Curves
ASTM D4294
X-ray Fluorescence Oil Sulfur Analyzer
Transport Package
Wooden Case or as Required
Specification
Refer to ASTM D4294 and ISO 8754
Trademark
MINGYANG
Origin
Hubei of China
HS Code
9031809090
Production Capacity
100sets/Month

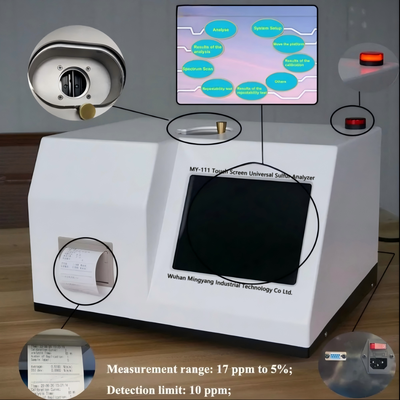

Features
(1) The sulfur content analyzer adopts an integrated design of electrical, mechanical, and microprocessor components, resulting in a compact and aesthetically pleasing appearance.
(2) Sulfur content analyzer can measure a wide range of products, offering a fast analysis speed and requiring only a small number of standard samples.
(3) The sulfur content analyzer uses fluorescence intensity ratio analysis, automatically correcting for temperature and pressure, and adjusting for the carbon-hydrogen ratio (C/H).

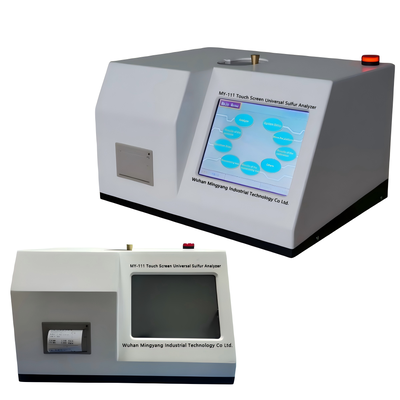

(4) The sulfur content analyzer is equipped with an 8-inch (1024*768) capacitive touchscreen.
(5) The EDXRF sulfur analyzer can determine its operating status and electrical parameters through repeatability testing and spectral scanning using reference samples.

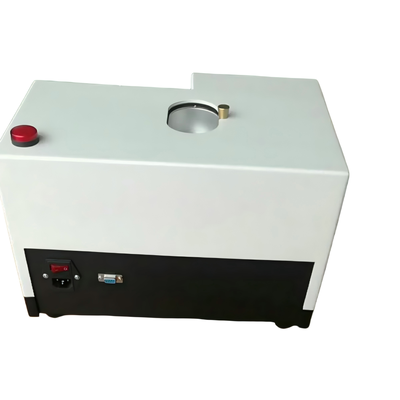

(6) The sulfur content analyzer is equipped with an RS232 serial port, allowing connection to any computer.

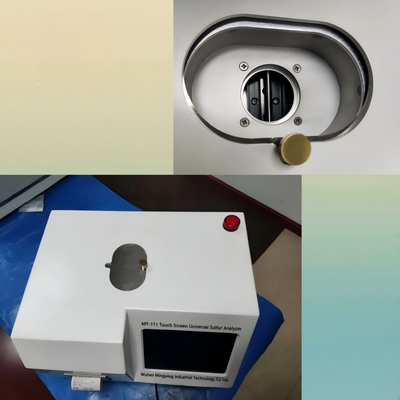

(7) The sulfur content analyzer uses disposable polyester film sample cells to avoid cross-contamination. The sample cells are made using a multi-functional pressure forming device, ensuring speed and convenience. A hole in the sample cell cover allows you to record the sample serial number, S% (m/m), and date.
(8) The sample rack is mounted on a slide rail for easy operation and to prevent contamination of the detection system.
(9) The EDXRF sulfur analyzer can store a large amount of test data. You can view test data and calibration curves at any time.
(10) The sulfur analyzer uses a thermal printer, making paper replacement very convenient.
(11) The sulfur content analyzer employs robust safety measures to prevent oil leakage. The sample cell is placed on a leak-proof device. The sample cell can only enter the detection system along with the leak-proof device during sample analysis. If the instrument is not in sample analysis mode, the leak-proof device will be removed, thus preventing contamination of the detection system.
(12) The sulfur content analyzer's safety X-ray protection measures protect personnel from X-ray radiation.
Product Parameters
Main Parameters:
| 1 | Measurement range | 20 ppm to 5% |
| 2 | Repeatability (r) | <0.02894(S+0.1691) |
| 3 | Reproducibility (R) | <0.1215(S+0.05555) |
| 4 | Detection limit | 10 ppm |
| 5 | Oil sample quantity | 3 ml (it is equal to sample depth of 3 mm~4 mm) |
| 6 | Measurement time | it can be set to 30s or 60s or 90s or 120s or 150s |
| 7 | It can make determination automatically for single sample. Replication times can set 1,2, 3, 5, 10 at random; it will show average value and standard deviation at end of measurement. | |
| 8 | Calibration curve numbers | it can save 10 calibration curves |
| 9 | Working condition |
a. Ambient temperature: 5~30ºC b. Relative humidity: ≤85% (30 ºC) |
| 10 | Power supply | AC 220V±20V, 50 Hz/60Hz; Rated power: 50 W |
| 11 | Size and weight | 460mm*260mm*260mm, 12 kg |
