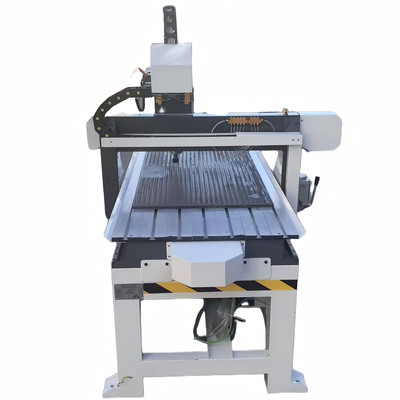

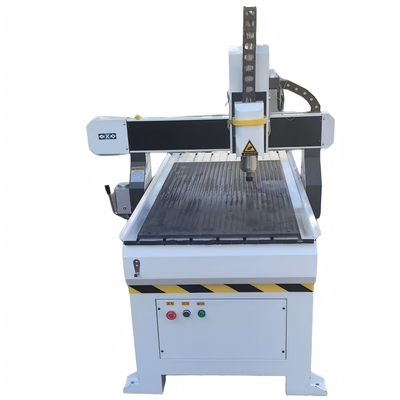

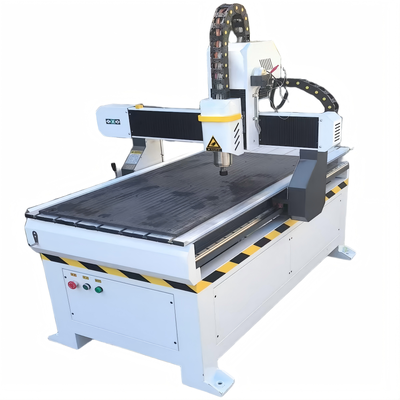

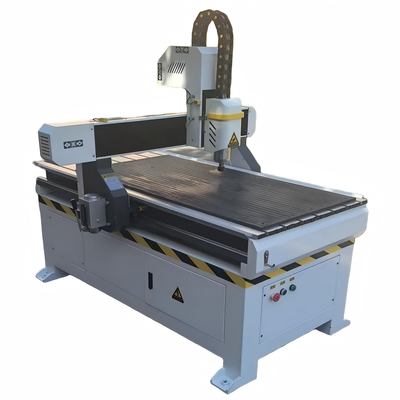

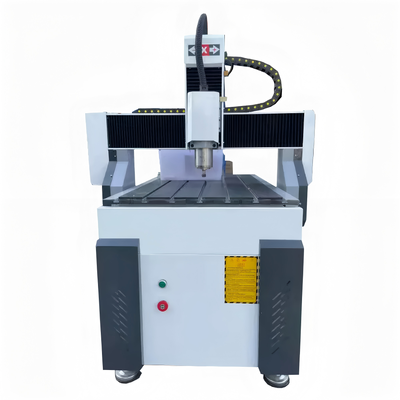

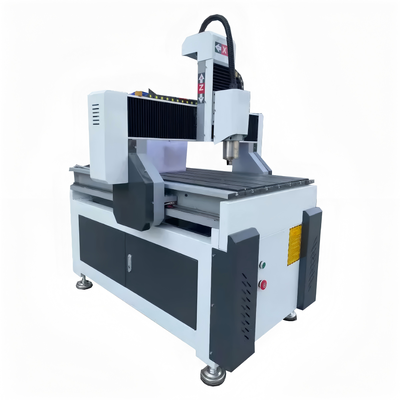

MY-116 CNC Router Machine, 3 Axis Advertising CNC Engraving Machine for Wood PVC Acrylic Metal
| Place of Origin | China Mainland |
|---|---|
| Brand Name | MINGYANG |
| Model Number | MY-116 |
| Minimum Order Quantity | 1 |
| Price | 2000usd |
| Packaging Details | carton |
| Delivery Time | 1 week |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 200/Month |
Product Details
| Types | Automatic | Working Area | 600×900×200mm |
|---|---|---|---|
| Spindle | 2.2KW Water Cooling Spindle | Positioning Accuracy | ±0.01mm/2000mm |
| Worktable | T-slot Table / Vacuum Table Optional | Vacuum Pump | 5.5KW Air Cooling Vacuum Pump |
| Guide & Transmission | Taiwan TBI Ball Screw & Rack Pinion | Max Rapid Speed | 50000mm/min |
| Max Working Speed | 30000mm/min | Spindle Rotation Speed | 0–24000RPM |
| Drive Mode | Stepper Motor | Power Voltage | 220V/380V,50Hz |
| Support Code | G Code | Control System | DSP, NC Studio, Syntec, Mach3 |
| Compatible Software | Artcam, Ucancam, Type3 | Working Temperature | 0~45℃ |
| Relative Humidity | 30%~75% | Lubrication Mode | Manual Oil Lubrication |
| Body Structure | Welded Frame | Weight | 700KG |
| Warranty | 1 Year | Brand | MINGYANG |
| HS Code | 8465990000 | Origin | Hubei, China |
Product Description
MY-116 CNC Router Machine, 3 Axis Advertising CNC Engraving Machine for Wood PVC Acrylic Metal
Product Description
Feature:
- Whole machine is cast iron structure,the stabilty is excellent,not easy to be deformed.
- Three axes adopted ball screw and linear orbit,stable working,high precision and long using life.
- X Y axis is dust proof,it makes sure the stady working performance of the machine for long-term using.
- DSP control system with USB port,just need the hdesktop andle to operate the machine,easy and convenient.
- With T.slot working table,holding the materials with clamps,you can do variety of high precision works.
Basic Info.
Model NO.
MY-116
CNC or Not
CNC
Voltage
220V
Product Name
CNC Table for DIY CNC Router 6040 6090 CNC
Z Axis Transmission
Ball Screw
Spindle
2.2kw Water Cooling Spindle
Working Area
600X900X200mm
Control System
DSP
Inverter
Fuling
Table
T.Slot Table
Guide Rail
Taiwan Hiwin Square Guide Rail
Motor
Stepper
Weight
700kgs
Warranty
1 Year
Transport Package
Standard Plywood Package
Specification
600x900x200mm
Trademark
MINGYANG
Origin
Hubei, China
HS Code
8465990000
Production Capacity
200sets/Month
Technical Parameter:
| Parameters | Standard Specifications |
| X Y Z axis working area | 600x900x200mm |
| Spindle | 2.2kw water cooling spindle |
| X Y Z traveling positioning accuracy | +-0.01/2000mm |
| Table | T.slot table or vacuum table |
| Vacuum pump | air cooling 5.5kw pump |
| X Y Z rail and transmission | Taiwan TBI ball screw and gear rack |
| Max.rapid travel rate | 50000mm/min |
| Max.working speed | 30000mm/min |
| Spindle speed | 24000RPM |
| Driver motors | Stepper motor and driver |
| Working voltage | 220V/380V/50HZ |
| Command language | G code |
| Control system | DSP or NC studio/Syntec/Mach3 |
| Software compatibility | Option:Artcam,Ucancam,Type3 |
| Running environment | Temperature:0~45ºC Relative humidity:30%~75% |
| Oil system | handle |
| Frame structure | Welding structure |
- Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.
- Advertising industry:advertising materials such as PVC,acrylic,double color plate.
- Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.
- Metal industry:carving aluminum,copper,stainless steel and others.
Package Detail:
1)Outside package:Standard plywood package.
2)Inner package:Stretchy film and plastic film for humidity.
And we can package according yo your requests.
Delivery Detail:For standard machines,it will be 7-15 working days after payment:For non-standard machines and customized machines according to clients' specific requirements,it will be 20-30 working days after payment.
After Sale Service:
FAQ:
Q1 For offer the most suitable machine,how should i do?
Q2.If we don't know how to use the machine,you can teach us?
Yes,we will,if you come to China,we will offer you free training until you can use machine freely.And if you are busy,we will have the special engineer to your country,but you need bear some fee,like tickets and hotel and metal.
Q3.How about your after-sale service?
We offer you 24 hours service phone,skype,whatsapp and email.
Q4.How about your guarantee period?
One year and during the time,if you have any questions,we will solve it for free.
2)Inner package:Stretchy film and plastic film for humidity.
And we can package according yo your requests.
Delivery Detail:For standard machines,it will be 7-15 working days after payment:For non-standard machines and customized machines according to clients' specific requirements,it will be 20-30 working days after payment.
After Sale Service:
- Engineers available to service machinery overseas.
- 1 year guarantee for whole machine.
- Technical support by phone,email,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.
- You will be get free training advice towards our machine in our factory.
- If you need any component of the machine,we will provide the best price for you.
- Friendly English version manual and operation video CD disk
FAQ:
Q1 For offer the most suitable machine,how should i do?
- The exact materials you want to engraver/cut?(such as wood,acrylic,cloth,fabric,leather,metal...?)
- For the spindle power,may i know the cutting or engraving depth you want?
- The working area you demand?(such as max dimension of materials,width*length,1200*1200mm,1300*2500mm,2000*3000mm,etc)
- Do you want to engrave on planar&flat surface or round&curved surface?
Q2.If we don't know how to use the machine,you can teach us?
Yes,we will,if you come to China,we will offer you free training until you can use machine freely.And if you are busy,we will have the special engineer to your country,but you need bear some fee,like tickets and hotel and metal.
Q3.How about your after-sale service?
We offer you 24 hours service phone,skype,whatsapp and email.
Q4.How about your guarantee period?
One year and during the time,if you have any questions,we will solve it for free.
